Test Date: 2016-07-28 13:42
Analysis date: 2016-07-28 14:14
Analysis date: 2016-07-28 14:14
Chip 7
Pixel Map: C7
| NNotAlivePixels | Tot. Dead Pixels | 0 | |
| NDeadPixels | - N Dead Pixels | 0 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |
Address Decoding: C7

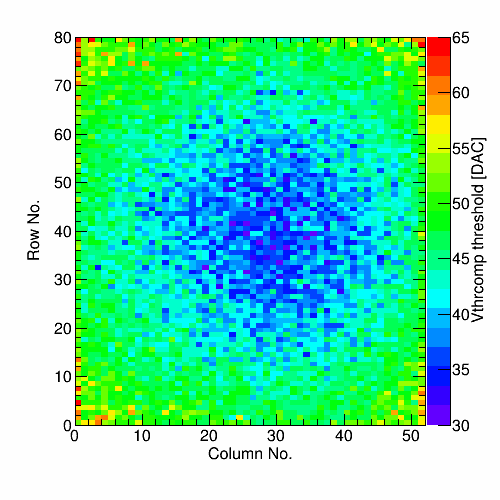

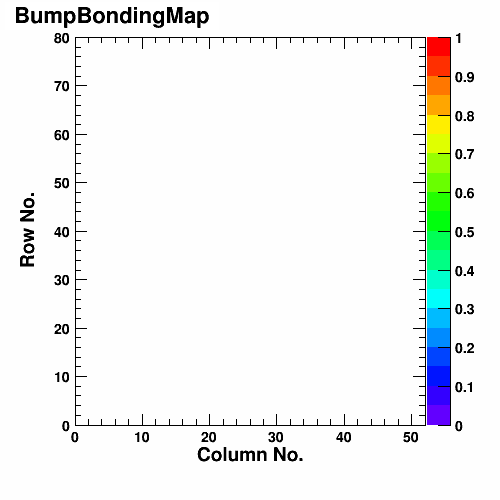

Bump Bonding: C7
| Mean | Mean | 44.67 | |
| RMS | RMS | 4.04 | |
| Threshold | Threshold | 65.0 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 0.0 | |
| nBumpBondingProblemsOld | N (old cut) | 0 |
Iana [ADC]/Iana [mA]
| FitFunction | fit | [0]+[1]*x+[2]*x**2 | |
| par0ia | par0ia | -5.969e+00 | |
| par1ia | par1ia | 3.894e+00 | |
| par2ia | par2ia | 2.431e-02 | |
| chi2ia | chi2/ndf | 1.52 |
Vdig [ADC]/Vdig [V]
| FitFunction | fit | [0]+[1]*x | |
| par0vd | par0vd | 3.836e+00 | |
| par1vd | par1vd | 6.256e+01 | |
| chi2vd | chi2/ndf | 0.48 |
Vana [ADC]/Vana [V]
| FitFunction | fit | [0]+[1]*x | |
| par0va | par0va | -9.962e-01 | |
| par1va | par1va | 6.272e+01 | |
| chi2va | chi2/ndf | 0.64 |
ReadbackCal
| par0vd | par0vd | 3.84e+00 | |
| par1vd | par1vd | 6.26e+01 | |
| par0va | par0va | -9.96e-01 | |
| par1va | par1va | 6.27e+01 | |
| par0rbia | par0rbia | 8.93e+00 | |
| par1rbia | par1rbia | 1.04e+00 | |
| par0tbia | par0tbia | 4.41e+00 | |
| par1tbia | par1tbia | 2.28e-01 | |
| par2tbia | par2tbia | -1.28e-04 | |
| Vbg | Vbg | 1.228 | |
| par0ia | par0ia | -5.969e+00 | |
| par1ia | par1ia | 3.894e+00 | |
| par2ia | par2ia | 2.431e-02 | |
| ReadbackCalibrated | Calibrated | True |
