Test Date: 2016-07-28 13:42
Analysis date: 2016-07-28 14:14
Analysis date: 2016-07-28 14:14
Chip 15
Pixel Map: C15
| NNotAlivePixels | Tot. Dead Pixels | 0 | |
| NDeadPixels | - N Dead Pixels | 0 | |
| NNoisyPixels | - N Noisy Pixels | 0 | |
| NMaskDefects | - N Mask Defects | 0 | |
| NInefficentPixels | - N Inefficent Pixels | 0 |
Address Decoding: C15

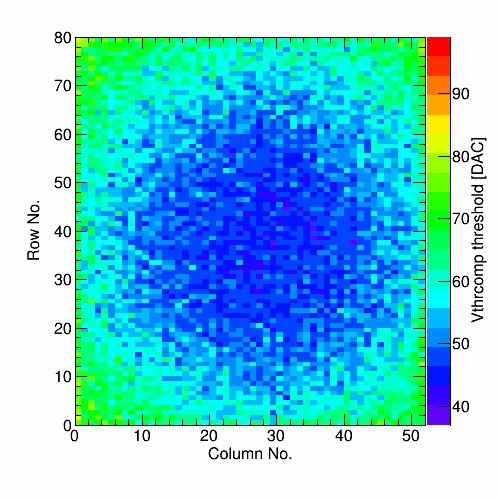

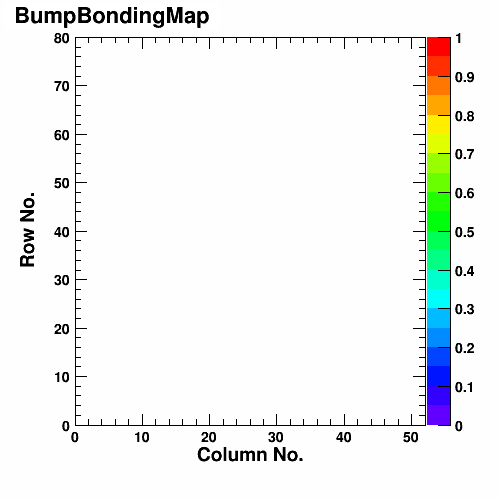

Bump Bonding: C15
| Mean | Mean | 51.82 | |
| RMS | RMS | 9.3 | |
| Threshold | Threshold | 99.0 | |
| nSigma | σ | 5.0 | |
| nBumpBondingProblems | N BumpProblems | 0.0 | |
| nBumpBondingProblemsOld | N (old cut) | 0 |
Iana [ADC]/Iana [mA]
| FitFunction | fit | [0]+[1]*x+[2]*x**2 | |
| par0ia | par0ia | -4.609e+00 | |
| par1ia | par1ia | 4.000e+00 | |
| par2ia | par2ia | 1.657e-02 | |
| chi2ia | chi2/ndf | 19.6 |
Vdig [ADC]/Vdig [V]
| FitFunction | fit | [0]+[1]*x | |
| par0vd | par0vd | 7.453e-01 | |
| par1vd | par1vd | 6.146e+01 | |
| chi2vd | chi2/ndf | 0.29 |
Vana [ADC]/Vana [V]
| FitFunction | fit | [0]+[1]*x | |
| par0va | par0va | -2.989e+00 | |
| par1va | par1va | 6.210e+01 | |
| chi2va | chi2/ndf | 0.34 |
ReadbackCal
| par0vd | par0vd | 7.45e-01 | |
| par1vd | par1vd | 6.15e+01 | |
| par0va | par0va | -2.99e+00 | |
| par1va | par1va | 6.21e+01 | |
| par0rbia | par0rbia | 1.67e+01 | |
| par1rbia | par1rbia | 1.09e+00 | |
| par0tbia | par0tbia | 4.81e+00 | |
| par1tbia | par1tbia | 2.68e-01 | |
| par2tbia | par2tbia | -2.19e-04 | |
| Vbg | Vbg | 1.219 | |
| par0ia | par0ia | -4.609e+00 | |
| par1ia | par1ia | 4.000e+00 | |
| par2ia | par2ia | 1.657e-02 | |
| ReadbackCalibrated | Calibrated | True |
MoReWeb-v1.0.2-10-gbc52a17 on branch master
