Test Date: 2015-10-27 09:40
Analysis date: 2015-10-27 10:41
X-ray Calibration - Spectrum
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
51.4445 |
|
| medianSlope |
median Slope |
52.169 |
|
| minSlope |
min Slope |
47.463 |
|
| maxSlope |
max Slope |
54.328 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-142.13275 |
|
| medianOffset |
median Offset |
-153.086 |
|
| minOffset |
min Offset |
-307.025 |
|
| maxOffset |
max Offset |
34.442 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
2.063125 |
|
| medianchi2 |
median chi2 |
0.307 |
|
| minchi2 |
min chi2 |
0.012 |
|
| maxchi2 |
max chi2 |
9.861 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
53.5 e- / Vcal
|
0.1 e- / Vcal
|
-82.8 e-
|
8.1 e-
|
|
1
|
49.9 e- / Vcal
|
0.3 e- / Vcal
|
-115.8 e-
|
30.2 e-
|
|
2
|
47.5 e- / Vcal
|
0.3 e- / Vcal
|
34.4 e-
|
33.3 e-
|
|
3
|
51.7 e- / Vcal
|
0.1 e- / Vcal
|
-162.8 e-
|
9.7 e-
|
|
4
|
52.7 e- / Vcal
|
0.3 e- / Vcal
|
-165.5 e-
|
38.4 e-
|
|
5
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-44.8 e-
|
12.7 e-
|
|
6
|
48.7 e- / Vcal
|
0.3 e- / Vcal
|
-82.7 e-
|
31.5 e-
|
|
7
|
51.0 e- / Vcal
|
0.1 e- / Vcal
|
-91.8 e-
|
11.7 e-
|
|
8
|
52.8 e- / Vcal
|
0.2 e- / Vcal
|
-173.1 e-
|
16.7 e-
|
|
9
|
54.3 e- / Vcal
|
0.1 e- / Vcal
|
-202.8 e-
|
11.0 e-
|
|
10
|
49.5 e- / Vcal
|
0.3 e- / Vcal
|
-45.0 e-
|
30.1 e-
|
|
11
|
53.9 e- / Vcal
|
0.4 e- / Vcal
|
-252.0 e-
|
41.5 e-
|
|
12
|
52.6 e- / Vcal
|
0.3 e- / Vcal
|
-307.0 e-
|
33.3 e-
|
|
13
|
49.8 e- / Vcal
|
0.3 e- / Vcal
|
-143.3 e-
|
39.2 e-
|
|
14
|
53.3 e- / Vcal
|
0.2 e- / Vcal
|
-180.9 e-
|
17.2 e-
|
|
15
|
53.3 e- / Vcal
|
0.3 e- / Vcal
|
-258.3 e-
|
35.0 e-
|
|
Average
|
51.4 e- / Vcal
|
|
-142.1 e-
|
|
|
Median
|
52.6 e- / Vcal
|
|
-143.3 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

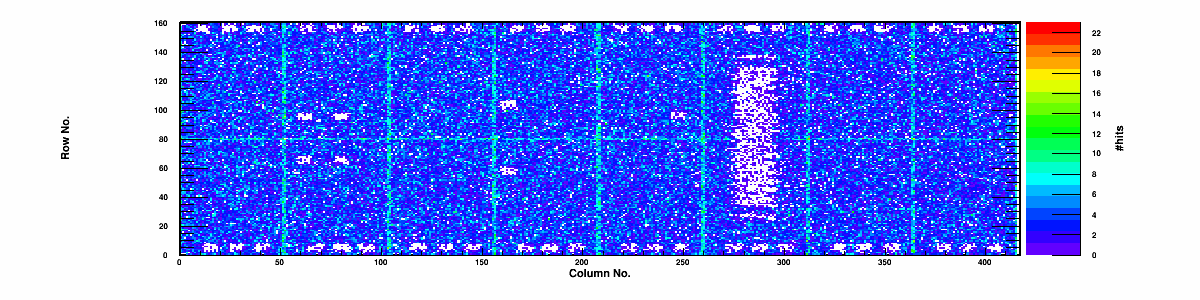

Hits distribution Zn inner/edge/corner

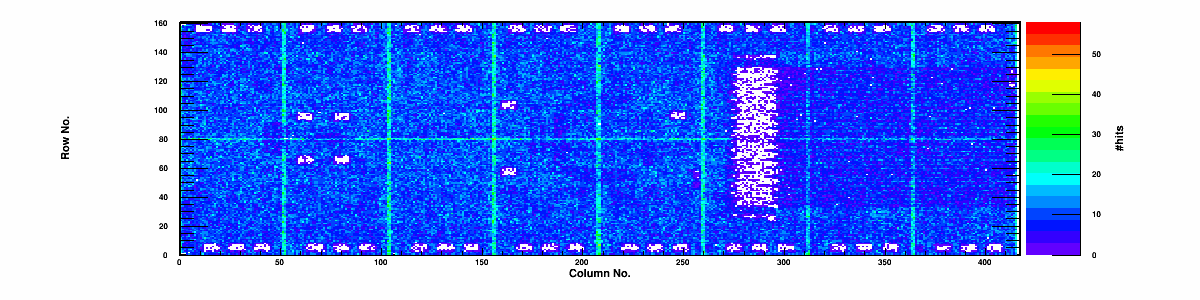

Hits distribution Mo inner/edge/corner

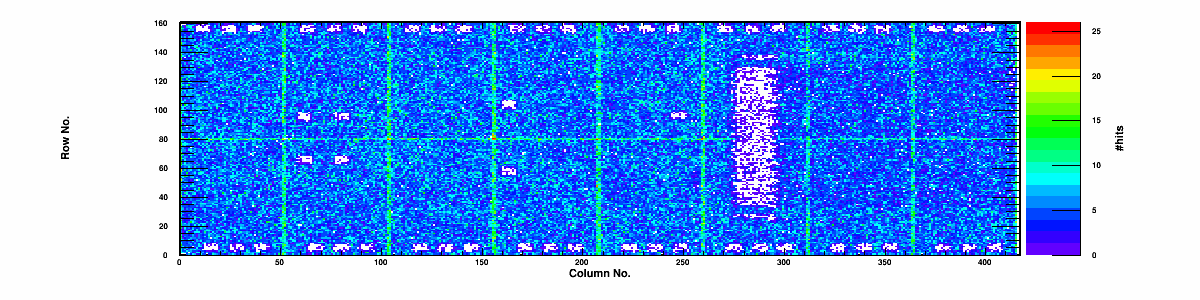

Hits distribution Ag inner/edge/corner

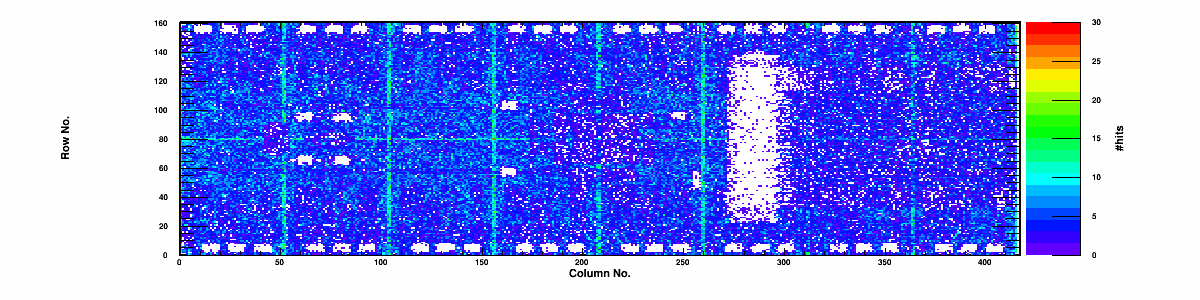

Hits distribution Sn inner/edge/corner
