Test Date: 2015-10-01 15:09
Analysis date: 2015-10-26 20:04
M3022 XRayHRQualification
Chips

Overview

Summary
Module Module M3022
Grade Grade A
ManualGrade Manual Grade None
ROCGrades ROC Grades A/B/C 16/0/0
PixelDefects Total Pixel Defects 10
BumpBondingDefects Bump Bonding Defects 10
NoisyPixels Noisy Pixels 0
HotPixelDefects Hot Pixels 0
ROCsWithReadoutProblems ROCs with r/o problems 0
ROCsWithUniformityProblems ROCs with unif problems 0
Efficiency Efficiency 50/120 99.85/99.16 %
Noise Mean Noise 164 e-
Summary ROCs
ROC Grade Defects Eff 50 Eff 120 Eff chi2 Rate "50" Rate "150" BB def RO prob Unif. prob Thr [e-] "10" Noise "10" Noisy pix
Chip 0
A
 0 99.86 99.11 0.89 47.9 120.5 0 0/0 0 1814 151 0
Chip 1
A
 0 99.86 99.24 0.64 48.9 123.7 0 0/0 0 1782 169 0
Chip 2
A
 0 99.84 99.30 0.35 43.3 108.9 0 0/0 0 1792 164 0
Chip 3
A
 1 99.84 99.26 1.07 68.2 171.0 1 0/0 0 1814 172 0
Chip 4
A
 0 99.85 99.02 0.47 67.3 168.8 0 0/0 0 1808 161 0
Chip 5
A
 3 99.89 99.31 1.01 78.3 195.9 3 0/0 0 1838 173 0
Chip 6
A
 1 99.87 99.31 0.51 73.0 182.9 1 0/0 0 1842 176 0
Chip 7
A
 0 99.90 99.34 1.16 76.2 190.1 0 0/0 0 1850 162 0
Chip 8
A
 2 99.85 99.35 0.96 73.0 183.1 2 0/0 0 1857 169 0
Chip 9
A
 0 99.82 99.27 1.13 69.7 174.5 0 0/0 0 1815 160 0
Chip 10
A
 0 99.83 99.05 0.59 76.6 192.4 0 0/0 0 1778 174 0
Chip 11
A
 0 99.82 98.99 1.22 66.3 165.6 0 0/0 0 1814 156 0
Chip 12
A
 0 99.86 99.00 1.15 64.2 161.0 0 0/0 0 1815 161 0
Chip 13
A
 2 99.85 98.97 0.42 42.2 106.3 2 0/0 0 1785 163 0
Chip 14
A
 0 99.83 99.03 0.62 46.0 115.8 0 0/0 0 1798 156 0
Chip 15
A
 1 99.86 99.03 0.81 44.8 113.3 1 0/0 0 1794 155 0
Efficiency at 50 MHz/cm2
Efficiency at 120 MHz/cm2
BB defects 50
BB defects 150
Noise 10

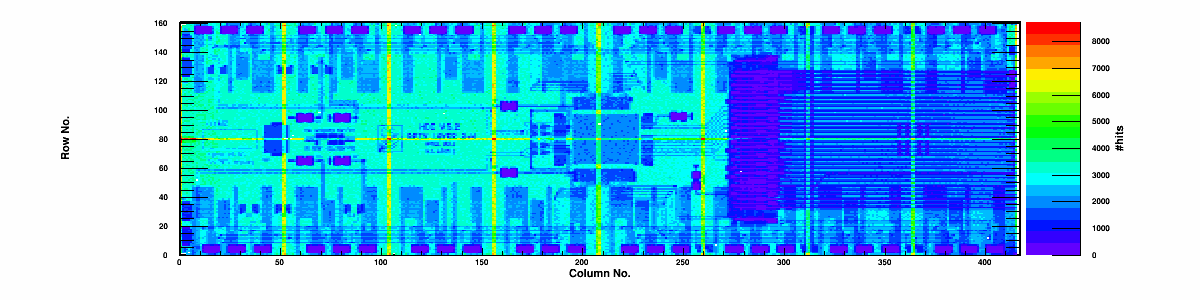

Hit Map 50
Hits distribution 50 inner/edge/corner
Hit Map 150
Hits distribution 150 inner/edge/corner
Bump Bonding Defects 50
BB defects 50
Bump Bonding Defects 150
BB defects 150
Masked Hot Pixels 50
Hot pixels 50
Masked Hot Pixels 150
Hot pixels 150
Threshold 10
Threshold distribution 10
Noise 10
Noise distribution 10
Pixel Alive Map
Dead/inefficient pixels
HR Efficiency Map 50
Efficiency distribution 50
HR Efficiency Map 100
Efficiency distribution 100
HR Efficiency Map 150
Efficiency distribution 150
Retrimmed Hot Pixels 0
Retri Hot Pix 0
Errors
nCriticals # Criticals 0
nErrors # Errors 18
nWarnings # Warnings 0
channel_0_count Channel 0 2
channel_1_count Channel 1 0
channel_2_count Channel 2 0
channel_3_count Channel 3 0
message_tokenchain_count Token Chain Length 2
message_eventid_count Event ID mismatch 0
message_readback_count Readback start marker 0
message_notokenpass_count has NoTokenPass 0
message_datasize_count Data size criticals 0
message_missingevents_count Missing Event criticals 0
message_usbtimeout_count USB criticals 0
message_deser400_count DESER400 failure 0
message_daqerror_count DAQ error 0
MoReWeb-v0.6.7-11-ga66536c on branch psi46master
