Test Date: 2015-10-26 18:02
Analysis date: 2015-10-26 19:56
Analysis date: 2015-10-26 19:56
M3019 XRayHRQualification
Summary
| Module | Module | M3019 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 51 | |
| BumpBondingDefects | Bump Bonding Defects | 34 | |
| NoisyPixels | Noisy Pixels | 17 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.19 | % |
| Noise | Mean Noise | 173 | e- |

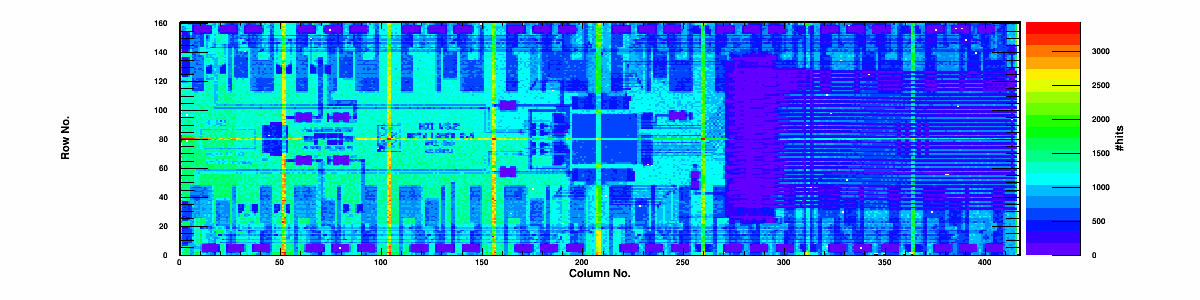

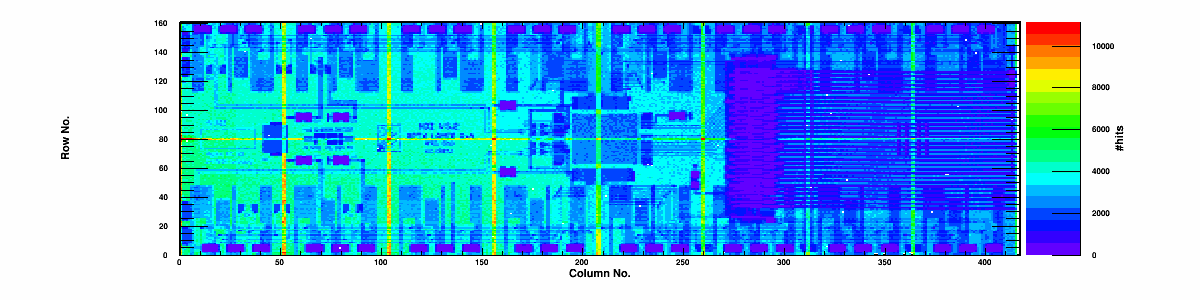

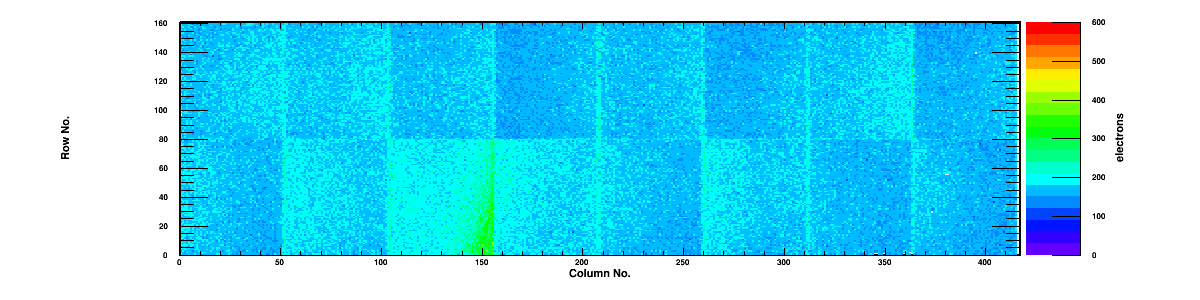

Summary ROCs
| ROC | Grade | Defects | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | RO prob | Unif. prob | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 99.87 | 98.95 | 0.24 | 12.6 | 43.2 | 3 | 0/0 | 0 | 1838 | 162 | 1 |
|
Chip 1
|
A
|
5 | 99.86 | 99.01 | 0.36 | 13.2 | 46.1 | 5 | 0/0 | 0 | 1880 | 176 | 0 |
|
Chip 2
|
A
|
1 | 99.87 | 99.29 | 0.22 | 10.8 | 38.4 | 1 | 0/0 | 0 | 1867 | 162 | 0 |
|
Chip 3
|
A
|
1 | 99.86 | 99.05 | 0.57 | 20.2 | 67.9 | 0 | 0/0 | 0 | 1910 | 170 | 1 |
|
Chip 4
|
A
|
1 | 99.87 | 99.25 | 0.40 | 20.6 | 69.9 | 1 | 0/0 | 0 | 1942 | 161 | 0 |
|
Chip 5
|
A
|
1 | 99.88 | 99.32 | 0.58 | 25.8 | 85.1 | 1 | 0/0 | 0 | 1981 | 170 | 0 |
|
Chip 6
|
A
|
1 | 99.88 | 99.38 | 0.44 | 24.3 | 81.1 | 1 | 0/0 | 0 | 1987 | 175 | 0 |
|
Chip 7
|
A
|
5 | 99.88 | 99.31 | 0.58 | 26.8 | 87.9 | 3 | 0/0 | 0 | 1913 | 173 | 2 |
|
Chip 8
|
A
|
3 | 99.86 | 99.29 | 0.58 | 29.8 | 97.5 | 1 | 0/0 | 0 | 1933 | 170 | 2 |
|
Chip 9
|
A
|
3 | 99.87 | 99.30 | 0.59 | 27.4 | 90.6 | 2 | 0/0 | 0 | 1931 | 180 | 1 |
|
Chip 10
|
A
|
3 | 99.88 | 99.34 | 0.54 | 29.7 | 96.8 | 3 | 0/0 | 0 | 1972 | 209 | 0 |
|
Chip 11
|
A
|
4 | 99.88 | 99.35 | 0.32 | 24.8 | 82.2 | 3 | 0/0 | 0 | 1940 | 186 | 1 |
|
Chip 12
|
A
|
4 | 99.84 | 99.03 | 0.71 | 21.7 | 72.7 | 4 | 0/0 | 0 | 1955 | 168 | 0 |
|
Chip 13
|
A
|
2 | 99.85 | 99.19 | 0.35 | 13.2 | 45.7 | 2 | 0/0 | 0 | 1881 | 178 | 0 |
|
Chip 14
|
A
|
10 | 99.85 | 98.98 | 0.39 | 14.0 | 48.8 | 4 | 0/0 | 0 | 1660 | 164 | 6 |
|
Chip 15
|
A
|
3 | 99.84 | 99.02 | 0.39 | 13.9 | 47.4 | 0 | 0/0 | 0 | 1781 | 163 | 3 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 16 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 0 | |
| message_eventid_count | Event ID mismatch | 0 | |
| message_readback_count | Readback start marker | 2 | |
| message_notokenpass_count | has NoTokenPass | 0 | |
| message_datasize_count | Data size criticals | 0 | |
| message_missingevents_count | Missing Event criticals | 0 | |
| message_usbtimeout_count | USB criticals | 0 | |
| message_deser400_count | DESER400 failure | 0 | |
| message_daqerror_count | DAQ error | 0 |
