Test Date: 2015-10-26 18:02
Analysis date: 2015-10-26 19:49
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
53.731875 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
53.731875 |
|
| medianSlope |
median Slope |
54.44 |
|
| minSlope |
min Slope |
49.565 |
|
| maxSlope |
max Slope |
57.023 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-89.754625 |
|
| medianOffset |
median Offset |
-81.2315 |
|
| minOffset |
min Offset |
-261.543 |
|
| maxOffset |
max Offset |
83.863 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
3.1754 |
|
| medianchi2 |
median chi2 |
0.634 |
|
| minchi2 |
min chi2 |
0.023 |
|
| maxchi2 |
max chi2 |
15.495 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
54.5 e- / Vcal
|
0.4 e- / Vcal
|
-144.1 e-
|
37.6 e-
|
|
1
|
51.2 e- / Vcal
|
0.3 e- / Vcal
|
-253.6 e-
|
33.9 e-
|
|
2
|
49.6 e- / Vcal
|
0.4 e- / Vcal
|
-86.8 e-
|
43.6 e-
|
|
3
|
55.0 e- / Vcal
|
0.3 e- / Vcal
|
-187.1 e-
|
34.2 e-
|
|
4
|
54.9 e- / Vcal
|
0.3 e- / Vcal
|
-23.6 e-
|
34.4 e-
|
|
5
|
50.6 e- / Vcal
|
0.3 e- / Vcal
|
83.9 e-
|
34.2 e-
|
|
6
|
54.4 e- / Vcal
|
0.1 e- / Vcal
|
-174.8 e-
|
10.1 e-
|
|
7
|
56.0 e- / Vcal
|
0.2 e- / Vcal
|
-49.6 e-
|
10.4 e-
|
|
8
|
55.7 e- / Vcal
|
0.2 e- / Vcal
|
41.8 e-
|
17.4 e-
|
|
9
|
55.5 e- / Vcal
|
0.3 e- / Vcal
|
-121.3 e-
|
33.8 e-
|
|
10
|
53.0 e- / Vcal
|
0.3 e- / Vcal
|
-139.7 e-
|
37.7 e-
|
|
11
|
57.0 e- / Vcal
|
0.4 e- / Vcal
|
-261.5 e-
|
36.1 e-
|
|
12
|
54.9 e- / Vcal
|
0.3 e- / Vcal
|
-19.4 e-
|
34.7 e-
|
|
13
|
54.2 e- / Vcal
|
0.4 e- / Vcal
|
40.1 e-
|
40.7 e-
|
|
14
|
50.7 e- / Vcal
|
0.2 e- / Vcal
|
-64.7 e-
|
13.9 e-
|
|
15
|
52.6 e- / Vcal
|
0.2 e- / Vcal
|
-75.7 e-
|
16.8 e-
|
|
Average
|
53.7 e- / Vcal
|
|
-89.8 e-
|
|
|
Median
|
54.5 e- / Vcal
|
|
-75.7 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview

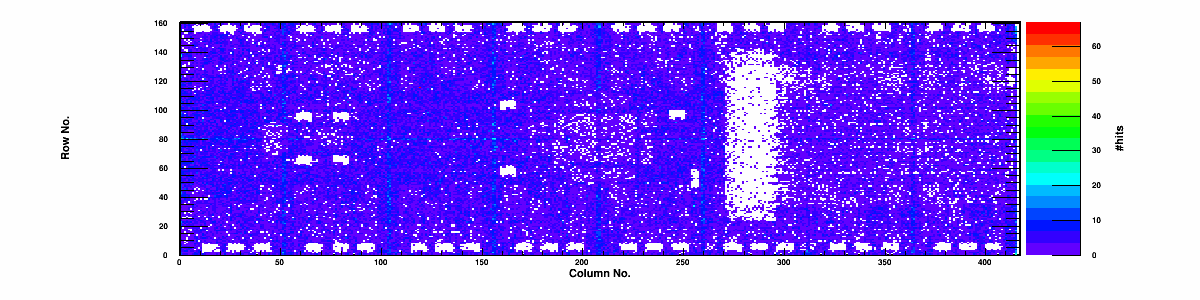

Hits distribution Zn inner/edge/corner

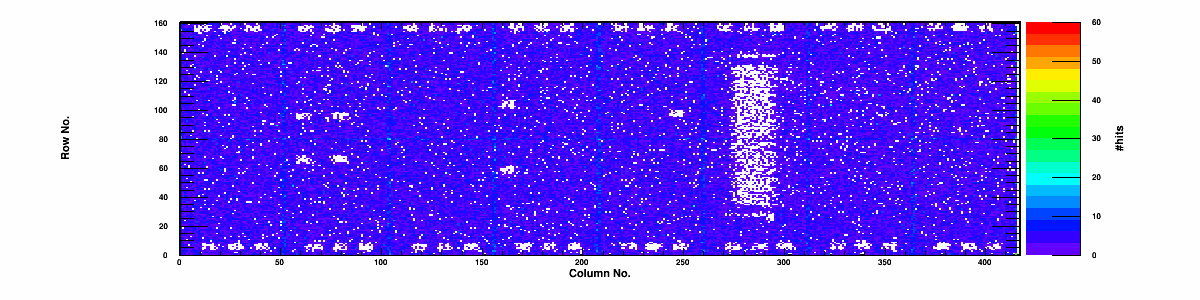

Hits distribution Mo inner/edge/corner

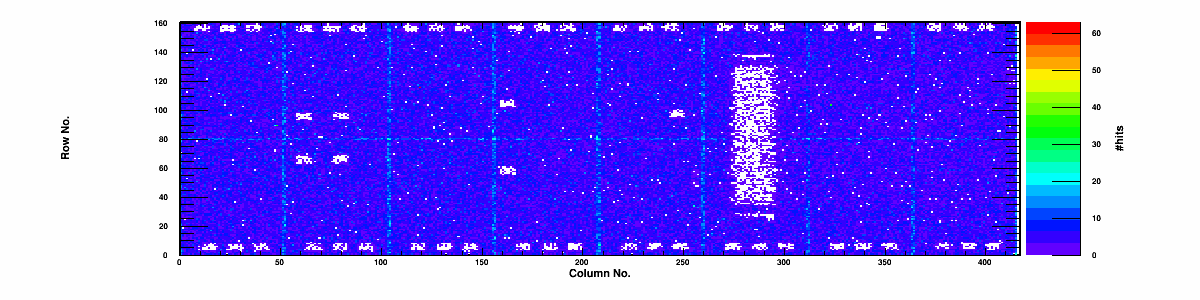

Hits distribution Ag inner/edge/corner

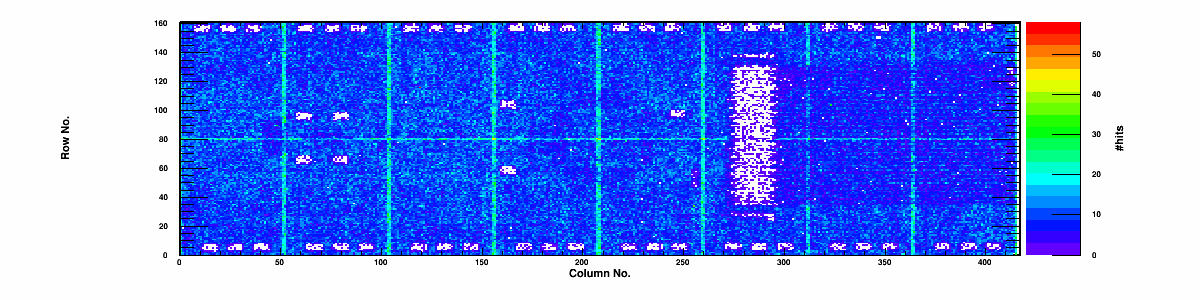

Hits distribution Sn inner/edge/corner
