Test Date: 2015-09-30 20:12
Analysis date: 2015-10-26 19:40
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
51.6474375 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
51.6474375 |
|
| medianSlope |
median Slope |
51.247 |
|
| minSlope |
min Slope |
47.766 |
|
| maxSlope |
max Slope |
54.642 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-47.389375 |
|
| medianOffset |
median Offset |
-59.2645 |
|
| minOffset |
min Offset |
-163.823 |
|
| maxOffset |
max Offset |
193.221 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
3.55773333333 |
|
| medianchi2 |
median chi2 |
0.449 |
|
| minchi2 |
min chi2 |
0.002 |
|
| maxchi2 |
max chi2 |
14.492 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
51.0 e- / Vcal
|
0.2 e- / Vcal
|
-89.0 e-
|
17.5 e-
|
|
1
|
53.5 e- / Vcal
|
0.2 e- / Vcal
|
-163.8 e-
|
14.5 e-
|
|
2
|
53.7 e- / Vcal
|
0.5 e- / Vcal
|
-52.8 e-
|
50.0 e-
|
|
3
|
54.6 e- / Vcal
|
0.1 e- / Vcal
|
-134.5 e-
|
9.1 e-
|
|
4
|
47.8 e- / Vcal
|
0.1 e- / Vcal
|
-21.8 e-
|
10.2 e-
|
|
5
|
48.3 e- / Vcal
|
0.1 e- / Vcal
|
-28.3 e-
|
10.2 e-
|
|
6
|
50.9 e- / Vcal
|
0.1 e- / Vcal
|
-86.5 e-
|
9.4 e-
|
|
7
|
54.0 e- / Vcal
|
0.1 e- / Vcal
|
-56.7 e-
|
11.3 e-
|
|
8
|
48.2 e- / Vcal
|
0.1 e- / Vcal
|
-19.6 e-
|
11.6 e-
|
|
9
|
51.1 e- / Vcal
|
0.1 e- / Vcal
|
-46.4 e-
|
9.9 e-
|
|
10
|
49.9 e- / Vcal
|
0.3 e- / Vcal
|
-61.8 e-
|
39.3 e-
|
|
11
|
51.2 e- / Vcal
|
0.1 e- / Vcal
|
-147.6 e-
|
12.8 e-
|
|
12
|
52.5 e- / Vcal
|
0.2 e- / Vcal
|
-71.8 e-
|
13.2 e-
|
|
13
|
54.6 e- / Vcal
|
0.5 e- / Vcal
|
183.2 e-
|
54.1 e-
|
|
14
|
53.9 e- / Vcal
|
0.2 e- / Vcal
|
-153.9 e-
|
15.2 e-
|
|
15
|
51.3 e- / Vcal
|
0.4 e- / Vcal
|
193.2 e-
|
46.0 e-
|
|
Average
|
51.6 e- / Vcal
|
|
-47.4 e-
|
|
|
Median
|
51.3 e- / Vcal
|
|
-56.7 e-
|
|
Overview

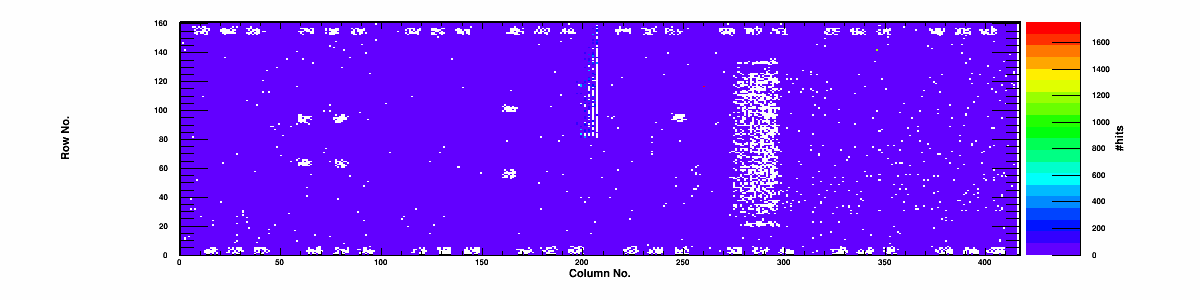

Xray Module Spectrum - Zn
Overview

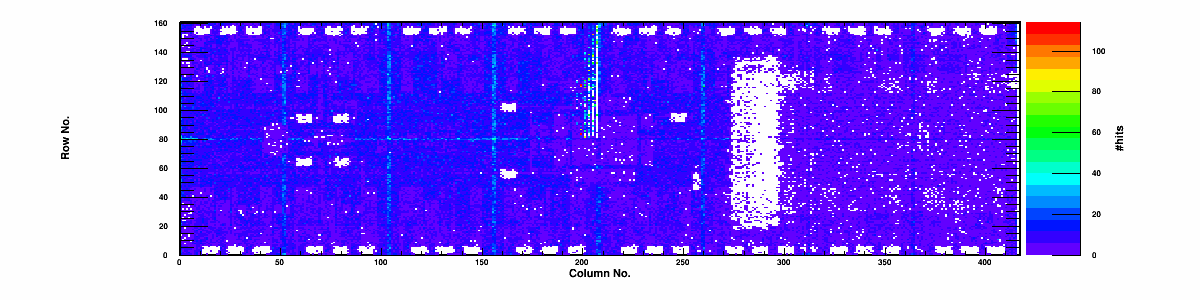

Xray Module Spectrum - Mo
Overview

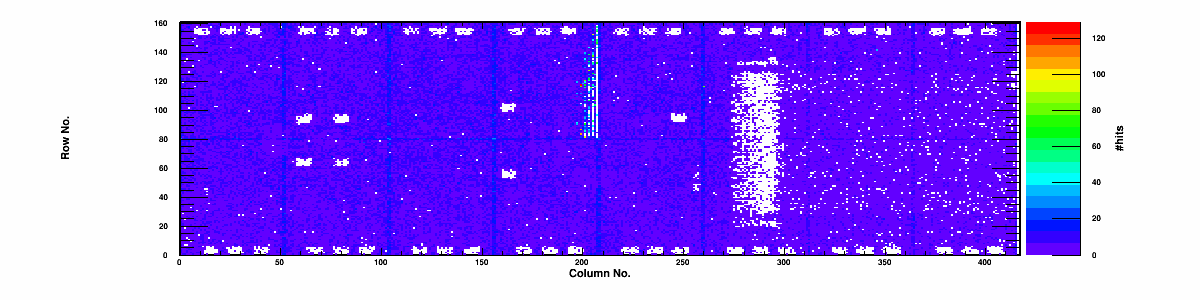

Xray Module Spectrum - Ag
Overview

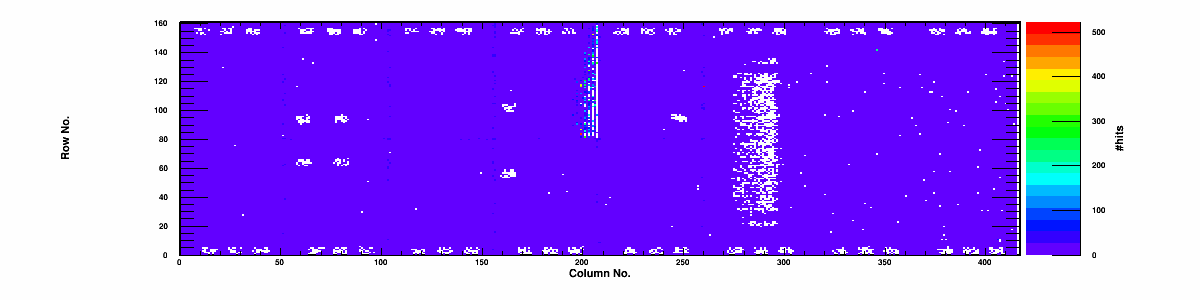

Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
