Test Date: 2016-10-11 09:45
Analysis date: 2016-10-11 11:26
Analysis date: 2016-10-11 11:26
M2358 XRayHRQualification
Summary
| Module | Module | M2358 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 28 | |
| BumpBondingDefects | Bump Bonding Defects | 28 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

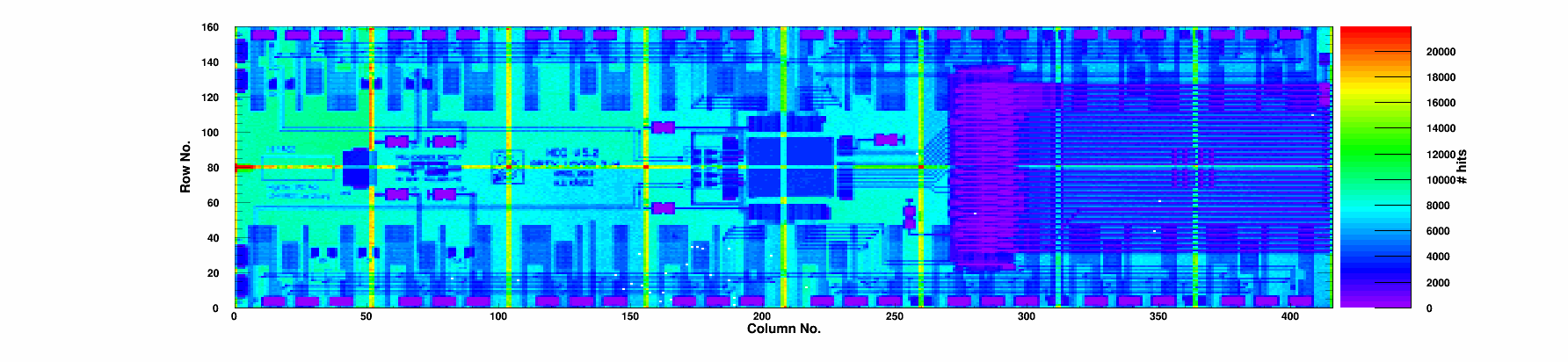

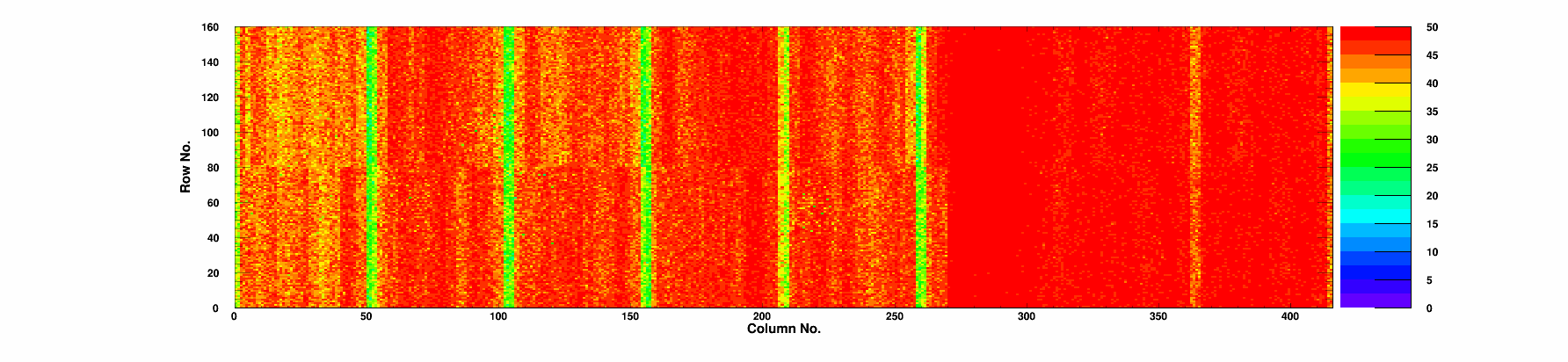

| Efficiency | Efficiency 50/120 | 99.85/99.22 | % |

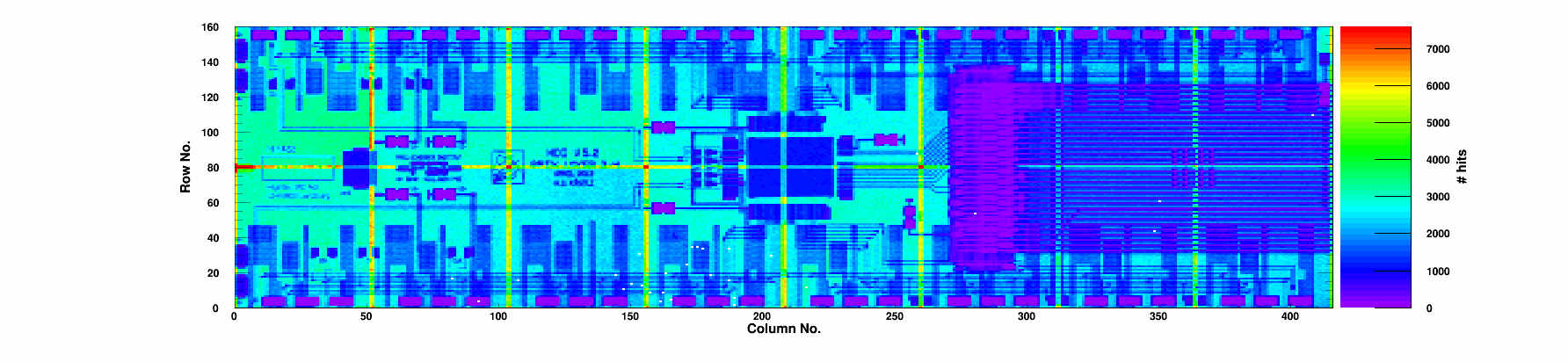

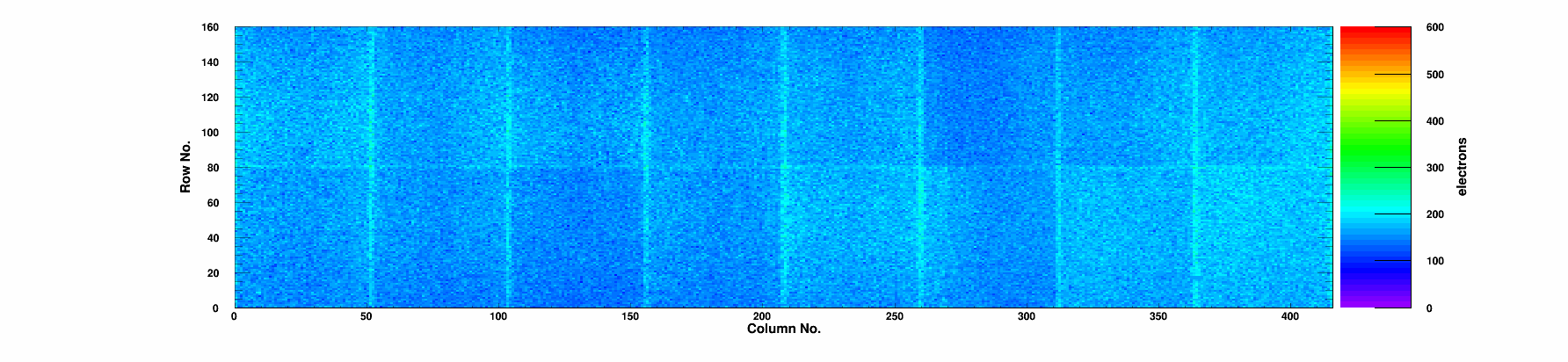

| Noise | Mean Noise | 162 | e- |

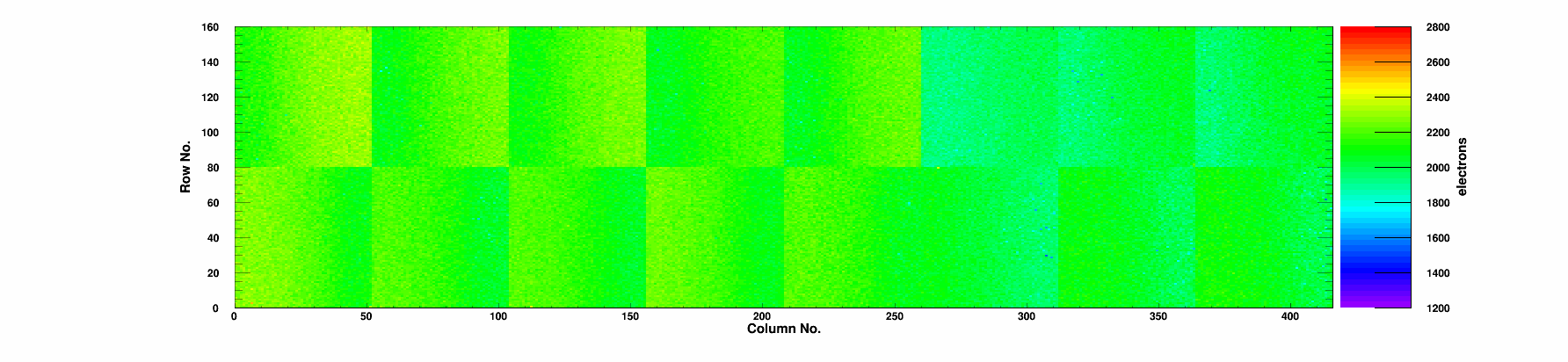

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.82 | 98.93 | 0.9 | 33.0 | 98.3 | 1 | 0/0 | 0 | 2011 | 172 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 98.95 | 0.82 | 32.1 | 96.8 | 0 | 0/0 | 0 | 2004 | 162 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.85 | 99.23 | 0.44 | 25.7 | 79.5 | 0 | 0/0 | 0 | 1961 | 149 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.82 | 99.01 | 0.62 | 50.5 | 148.3 | 1 | 0/0 | 0 | 2156 | 163 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.33 | 0.53 | 50.2 | 147.6 | 0 | 0/0 | 0 | 2133 | 158 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.85 | 99.27 | 0.73 | 63.2 | 182.7 | 0 | 0/0 | 0 | 2188 | 159 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.31 | 0.76 | 57.0 | 166.7 | 0 | 0/0 | 0 | 2171 | 163 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.26 | 0.58 | 66.9 | 196.2 | 0 | 0/0 | 0 | 2230 | 170 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.30 | 0.78 | 62.2 | 182.8 | 0 | 0/0 | 0 | 2195 | 159 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.87 | 99.29 | 0.52 | 54.7 | 161.2 | 1 | 0/0 | 0 | 2134 | 155 | 0 |
|
Chip 10
|
A
|
6 | 0 | 99.88 | 99.28 | 0.72 | 55.1 | 162.0 | 6 | 0/0 | 0 | 2138 | 148 | 0 |
|
Chip 11
|
A
|
15 | 0 | 99.87 | 99.30 | 0.57 | 52.7 | 155.2 | 15 | 0/0 | 0 | 2163 | 156 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.83 | 99.22 | 1.36 | 54.2 | 160.5 | 1 | 0/0 | 0 | 2143 | 169 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.84 | 99.24 | 0.67 | 28.9 | 88.8 | 1 | 0/0 | 0 | 2013 | 159 | 0 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.24 | 0.63 | 34.3 | 103.3 | 2 | 0/0 | 0 | 2045 | 171 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 99.31 | 0.56 | 35.8 | 106.5 | 0 | 0/0 | 0 | 2059 | 179 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-10-11 | |
| TestTime | Test Time | 09:45 | |
| TestDuration | Duration | 1:16:51 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 27 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 1 | |
| channel_1_count | Channel 1 | 2 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 3 |
MoReWeb-v1.0.4-4-g297680c on branch psi46master
