Test Date: 2016-09-27 17:30
Analysis date: 2016-09-27 19:31
Analysis date: 2016-09-27 19:31
M2347 XRayHRQualification
Summary
| Module | Module | M2347 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 4 | |
| BumpBondingDefects | Bump Bonding Defects | 3 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

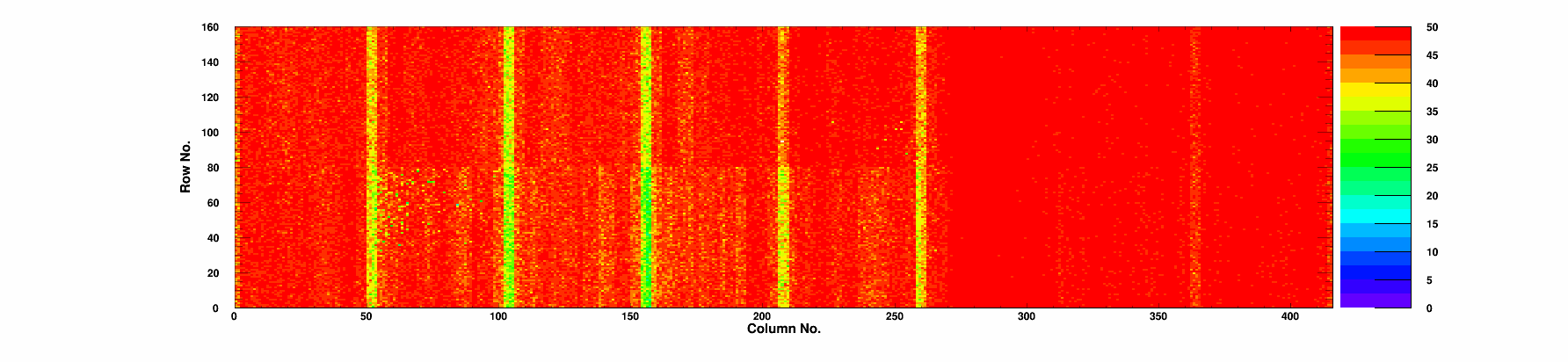

| Efficiency | Efficiency 50/120 | 99.85/99.08 | % |
| Noise | Mean Noise | 167 | e- |
Summary ROCs

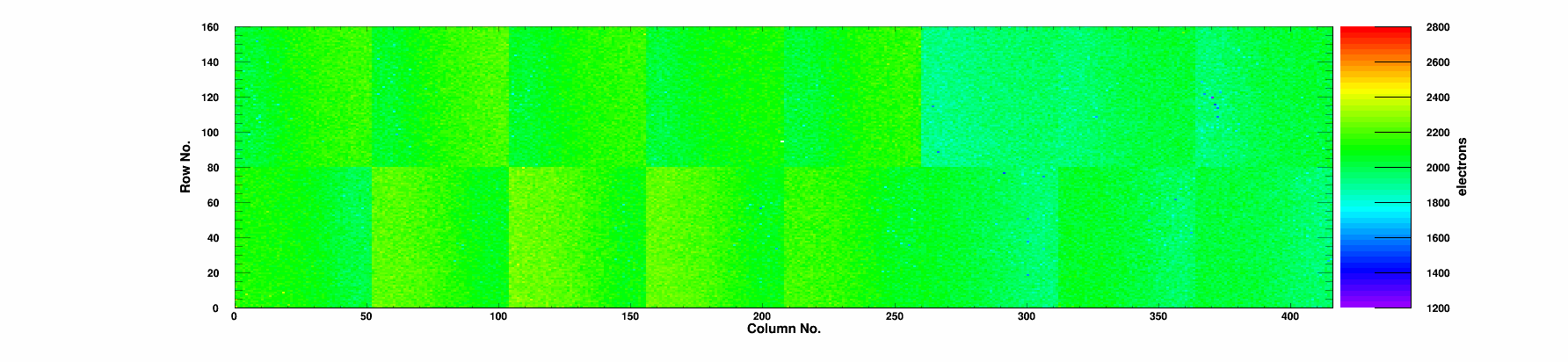

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.04 | 0.48 | 23.6 | 70.7 | 0 | 0/0 | 0 | 1994 | 176 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.82 | 99.00 | 0.66 | 23.5 | 71.1 | 1 | 0/0 | 0 | 1991 | 163 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.01 | 0.56 | 19.8 | 60.5 | 0 | 0/0 | 0 | 1942 | 169 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.27 | 0.67 | 38.5 | 113.4 | 0 | 0/0 | 0 | 2096 | 174 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.83 | 98.94 | 0.81 | 39.5 | 117.1 | 0 | 0/0 | 0 | 2040 | 168 | 1 |
|
Chip 5
|
A
|
0 | 0 | 99.85 | 99.00 | 0.86 | 43.9 | 128.2 | 0 | 0/0 | 0 | 2106 | 159 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.27 | 0.49 | 46.0 | 135.5 | 0 | 0/0 | 0 | 2125 | 169 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.18 | 0.73 | 43.4 | 127.7 | 0 | 0/0 | 0 | 2109 | 164 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.24 | 0.65 | 42.3 | 125.7 | 0 | 0/0 | 0 | 2075 | 158 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.82 | 99.14 | 1.61 | 50.8 | 148.6 | 0 | 0/0 | 0 | 2149 | 165 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.86 | 99.20 | 1.01 | 54.2 | 157.2 | 1 | 0/0 | 0 | 2175 | 166 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.84 | 98.94 | 0.97 | 46.8 | 138.1 | 0 | 0/0 | 0 | 2158 | 162 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 99.00 | 0.93 | 42.8 | 125.7 | 0 | 0/0 | 0 | 2119 | 173 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.28 | 0.43 | 23.6 | 71.4 | 0 | 0/0 | 0 | 1998 | 168 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.82 | 98.97 | 0.62 | 27.9 | 83.2 | 1 | 0/0 | 0 | 2013 | 174 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.83 | 98.88 | 0.72 | 25.8 | 76.3 | 0 | 0/0 | 0 | 1993 | 159 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-27 | |
| TestTime | Test Time | 17:30 | |
| TestDuration | Duration | 1:17:22 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.4-4-g297680c on branch psi46master
