Test Date: 2016-09-27 17:30
Analysis date: 2016-09-27 19:26
Analysis date: 2016-09-27 19:26
M2339 XRayHRQualification
Summary
| Module | Module | M2339 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 14 | |
| BumpBondingDefects | Bump Bonding Defects | 14 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

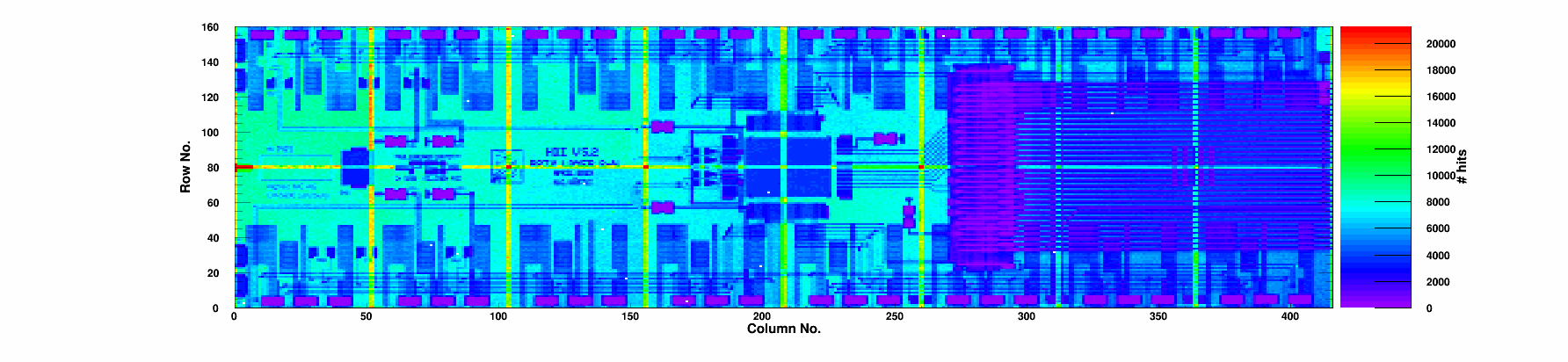

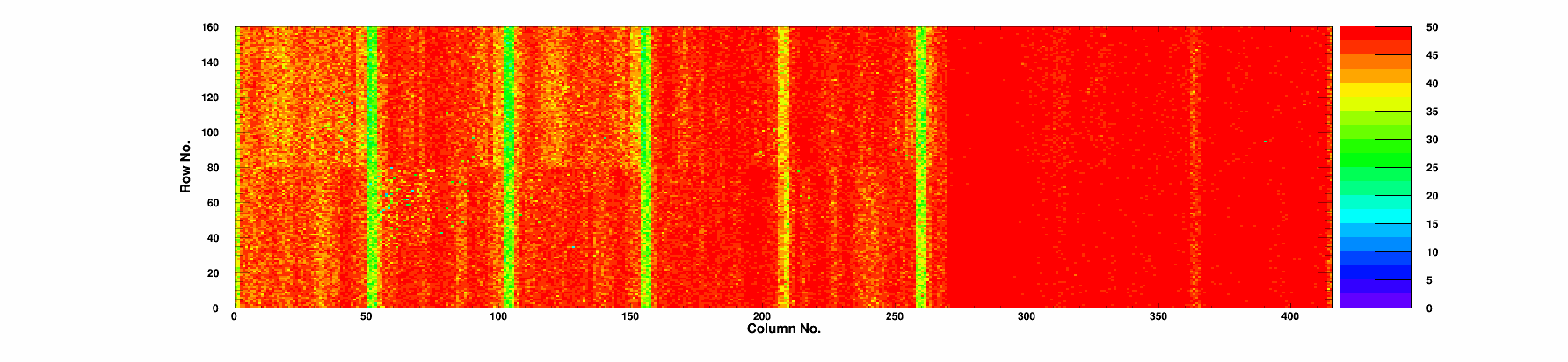

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 161 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.24 | 0.76 | 29.6 | 88.2 | 0 | 0/0 | 0 | 1996 | 164 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.85 | 99.13 | 0.66 | 31.2 | 93.9 | 1 | 0/0 | 0 | 2011 | 169 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.83 | 98.95 | 0.82 | 27.8 | 84.8 | 1 | 0/0 | 0 | 1967 | 166 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.31 | 0.43 | 49.1 | 142.7 | 0 | 0/0 | 0 | 2127 | 162 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.29 | 0.54 | 48.8 | 143.2 | 0 | 0/0 | 0 | 2107 | 156 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.86 | 99.31 | 0.52 | 62.6 | 179.9 | 1 | 0/0 | 0 | 2204 | 156 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.85 | 99.35 | 0.92 | 55.8 | 163.3 | 1 | 0/0 | 0 | 2172 | 155 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.83 | 99.28 | 0.98 | 65.1 | 189.2 | 0 | 0/0 | 0 | 2203 | 161 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.85 | 99.31 | 0.61 | 59.3 | 173.7 | 1 | 0/0 | 0 | 2172 | 159 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.86 | 99.19 | 2.24 | 55.5 | 162.4 | 2 | 0/0 | 0 | 2161 | 159 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.86 | 99.29 | 1.17 | 54.4 | 158.3 | 3 | 0/0 | 0 | 2152 | 152 | 0 |
|
Chip 11
|
A
|
3 | 0 | 99.88 | 99.30 | 0.42 | 46.6 | 137.8 | 3 | 0/0 | 0 | 2110 | 157 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.30 | 0.78 | 51.0 | 149.6 | 0 | 0/0 | 0 | 2136 | 167 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.86 | 99.33 | 0.4 | 26.9 | 82.7 | 1 | 0/0 | 0 | 1990 | 166 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.19 | 0.5 | 27.3 | 83.4 | 0 | 0/0 | 0 | 1985 | 159 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.87 | 99.29 | 0.43 | 28.8 | 86.2 | 0 | 0/0 | 0 | 2013 | 166 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-27 | |
| TestTime | Test Time | 17:30 | |
| TestDuration | Duration | 1:17:22 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 85 | |
| nWarnings | # Warnings | 20 | |
| channel_0_count | Channel 0 | 5 | |
| channel_1_count | Channel 1 | 6 | |
| channel_2_count | Channel 2 | 5 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 4 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 16 |
MoReWeb-v1.0.4-4-g297680c on branch psi46master
