Test Date: 2016-09-29 13:35
Analysis date: 2016-09-29 14:56
X-ray Calibration - Spectrum
| Slope |
avrg Slope |
47.0880625 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
47.0880625 |
|
| medianSlope |
median Slope |
47.1795 |
|
| minSlope |
min Slope |
44.378 |
|
| maxSlope |
max Slope |
49.095 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-106.5931875 |
|
| medianOffset |
median Offset |
-113.5495 |
|
| minOffset |
min Offset |
-291.244 |
|
| maxOffset |
max Offset |
48.045 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
2.3095625 |
|
| medianchi2 |
median chi2 |
0.253 |
|
| minchi2 |
min chi2 |
0.001 |
|
| maxchi2 |
max chi2 |
11.031 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-88.0 e-
|
8.7 e-
|
|
1
|
45.9 e- / Vcal
|
0.1 e- / Vcal
|
-138.2 e-
|
8.5 e-
|
|
2
|
47.8 e- / Vcal
|
0.1 e- / Vcal
|
-116.9 e-
|
9.8 e-
|
|
3
|
48.2 e- / Vcal
|
0.2 e- / Vcal
|
6.0 e-
|
18.6 e-
|
|
4
|
46.4 e- / Vcal
|
0.1 e- / Vcal
|
-168.7 e-
|
18.5 e-
|
|
5
|
46.2 e- / Vcal
|
0.1 e- / Vcal
|
-26.7 e-
|
6.9 e-
|
|
6
|
47.4 e- / Vcal
|
0.2 e- / Vcal
|
-291.2 e-
|
21.1 e-
|
|
7
|
47.1 e- / Vcal
|
0.2 e- / Vcal
|
-110.2 e-
|
18.5 e-
|
|
8
|
49.1 e- / Vcal
|
0.1 e- / Vcal
|
-123.6 e-
|
8.1 e-
|
|
9
|
47.3 e- / Vcal
|
0.1 e- / Vcal
|
48.0 e-
|
6.8 e-
|
|
10
|
46.9 e- / Vcal
|
0.2 e- / Vcal
|
-174.3 e-
|
21.1 e-
|
|
11
|
44.4 e- / Vcal
|
0.2 e- / Vcal
|
-48.4 e-
|
21.9 e-
|
|
12
|
46.5 e- / Vcal
|
0.2 e- / Vcal
|
-214.6 e-
|
19.1 e-
|
|
13
|
46.3 e- / Vcal
|
0.2 e- / Vcal
|
-4.5 e-
|
19.8 e-
|
|
14
|
47.5 e- / Vcal
|
0.2 e- / Vcal
|
-168.6 e-
|
21.4 e-
|
|
15
|
47.9 e- / Vcal
|
0.1 e- / Vcal
|
-85.5 e-
|
8.7 e-
|
|
Average
|
47.1 e- / Vcal
|
|
-106.6 e-
|
|
|
Median
|
96.1 e- / Vcal
|
|
-233.8 e-
|
|
Overview
Xray Module Spectrum - Zn
Overview
Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview

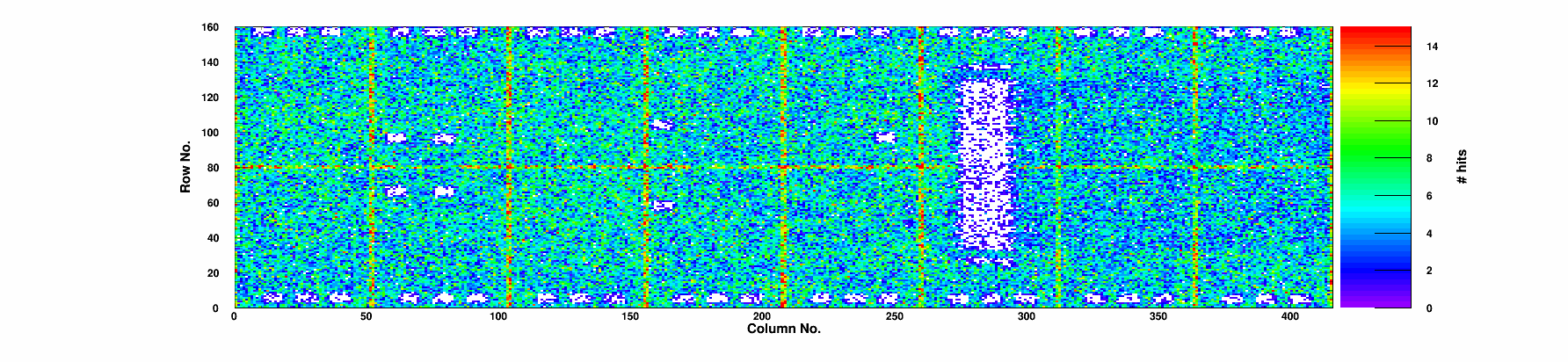

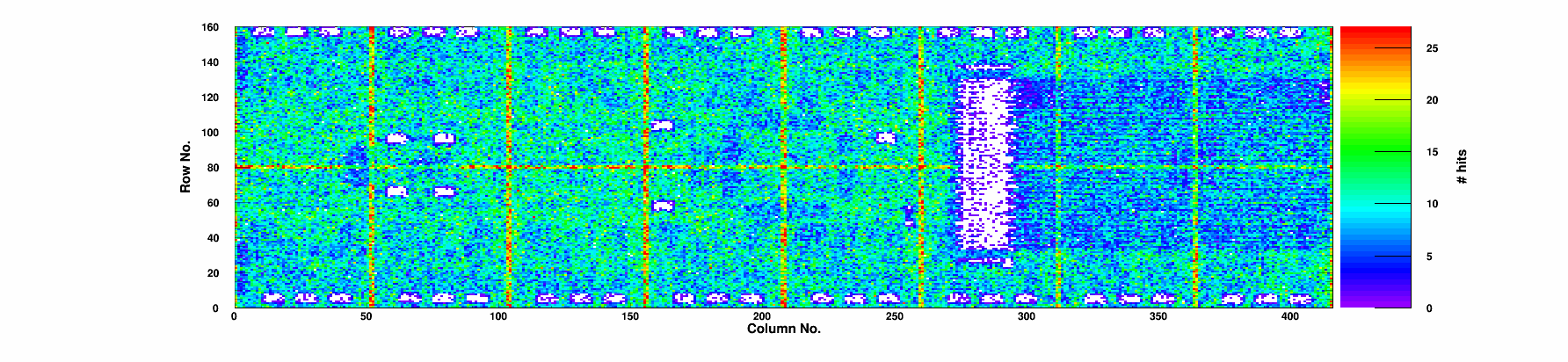

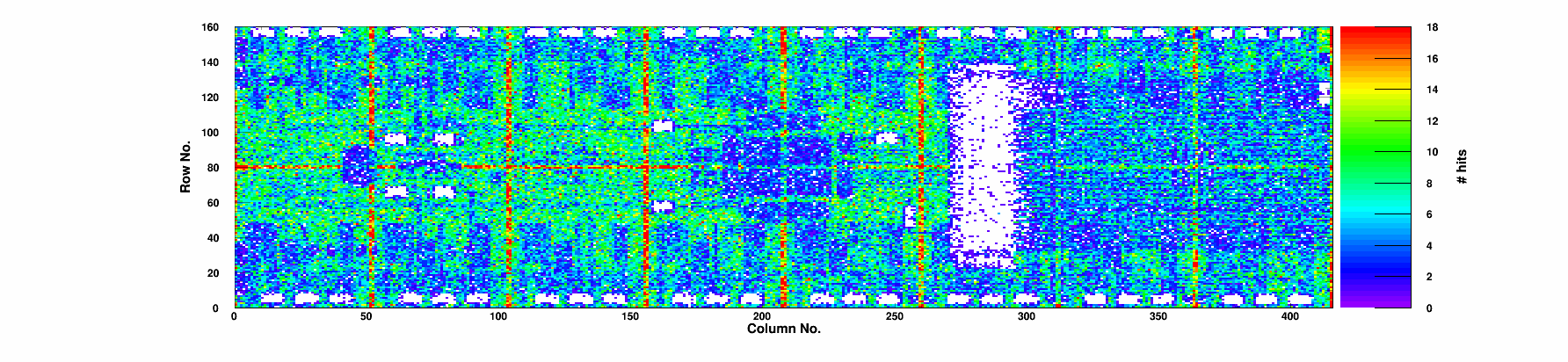

Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
