Test Date: 2016-09-29 13:35
Analysis date: 2016-09-29 14:53
Analysis date: 2016-09-29 14:53
M2335 XRayHRQualification
Summary
| Module | Module | M2335 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 34 | |
| BumpBondingDefects | Bump Bonding Defects | 34 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

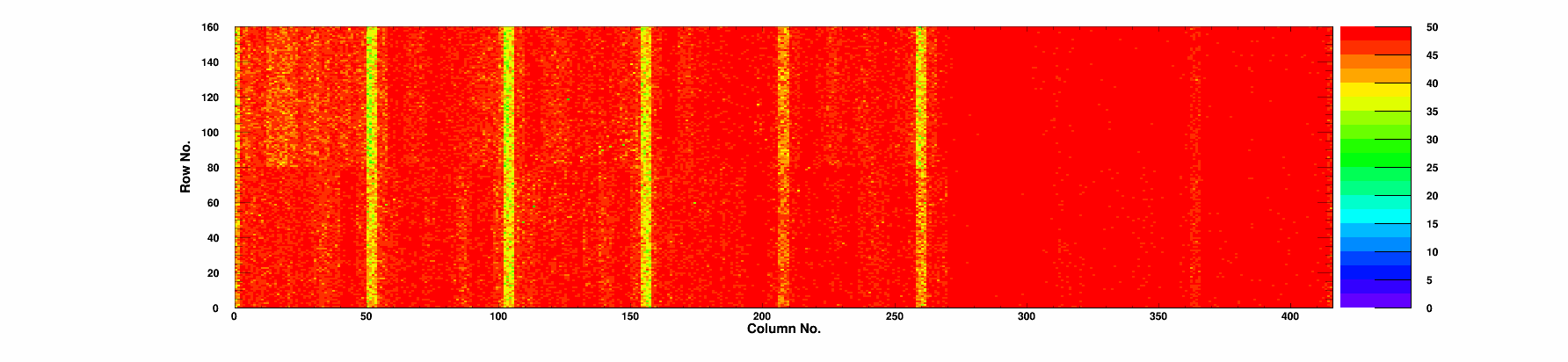

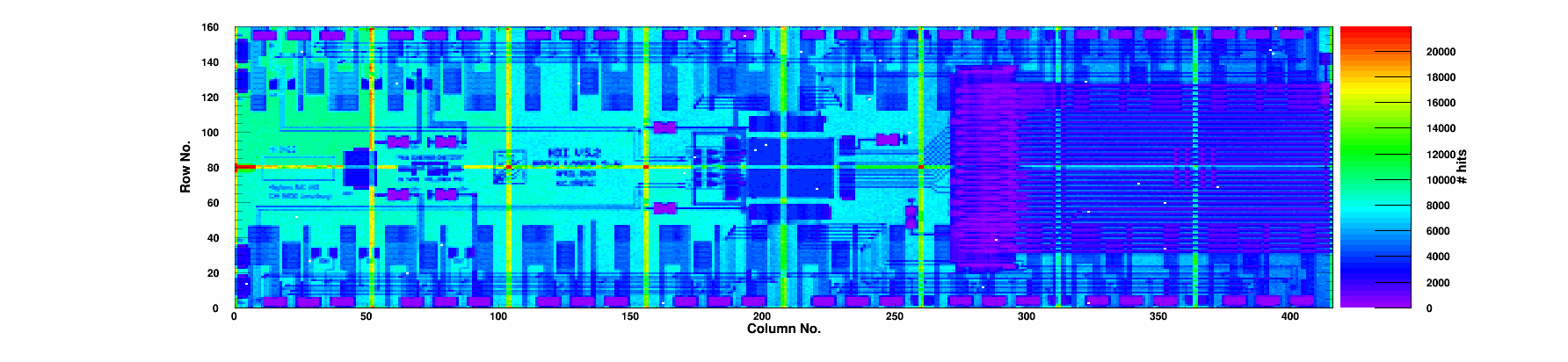

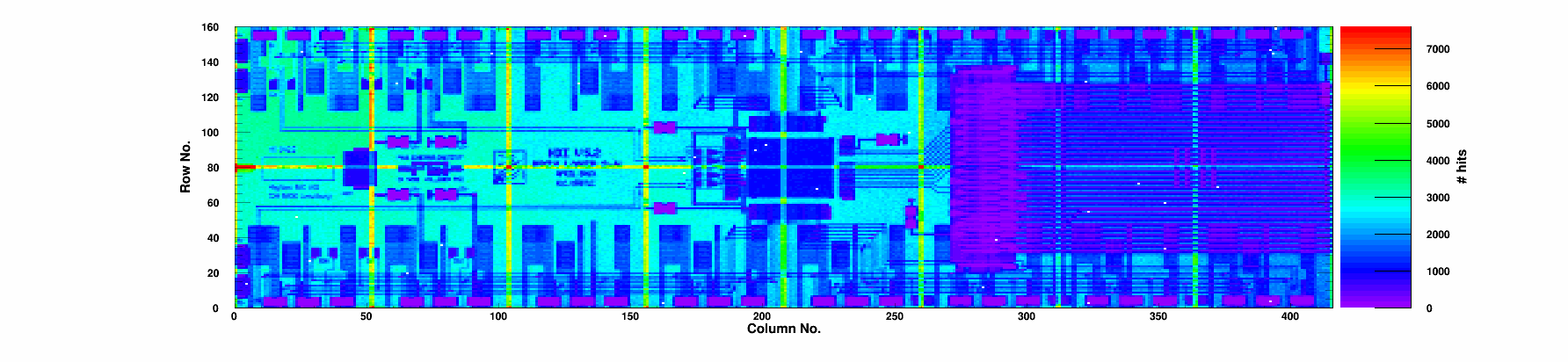

| Efficiency | Efficiency 50/120 | 99.85/99.20 | % |

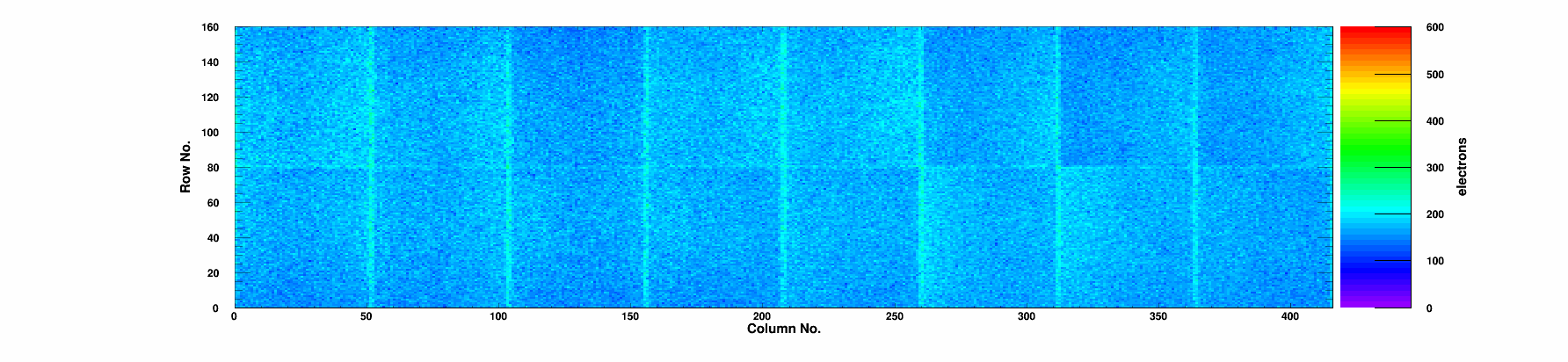

| Noise | Mean Noise | 169 | e- |
Summary ROCs

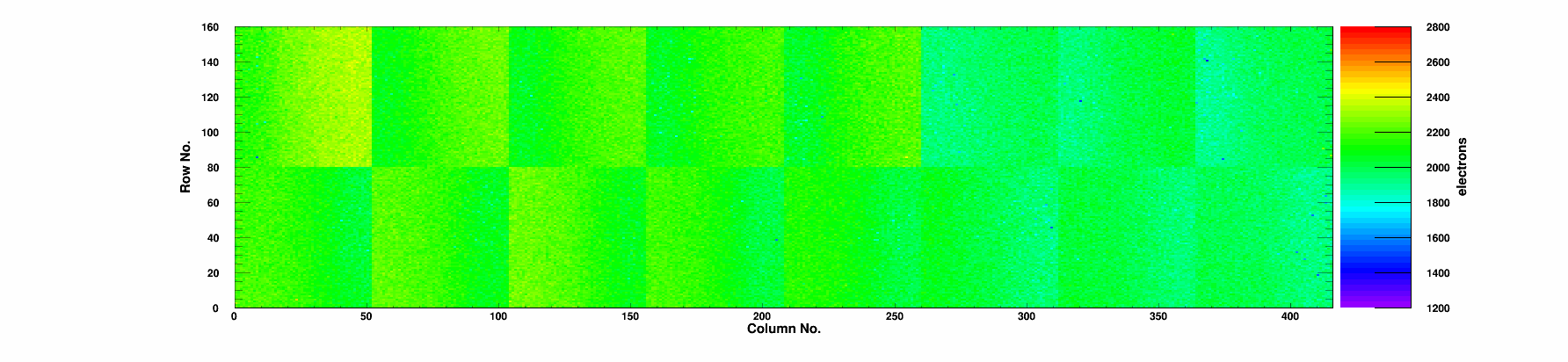

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
4 | 0 | 99.84 | 98.97 | 0.91 | 26.5 | 80.6 | 4 | 0/0 | 0 | 1960 | 166 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.87 | 99.26 | 0.62 | 28.6 | 87.2 | 1 | 0/0 | 0 | 1989 | 163 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.09 | 0.48 | 26.7 | 82.8 | 0 | 0/0 | 0 | 1964 | 168 | 0 |
|
Chip 3
|
A
|
4 | 0 | 99.84 | 99.11 | 0.79 | 48.9 | 143.8 | 4 | 0/0 | 0 | 2132 | 177 | 0 |
|
Chip 4
|
A
|
4 | 0 | 99.85 | 99.34 | 0.61 | 48.9 | 145.0 | 4 | 0/0 | 0 | 2126 | 175 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.88 | 99.28 | 0.74 | 57.9 | 168.3 | 1 | 0/0 | 0 | 2145 | 161 | 0 |
|
Chip 6
|
A
|
2 | 0 | 99.87 | 99.31 | 0.39 | 58.0 | 170.2 | 2 | 0/0 | 0 | 2164 | 171 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.82 | 99.28 | 1.01 | 67.4 | 199.1 | 2 | 0/0 | 0 | 2250 | 177 | 0 |
|
Chip 8
|
A
|
3 | 0 | 99.86 | 99.31 | 0.58 | 56.8 | 167.2 | 3 | 0/0 | 0 | 2121 | 167 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.88 | 99.28 | 0.65 | 54.4 | 161.2 | 2 | 0/0 | 0 | 2145 | 168 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.33 | 0.68 | 57.8 | 168.9 | 0 | 0/0 | 0 | 2165 | 166 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.86 | 99.26 | 0.57 | 48.9 | 145.9 | 2 | 0/0 | 0 | 2106 | 167 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.27 | 0.59 | 46.0 | 137.2 | 1 | 0/0 | 0 | 2080 | 169 | 0 |
|
Chip 13
|
A
|
2 | 0 | 99.85 | 99.24 | 0.47 | 27.7 | 85.3 | 2 | 0/0 | 0 | 2001 | 173 | 0 |
|
Chip 14
|
A
|
5 | 0 | 99.83 | 98.97 | 0.91 | 30.3 | 92.0 | 5 | 0/0 | 0 | 1990 | 173 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.84 | 98.97 | 0.74 | 27.6 | 83.2 | 1 | 0/0 | 0 | 1965 | 163 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-29 | |
| TestTime | Test Time | 13:35 | |
| TestDuration | Duration | 1:8:58 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 61 | |
| nWarnings | # Warnings | 21 | |
| channel_0_count | Channel 0 | 5 | |
| channel_1_count | Channel 1 | 5 | |
| channel_2_count | Channel 2 | 7 | |
| channel_3_count | Channel 3 | 5 | |
| message_eventid_count | Event ID mismatch | 4 | |
| message_tokenchain_count | Token Chain Length | 1 | |
| message_readback_count | Readback start marker | 17 |
MoReWeb-v1.0.4-4-g297680c on branch psi46master
