Test Date: 2016-09-27 09:42
Analysis date: 2016-09-27 11:24
Analysis date: 2016-09-27 11:24
M2329 XRayHRQualification
Summary
| Module | Module | M2329 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 14/0/2 | |
| PixelDefects | Total Pixel Defects | 332 | |
| BumpBondingDefects | Bump Bonding Defects | 169 | |
| NoisyPixels | Noisy Pixels | 75 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 2 | |

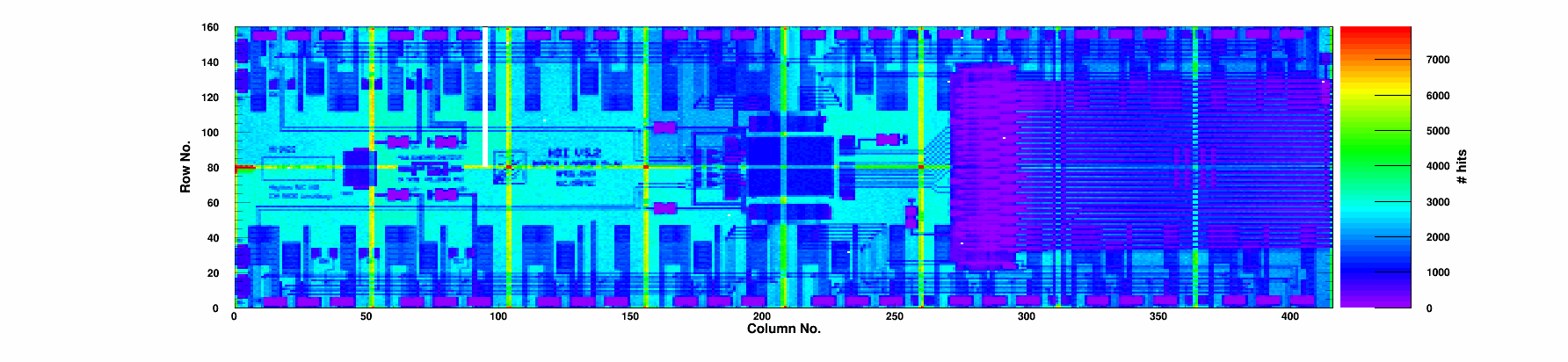

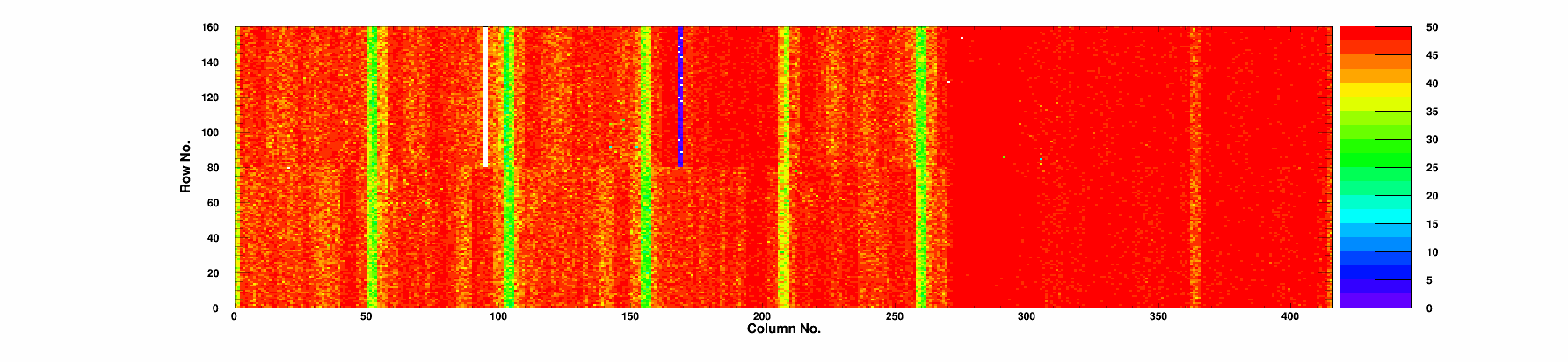

| Efficiency | Efficiency 50/120 | 99.86/99.23 | % |
| Noise | Mean Noise | 159 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.85 | 98.97 | 0.8 | 26.5 | 81.1 | 2 | 0/0 | 0 | 1971 | 147 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 98.94 | 0.72 | 27.3 | 83.9 | 0 | 0/0 | 0 | 1992 | 150 | 0 |
|
Chip 2
|
A
|
4 | 0 | 99.84 | 99.20 | 1.19 | 28.9 | 88.9 | 2 | 0/0 | 0 | 1923 | 176 | 2 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.26 | 0.85 | 53.9 | 159.3 | 0 | 0/0 | 0 | 2174 | 176 | 0 |
|
Chip 4
|
C
|
160 | 1 | 99.86 | 99.28 | 0.47 | 41.1 | 123.8 | 0 | 0/0 | 2 | 17870 | 146 | 18 |
|
Chip 5
|
A
|
1 | 0 | 99.86 | 99.32 | 0.71 | 56.5 | 164.0 | 1 | 0/0 | 0 | 2179 | 151 | 0 |
|
Chip 6
|
C
|
161 | 1 | 99.85 | 99.30 | 0.64 | 56.0 | 164.1 | 161 | 0/0 | 2 | 2012 | 147 | 54 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.34 | 0.53 | 55.3 | 162.2 | 0 | 0/0 | 0 | 2181 | 149 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.86 | 99.35 | 0.49 | 57.2 | 167.5 | 0 | 0/0 | 0 | 2148 | 155 | 1 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.29 | 0.81 | 55.1 | 162.2 | 0 | 0/0 | 0 | 2150 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.29 | 0.6 | 59.1 | 172.0 | 0 | 0/0 | 0 | 2180 | 156 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.86 | 99.29 | 0.67 | 50.8 | 150.4 | 1 | 0/0 | 0 | 2174 | 158 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.86 | 99.30 | 0.71 | 49.0 | 145.8 | 1 | 0/0 | 0 | 2120 | 167 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.86 | 99.32 | 0.53 | 30.6 | 94.3 | 1 | 0/0 | 0 | 2028 | 185 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.16 | 0.63 | 30.7 | 93.3 | 0 | 0/0 | 0 | 2003 | 159 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 99.14 | 0.73 | 31.2 | 93.4 | 0 | 0/0 | 0 | 2008 | 167 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-27 | |
| TestTime | Test Time | 09:42 | |
| TestDuration | Duration | 1:16:47 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 1 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_tokenchain_count | Token Chain Length | 1 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
