Test Date: 2016-09-20 10:14
Analysis date: 2016-09-21 12:12
Analysis date: 2016-09-21 12:12
M2324 XRayHRQualification
Summary
| Module | Module | M2324 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 7 | |
| BumpBondingDefects | Bump Bonding Defects | 5 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

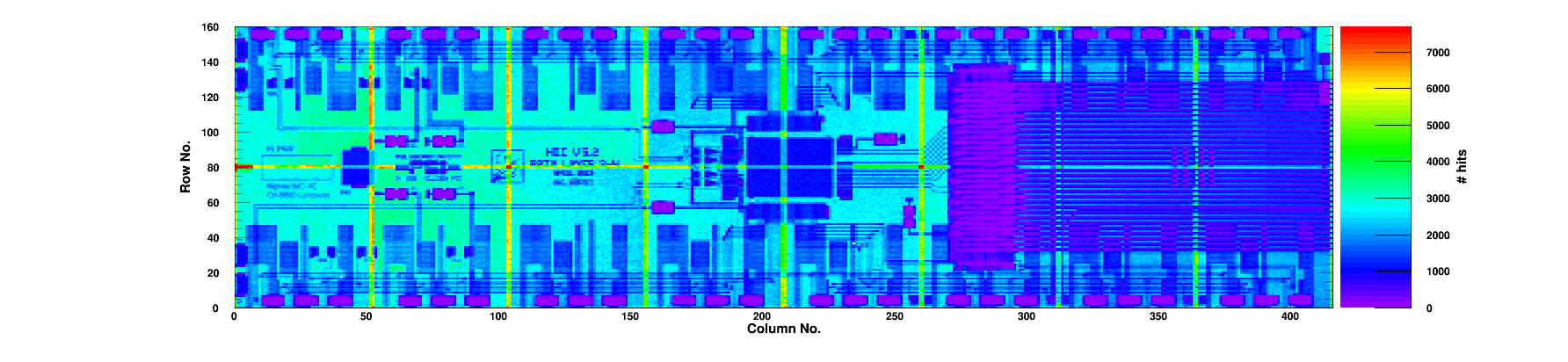

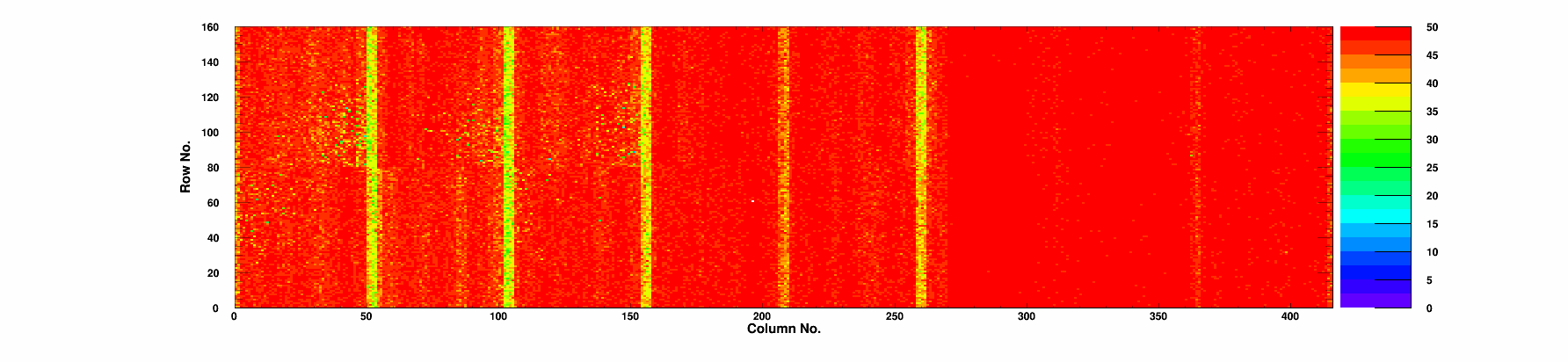

| Efficiency | Efficiency 50/120 | 99.86/99.20 | % |

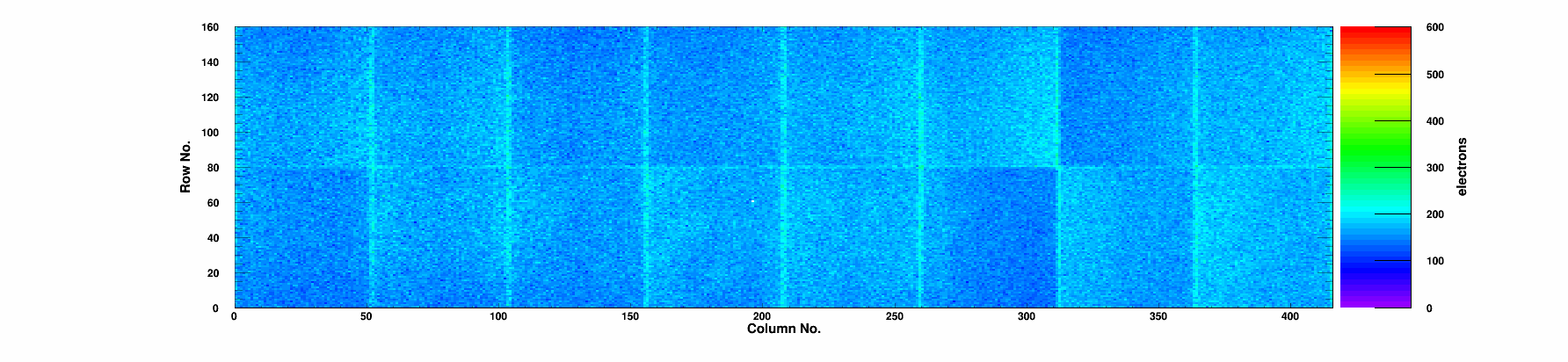

| Noise | Mean Noise | 164 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.82 | 98.95 | 0.76 | 30.7 | 93.0 | 2 | 0/0 | 0 | 2016 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.30 | 0.58 | 30.2 | 92.2 | 0 | 0/0 | 0 | 2013 | 155 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 98.95 | 0.88 | 28.6 | 88.3 | 0 | 0/0 | 0 | 1987 | 174 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.28 | 0.5 | 49.7 | 148.1 | 0 | 0/0 | 0 | 2131 | 168 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.28 | 0.75 | 46.4 | 138.2 | 0 | 0/0 | 0 | 2132 | 158 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.86 | 99.22 | 1.78 | 61.9 | 178.5 | 0 | 0/0 | 0 | 2210 | 155 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.84 | 99.21 | 1.61 | 59.2 | 172.5 | 1 | 0/0 | 0 | 2194 | 165 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.11 | 5.35 | 62.8 | 183.0 | 0 | 0/0 | 0 | 2211 | 163 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.85 | 99.25 | 1.11 | 58.3 | 170.8 | 1 | 0/0 | 0 | 2162 | 152 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.30 | 0.66 | 62.8 | 183.3 | 0 | 0/0 | 0 | 2189 | 163 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.30 | 1.09 | 56.8 | 166.2 | 0 | 0/0 | 0 | 2143 | 160 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.87 | 99.34 | 0.52 | 49.4 | 147.2 | 0 | 0/0 | 0 | 2097 | 167 | 1 |
|
Chip 12
|
A
|
1 | 0 | 99.87 | 99.27 | 0.73 | 49.4 | 146.8 | 1 | 0/0 | 0 | 2124 | 170 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.26 | 0.69 | 28.7 | 88.6 | 0 | 0/0 | 0 | 2032 | 151 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.89 | 99.29 | 0.51 | 30.5 | 92.9 | 0 | 0/0 | 0 | 2010 | 167 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.85 | 98.90 | 0.65 | 32.4 | 97.8 | 0 | 0/0 | 0 | 2016 | 174 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-20 | |
| TestTime | Test Time | 10:14 | |
| TestDuration | Duration | 1:15:45 | |
| pXar | pXar version | v2.7.6+55~gafdbfd9 | |
| DTB_FW | DTB FW | 4.7 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 1 | |
| channel_3_count | Channel 3 | 0 | |
| message_notokenpass_count | has NoTokenPass | 1 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
