Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:33
Analysis date: 2016-09-19 17:33
M2318 XRayHRQualification
Summary
| Module | Module | M2318 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 10 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.79/99.13 | % |

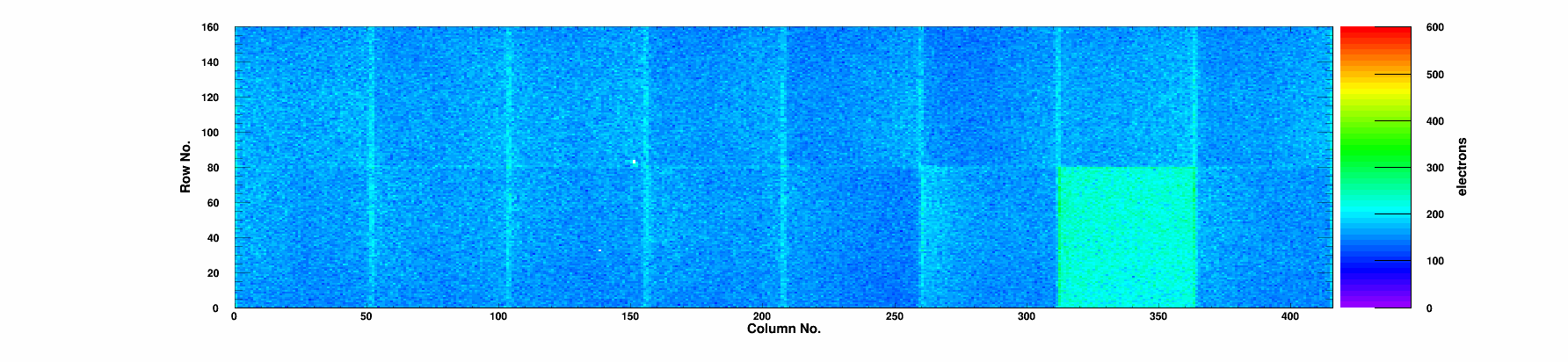

| Noise | Mean Noise | 164 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 98.95 | 0.53 | 21.3 | 64.8 | 0 | 0/0 | 0 | 1966 | 161 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.13 | 0.55 | 23.6 | 71.9 | 0 | 0/0 | 0 | 1971 | 166 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.84 | 99.00 | 0.38 | 18.6 | 58.0 | 0 | 0/0 | 0 | 1920 | 153 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.28 | 0.64 | 32.9 | 99.3 | 0 | 0/0 | 0 | 2035 | 156 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.27 | 0.46 | 37.2 | 111.4 | 0 | 0/0 | 0 | 2044 | 159 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.88 | 99.30 | 0.66 | 49.7 | 144.9 | 0 | 0/0 | 0 | 2058 | 165 | 2 |
|
Chip 6
|
A
|
1 | 0 | 99.87 | 99.32 | 0.58 | 43.0 | 127.2 | 1 | 0/0 | 0 | 2101 | 162 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.30 | 0.49 | 44.9 | 132.4 | 0 | 0/0 | 0 | 2127 | 165 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.31 | 0.67 | 48.2 | 141.9 | 0 | 0/0 | 0 | 2139 | 160 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.28 | 0.61 | 48.7 | 142.3 | 0 | 0/0 | 0 | 2134 | 161 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.88 | 99.26 | 0.54 | 46.4 | 135.6 | 1 | 0/0 | 0 | 2069 | 157 | 1 |
|
Chip 11
|
A
|
2 | 0 | 99.86 | 99.26 | 0.52 | 43.3 | 128.9 | 2 | 0/0 | 0 | 2101 | 159 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.83 | 98.98 | 0.84 | 33.0 | 100.5 | 1 | 0/0 | 0 | 2031 | 151 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.83 | 98.93 | 0.72 | 22.8 | 69.9 | 1 | 0/0 | 0 | 1967 | 161 | 0 |
|
Chip 14
|
A
|
0 | 0 | 98.70 | 98.65 | 7.66 | 24.2 | 73.6 | 0 | 0/0 | 0 | 1972 | 225 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.84 | 98.93 | 0.69 | 25.3 | 76.2 | 1 | 0/0 | 0 | 1979 | 158 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-19 | |
| TestTime | Test Time | 15:21 | |
| TestDuration | Duration | 1:29:50 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 52 | |
| nWarnings | # Warnings | 2 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 6 | |
| message_tokenchain_count | Token Chain Length | 4 | |
| message_readback_count | Readback start marker | 2 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
