Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 9
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.86/99.27
EfficiencyFit Efficiency Fit chi2/ndf: 0.83, # points: 92
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C9
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.83
NumberFitPoints # fit points 92
p0 p0 99.91
p1 p1 3.68e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.27

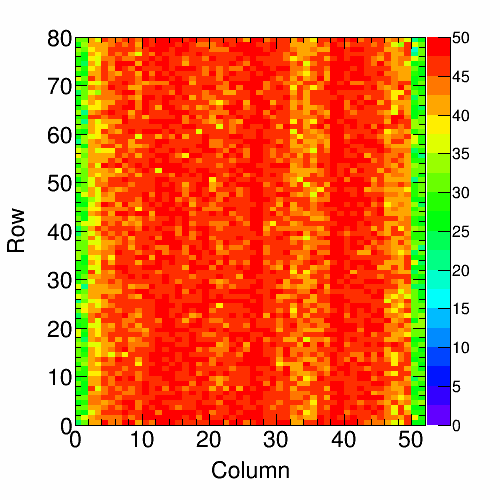

Efficiency Map 50: C9
Efficiency Map 75: C9
Efficiency Map 100: C9
Efficiency Map 125: C9
Efficiency Map 150: C9
Efficiency Map 200: C9
Efficiency Map 250: C9
Efficiency Distr. 50: C9
Plot
N N 4160
mu μ 99.81
sigma σ 0.62
Efficiency Distr. 75: C9
Plot
N N 4160
mu μ 99.60
sigma σ 0.94
Efficiency Distr. 100: C9
Plot
N N 4160
mu μ 99.05
sigma σ 1.69
Efficiency Distr. 125: C9
Plot
N N 4160
mu μ 98.43
sigma σ 2.38
Efficiency Distr. 150: C9
Plot
N N 4160
mu μ 97.35
sigma σ 3.53
Efficiency Distr. 200: C9
Plot
N N 4160
mu μ 93.44
sigma σ 7.19
Efficiency Distr. 250: C9
Plot
N N 4160
mu μ 88.38
sigma σ 10.43

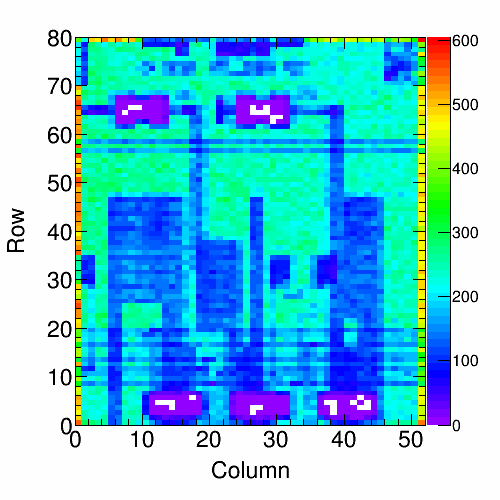

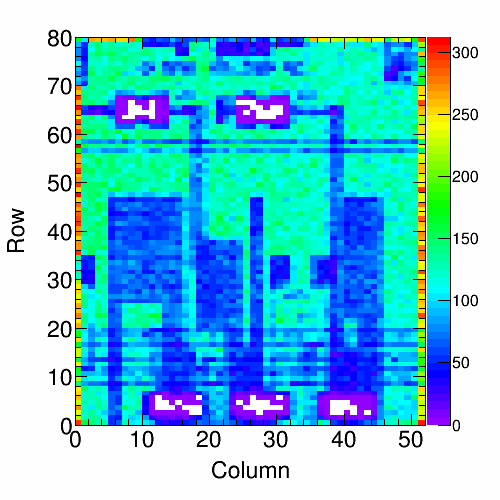

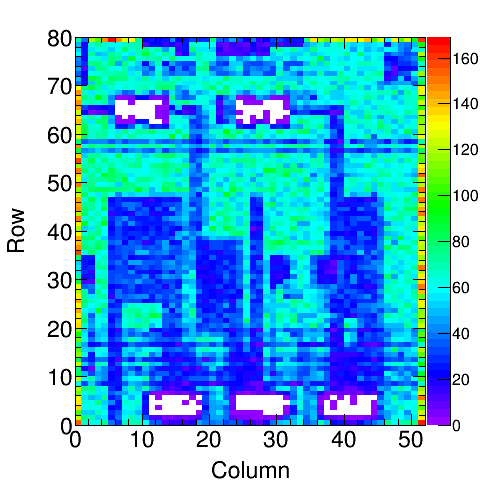

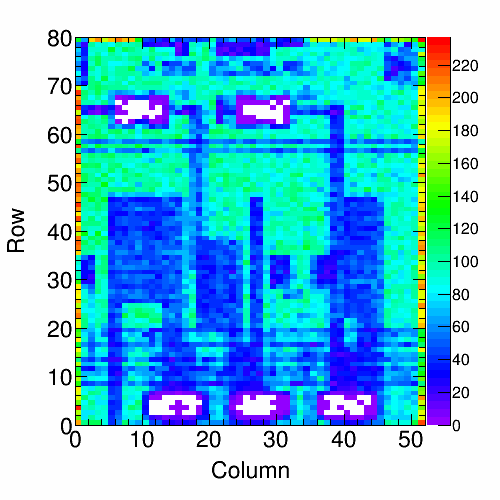

Background Map 50: C9
Plot
RealHitrate Real Hitrate 57.98 MHz/cm2
Background Map 75: C9
Plot
RealHitrate Real Hitrate 84.97 MHz/cm2
Background Map 100: C9
Plot
RealHitrate Real Hitrate 116.90 MHz/cm2
Background Map 125: C9
Plot
RealHitrate Real Hitrate 141.66 MHz/cm2
Background Map 150: C9
Plot
RealHitrate Real Hitrate 168.81 MHz/cm2
Background Map 200: C9
Plot
RealHitrate Real Hitrate 227.81 MHz/cm2
Background Map 250: C9
Plot
RealHitrate Real Hitrate 281.76 MHz/cm2
Retrim Hot Pix 150: C9
Retrim Hot Pix 50: C9
Masked Hot Pixels 50: C9
Masked Hot Pixels 150: C9
Hit Map 50: C9
Plot
RealHitrate Real Hitrate 57.16 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C9
Hit Map 150: C9
Plot
RealHitrate Real Hitrate 166.74 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C9
Col. Read. Unif. 50: C9
Plot
N N 7971551
mu μ 177778
sigma σ 59279.35
Col. Read. Unif. 150: C9
Plot
N N 23333333
mu μ 518517
sigma σ 163544.55
Read. Unif. over Time 50: C9
Plot
N N 9244451
mu μ 9376
sigma_th σ_th 96.83
Time unif. distribution 50: C9
Plot
chi2/ndf chi2/ndf 1.43
sigma σ 98.89
sigma_th σ_th 96.83
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C9
Plot
N N 26962886
mu μ 27346
sigma_th σ_th 165.37
Time unif. distribution 150: C9
Plot
chi2/ndf chi2/ndf 9.07
sigma σ 184.78
sigma_th σ_th 165.38
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C9

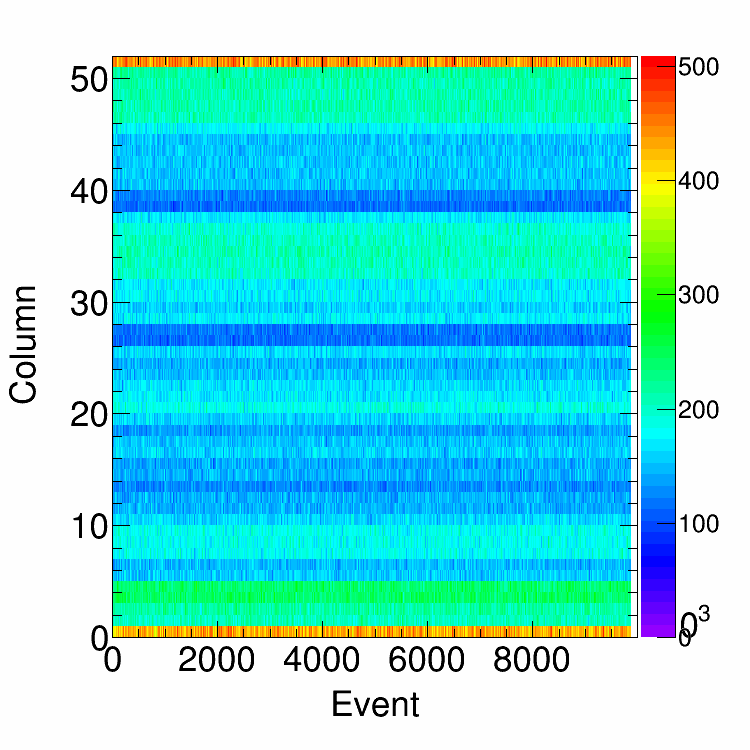

Col. Uniformity per Event: C9 50
Plot
mu μ 26.18
sigma fit error of μ 2.26
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C9 150
Plot
mu μ 25.84
sigma fit error of μ 2.28
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C9 100
Plot
N N 4160
mu μ 155.71
sigma RMS 15.63
threshold thr 2159.06
fit fit Gaussian
fit_peak μ fit 155.18
fit_sigma σ fit 14.94
MeasuredHitrate Measured hitrate: 116.6
Alive Map: C9
DC Efficiency Distribution: C9
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.26
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C9
