Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 6
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.87/99.35
EfficiencyFit Efficiency Fit chi2/ndf: 0.58, # points: 97
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C6
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.58
NumberFitPoints # fit points 97
p0 p0 99.91
p1 p1 3.28e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.35

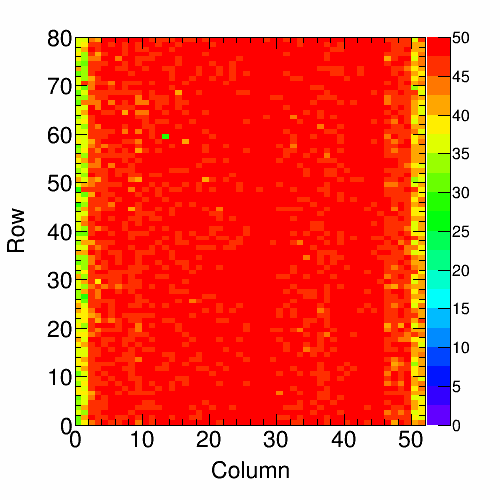

Efficiency Map 50: C6
Efficiency Map 75: C6
Efficiency Map 100: C6
Efficiency Map 125: C6
Efficiency Map 150: C6
Efficiency Map 200: C6
Efficiency Map 250: C6
Efficiency Distr. 50: C6
Plot
N N 4160
mu μ 99.83
sigma σ 0.61
Efficiency Distr. 75: C6
Plot
N N 4160
mu μ 99.67
sigma σ 0.87
Efficiency Distr. 100: C6
Plot
N N 4160
mu μ 99.26
sigma σ 1.48
Efficiency Distr. 125: C6
Plot
N N 4160
mu μ 98.72
sigma σ 2.23
Efficiency Distr. 150: C6
Plot
N N 4160
mu μ 97.80
sigma σ 3.16
Efficiency Distr. 200: C6
Plot
N N 4160
mu μ 94.74
sigma σ 6.54
Efficiency Distr. 250: C6
Plot
N N 4160
mu μ 90.38
sigma σ 10.24

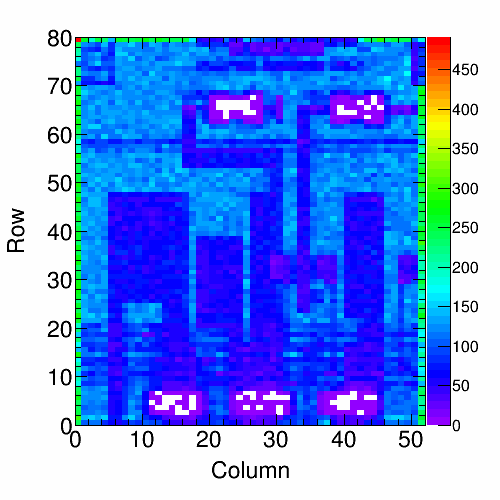

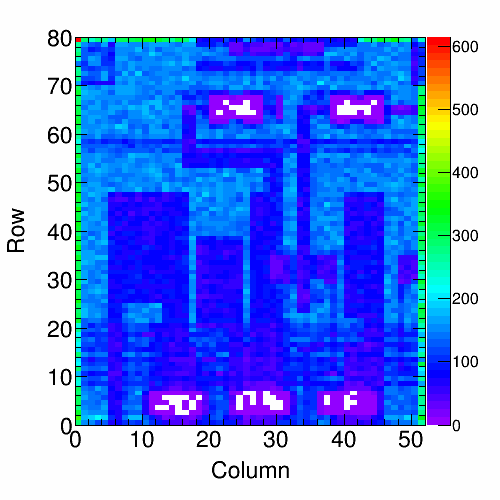

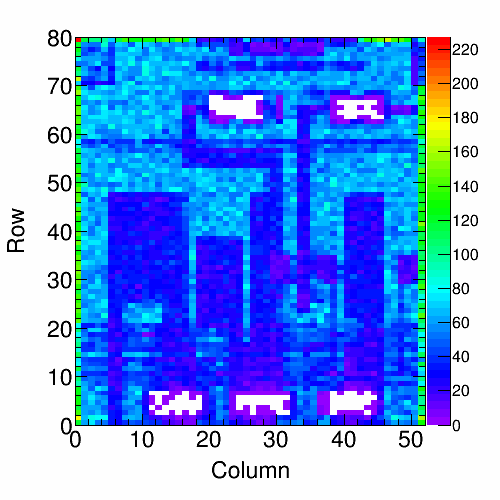

Background Map 50: C6
Plot
RealHitrate Real Hitrate 55.52 MHz/cm2

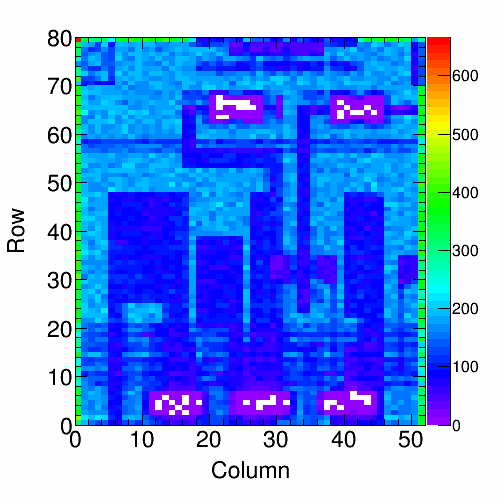

Background Map 75: C6
Plot
RealHitrate Real Hitrate 81.12 MHz/cm2

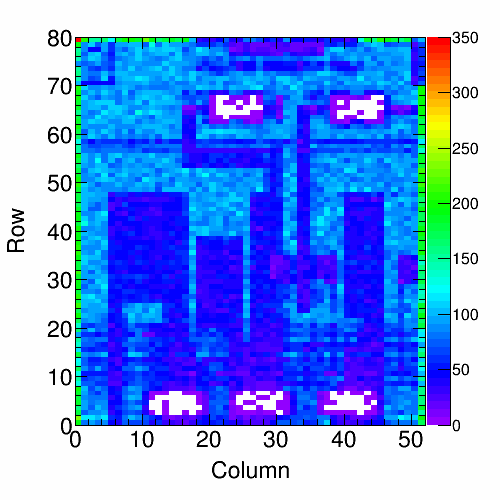

Background Map 100: C6
Plot
RealHitrate Real Hitrate 111.30 MHz/cm2
Background Map 125: C6
Plot
RealHitrate Real Hitrate 135.19 MHz/cm2

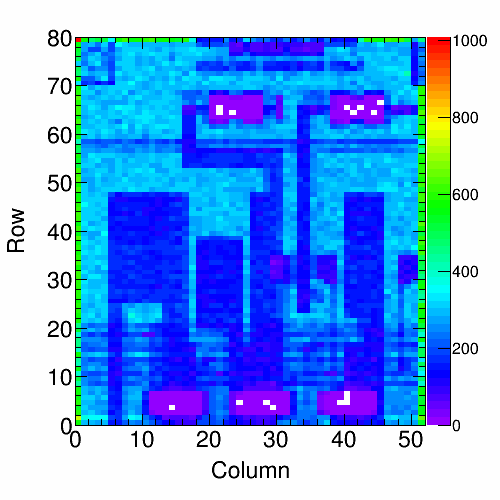

Background Map 150: C6
Plot
RealHitrate Real Hitrate 161.57 MHz/cm2
Background Map 200: C6
Plot
RealHitrate Real Hitrate 218.07 MHz/cm2

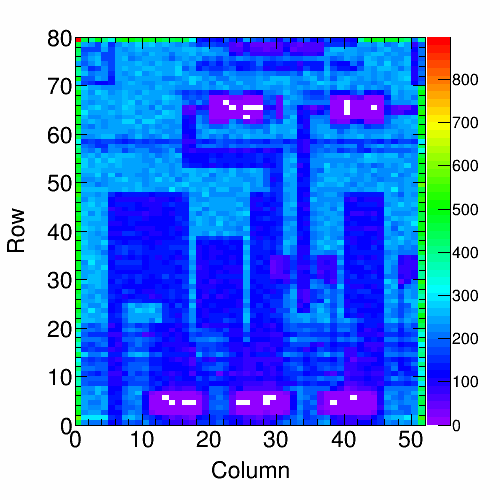

Background Map 250: C6
Plot
RealHitrate Real Hitrate 268.36 MHz/cm2
Retrim Hot Pix 150: C6
Retrim Hot Pix 50: C6
Masked Hot Pixels 50: C6
Masked Hot Pixels 150: C6

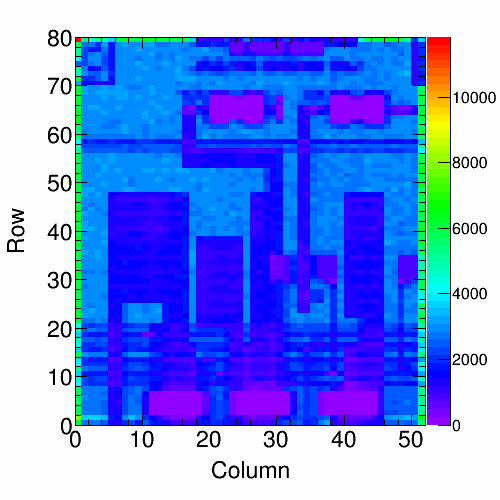

Hit Map 50: C6
Plot
RealHitrate Real Hitrate 53.73 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C6
Hit Map 150: C6
Plot
RealHitrate Real Hitrate 156.78 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C6
Col. Read. Unif. 50: C6
Plot
N N 7442874
mu μ 167117
sigma σ 61205.45
Col. Read. Unif. 150: C6
Plot
N N 21799635
mu μ 487568
sigma σ 168684.32
Read. Unif. over Time 50: C6
Plot
N N 8690100
mu μ 8813
sigma_th σ_th 93.88
Time unif. distribution 50: C6
Plot
chi2/ndf chi2/ndf 1.69
sigma σ 99.73
sigma_th σ_th 93.88
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C6
Plot
N N 25353531
mu μ 25714
sigma_th σ_th 160.35
Time unif. distribution 150: C6
Plot
chi2/ndf chi2/ndf 12.09
sigma σ 186.65
sigma_th σ_th 160.36
expectation Red curve (expected) Poisson

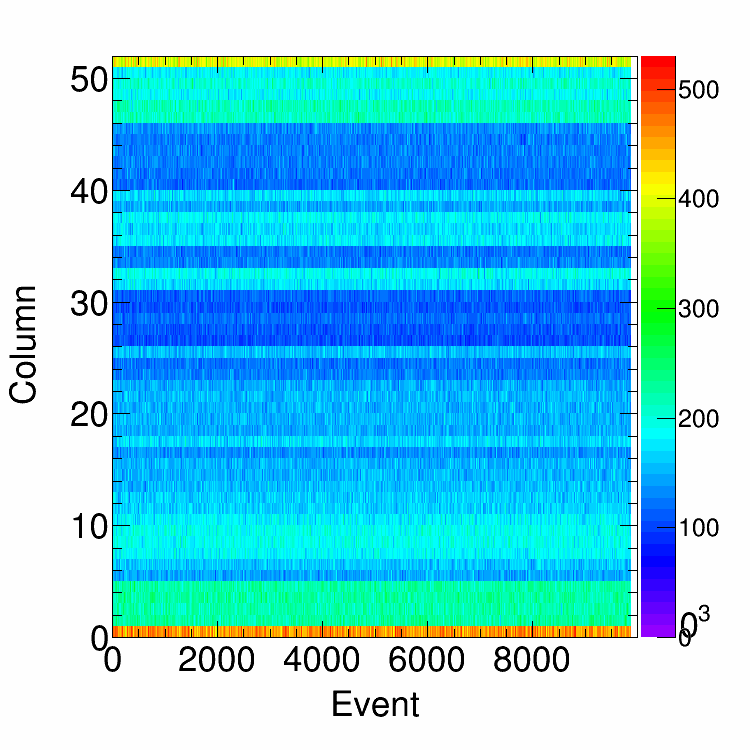

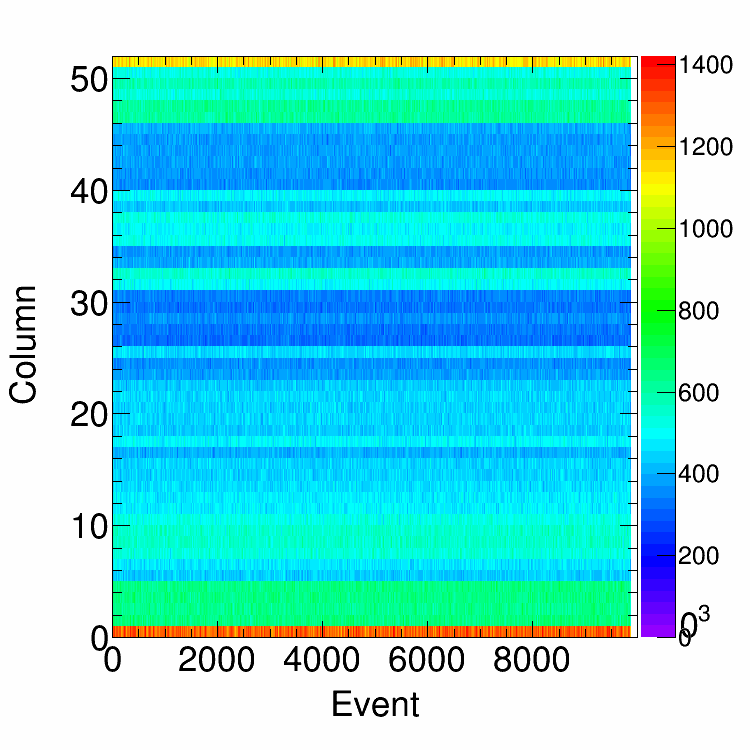

Col. Uniformity Ratio: C6
Col. Uniformity per Event: C6 50
Plot
mu μ 25.30
sigma fit error of μ 2.32
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C6 150
Plot
mu μ 25.20
sigma fit error of μ 2.31
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C6 100
Plot
N N 4160
mu μ 162.72
sigma RMS 15.67
threshold thr 2172.04
fit fit Gaussian
fit_peak μ fit 162.03
fit_sigma σ fit 14.50
MeasuredHitrate Measured hitrate: 110.7
Alive Map: C6
DC Efficiency Distribution: C6
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.35
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C6
