Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 5
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.88/99.28
EfficiencyFit Efficiency Fit chi2/ndf: 0.78, # points: 104
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C5
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.78
NumberFitPoints # fit points 104
p0 p0 99.93
p1 p1 3.77e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.28

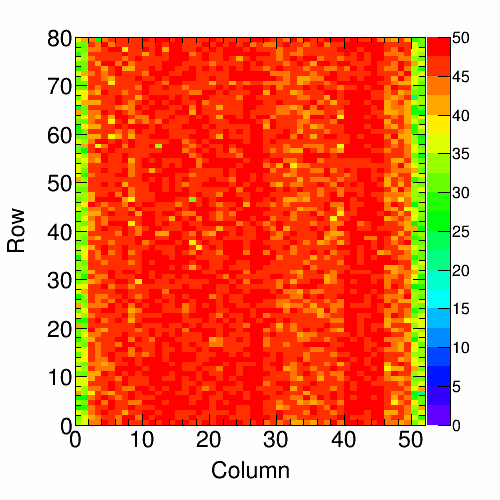

Efficiency Map 50: C5
Efficiency Map 75: C5
Efficiency Map 100: C5
Efficiency Map 125: C5
Efficiency Map 150: C5
Efficiency Map 200: C5
Efficiency Map 250: C5
Efficiency Distr. 50: C5
Plot
N N 4160
mu μ 99.84
sigma σ 0.58
Efficiency Distr. 75: C5
Plot
N N 4160
mu μ 99.67
sigma σ 0.87
Efficiency Distr. 100: C5
Plot
N N 4160
mu μ 99.26
sigma σ 1.38
Efficiency Distr. 125: C5
Plot
N N 4160
mu μ 98.76
sigma σ 2.00
Efficiency Distr. 150: C5
Plot
N N 4160
mu μ 98.01
sigma σ 2.71
Efficiency Distr. 200: C5
Plot
N N 4160
mu μ 94.98
sigma σ 5.61
Efficiency Distr. 250: C5
Plot
N N 4160
mu μ 90.86
sigma σ 8.54

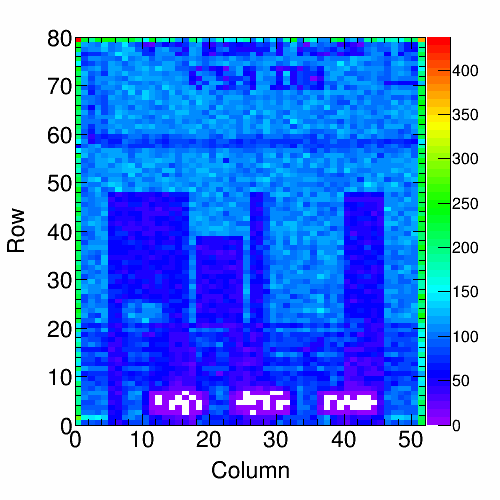

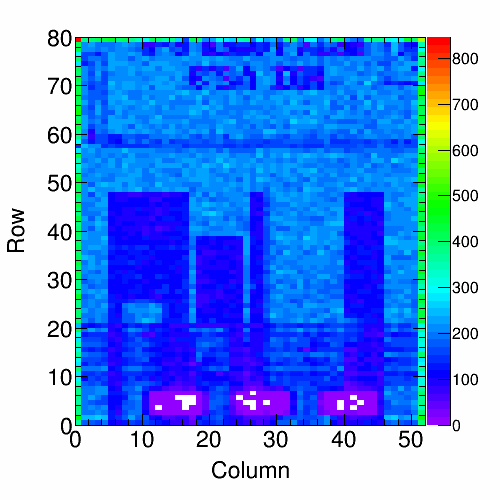

Background Map 50: C5
Plot
RealHitrate Real Hitrate 53.97 MHz/cm2

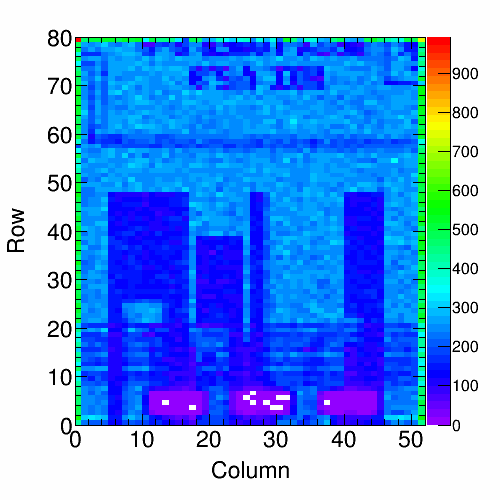

Background Map 75: C5
Plot
RealHitrate Real Hitrate 78.79 MHz/cm2

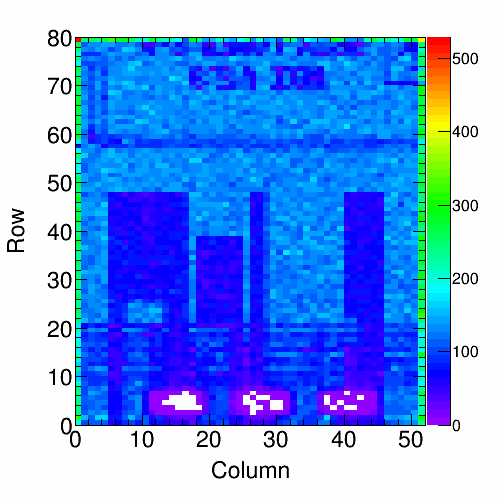

Background Map 100: C5
Plot
RealHitrate Real Hitrate 108.21 MHz/cm2

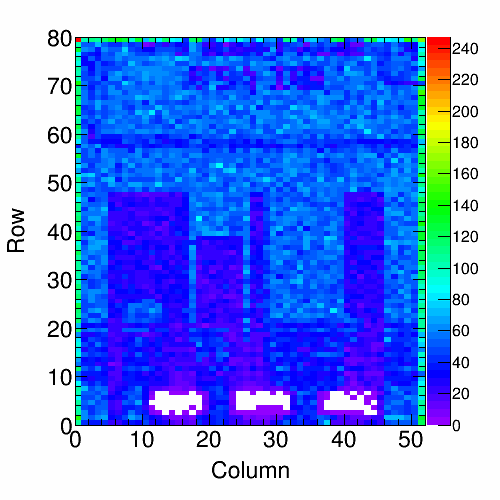

Background Map 125: C5
Plot
RealHitrate Real Hitrate 131.93 MHz/cm2

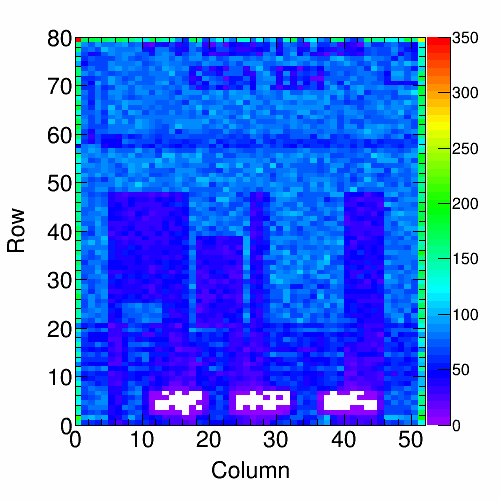

Background Map 150: C5
Plot
RealHitrate Real Hitrate 156.07 MHz/cm2

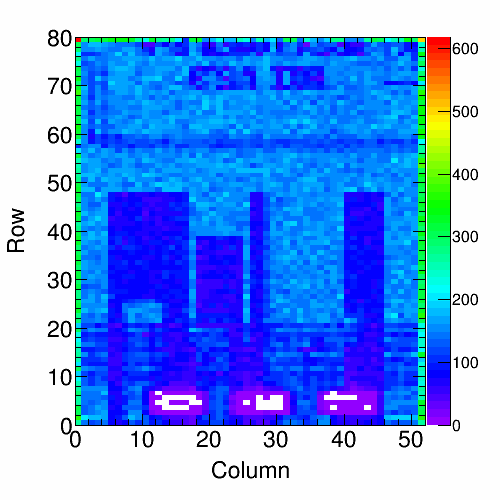

Background Map 200: C5
Plot
RealHitrate Real Hitrate 211.14 MHz/cm2
Background Map 250: C5
Plot
RealHitrate Real Hitrate 259.65 MHz/cm2
Retrim Hot Pix 150: C5
Retrim Hot Pix 50: C5
Masked Hot Pixels 50: C5
Masked Hot Pixels 150: C5

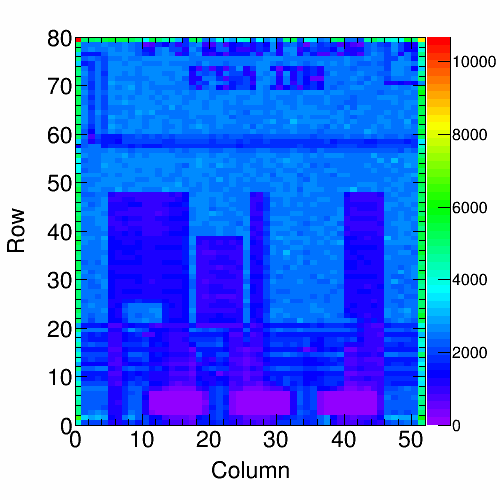

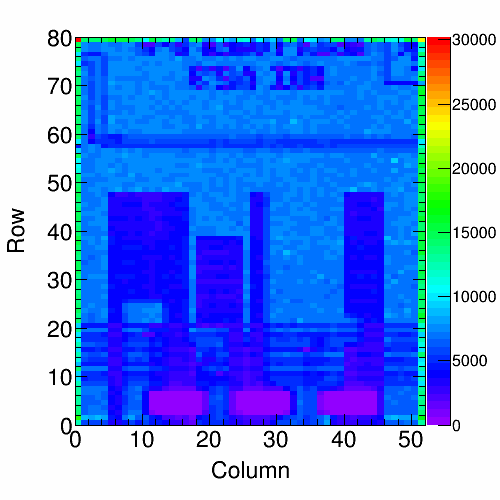

Hit Map 50: C5
Plot
RealHitrate Real Hitrate 52.44 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C5
Hit Map 150: C5
Plot
RealHitrate Real Hitrate 152.99 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C5
Col. Read. Unif. 50: C5
Plot
N N 7341996
mu μ 163086
sigma σ 49891.90
Col. Read. Unif. 150: C5
Plot
N N 21479869
mu μ 475773
sigma σ 138480.25
Read. Unif. over Time 50: C5
Plot
N N 8480470
mu μ 8601
sigma_th σ_th 92.74
Time unif. distribution 50: C5
Plot
chi2/ndf chi2/ndf 0.93
sigma σ 93.63
sigma_th σ_th 92.74
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C5
Plot
N N 24740187
mu μ 25091
sigma_th σ_th 158.40
Time unif. distribution 150: C5
Plot
chi2/ndf chi2/ndf 7.50
sigma σ 180.16
sigma_th σ_th 158.41
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C5

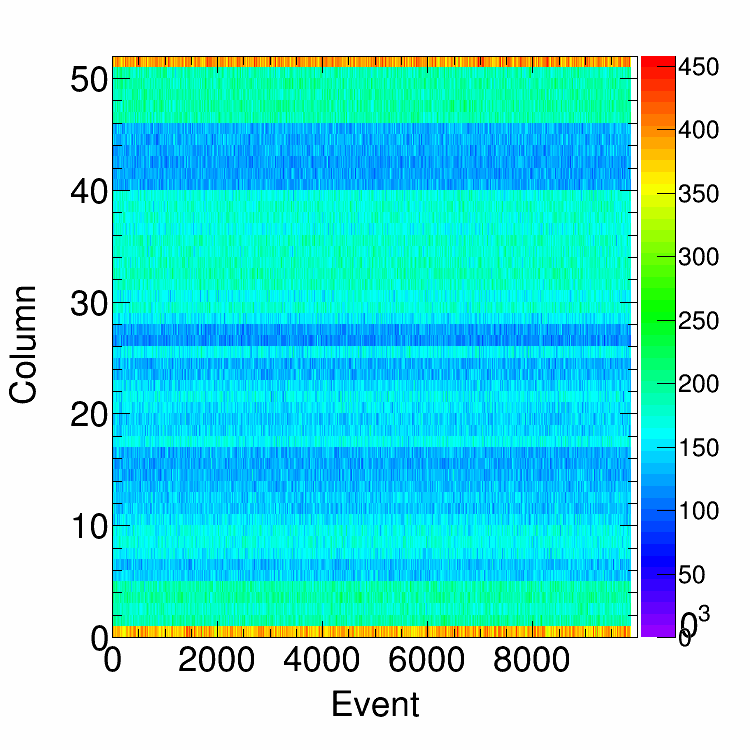

Col. Uniformity per Event: C5 50
Plot
mu μ 26.32
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C5 150
Plot
mu μ 25.99
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C5 100
Plot
N N 4160
mu μ 148.94
sigma RMS 14.67
threshold thr 2157.98
fit fit Gaussian
fit_peak μ fit 148.55
fit_sigma σ fit 14.12
MeasuredHitrate Measured hitrate: 108.2
Alive Map: C5
DC Efficiency Distribution: C5
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.28
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C5
