Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 15
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 2/1
Efficiency Efficiency 50/120 99.86/99.24
EfficiencyFit Efficiency Fit chi2/ndf: 0.71, # points: 127
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C15
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.71
NumberFitPoints # fit points 127
p0 p0 99.91
p1 p1 3.86e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.24
Efficiency Map 50: C15
Efficiency Map 75: C15
Efficiency Map 100: C15
Efficiency Map 125: C15
Efficiency Map 150: C15
Efficiency Map 200: C15
Efficiency Map 250: C15
Efficiency Distr. 50: C15
Plot
N N 4160
mu μ 99.93
sigma σ 0.37
Efficiency Distr. 75: C15
Plot
N N 4160
mu μ 99.89
sigma σ 0.47
Efficiency Distr. 100: C15
Plot
N N 4160
mu μ 99.81
sigma σ 0.62
Efficiency Distr. 125: C15
Plot
N N 4160
mu μ 99.70
sigma σ 0.83
Efficiency Distr. 150: C15
Plot
N N 4160
mu μ 99.56
sigma σ 0.99
Efficiency Distr. 200: C15
Plot
N N 4160
mu μ 99.08
sigma σ 1.55
Efficiency Distr. 250: C15
Plot
N N 4160
mu μ 98.24
sigma σ 2.54

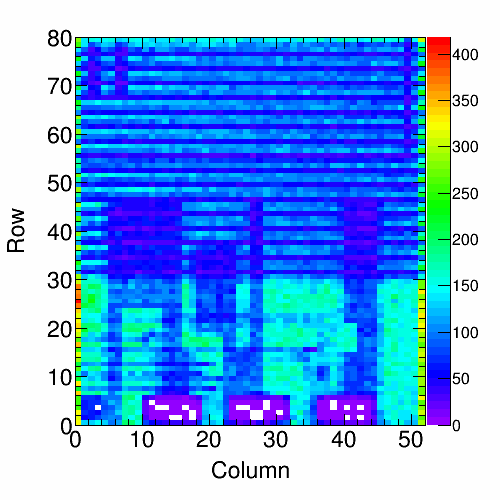

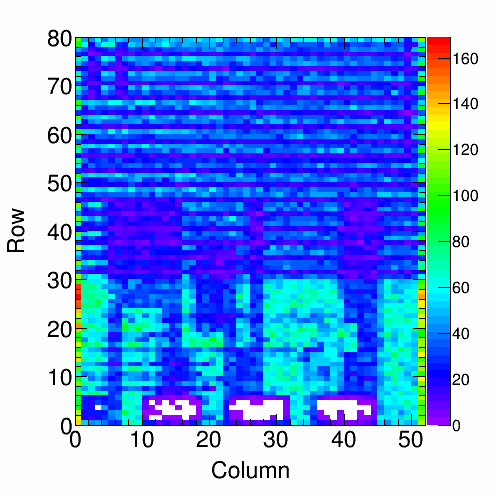

Background Map 50: C15
Plot
RealHitrate Real Hitrate 28.89 MHz/cm2

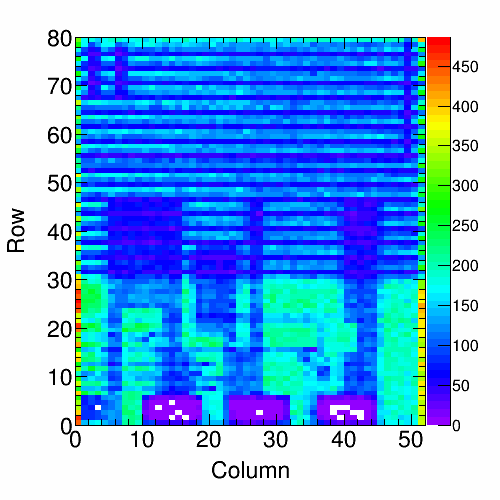

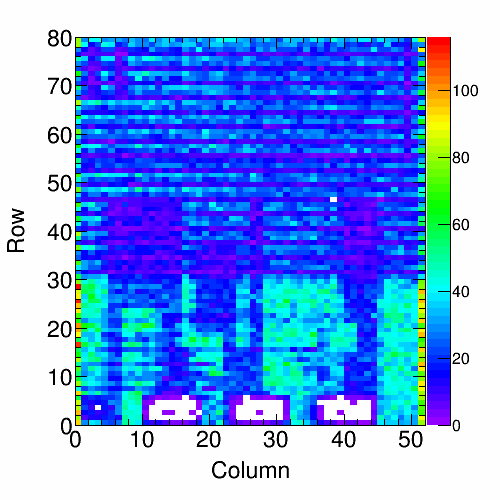

Background Map 75: C15
Plot
RealHitrate Real Hitrate 42.69 MHz/cm2

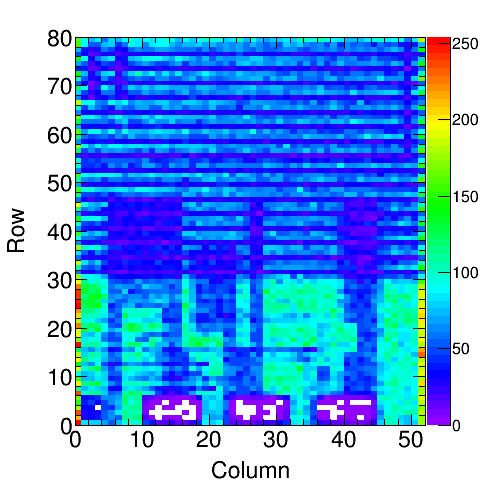

Background Map 100: C15
Plot
RealHitrate Real Hitrate 59.15 MHz/cm2

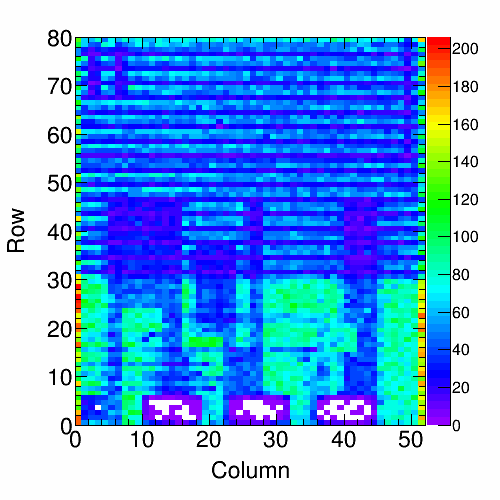

Background Map 125: C15
Plot
RealHitrate Real Hitrate 71.78 MHz/cm2
Background Map 150: C15
Plot
RealHitrate Real Hitrate 85.92 MHz/cm2
Background Map 200: C15
Plot
RealHitrate Real Hitrate 116.97 MHz/cm2
Background Map 250: C15
Plot
RealHitrate Real Hitrate 144.92 MHz/cm2
Retrim Hot Pix 150: C15
Retrim Hot Pix 50: C15
Masked Hot Pixels 50: C15
Masked Hot Pixels 150: C15
Hit Map 50: C15
Plot
RealHitrate Real Hitrate 28.02 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C15

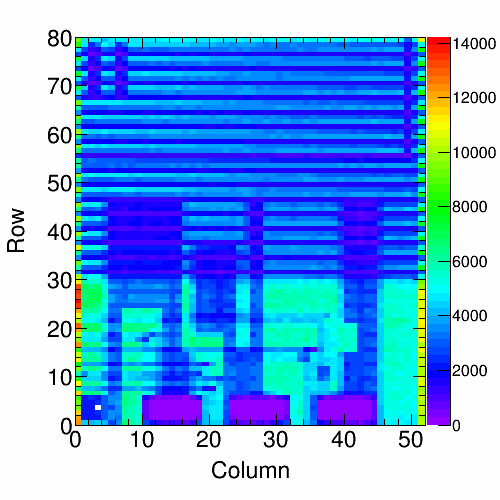

Hit Map 150: C15
Plot
RealHitrate Real Hitrate 84.65 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 150: C15
Col. Read. Unif. 50: C15
Plot
N N 3915068
mu μ 87157
sigma σ 27944.93
Col. Read. Unif. 150: C15
Plot
N N 11875028
mu μ 263234
sigma σ 78578.80
Read. Unif. over Time 50: C15
Plot
N N 4532188
mu μ 4597
sigma_th σ_th 67.80
Time unif. distribution 50: C15
Plot
chi2/ndf chi2/ndf 1.94
sigma σ 71.92
sigma_th σ_th 67.80
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C15
Plot
N N 13688174
mu μ 13883
sigma_th σ_th 117.82
Time unif. distribution 150: C15
Plot
chi2/ndf chi2/ndf 3.15
sigma σ 127.31
sigma_th σ_th 117.83
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C15

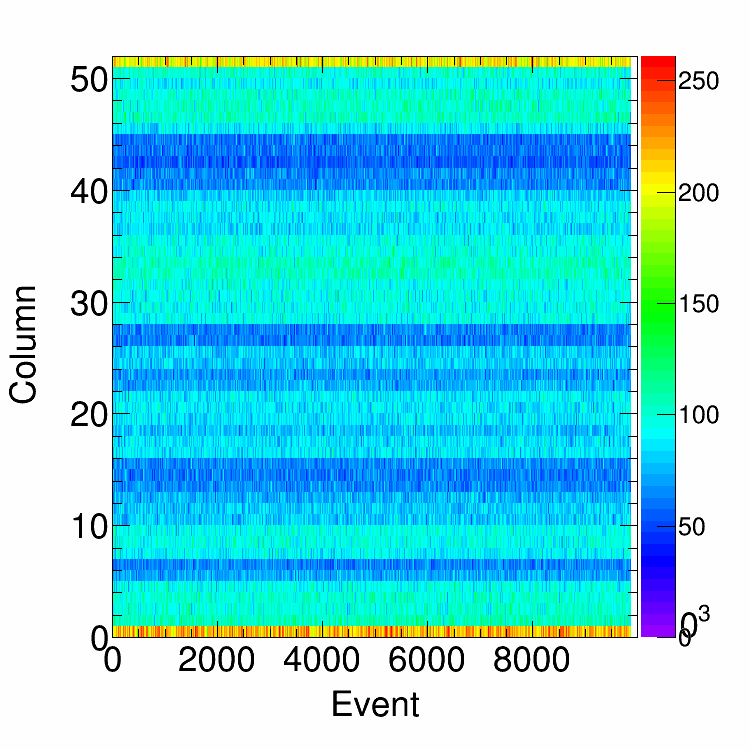

Col. Uniformity per Event: C15 50
Plot
mu μ 25.69
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

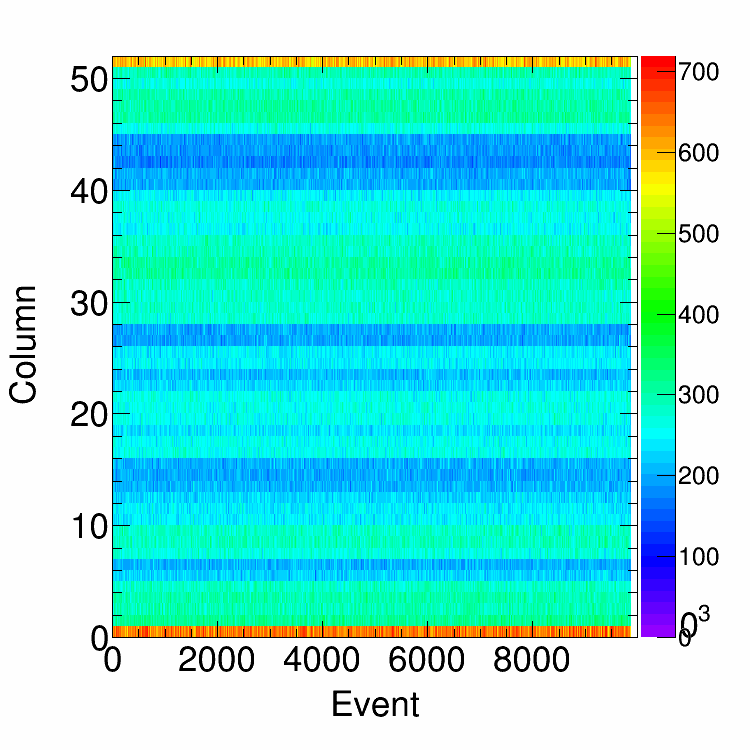

Col. Uniformity per Event: C15 150
Plot
mu μ 25.79
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C15 100
Plot
N N 4160
mu μ 157.55
sigma RMS 14.26
threshold thr 2003.31
fit fit Gaussian
fit_peak μ fit 157.20
fit_sigma σ fit 13.76
MeasuredHitrate Measured hitrate: 58.3
Alive Map: C15
DC Efficiency Distribution: C15
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.23
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C15
