Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 14
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 1/0
Efficiency Efficiency 50/120 99.84/98.92
EfficiencyFit Efficiency Fit chi2/ndf: 0.87, # points: 119
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.87
NumberFitPoints # fit points 119
p0 p0 99.91
p1 p1 5.71e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.84
InterpolatedEfficiency120 Interpol. Efficiency 120 98.92

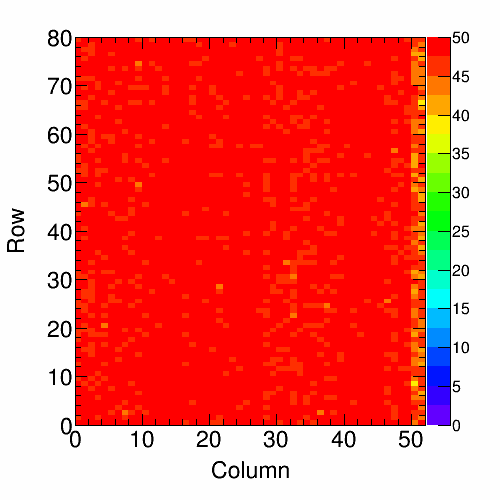

Efficiency Map 50: C14
Efficiency Map 75: C14
Efficiency Map 100: C14
Efficiency Map 125: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.93
sigma σ 0.39
Efficiency Distr. 75: C14
Plot
N N 4160
mu μ 99.87
sigma σ 0.52
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.74
sigma σ 0.74
Efficiency Distr. 125: C14
Plot
N N 4160
mu μ 99.58
sigma σ 0.94
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.38
sigma σ 1.20
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 98.54
sigma σ 1.98
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 97.24
sigma σ 2.88

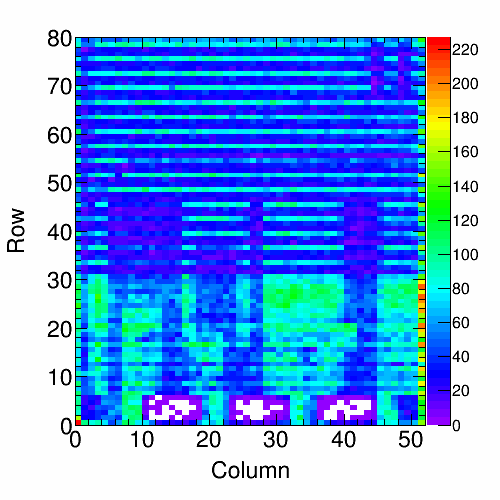

Background Map 50: C14
Plot
RealHitrate Real Hitrate 30.25 MHz/cm2

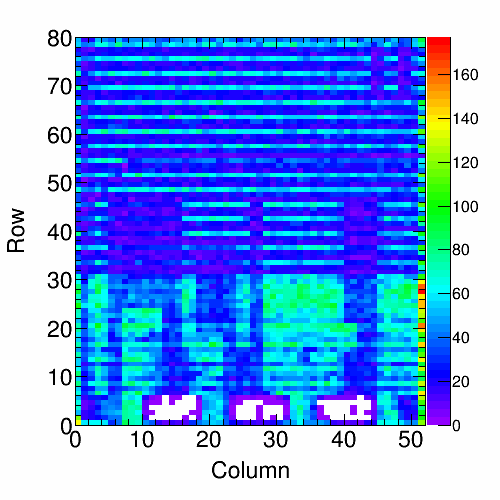

Background Map 75: C14
Plot
RealHitrate Real Hitrate 44.82 MHz/cm2

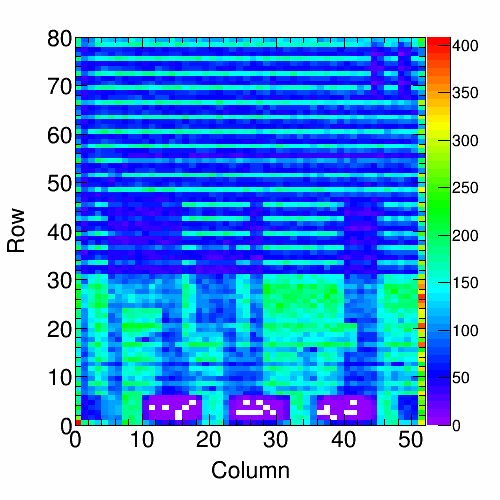

Background Map 100: C14
Plot
RealHitrate Real Hitrate 62.13 MHz/cm2

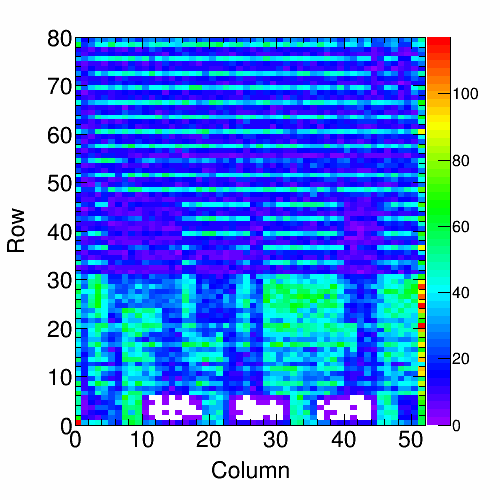

Background Map 125: C14
Plot
RealHitrate Real Hitrate 75.35 MHz/cm2
Background Map 150: C14
Plot
RealHitrate Real Hitrate 90.31 MHz/cm2
Background Map 200: C14
Plot
RealHitrate Real Hitrate 123.11 MHz/cm2
Background Map 250: C14
Plot
RealHitrate Real Hitrate 153.38 MHz/cm2
Retrim Hot Pix 150: C14
Retrim Hot Pix 50: C14
Masked Hot Pixels 50: C14
Masked Hot Pixels 150: C14

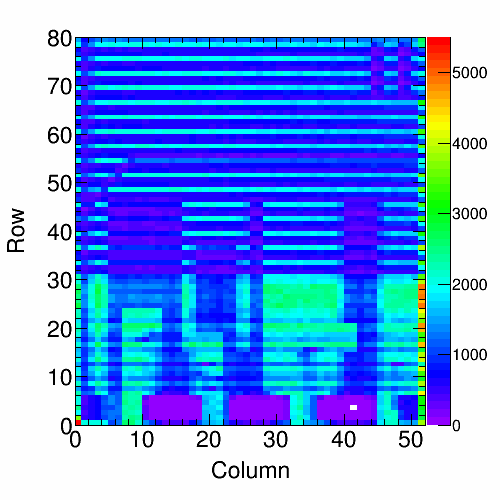

Hit Map 50: C14
Plot
RealHitrate Real Hitrate 29.38 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 50: C14

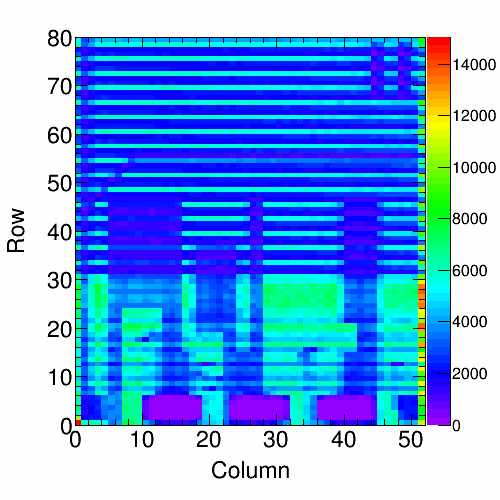

Hit Map 150: C14
Plot
RealHitrate Real Hitrate 89.28 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C14
Col. Read. Unif. 50: C14
Plot
N N 4250419
mu μ 91360
sigma σ 23208.77
Col. Read. Unif. 150: C14
Plot
N N 12912914
mu μ 277650
sigma σ 65638.78
Read. Unif. over Time 50: C14
Plot
N N 4750746
mu μ 4818
sigma_th σ_th 69.41
Time unif. distribution 50: C14
Plot
chi2/ndf chi2/ndf 0.82
sigma σ 70.01
sigma_th σ_th 69.41
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C14
Plot
N N 14437819
mu μ 14643
sigma_th σ_th 121.01
Time unif. distribution 150: C14
Plot
chi2/ndf chi2/ndf 2.46
sigma σ 128.74
sigma_th σ_th 121.01
expectation Red curve (expected) Poisson

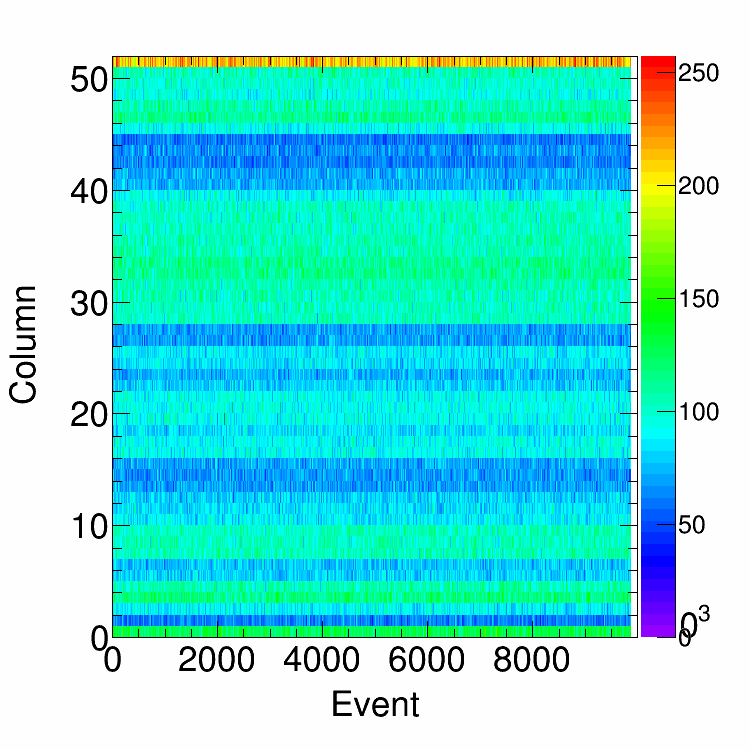

Col. Uniformity Ratio: C14
Col. Uniformity per Event: C14 50
Plot
mu μ 27.01
sigma fit error of μ 2.15
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C14 150
Plot
mu μ 26.62
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 100
Plot
N N 4160
mu μ 161.90
sigma RMS 14.54
threshold thr 2008.72
fit fit Gaussian
fit_peak μ fit 161.64
fit_sigma σ fit 13.93
MeasuredHitrate Measured hitrate: 62.0
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 98.92
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
