Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 11
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.86/99.3
EfficiencyFit Efficiency Fit chi2/ndf: 0.99, # points: 109
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C11
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.99
NumberFitPoints # fit points 109
p0 p0 99.91
p1 p1 3.50e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.30

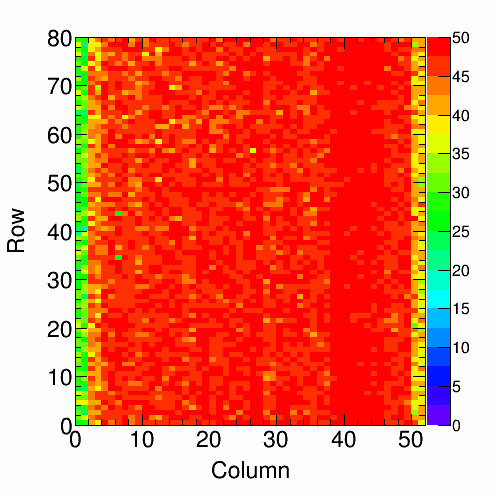

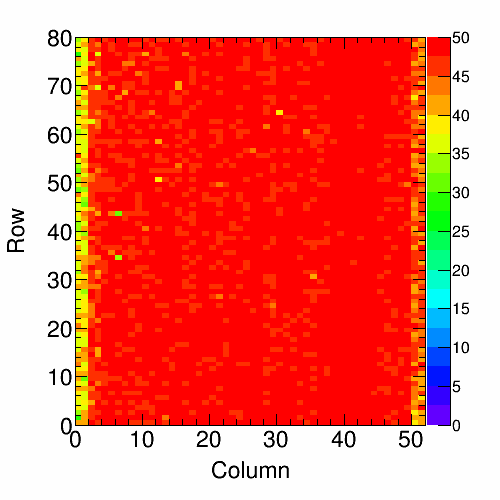

Efficiency Map 50: C11
Efficiency Map 75: C11
Efficiency Map 100: C11
Efficiency Map 125: C11
Efficiency Map 150: C11
Efficiency Map 200: C11
Efficiency Map 250: C11
Efficiency Distr. 50: C11
Plot
N N 4160
mu μ 99.86
sigma σ 0.54
Efficiency Distr. 75: C11
Plot
N N 4160
mu μ 99.71
sigma σ 0.81
Efficiency Distr. 100: C11
Plot
N N 4160
mu μ 99.40
sigma σ 1.25
Efficiency Distr. 125: C11
Plot
N N 4160
mu μ 98.99
sigma σ 1.85
Efficiency Distr. 150: C11
Plot
N N 4160
mu μ 98.32
sigma σ 2.77
Efficiency Distr. 200: C11
Plot
N N 4160
mu μ 95.86
sigma σ 5.43
Efficiency Distr. 250: C11
Plot
N N 4160
mu μ 92.34
sigma σ 8.56

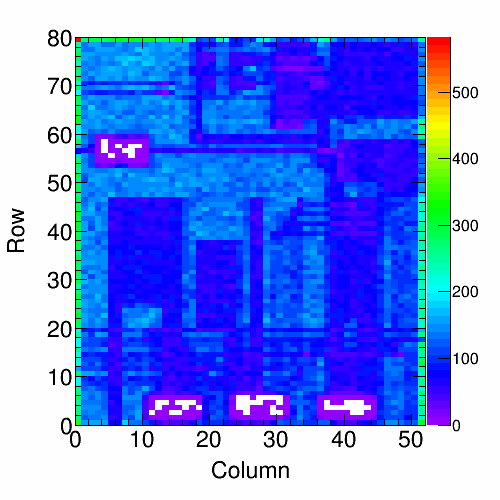

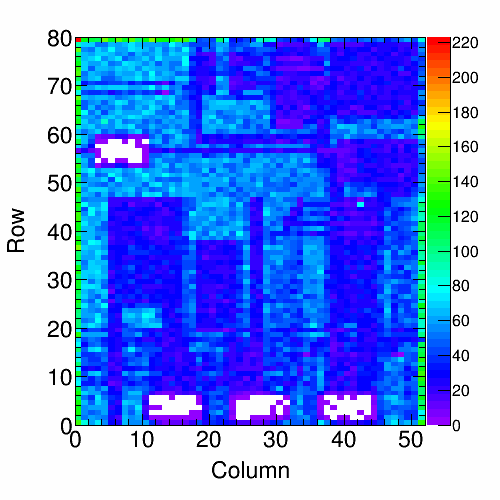

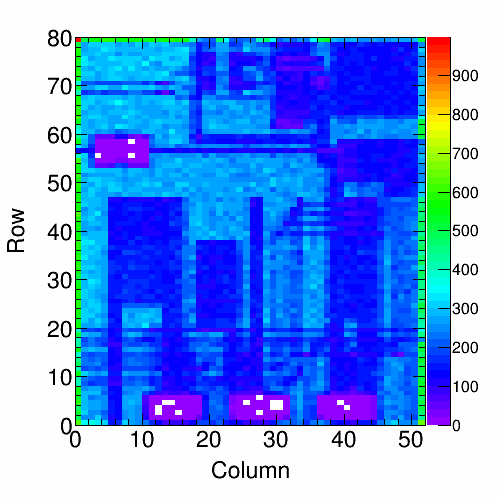

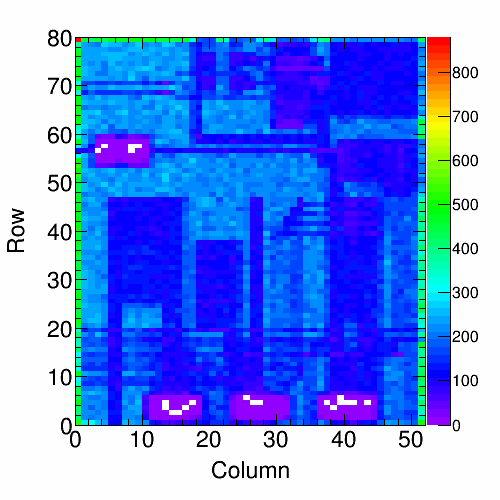

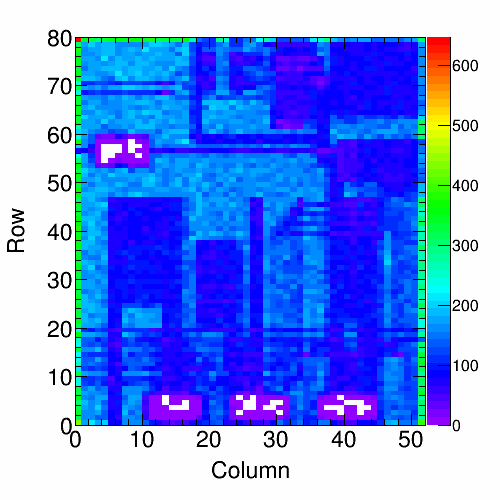

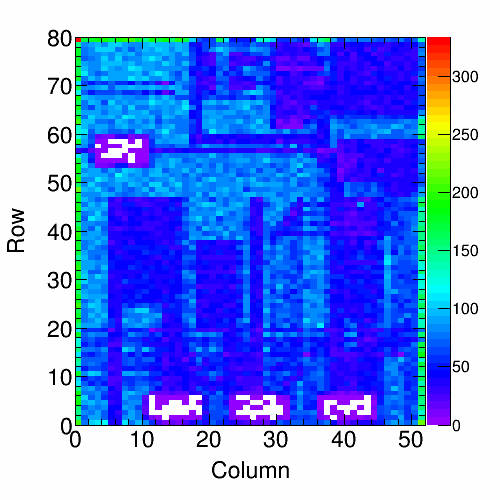

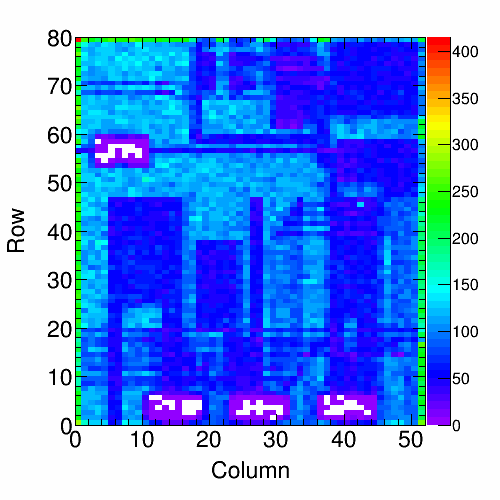

Background Map 50: C11
Plot
RealHitrate Real Hitrate 49.19 MHz/cm2
Background Map 75: C11
Plot
RealHitrate Real Hitrate 72.24 MHz/cm2
Background Map 100: C11
Plot
RealHitrate Real Hitrate 100.06 MHz/cm2
Background Map 125: C11
Plot
RealHitrate Real Hitrate 121.71 MHz/cm2
Background Map 150: C11
Plot
RealHitrate Real Hitrate 144.94 MHz/cm2
Background Map 200: C11
Plot
RealHitrate Real Hitrate 197.22 MHz/cm2
Background Map 250: C11
Plot
RealHitrate Real Hitrate 243.61 MHz/cm2
Retrim Hot Pix 150: C11
Retrim Hot Pix 50: C11
Masked Hot Pixels 50: C11
Masked Hot Pixels 150: C11

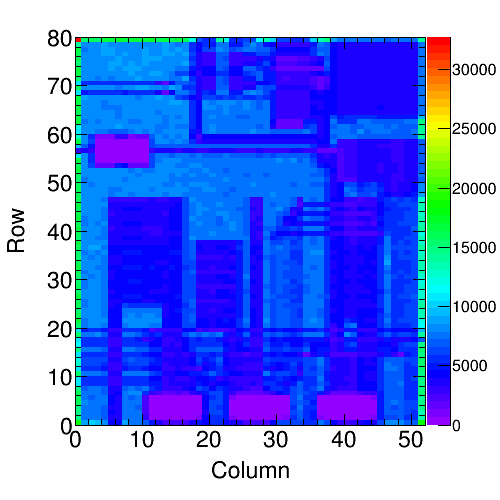

Hit Map 50: C11
Plot
RealHitrate Real Hitrate 48.07 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C11

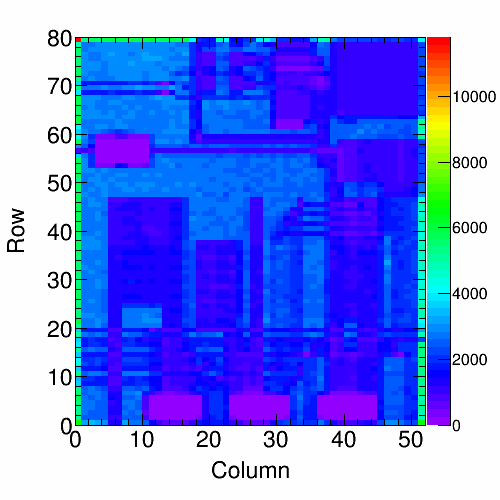

Hit Map 150: C11
Plot
RealHitrate Real Hitrate 143.54 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C11
Col. Read. Unif. 50: C11
Plot
N N 6691470
mu μ 149498
sigma σ 52572.74
Col. Read. Unif. 150: C11
Plot
N N 20050289
mu μ 446394
sigma σ 146684.20
Read. Unif. over Time 50: C11
Plot
N N 7773871
mu μ 7884
sigma_th σ_th 88.79
Time unif. distribution 50: C11
Plot
chi2/ndf chi2/ndf 2.69
sigma σ 92.36
sigma_th σ_th 88.80
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C11
Plot
N N 23212465
mu μ 23542
sigma_th σ_th 153.43
Time unif. distribution 150: C11
Plot
chi2/ndf chi2/ndf 2.66
sigma σ 165.04
sigma_th σ_th 153.44
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C11

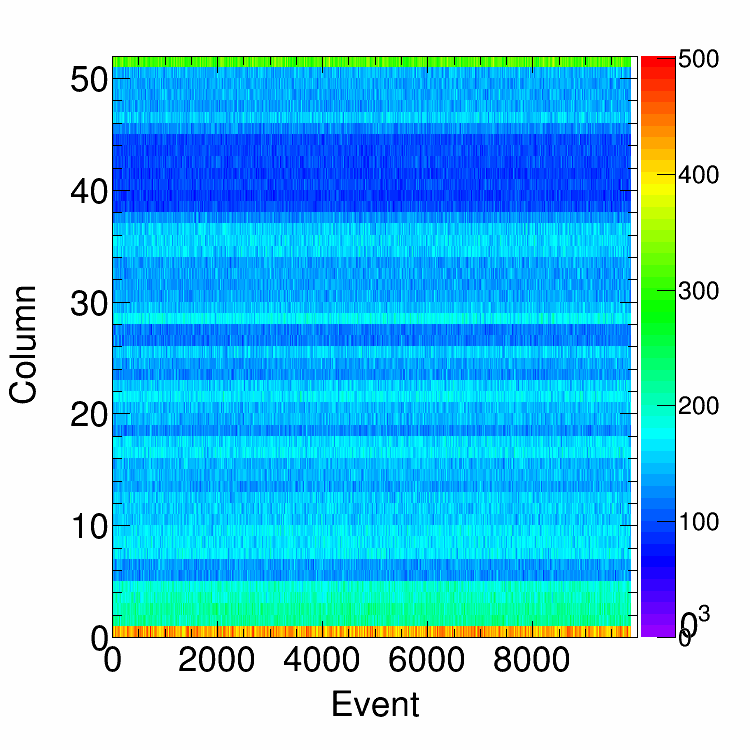

Col. Uniformity per Event: C11 50
Plot
mu μ 24.23
sigma fit error of μ 2.24
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

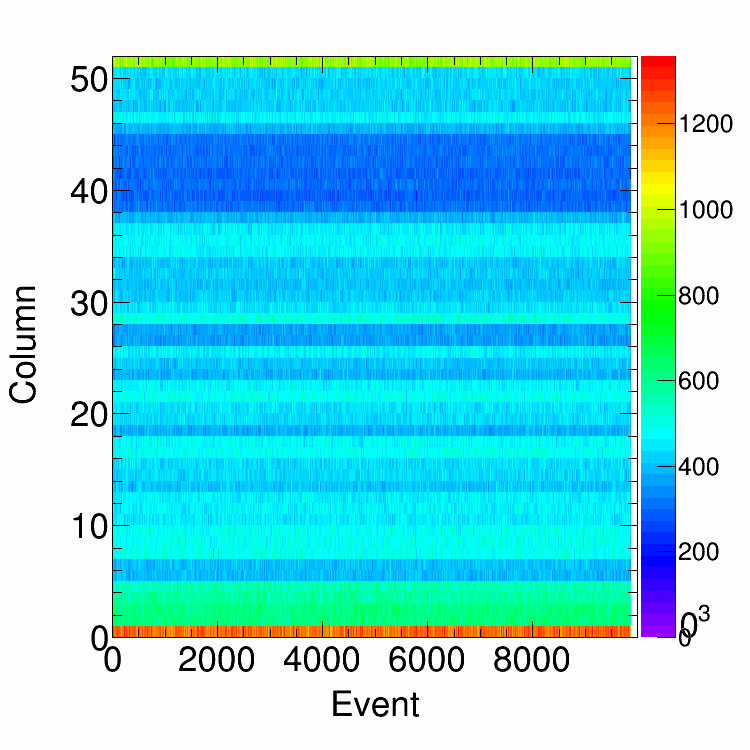

Col. Uniformity per Event: C11 150
Plot
mu μ 24.22
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C11 100
Plot
N N 4160
mu μ 161.76
sigma RMS 15.68
threshold thr 2138.97
fit fit Gaussian
fit_peak μ fit 161.37
fit_sigma σ fit 15.12
MeasuredHitrate Measured hitrate: 100.2
Alive Map: C11
DC Efficiency Distribution: C11
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.30
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C11
