Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:31
Chip 1
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.82/98.96
EfficiencyFit Efficiency Fit chi2/ndf: 0.55, # points: 122
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C1
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.55
NumberFitPoints # fit points 122
p0 p0 99.89
p1 p1 5.40e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.82
InterpolatedEfficiency120 Interpol. Efficiency 120 98.96
Efficiency Map 50: C1
Efficiency Map 75: C1
Efficiency Map 100: C1
Efficiency Map 125: C1
Efficiency Map 150: C1
Efficiency Map 200: C1
Efficiency Map 250: C1
Efficiency Distr. 50: C1
Plot
N N 4160
mu μ 99.91
sigma σ 0.43
Efficiency Distr. 75: C1
Plot
N N 4160
mu μ 99.87
sigma σ 0.52
Efficiency Distr. 100: C1
Plot
N N 4160
mu μ 99.76
sigma σ 0.71
Efficiency Distr. 125: C1
Plot
N N 4160
mu μ 99.62
sigma σ 0.90
Efficiency Distr. 150: C1
Plot
N N 4160
mu μ 99.48
sigma σ 1.08
Efficiency Distr. 200: C1
Plot
N N 4160
mu μ 98.75
sigma σ 1.84
Efficiency Distr. 250: C1
Plot
N N 4160
mu μ 97.81
sigma σ 2.66

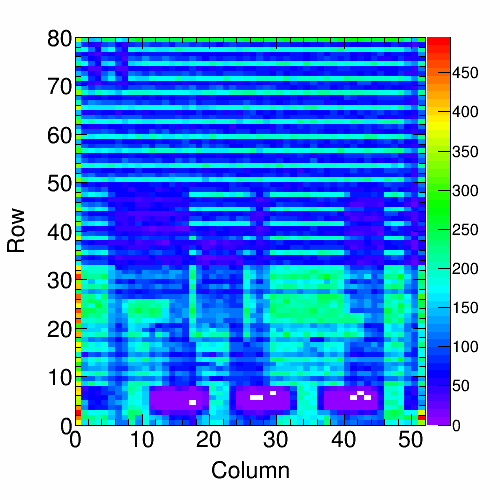

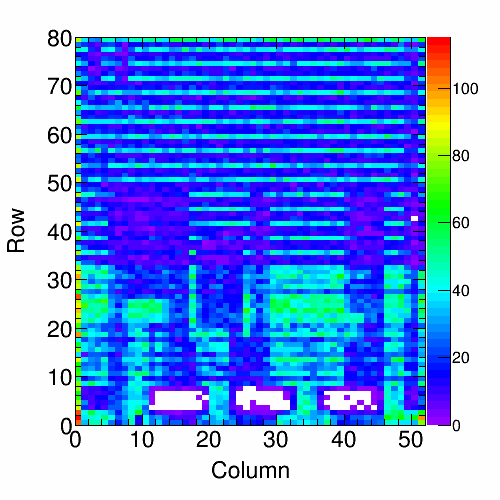

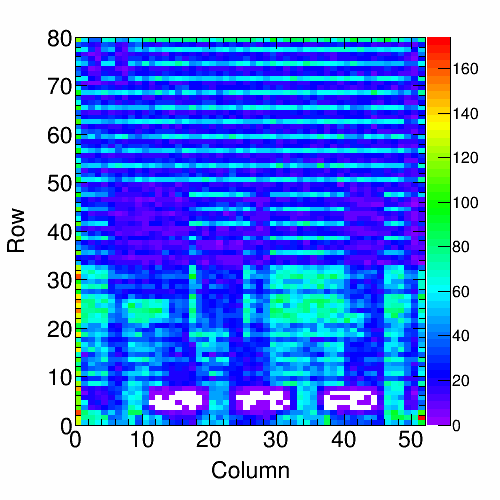

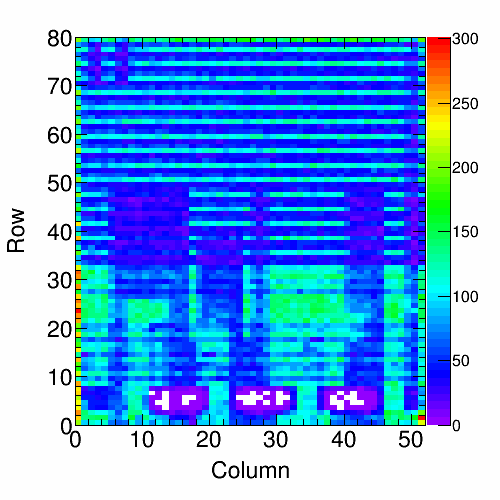

Background Map 50: C1
Plot
RealHitrate Real Hitrate 28.54 MHz/cm2

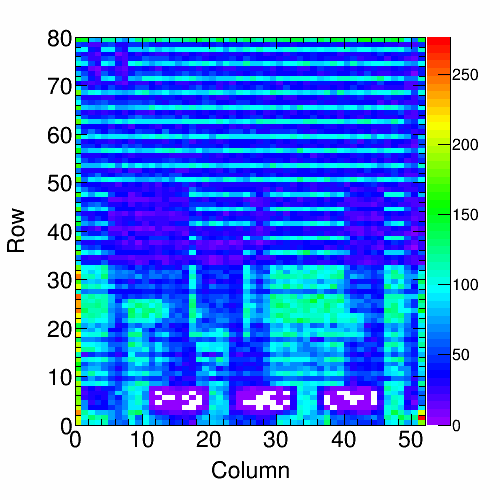

Background Map 75: C1
Plot
RealHitrate Real Hitrate 42.04 MHz/cm2
Background Map 100: C1
Plot
RealHitrate Real Hitrate 58.24 MHz/cm2
Background Map 125: C1
Plot
RealHitrate Real Hitrate 71.50 MHz/cm2
Background Map 150: C1
Plot
RealHitrate Real Hitrate 85.55 MHz/cm2
Background Map 200: C1
Plot
RealHitrate Real Hitrate 116.80 MHz/cm2
Background Map 250: C1
Plot
RealHitrate Real Hitrate 144.56 MHz/cm2
Retrim Hot Pix 150: C1
Retrim Hot Pix 50: C1
Masked Hot Pixels 50: C1
Masked Hot Pixels 150: C1

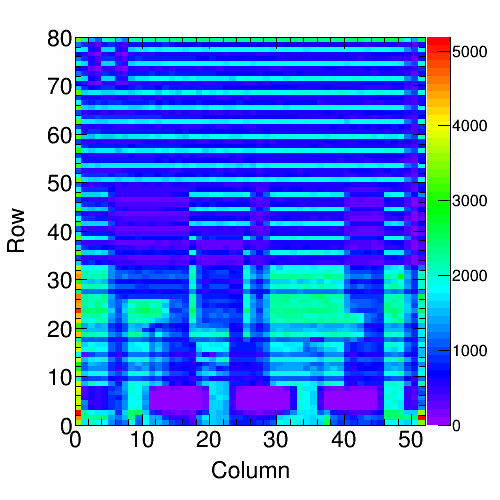

Hit Map 50: C1
Plot
RealHitrate Real Hitrate 27.43 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C1
Hit Map 150: C1
Plot
RealHitrate Real Hitrate 83.69 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C1
Col. Read. Unif. 50: C1
Plot
N N 3967781
mu μ 85306
sigma σ 23871.11
Col. Read. Unif. 150: C1
Plot
N N 12106246
mu μ 260269
sigma σ 66852.51
Read. Unif. over Time 50: C1
Plot
N N 4435929
mu μ 4499
sigma_th σ_th 67.07
Time unif. distribution 50: C1
Plot
chi2/ndf chi2/ndf 0.45
sigma σ 69.58
sigma_th σ_th 67.08
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C1
Plot
N N 13534004
mu μ 13726
sigma_th σ_th 117.16
Time unif. distribution 150: C1
Plot
chi2/ndf chi2/ndf 2.41
sigma σ 126.43
sigma_th σ_th 117.16
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C1

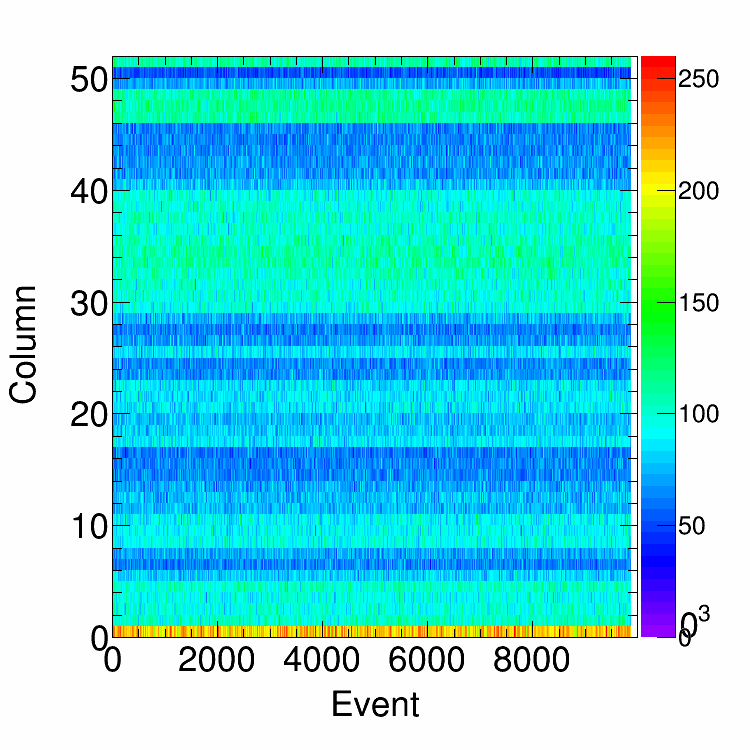

Col. Uniformity per Event: C1 50
Plot
mu μ 25.52
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

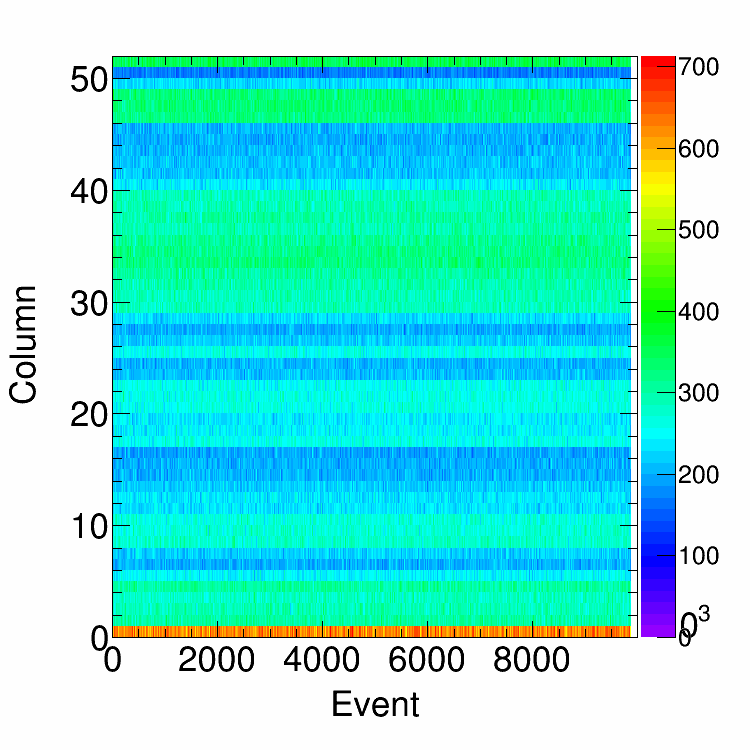

Col. Uniformity per Event: C1 150
Plot
mu μ 25.55
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C1 100
Plot
N N 4160
mu μ 160.83
sigma RMS 14.23
threshold thr 2005.05
fit fit Gaussian
fit_peak μ fit 160.53
fit_sigma σ fit 13.95
MeasuredHitrate Measured hitrate: 58.1
Alive Map: C1
DC Efficiency Distribution: C1
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.83
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 98.96
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C1
