Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:28
Analysis date: 2016-09-19 17:28
M2315 XRayHRQualification
Summary
| Module | Module | M2315 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 39 | |
| BumpBondingDefects | Bump Bonding Defects | 36 | |
| NoisyPixels | Noisy Pixels | 2 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

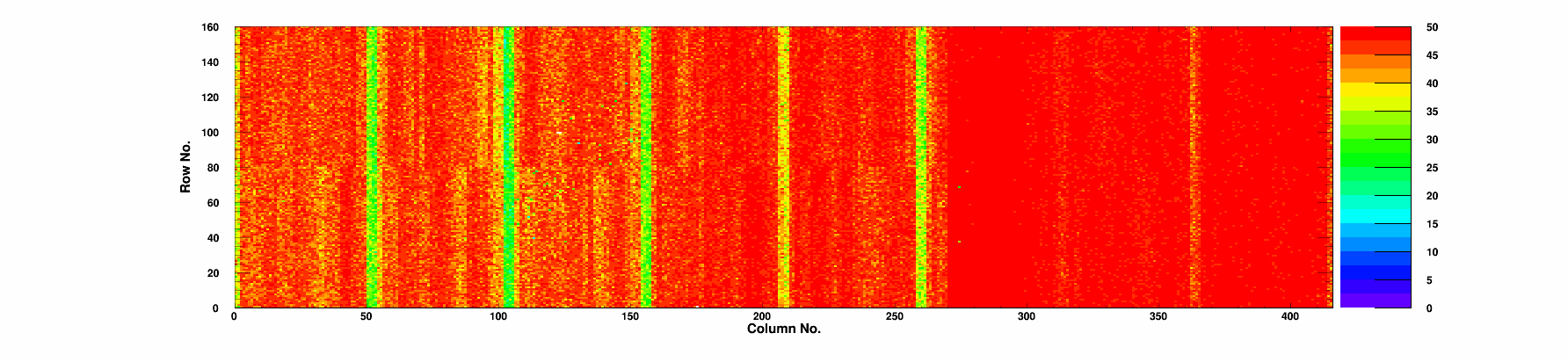

| Efficiency | Efficiency 50/120 | 99.85/99.21 | % |
| Noise | Mean Noise | 161 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
6 | 0 | 99.86 | 99.22 | 0.76 | 29.2 | 87.5 | 6 | 0/0 | 0 | 2002 | 157 | 0 |
|
Chip 1
|
A
|
8 | 0 | 99.84 | 98.94 | 0.71 | 31.2 | 93.9 | 8 | 0/0 | 0 | 2007 | 163 | 0 |
|
Chip 2
|
A
|
3 | 0 | 99.82 | 98.96 | 0.6 | 27.3 | 84.0 | 3 | 0/0 | 0 | 1977 | 159 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.21 | 0.53 | 47.2 | 138.9 | 0 | 0/0 | 0 | 2118 | 160 | 0 |
|
Chip 4
|
A
|
5 | 0 | 99.87 | 99.28 | 0.44 | 49.8 | 147.2 | 5 | 0/0 | 0 | 2159 | 168 | 0 |
|
Chip 5
|
A
|
2 | 0 | 99.87 | 99.28 | 0.81 | 58.6 | 169.9 | 0 | 0/0 | 0 | 2125 | 157 | 1 |
|
Chip 6
|
A
|
1 | 0 | 99.85 | 99.31 | 1.0 | 60.7 | 177.4 | 1 | 0/0 | 0 | 2194 | 156 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.30 | 0.64 | 54.7 | 161.8 | 0 | 0/0 | 0 | 2149 | 153 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.32 | 0.59 | 59.6 | 173.8 | 0 | 0/0 | 0 | 2203 | 158 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.28 | 0.58 | 60.1 | 174.4 | 0 | 0/0 | 0 | 2182 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.26 | 0.92 | 64.0 | 181.3 | 0 | 0/0 | 0 | 2226 | 159 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.88 | 99.30 | 0.55 | 49.5 | 146.2 | 1 | 0/0 | 0 | 2103 | 159 | 1 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.29 | 0.49 | 49.5 | 146.0 | 0 | 0/0 | 0 | 2133 | 167 | 0 |
|
Chip 13
|
A
|
3 | 0 | 99.84 | 99.27 | 1.11 | 28.7 | 87.6 | 3 | 0/0 | 0 | 2009 | 169 | 0 |
|
Chip 14
|
A
|
7 | 0 | 99.84 | 98.94 | 0.76 | 31.8 | 95.1 | 7 | 0/0 | 0 | 2029 | 163 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.85 | 99.25 | 0.51 | 31.6 | 93.8 | 2 | 0/0 | 0 | 2001 | 165 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-19 | |
| TestTime | Test Time | 15:21 | |
| TestDuration | Duration | 1:29:50 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
