Test Date: 2016-09-19 15:21
Analysis date: 2016-09-19 17:26
Analysis date: 2016-09-19 17:26
M2310 XRayHRQualification

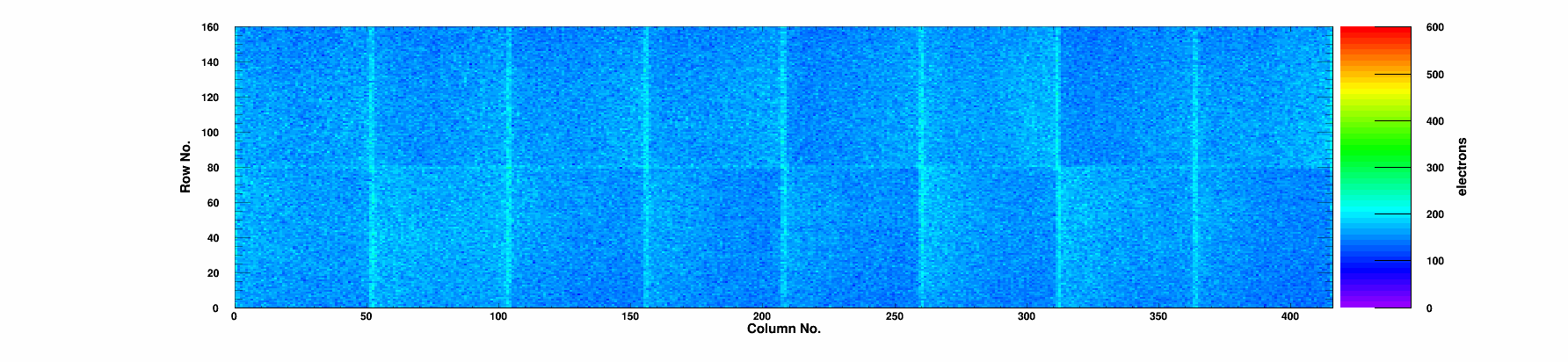

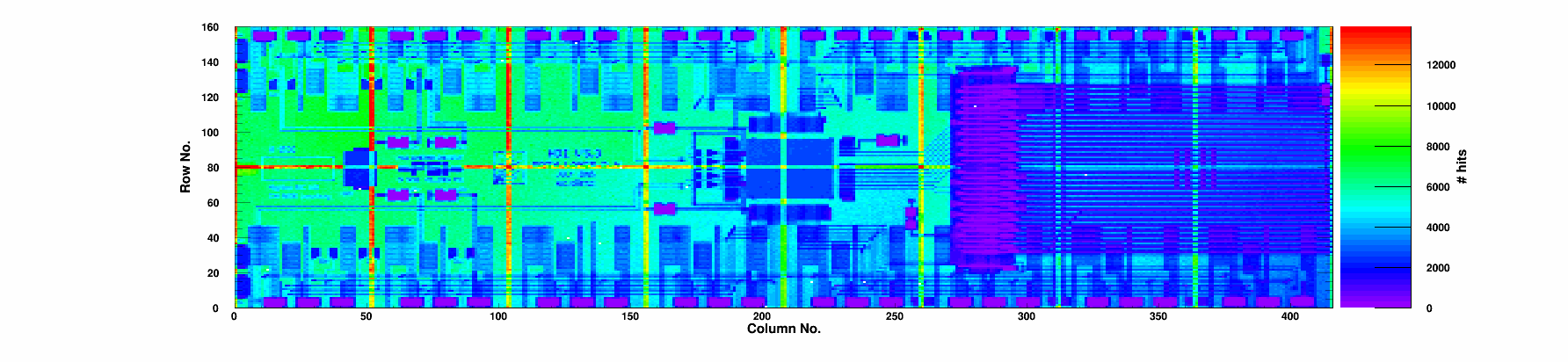

Summary
| Module | Module | M2310 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 16 | |
| BumpBondingDefects | Bump Bonding Defects | 16 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.22 | % |
| Noise | Mean Noise | 158 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.83 | 98.93 | 0.75 | 23.1 | 69.7 | 0 | 0/0 | 0 | 1948 | 161 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.87 | 99.29 | 0.45 | 21.7 | 66.6 | 1 | 0/0 | 0 | 1922 | 152 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.85 | 99.27 | 0.6 | 22.2 | 68.2 | 1 | 0/0 | 0 | 1951 | 164 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.30 | 0.53 | 36.0 | 106.8 | 0 | 0/0 | 0 | 2038 | 155 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.86 | 99.22 | 0.7 | 37.6 | 112.3 | 0 | 0/0 | 0 | 2057 | 159 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.87 | 99.29 | 0.65 | 47.4 | 137.9 | 1 | 0/0 | 0 | 2101 | 158 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.86 | 99.33 | 0.48 | 46.0 | 134.6 | 1 | 0/0 | 0 | 2097 | 157 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.28 | 0.58 | 50.5 | 147.8 | 0 | 0/0 | 0 | 2142 | 159 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.86 | 99.27 | 1.0 | 43.8 | 128.9 | 2 | 0/0 | 0 | 2077 | 161 | 0 |
|
Chip 9
|
A
|
1 | 0 | 99.86 | 99.26 | 0.7 | 41.5 | 122.1 | 1 | 0/0 | 0 | 2076 | 168 | 0 |
|
Chip 10
|
A
|
3 | 0 | 99.87 | 99.35 | 0.54 | 40.5 | 118.7 | 3 | 0/0 | 0 | 2060 | 156 | 0 |
|
Chip 11
|
A
|
2 | 0 | 99.87 | 99.27 | 0.57 | 31.5 | 95.2 | 2 | 0/0 | 0 | 2030 | 155 | 0 |
|
Chip 12
|
A
|
3 | 0 | 99.87 | 99.27 | 0.48 | 28.9 | 87.9 | 3 | 0/0 | 0 | 1987 | 154 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.28 | 0.32 | 18.4 | 57.0 | 0 | 0/0 | 0 | 1930 | 159 | 0 |
|
Chip 14
|
A
|
1 | 0 | 99.84 | 98.99 | 0.4 | 20.7 | 63.5 | 1 | 0/0 | 0 | 1955 | 163 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 98.90 | 0.42 | 18.2 | 55.9 | 0 | 0/0 | 0 | 1922 | 151 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-19 | |
| TestTime | Test Time | 15:21 | |
| TestDuration | Duration | 1:29:50 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
