Test Date: 2016-09-07 11:25
Analysis date: 2016-09-07 13:25
Analysis date: 2016-09-07 13:25
M2307 XRayHRQualification
Summary
| Module | Module | M2307 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 2 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |
| Noise | Mean Noise | 159 | e- |

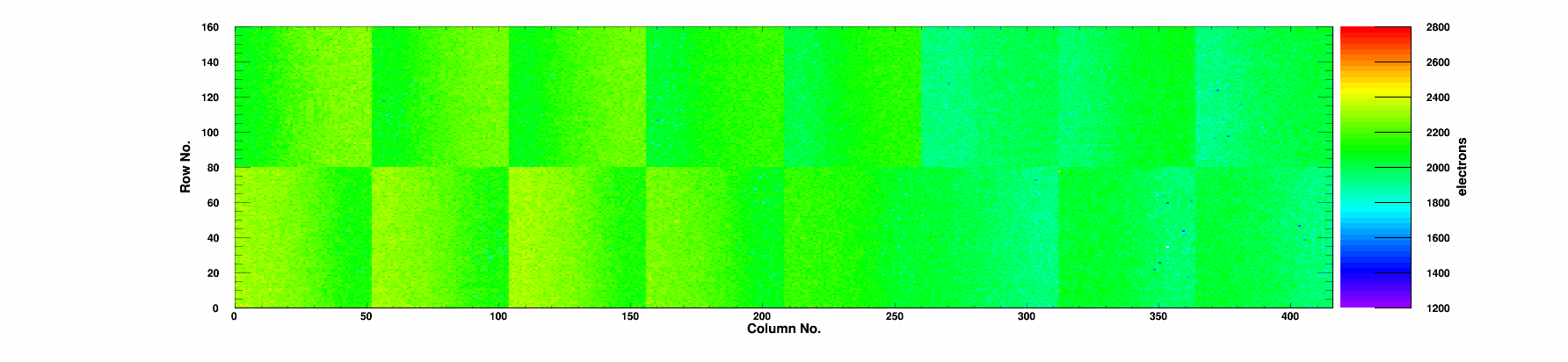

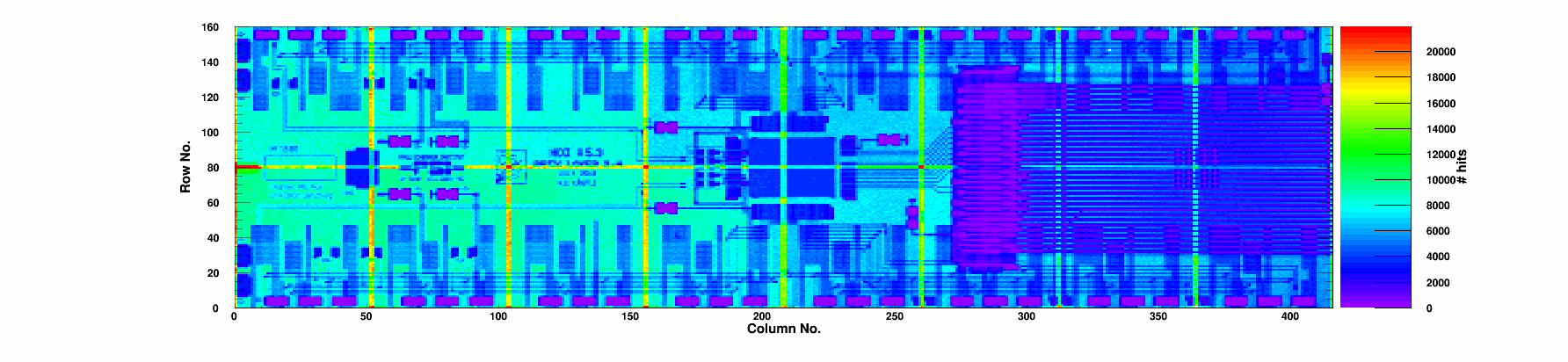

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.33 | 0.59 | 27.1 | 82.2 | 0 | 0/0 | 0 | 1980 | 156 | 0 |
|
Chip 1
|
A
|
1 | 0 | 99.84 | 98.92 | 0.65 | 31.9 | 95.9 | 1 | 0/0 | 0 | 2015 | 158 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.24 | 0.43 | 28.4 | 86.8 | 0 | 0/0 | 0 | 1965 | 158 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.22 | 0.84 | 45.6 | 134.7 | 0 | 0/0 | 0 | 2087 | 147 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.28 | 0.75 | 48.4 | 142.9 | 0 | 0/0 | 0 | 2107 | 151 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.85 | 99.29 | 0.76 | 62.4 | 179.2 | 0 | 0/0 | 0 | 2170 | 155 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.32 | 0.65 | 58.0 | 169.0 | 0 | 0/0 | 0 | 2176 | 157 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.85 | 99.32 | 0.7 | 64.1 | 184.9 | 0 | 0/0 | 0 | 2193 | 160 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.32 | 0.79 | 66.1 | 190.4 | 0 | 0/0 | 0 | 2222 | 162 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.28 | 0.69 | 64.4 | 186.6 | 0 | 0/0 | 0 | 2218 | 159 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.35 | 1.01 | 68.1 | 196.3 | 0 | 0/0 | 0 | 2232 | 165 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.34 | 0.53 | 56.8 | 167.0 | 0 | 0/0 | 0 | 2171 | 162 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.31 | 0.45 | 47.2 | 138.8 | 0 | 0/0 | 0 | 2111 | 158 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.16 | 0.77 | 29.1 | 88.7 | 0 | 0/0 | 0 | 1980 | 160 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.87 | 99.25 | 0.4 | 31.8 | 95.7 | 0 | 0/0 | 0 | 2004 | 170 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.84 | 99.10 | 0.71 | 30.5 | 90.8 | 1 | 0/0 | 0 | 1988 | 161 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-07 | |
| TestTime | Test Time | 11:25 | |
| TestDuration | Duration | 1:34:29 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
