Test Date: 2016-09-07 11:25
Analysis date: 2016-09-07 13:22
Analysis date: 2016-09-07 13:22
M2305 XRayHRQualification
Summary
| Module | Module | M2305 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 15 | |
| BumpBondingDefects | Bump Bonding Defects | 11 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.86/99.20 | % |

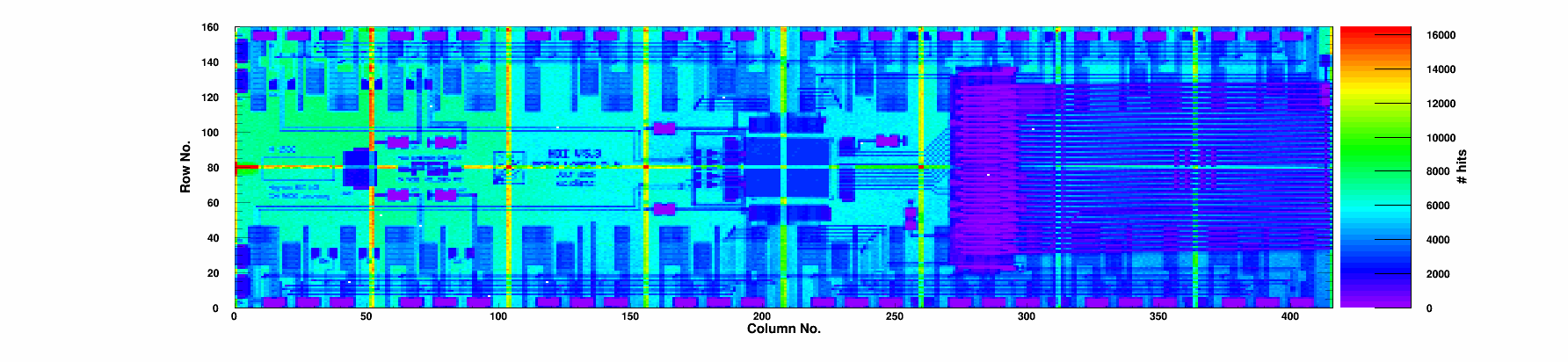

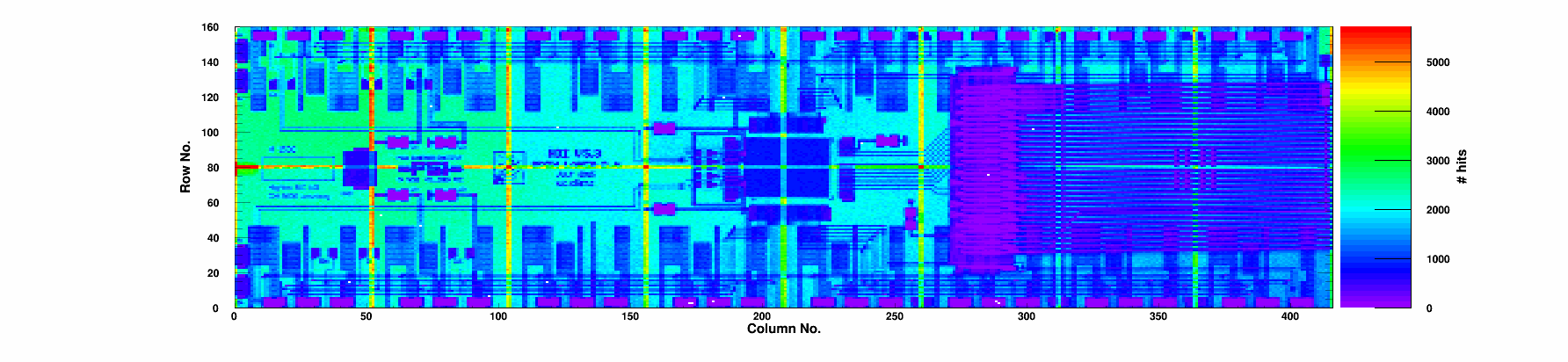

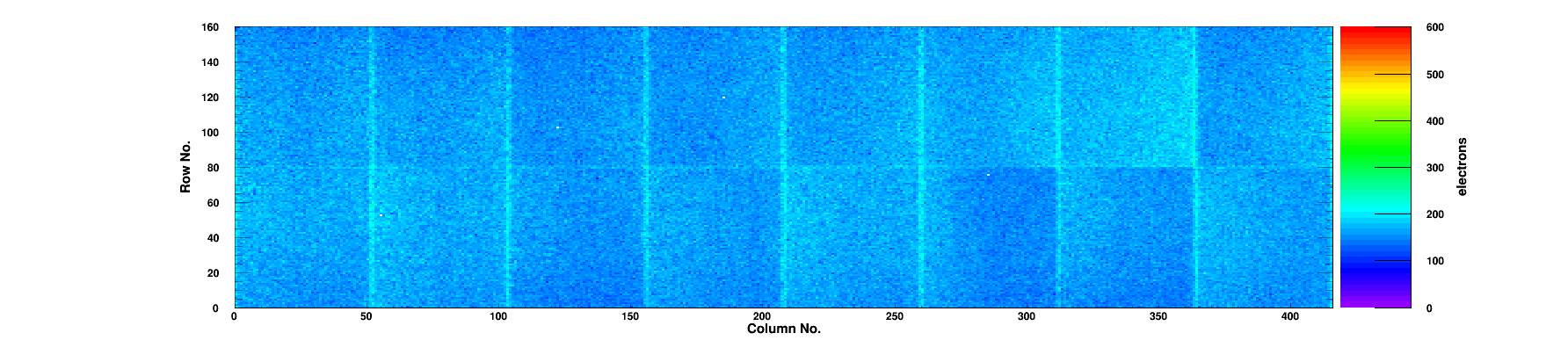

| Noise | Mean Noise | 162 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.21 | 0.49 | 25.6 | 76.2 | 0 | 0/0 | 0 | 1982 | 163 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.19 | 1.04 | 27.0 | 80.9 | 0 | 0/0 | 0 | 1982 | 177 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.86 | 99.28 | 0.53 | 23.9 | 72.7 | 1 | 0/0 | 0 | 1976 | 167 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.83 | 99.00 | 1.02 | 37.5 | 110.4 | 1 | 0/0 | 0 | 2057 | 162 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.89 | 99.32 | 0.57 | 37.7 | 111.9 | 0 | 0/0 | 0 | 2018 | 158 | 1 |
|
Chip 5
|
A
|
1 | 0 | 99.88 | 99.34 | 0.59 | 45.0 | 131.2 | 0 | 0/0 | 0 | 2057 | 154 | 1 |
|
Chip 6
|
A
|
1 | 0 | 99.88 | 99.29 | 0.6 | 46.7 | 136.5 | 1 | 0/0 | 0 | 2100 | 159 | 0 |
|
Chip 7
|
A
|
4 | 0 | 99.87 | 99.31 | 0.96 | 52.6 | 153.8 | 4 | 0/0 | 0 | 2156 | 160 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.88 | 99.30 | 0.59 | 44.5 | 130.3 | 1 | 0/0 | 0 | 2109 | 165 | 0 |
|
Chip 9
|
A
|
3 | 0 | 99.89 | 99.29 | 0.51 | 44.9 | 131.7 | 2 | 0/0 | 0 | 2086 | 168 | 1 |
|
Chip 10
|
A
|
1 | 0 | 99.83 | 99.05 | 0.9 | 43.8 | 128.0 | 1 | 0/0 | 0 | 2077 | 155 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.31 | 0.37 | 37.1 | 110.0 | 0 | 0/0 | 0 | 2058 | 160 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.16 | 0.82 | 35.9 | 106.5 | 0 | 0/0 | 0 | 2035 | 167 | 0 |
|
Chip 13
|
A
|
1 | 0 | 99.87 | 99.27 | 0.48 | 19.4 | 59.8 | 0 | 0/0 | 0 | 1912 | 154 | 1 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 98.97 | 0.43 | 22.1 | 67.1 | 0 | 0/0 | 0 | 1954 | 158 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.84 | 98.88 | 0.54 | 23.3 | 69.4 | 0 | 0/0 | 0 | 1962 | 163 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-07 | |
| TestTime | Test Time | 11:25 | |
| TestDuration | Duration | 1:34:29 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
