Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
X-ray Calibration - Spectrum
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
avrgSlope |
avrg Slope |
48.4 |
|
medianSlope |
median Slope |
48.4845 |
|
minSlope |
min Slope |
45.791 |
|
maxSlope |
max Slope |
50.077 |
|
Offset of Spectrum Vcal Calibration
avrgOffset |
avrg Offset |
-52.4671875 |
|
medianOffset |
median Offset |
-79.2605 |
|
minOffset |
min Offset |
-237.511 |
|
maxOffset |
max Offset |
151.323 |
|
Chi2 of Spectrum Vcal Calibration
avrgchi2 |
avrg chi2 |
3.9714375 |
|
medianchi2 |
median chi2 |
0.6355 |
|
minchi2 |
min chi2 |
0.01 |
|
maxchi2 |
max chi2 |
19.033 |
|
Vcal Calibration Module - Spectrum
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
0
|
48.7 e- / Vcal
|
0.2 e- / Vcal
|
-83.1 e-
|
17.6 e-
|
1
|
48.4 e- / Vcal
|
0.1 e- / Vcal
|
-119.6 e-
|
7.2 e-
|
2
|
49.6 e- / Vcal
|
0.1 e- / Vcal
|
-194.5 e-
|
10.1 e-
|
3
|
47.7 e- / Vcal
|
0.1 e- / Vcal
|
-108.5 e-
|
7.8 e-
|
4
|
48.1 e- / Vcal
|
0.1 e- / Vcal
|
-36.6 e-
|
17.3 e-
|
5
|
45.8 e- / Vcal
|
0.2 e- / Vcal
|
-6.4 e-
|
19.7 e-
|
6
|
48.1 e- / Vcal
|
0.1 e- / Vcal
|
-14.2 e-
|
14.3 e-
|
7
|
47.5 e- / Vcal
|
0.1 e- / Vcal
|
70.8 e-
|
14.9 e-
|
8
|
47.9 e- / Vcal
|
0.1 e- / Vcal
|
-237.5 e-
|
17.4 e-
|
9
|
46.5 e- / Vcal
|
0.0 e- / Vcal
|
34.0 e-
|
4.8 e-
|
10
|
48.8 e- / Vcal
|
0.2 e- / Vcal
|
151.3 e-
|
17.0 e-
|
11
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-78.8 e-
|
16.5 e-
|
12
|
49.4 e- / Vcal
|
0.1 e- / Vcal
|
33.1 e-
|
5.5 e-
|
13
|
49.3 e- / Vcal
|
0.1 e- / Vcal
|
-88.2 e-
|
7.3 e-
|
14
|
50.1 e- / Vcal
|
0.1 e- / Vcal
|
-81.6 e-
|
7.4 e-
|
15
|
50.0 e- / Vcal
|
0.1 e- / Vcal
|
-79.7 e-
|
17.1 e-
|
Average
|
48.4 e- / Vcal
|
|
-52.5 e-
|
|
Median
|
95.4 e- / Vcal
|
|
-166.7 e-
|
|
Overview

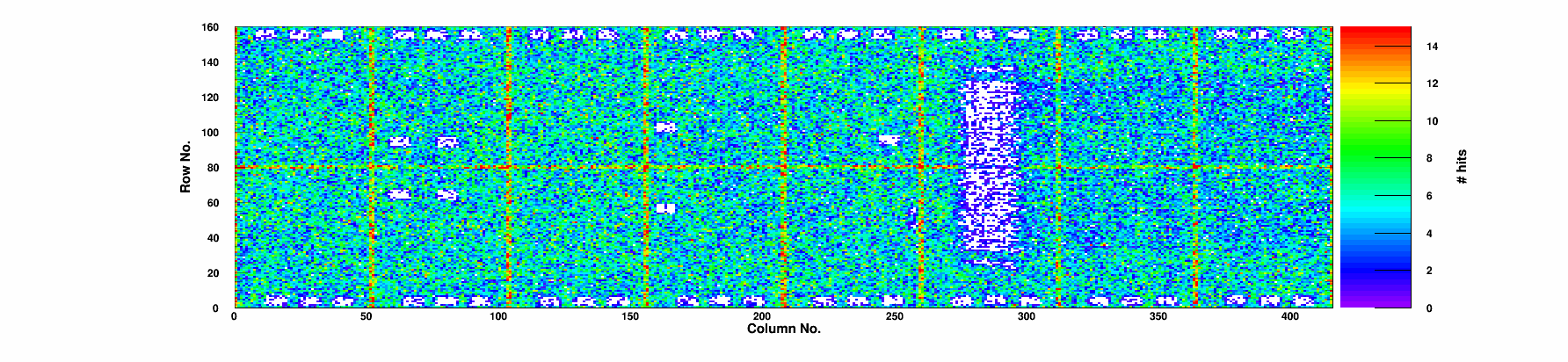

Xray Module Spectrum - Zn
Overview

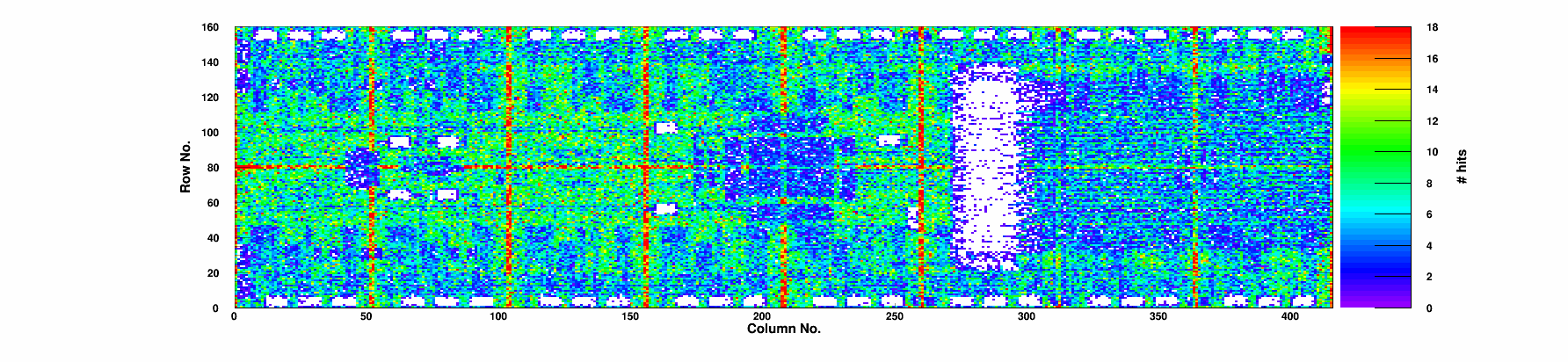

Xray Module Spectrum - Mo
Overview
Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
