Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 8
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.87/99.33
EfficiencyFit Efficiency Fit chi2/ndf: 0.51, # points: 83
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C8
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.51
NumberFitPoints # fit points 83
p0 p0 99.91
p1 p1 3.37e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.33

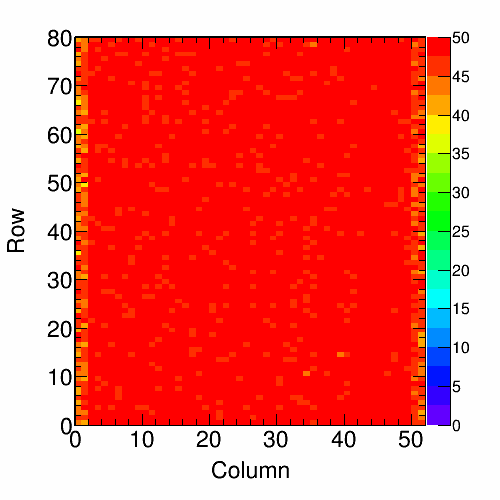

Efficiency Map 50: C8
Efficiency Map 75: C8
Efficiency Map 100: C8
Efficiency Map 125: C8
Efficiency Map 150: C8
Efficiency Map 200: C8

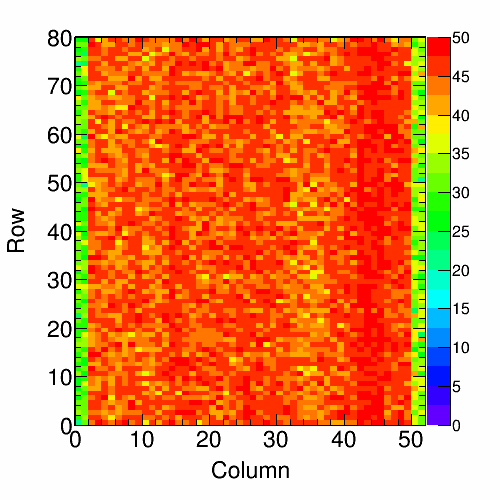

Efficiency Map 250: C8
Efficiency Distr. 50: C8
Plot
N N 4160
mu μ 99.82
sigma σ 0.62
Efficiency Distr. 75: C8
Plot
N N 4160
mu μ 99.60
sigma σ 0.93
Efficiency Distr. 100: C8
Plot
N N 4160
mu μ 99.09
sigma σ 1.48
Efficiency Distr. 125: C8
Plot
N N 4160
mu μ 98.47
sigma σ 2.19
Efficiency Distr. 150: C8
Plot
N N 4160
mu μ 97.37
sigma σ 3.05
Efficiency Distr. 200: C8
Plot
N N 4160
mu μ 93.53
sigma σ 5.67
Efficiency Distr. 250: C8
Plot
N N 4160
mu μ 87.86
sigma σ 8.69

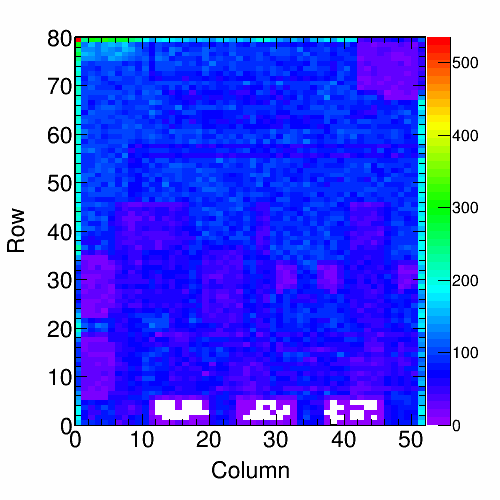

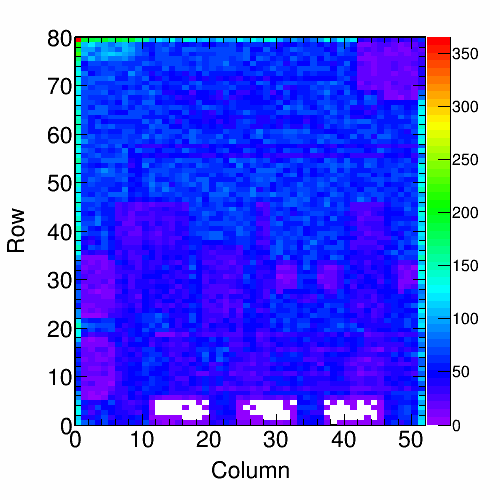

Background Map 50: C8
Plot
RealHitrate Real Hitrate 61.27 MHz/cm2

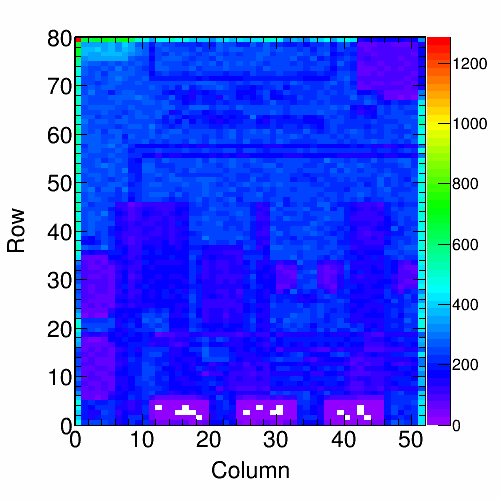

Background Map 75: C8
Plot
RealHitrate Real Hitrate 90.02 MHz/cm2

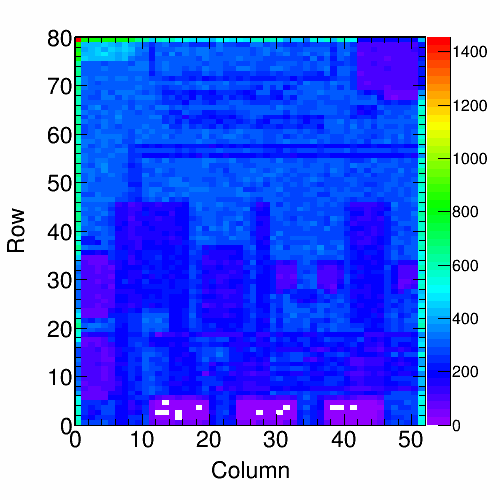

Background Map 100: C8
Plot
RealHitrate Real Hitrate 122.97 MHz/cm2
Background Map 125: C8
Plot
RealHitrate Real Hitrate 149.25 MHz/cm2
Background Map 150: C8
Plot
RealHitrate Real Hitrate 178.15 MHz/cm2
Background Map 200: C8
Plot
RealHitrate Real Hitrate 240.19 MHz/cm2
Background Map 250: C8
Plot
RealHitrate Real Hitrate 297.15 MHz/cm2
Retrim Hot Pix 150: C8
Retrim Hot Pix 50: C8
Masked Hot Pixels 50: C8
Masked Hot Pixels 150: C8
Hit Map 50: C8
Plot
RealHitrate Real Hitrate 59.45 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C8

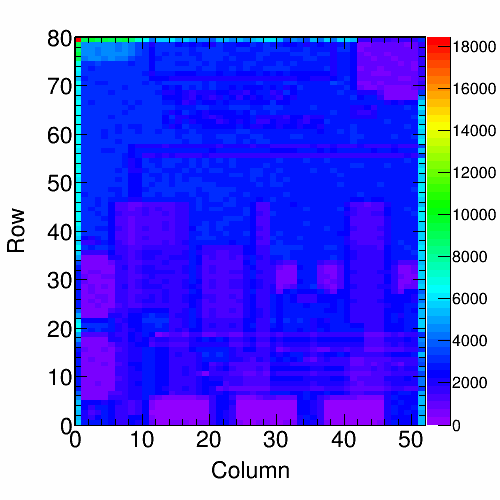

Hit Map 150: C8
Plot
RealHitrate Real Hitrate 174.02 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C8
Col. Read. Unif. 50: C8
Plot
N N 8438522
mu μ 184896
sigma σ 49488.08
Col. Read. Unif. 150: C8
Plot
N N 24757292
mu μ 541164
sigma σ 137454.81
Read. Unif. over Time 50: C8
Plot
N N 9614581
mu μ 9751
sigma_th σ_th 98.75
Time unif. distribution 50: C8
Plot
chi2/ndf chi2/ndf 1.16
sigma σ 102.52
sigma_th σ_th 98.75
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C8
Plot
N N 28140554
mu μ 28540
sigma_th σ_th 168.94
Time unif. distribution 150: C8
Plot
chi2/ndf chi2/ndf 11.46
sigma σ 193.48
sigma_th σ_th 168.95
expectation Red curve (expected) Poisson

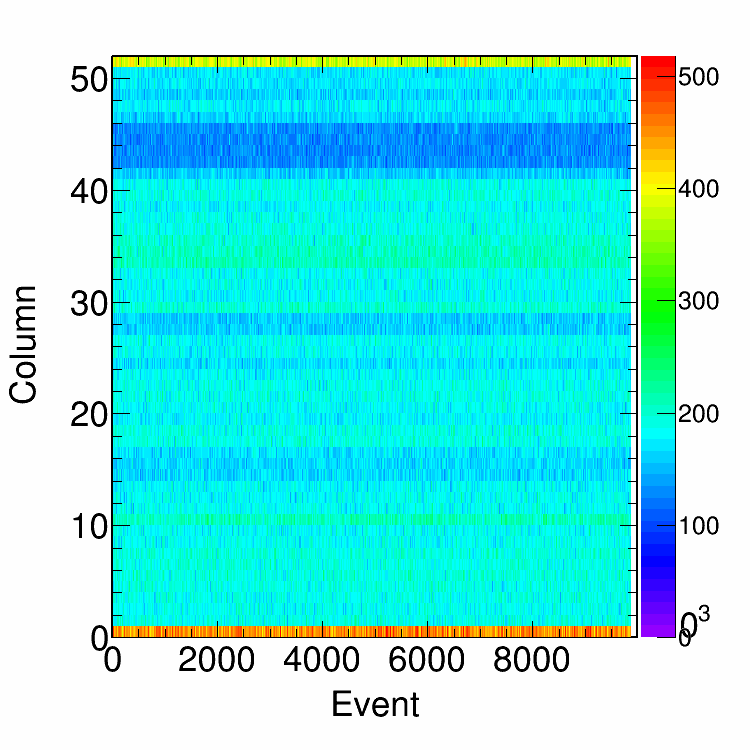

Col. Uniformity Ratio: C8
Col. Uniformity per Event: C8 50
Plot
mu μ 25.01
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C8 150
Plot
mu μ 25.30
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C8 100
Plot
N N 4160
mu μ 161.77
sigma RMS 15.49
threshold thr 2172.71
fit fit Gaussian
fit_peak μ fit 161.60
fit_sigma σ fit 15.17
MeasuredHitrate Measured hitrate: 123.9
Alive Map: C8
DC Efficiency Distribution: C8
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.33
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C8
