Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 7
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.87/99.31
EfficiencyFit Efficiency Fit chi2/ndf: 0.68, # points: 84
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C7
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.68
NumberFitPoints # fit points 84
p0 p0 99.91
p1 p1 3.47e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.31
Efficiency Map 50: C7
Efficiency Map 75: C7
Efficiency Map 100: C7
Efficiency Map 125: C7
Efficiency Map 150: C7
Efficiency Map 200: C7
Efficiency Map 250: C7
Efficiency Distr. 50: C7
Plot
N N 4160
mu μ 99.81
sigma σ 0.62
Efficiency Distr. 75: C7
Plot
N N 4160
mu μ 99.60
sigma σ 0.91
Efficiency Distr. 100: C7
Plot
N N 4160
mu μ 99.09
sigma σ 1.48
Efficiency Distr. 125: C7
Plot
N N 4160
mu μ 98.39
sigma σ 2.14
Efficiency Distr. 150: C7
Plot
N N 4160
mu μ 97.36
sigma σ 3.04
Efficiency Distr. 200: C7
Plot
N N 4160
mu μ 93.51
sigma σ 5.47
Efficiency Distr. 250: C7
Plot
N N 4160
mu μ 87.81
sigma σ 8.50

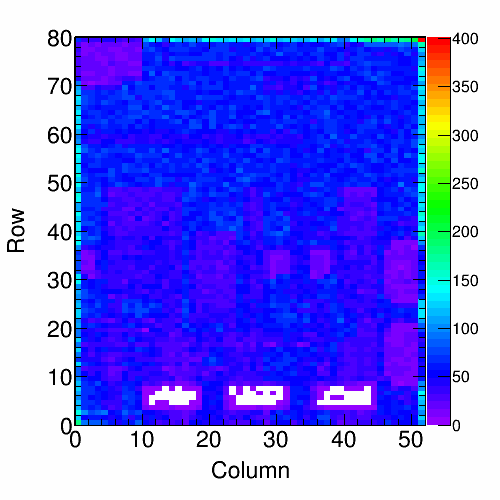

Background Map 50: C7
Plot
RealHitrate Real Hitrate 61.88 MHz/cm2

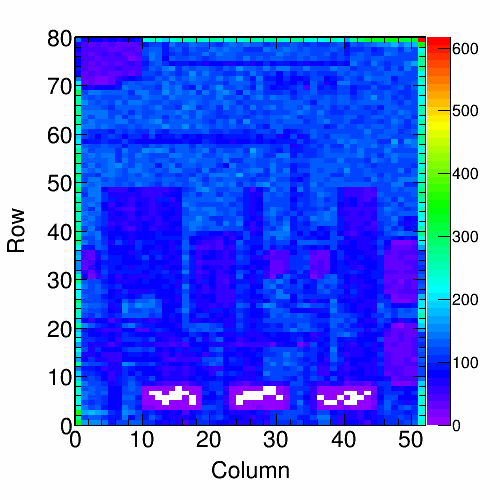

Background Map 75: C7
Plot
RealHitrate Real Hitrate 90.43 MHz/cm2

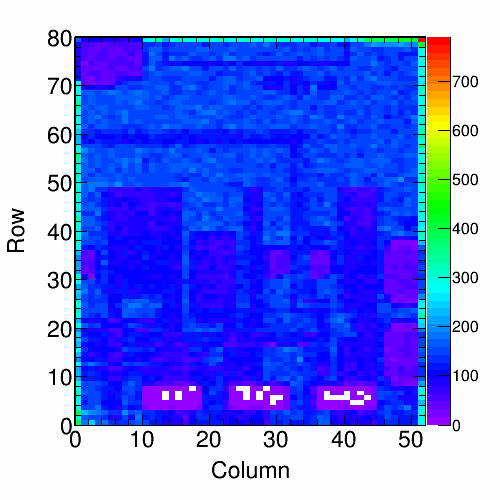

Background Map 100: C7
Plot
RealHitrate Real Hitrate 124.37 MHz/cm2
Background Map 125: C7
Plot
RealHitrate Real Hitrate 150.92 MHz/cm2
Background Map 150: C7
Plot
RealHitrate Real Hitrate 178.65 MHz/cm2

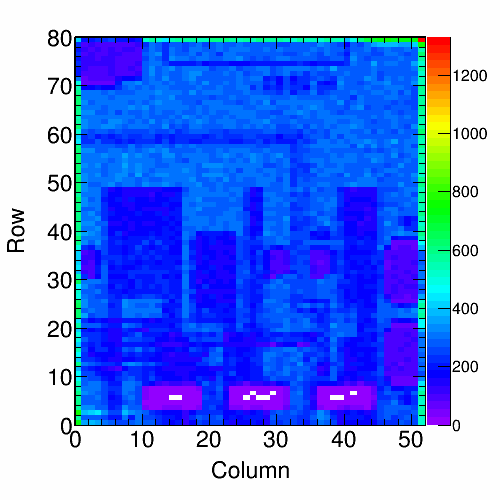

Background Map 200: C7
Plot
RealHitrate Real Hitrate 240.90 MHz/cm2
Background Map 250: C7
Plot
RealHitrate Real Hitrate 298.08 MHz/cm2
Retrim Hot Pix 150: C7
Retrim Hot Pix 50: C7
Masked Hot Pixels 50: C7
Masked Hot Pixels 150: C7

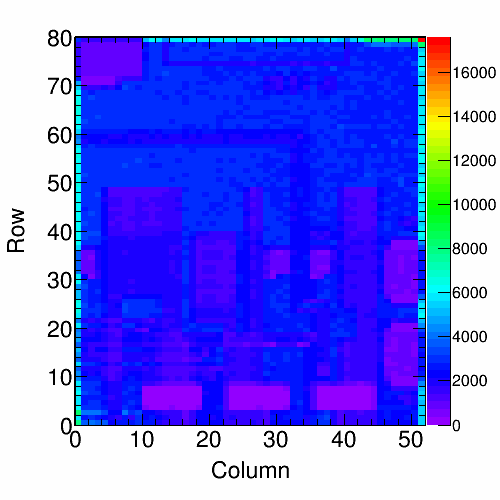

Hit Map 50: C7
Plot
RealHitrate Real Hitrate 59.84 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C7

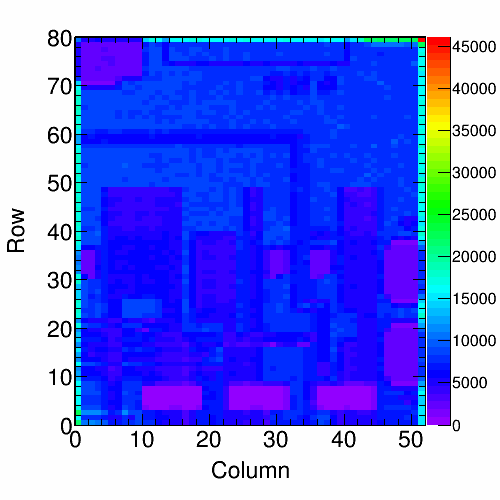

Hit Map 150: C7
Plot
RealHitrate Real Hitrate 175.06 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C7
Col. Read. Unif. 50: C7
Plot
N N 8506008
mu μ 186109
sigma σ 46578.04
Col. Read. Unif. 150: C7
Plot
N N 24932898
mu μ 544394
sigma σ 129995.38
Read. Unif. over Time 50: C7
Plot
N N 9677669
mu μ 9815
sigma_th σ_th 99.07
Time unif. distribution 50: C7
Plot
chi2/ndf chi2/ndf 2.19
sigma σ 100.80
sigma_th σ_th 99.07
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C7
Plot
N N 28308484
mu μ 28710
sigma_th σ_th 169.44
Time unif. distribution 150: C7
Plot
chi2/ndf chi2/ndf 13.75
sigma σ 200.26
sigma_th σ_th 169.45
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C7

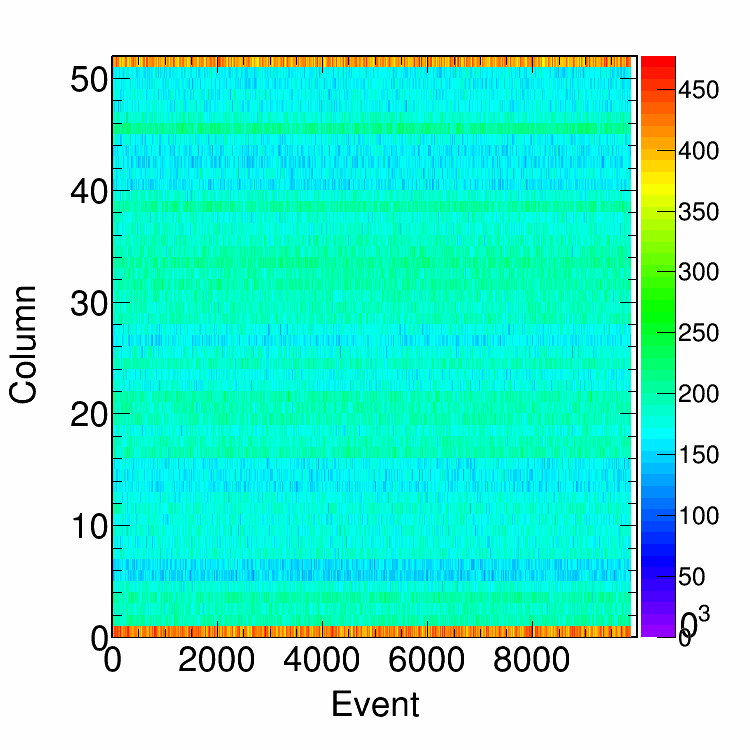

Col. Uniformity per Event: C7 50
Plot
mu μ 25.81
sigma fit error of μ 2.16
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

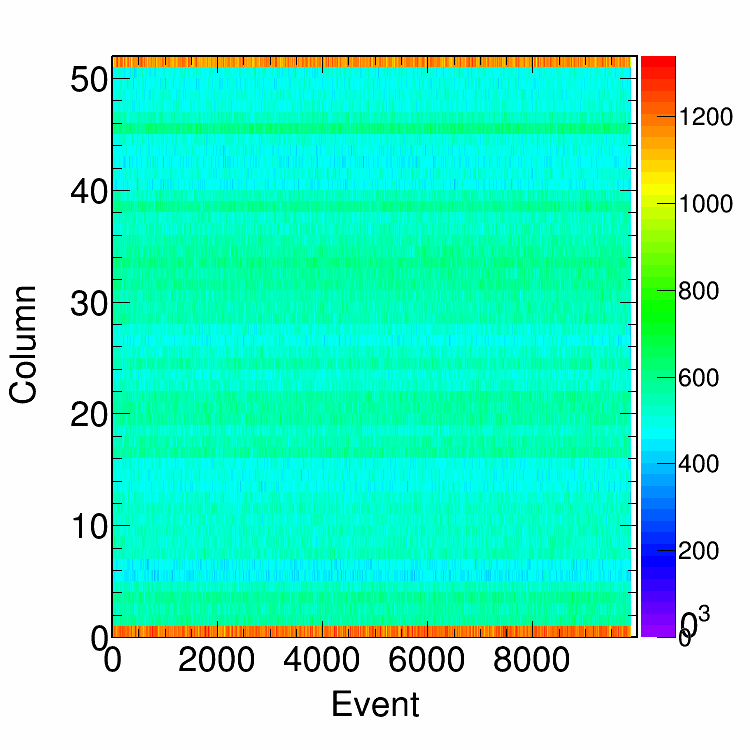

Col. Uniformity per Event: C7 150
Plot
mu μ 25.87
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C7 100
Plot
N N 4160
mu μ 153.53
sigma RMS 15.53
threshold thr 2187.96
fit fit Gaussian
fit_peak μ fit 153.19
fit_sigma σ fit 15.26
MeasuredHitrate Measured hitrate: 124.3
Alive Map: C7
DC Efficiency Distribution: C7
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.31
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C7
