Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 6
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.88/99.3
EfficiencyFit Efficiency Fit chi2/ndf: 0.57, # points: 95
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C6
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.57
NumberFitPoints # fit points 95
p0 p0 99.92
p1 p1 3.58e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.30

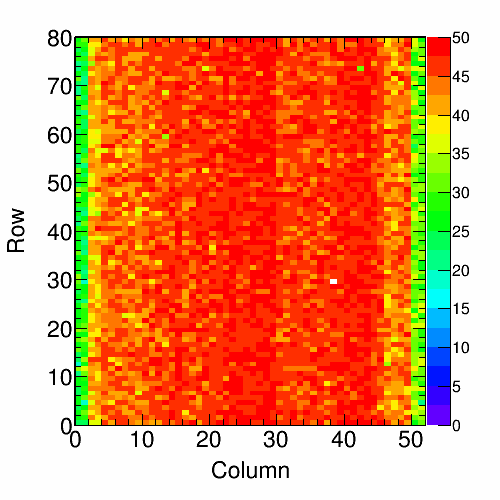

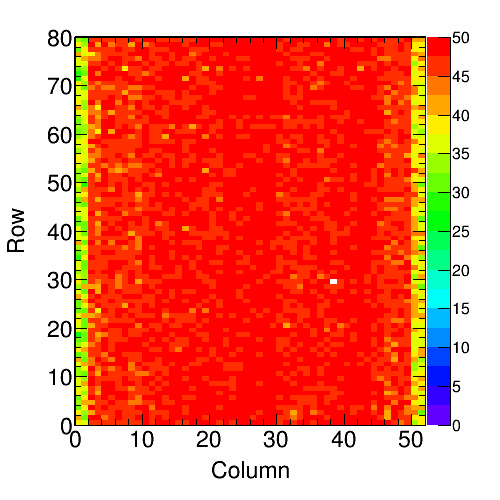

Efficiency Map 50: C6
Efficiency Map 75: C6
Efficiency Map 100: C6
Efficiency Map 125: C6
Efficiency Map 150: C6
Efficiency Map 200: C6
Efficiency Map 250: C6
Efficiency Distr. 50: C6
Plot
N N 4160
mu μ 99.81
sigma σ 1.66
Efficiency Distr. 75: C6
Plot
N N 4160
mu μ 99.57
sigma σ 1.82
Efficiency Distr. 100: C6
Plot
N N 4160
mu μ 99.07
sigma σ 2.25
Efficiency Distr. 125: C6
Plot
N N 4160
mu μ 98.40
sigma σ 2.92
Efficiency Distr. 150: C6
Plot
N N 4160
mu μ 97.35
sigma σ 3.86
Efficiency Distr. 200: C6
Plot
N N 4160
mu μ 93.52
sigma σ 7.22
Efficiency Distr. 250: C6
Plot
N N 4160
mu μ 88.23
sigma σ 10.62

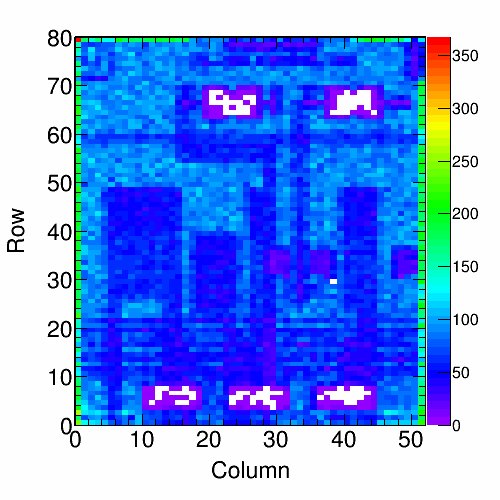

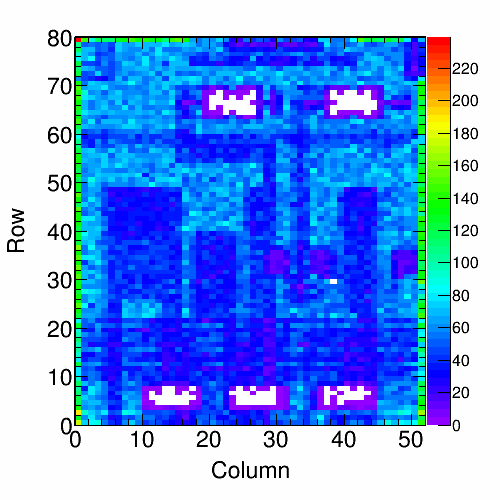

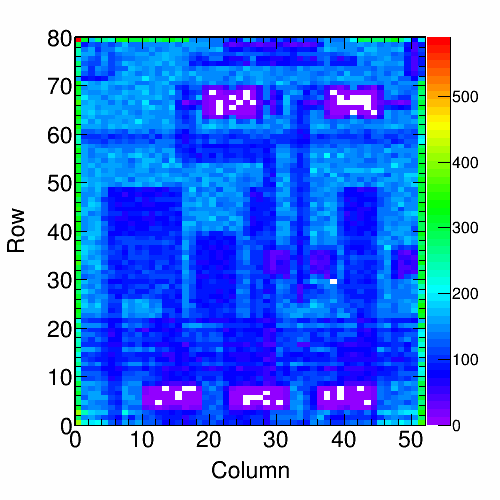

Background Map 50: C6
Plot
RealHitrate Real Hitrate 58.80 MHz/cm2
Background Map 75: C6
Plot
RealHitrate Real Hitrate 86.09 MHz/cm2
Background Map 100: C6
Plot
RealHitrate Real Hitrate 118.19 MHz/cm2
Background Map 125: C6
Plot
RealHitrate Real Hitrate 143.48 MHz/cm2
Background Map 150: C6
Plot
RealHitrate Real Hitrate 170.65 MHz/cm2
Background Map 200: C6
Plot
RealHitrate Real Hitrate 231.24 MHz/cm2
Background Map 250: C6
Plot
RealHitrate Real Hitrate 284.66 MHz/cm2
Retrim Hot Pix 150: C6
Retrim Hot Pix 50: C6
Masked Hot Pixels 50: C6
Masked Hot Pixels 150: C6

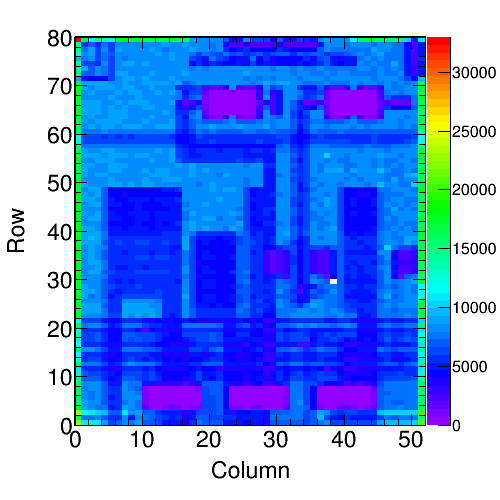

Hit Map 50: C6
Plot
RealHitrate Real Hitrate 57.19 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 50: C6
Hit Map 150: C6
Plot
RealHitrate Real Hitrate 167.20 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 150: C6
Col. Read. Unif. 50: C6
Plot
N N 7971911
mu μ 177870
sigma σ 57752.50
Col. Read. Unif. 150: C6
Plot
N N 23385765
mu μ 519970
sigma σ 160201.29
Read. Unif. over Time 50: C6
Plot
N N 9249253
mu μ 9381
sigma_th σ_th 96.85
Time unif. distribution 50: C6
Plot
chi2/ndf chi2/ndf 1.47
sigma σ 100.12
sigma_th σ_th 96.85
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C6
Plot
N N 27038438
mu μ 27422
sigma_th σ_th 165.60
Time unif. distribution 150: C6
Plot
chi2/ndf chi2/ndf 7.41
sigma σ 187.23
sigma_th σ_th 165.61
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C6

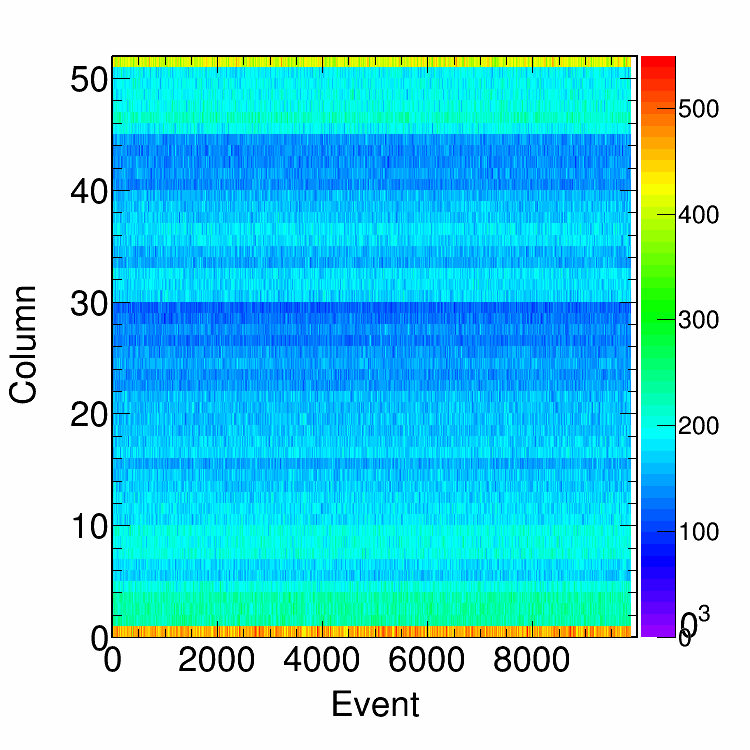

Col. Uniformity per Event: C6 50
Plot
mu μ 25.42
sigma fit error of μ 2.29
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C6 150
Plot
mu μ 25.17
sigma fit error of μ 2.28
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C6 100
Plot
N N 4159
mu μ 159.97
sigma RMS 16.06
threshold thr 2122.95
fit fit Gaussian
fit_peak μ fit 159.42
fit_sigma σ fit 15.41
MeasuredHitrate Measured hitrate: 117.6
over >= 1.00

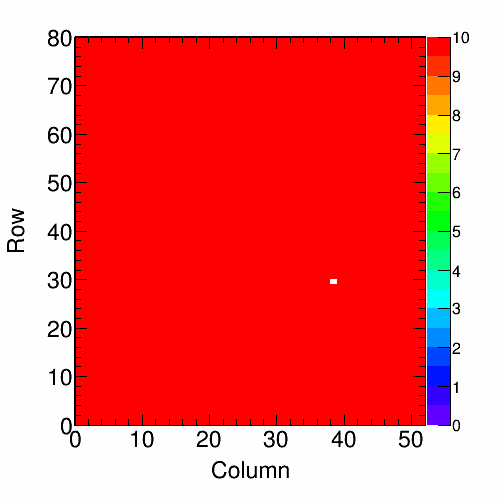

Alive Map: C6
DC Efficiency Distribution: C6
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.88
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.30
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C6
