Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 4
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 2/2
Efficiency Efficiency 50/120 99.88/99.31
EfficiencyFit Efficiency Fit chi2/ndf: 0.45, # points: 103
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C4
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.45
NumberFitPoints # fit points 103
p0 p0 99.93
p1 p1 3.59e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.88
InterpolatedEfficiency120 Interpol. Efficiency 120 99.31

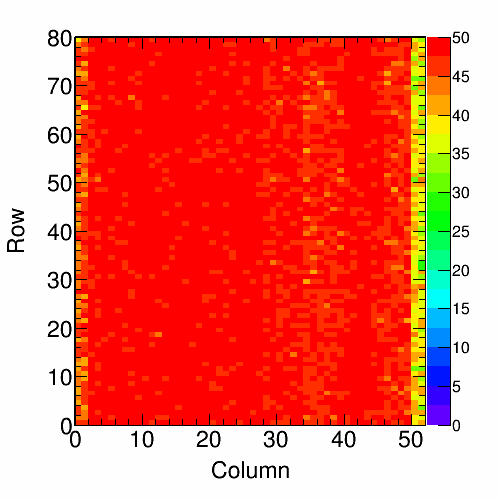

Efficiency Map 50: C4
Efficiency Map 75: C4
Efficiency Map 100: C4
Efficiency Map 125: C4

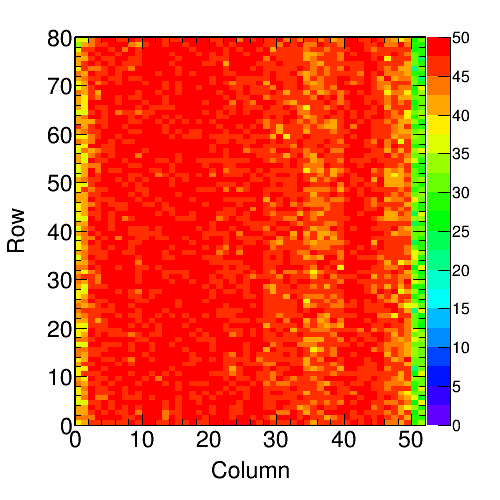

Efficiency Map 150: C4
Efficiency Map 200: C4

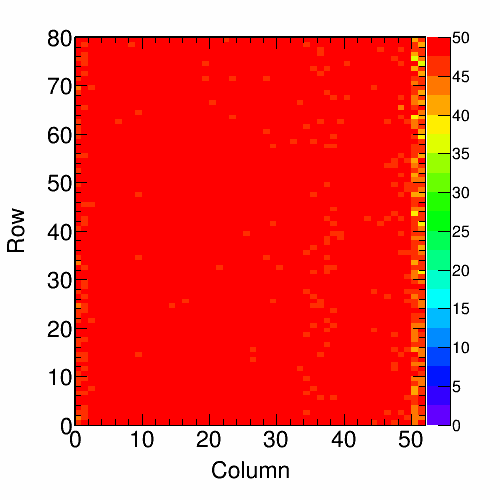

Efficiency Map 250: C4
Efficiency Distr. 50: C4
Plot
N N 4160
mu μ 99.86
sigma σ 0.55
Efficiency Distr. 75: C4
Plot
N N 4160
mu μ 99.71
sigma σ 0.81
Efficiency Distr. 100: C4
Plot
N N 4160
mu μ 99.37
sigma σ 1.31
Efficiency Distr. 125: C4
Plot
N N 4160
mu μ 98.89
sigma σ 1.94
Efficiency Distr. 150: C4
Plot
N N 4160
mu μ 98.22
sigma σ 2.70
Efficiency Distr. 200: C4
Plot
N N 4160
mu μ 95.75
sigma σ 5.37
Efficiency Distr. 250: C4
Plot
N N 4160
mu μ 92.12
sigma σ 8.15

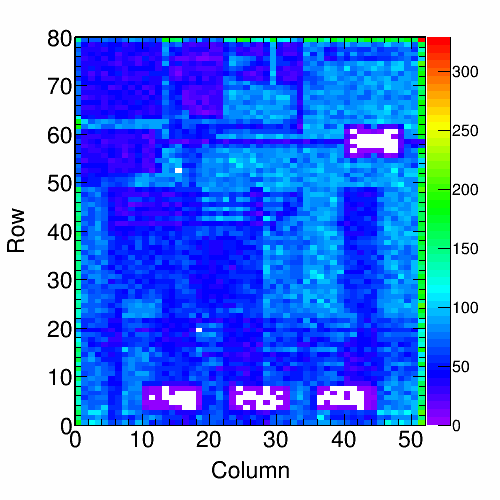

Background Map 50: C4
Plot
RealHitrate Real Hitrate 51.71 MHz/cm2
Background Map 75: C4
Plot
RealHitrate Real Hitrate 76.46 MHz/cm2

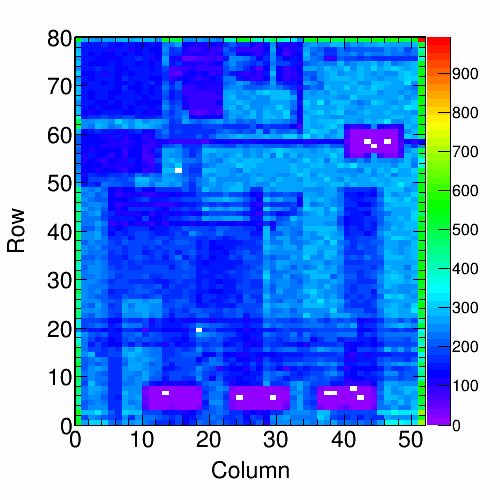

Background Map 100: C4
Plot
RealHitrate Real Hitrate 104.20 MHz/cm2
Background Map 125: C4
Plot
RealHitrate Real Hitrate 126.82 MHz/cm2
Background Map 150: C4
Plot
RealHitrate Real Hitrate 151.13 MHz/cm2

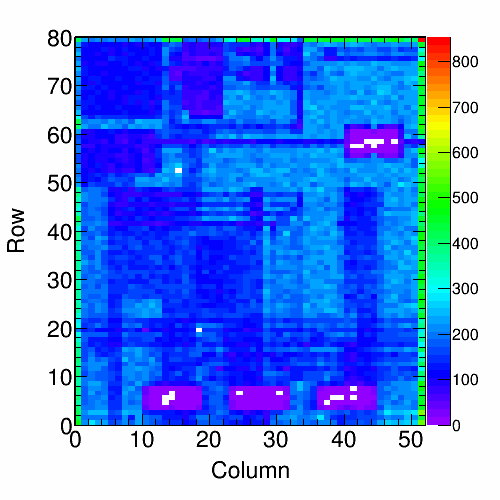

Background Map 200: C4
Plot
RealHitrate Real Hitrate 204.55 MHz/cm2
Background Map 250: C4
Plot
RealHitrate Real Hitrate 250.74 MHz/cm2
Retrim Hot Pix 150: C4
Retrim Hot Pix 50: C4
Masked Hot Pixels 50: C4
Masked Hot Pixels 150: C4
Hit Map 50: C4
Plot
RealHitrate Real Hitrate 49.99 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C4
Hit Map 150: C4
Plot
RealHitrate Real Hitrate 147.78 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 150: C4
Col. Read. Unif. 50: C4
Plot
N N 7028446
mu μ 155467
sigma σ 49798.13
Col. Read. Unif. 150: C4
Plot
N N 20824806
mu μ 459558
sigma σ 137970.51
Read. Unif. over Time 50: C4
Plot
N N 8084288
mu μ 8199
sigma_th σ_th 90.55
Time unif. distribution 50: C4
Plot
chi2/ndf chi2/ndf 2.84
sigma σ 101.68
sigma_th σ_th 90.55
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C4
Plot
N N 23897026
mu μ 24236
sigma_th σ_th 155.68
Time unif. distribution 150: C4
Plot
chi2/ndf chi2/ndf 6.37
sigma σ 178.10
sigma_th σ_th 155.69
expectation Red curve (expected) Poisson

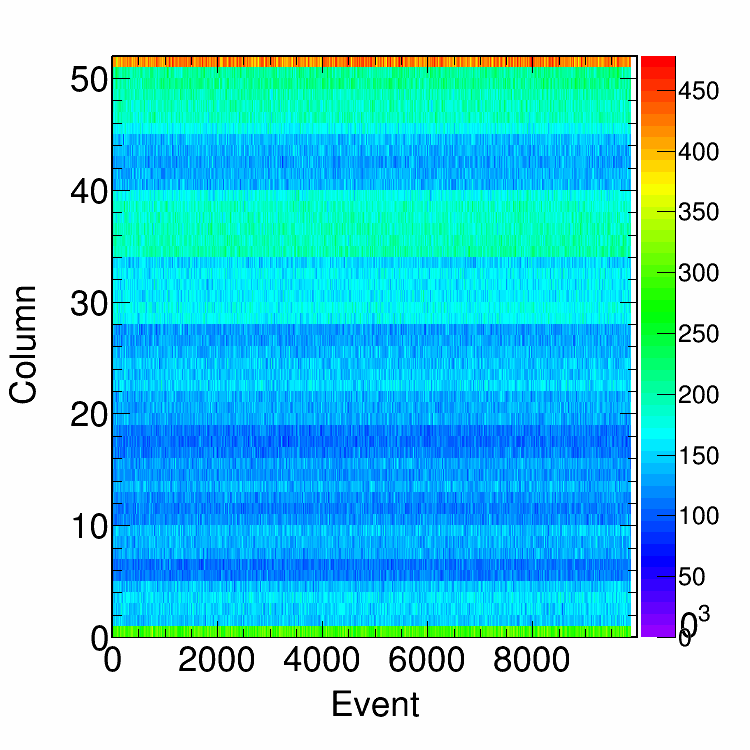

Col. Uniformity Ratio: C4
Col. Uniformity per Event: C4 50
Plot
mu μ 27.96
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C4 150
Plot
mu μ 27.79
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C4 100
Plot
N N 4160
mu μ 153.84
sigma RMS 14.51
threshold thr 2127.99
fit fit Gaussian
fit_peak μ fit 153.58
fit_sigma σ fit 14.12
MeasuredHitrate Measured hitrate: 104.2
Alive Map: C4
DC Efficiency Distribution: C4
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.89
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.30
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C4
