Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 3
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.86/99.25
EfficiencyFit Efficiency Fit chi2/ndf: 0.66, # points: 103
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C3
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.66
NumberFitPoints # fit points 103
p0 p0 99.91
p1 p1 3.83e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.25

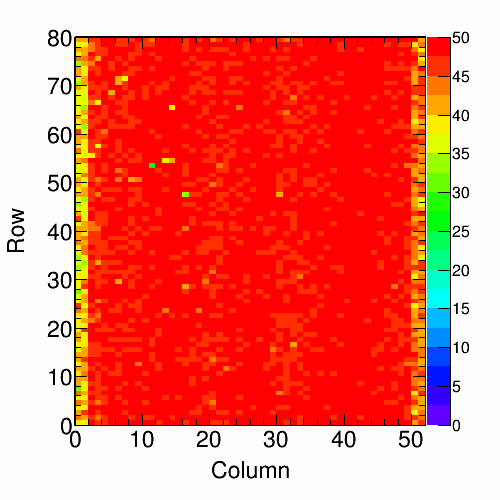

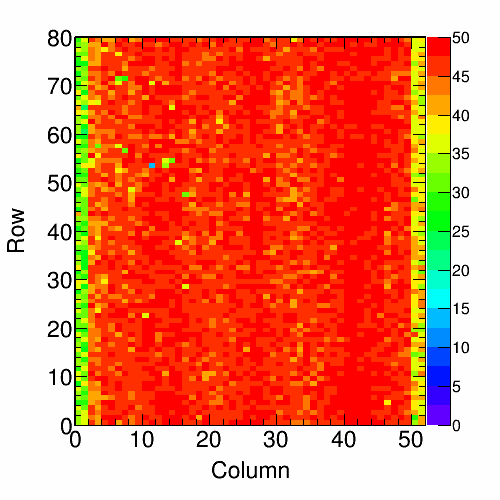

Efficiency Map 50: C3
Efficiency Map 75: C3
Efficiency Map 100: C3
Efficiency Map 125: C3
Efficiency Map 150: C3
Efficiency Map 200: C3
Efficiency Map 250: C3
Efficiency Distr. 50: C3
Plot
N N 4160
mu μ 99.86
sigma σ 0.54
Efficiency Distr. 75: C3
Plot
N N 4160
mu μ 99.67
sigma σ 0.85
Efficiency Distr. 100: C3
Plot
N N 4160
mu μ 99.29
sigma σ 1.38
Efficiency Distr. 125: C3
Plot
N N 4160
mu μ 98.84
sigma σ 1.95
Efficiency Distr. 150: C3
Plot
N N 4160
mu μ 98.15
sigma σ 2.61
Efficiency Distr. 200: C3
Plot
N N 4160
mu μ 95.55
sigma σ 5.16
Efficiency Distr. 250: C3
Plot
N N 4160
mu μ 91.55
sigma σ 8.12

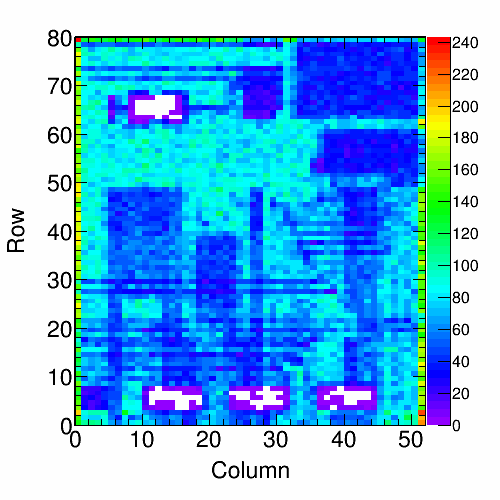

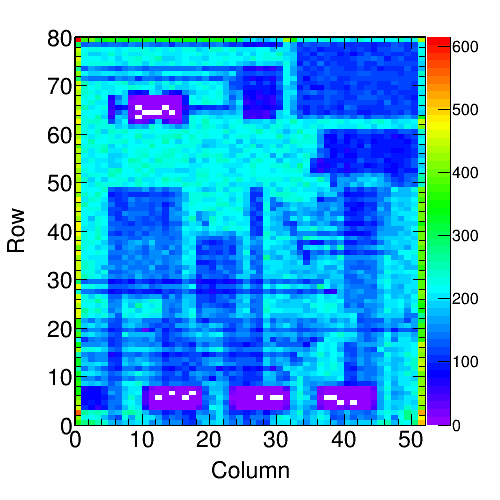

Background Map 50: C3
Plot
RealHitrate Real Hitrate 52.19 MHz/cm2
Background Map 75: C3
Plot
RealHitrate Real Hitrate 76.57 MHz/cm2
Background Map 100: C3
Plot
RealHitrate Real Hitrate 104.36 MHz/cm2
Background Map 125: C3
Plot
RealHitrate Real Hitrate 126.94 MHz/cm2
Background Map 150: C3
Plot
RealHitrate Real Hitrate 150.53 MHz/cm2
Background Map 200: C3
Plot
RealHitrate Real Hitrate 203.82 MHz/cm2
Background Map 250: C3
Plot
RealHitrate Real Hitrate 251.93 MHz/cm2
Retrim Hot Pix 150: C3
Retrim Hot Pix 50: C3
Masked Hot Pixels 50: C3
Masked Hot Pixels 150: C3

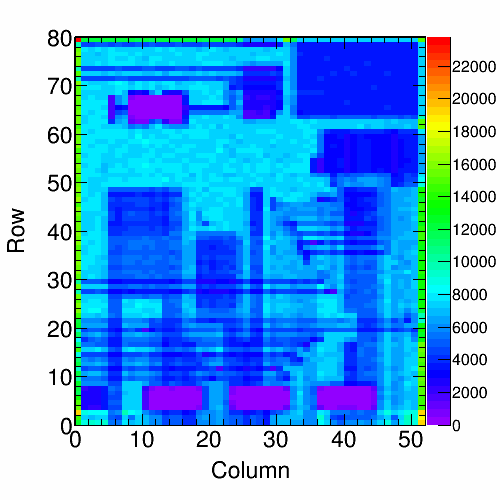

Hit Map 50: C3
Plot
RealHitrate Real Hitrate 50.48 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C3

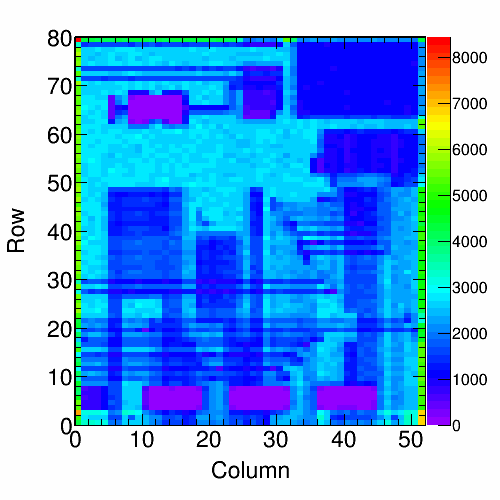

Hit Map 150: C3
Plot
RealHitrate Real Hitrate 148.02 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C3
Col. Read. Unif. 50: C3
Plot
N N 7086377
mu μ 157012
sigma σ 47816.08
Col. Read. Unif. 150: C3
Plot
N N 20838221
mu μ 460326
sigma σ 131502.03
Read. Unif. over Time 50: C3
Plot
N N 8164603
mu μ 8281
sigma_th σ_th 91.00
Time unif. distribution 50: C3
Plot
chi2/ndf chi2/ndf 3.93
sigma σ 100.92
sigma_th σ_th 91.00
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C3
Plot
N N 23936934
mu μ 24277
sigma_th σ_th 155.81
Time unif. distribution 150: C3
Plot
chi2/ndf chi2/ndf 6.43
sigma σ 174.55
sigma_th σ_th 155.82
expectation Red curve (expected) Poisson

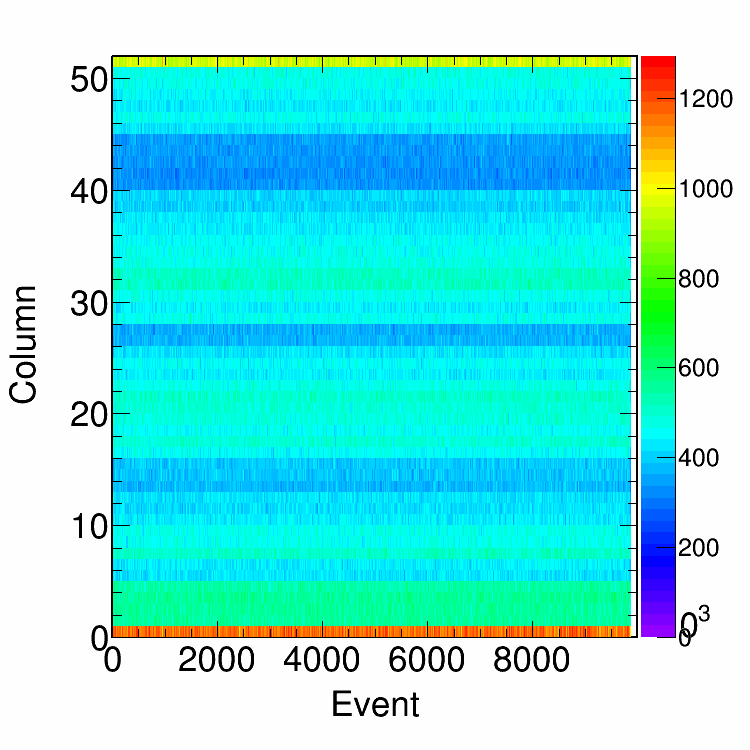

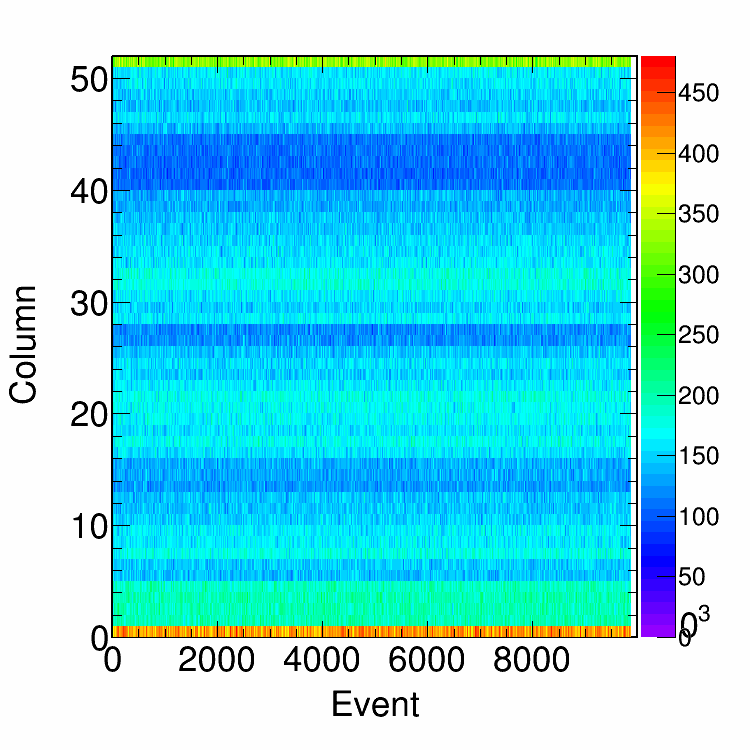

Col. Uniformity Ratio: C3
Col. Uniformity per Event: C3 50
Plot
mu μ 24.68
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C3 150
Plot
mu μ 24.80
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C3 100
Plot
N N 4160
mu μ 157.93
sigma RMS 14.75
threshold thr 2135.91
fit fit Gaussian
fit_peak μ fit 157.51
fit_sigma σ fit 14.21
MeasuredHitrate Measured hitrate: 104.4
Alive Map: C3
DC Efficiency Distribution: C3
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.25
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C3
