Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 2
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.85/99.27
EfficiencyFit Efficiency Fit chi2/ndf: 0.52, # points: 102
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C2
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.52
NumberFitPoints # fit points 102
p0 p0 99.89
p1 p1 3.62e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.27

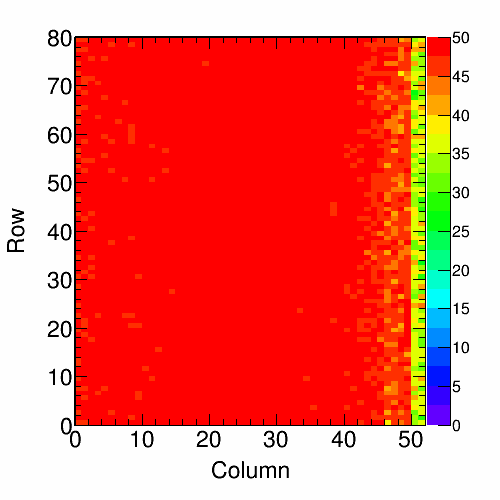

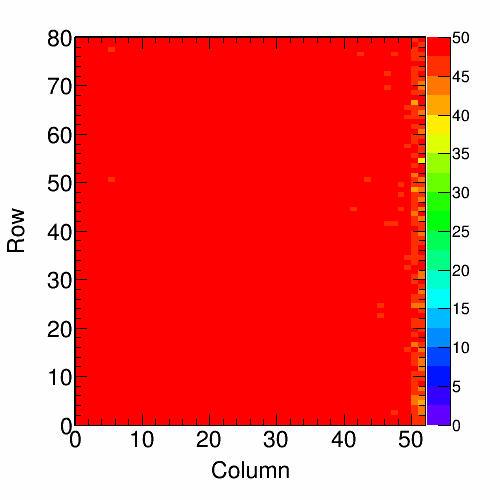

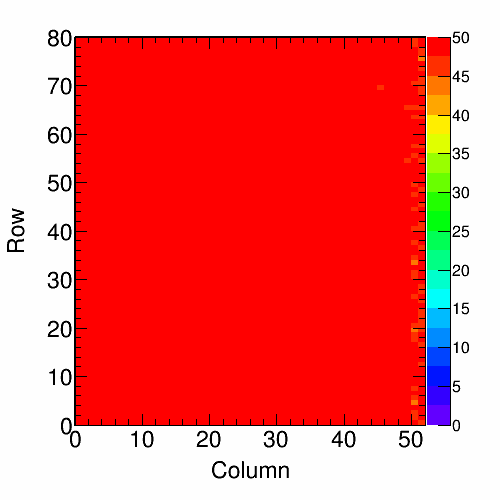

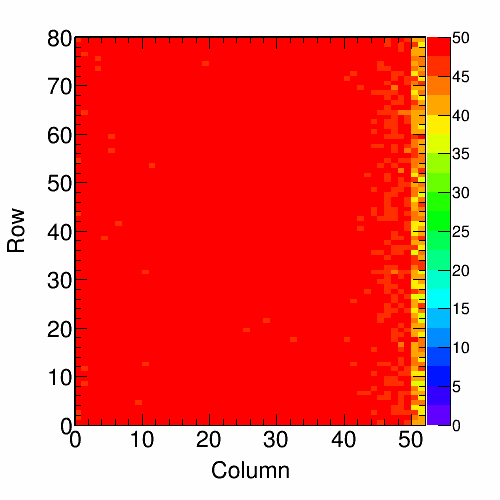

Efficiency Map 50: C2
Efficiency Map 75: C2
Efficiency Map 100: C2
Efficiency Map 125: C2
Efficiency Map 150: C2
Efficiency Map 200: C2
Efficiency Map 250: C2
Efficiency Distr. 50: C2
Plot
N N 4160
mu μ 99.93
sigma σ 0.39
Efficiency Distr. 75: C2
Plot
N N 4160
mu μ 99.85
sigma σ 0.57
Efficiency Distr. 100: C2
Plot
N N 4160
mu μ 99.72
sigma σ 0.87
Efficiency Distr. 125: C2
Plot
N N 4160
mu μ 99.54
sigma σ 1.20
Efficiency Distr. 150: C2
Plot
N N 4160
mu μ 99.28
sigma σ 1.86
Efficiency Distr. 200: C2
Plot
N N 4160
mu μ 98.35
sigma σ 3.69
Efficiency Distr. 250: C2
Plot
N N 4160
mu μ 97.03
sigma σ 6.18

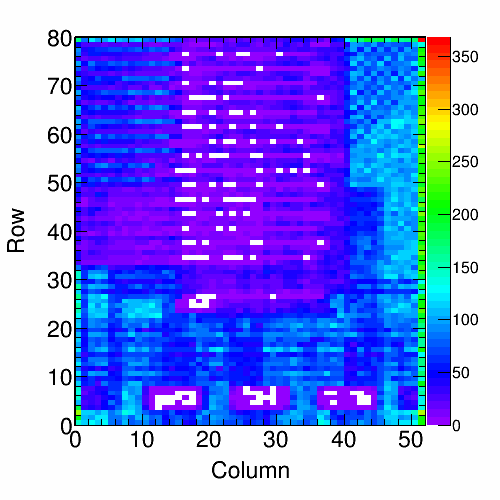

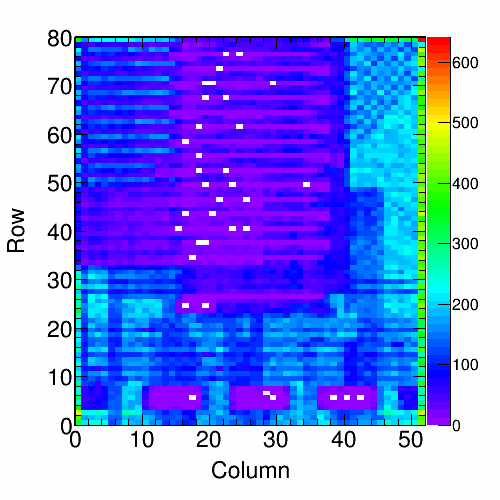

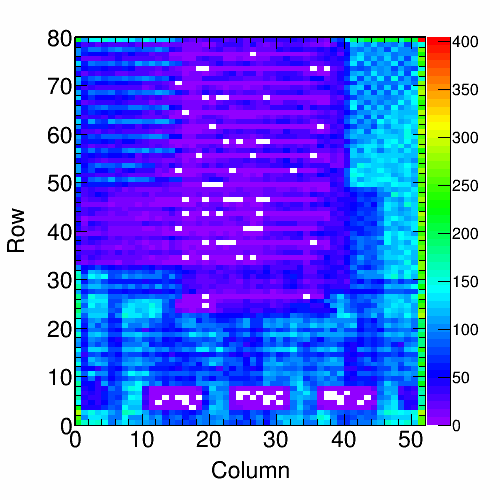

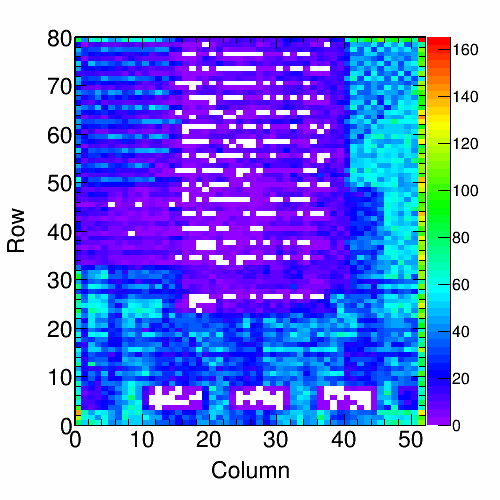

Background Map 50: C2
Plot
RealHitrate Real Hitrate 29.37 MHz/cm2

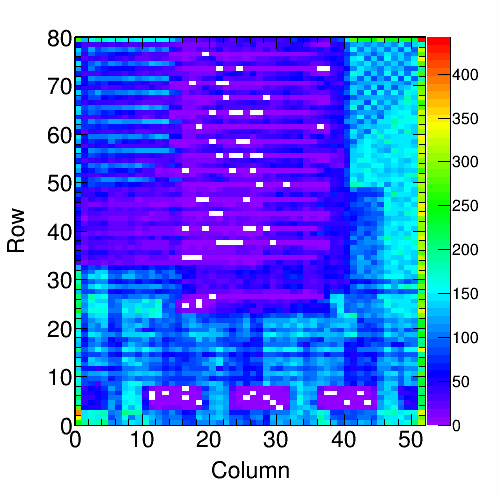

Background Map 75: C2
Plot
RealHitrate Real Hitrate 43.53 MHz/cm2

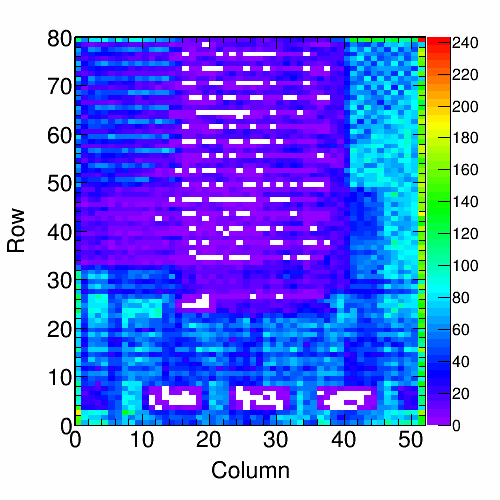

Background Map 100: C2
Plot
RealHitrate Real Hitrate 60.50 MHz/cm2
Background Map 125: C2
Plot
RealHitrate Real Hitrate 73.57 MHz/cm2
Background Map 150: C2
Plot
RealHitrate Real Hitrate 88.63 MHz/cm2
Background Map 200: C2
Plot
RealHitrate Real Hitrate 121.26 MHz/cm2
Background Map 250: C2
Plot
RealHitrate Real Hitrate 149.93 MHz/cm2
Retrim Hot Pix 150: C2
Retrim Hot Pix 50: C2
Masked Hot Pixels 50: C2
Masked Hot Pixels 150: C2

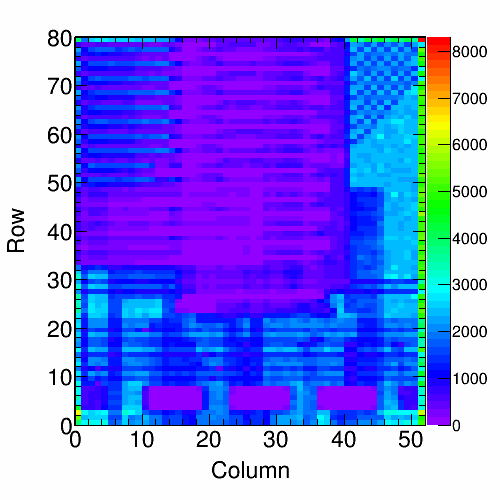

Hit Map 50: C2
Plot
RealHitrate Real Hitrate 28.34 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C2

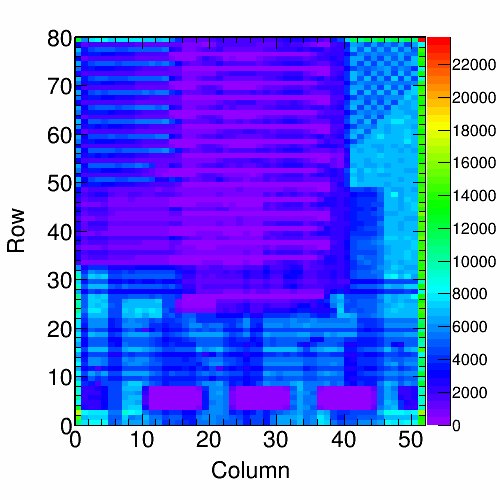

Hit Map 150: C2
Plot
RealHitrate Real Hitrate 86.84 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C2
Col. Read. Unif. 50: C2
Plot
N N 3809089
mu μ 88139
sigma σ 58616.28
Col. Read. Unif. 150: C2
Plot
N N 11772377
mu μ 270066
sigma σ 162124.85
Read. Unif. over Time 50: C2
Plot
N N 4583207
mu μ 4648
sigma_th σ_th 68.18
Time unif. distribution 50: C2
Plot
chi2/ndf chi2/ndf 1.47
sigma σ 72.39
sigma_th σ_th 68.18
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C2
Plot
N N 14043456
mu μ 14243
sigma_th σ_th 119.34
Time unif. distribution 150: C2
Plot
chi2/ndf chi2/ndf 3.36
sigma σ 128.71
sigma_th σ_th 119.35
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C2

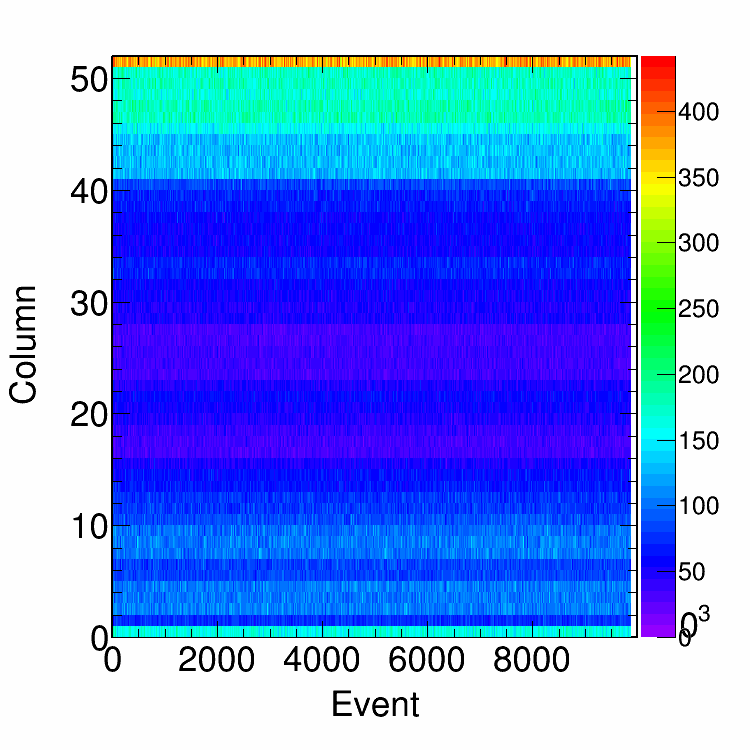

Col. Uniformity per Event: C2 50
Plot
mu μ 29.91
sigma fit error of μ 2.47
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

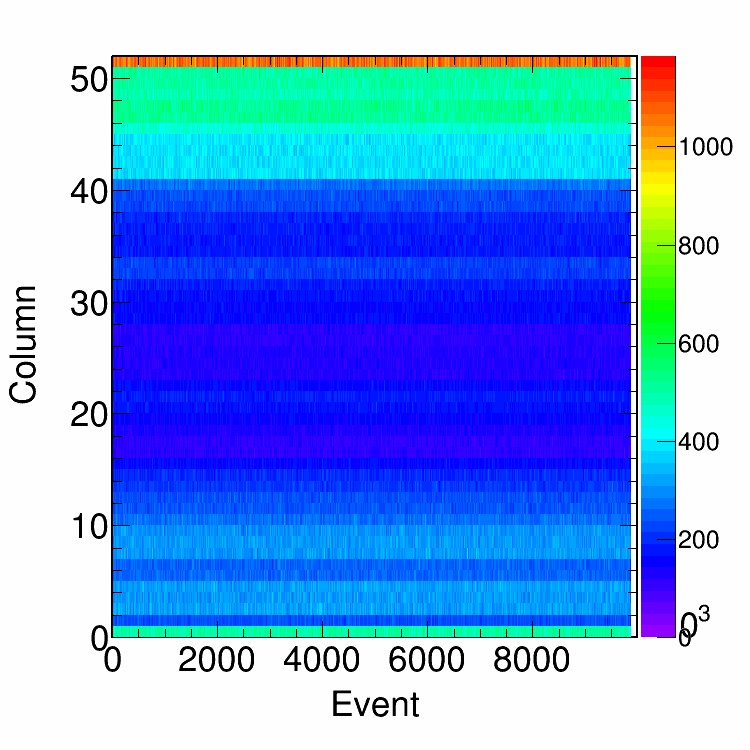

Col. Uniformity per Event: C2 150
Plot
mu μ 29.76
sigma fit error of μ 2.45
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C2 100
Plot
N N 4160
mu μ 156.02
sigma RMS 13.96
threshold thr 1973.05
fit fit Gaussian
fit_peak μ fit 155.30
fit_sigma σ fit 13.05
MeasuredHitrate Measured hitrate: 60.2
Alive Map: C2
DC Efficiency Distribution: C2
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.12
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C2
