Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 15
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.87/99.19
EfficiencyFit Efficiency Fit chi2/ndf: 0.58, # points: 127
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C15
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.58
NumberFitPoints # fit points 127
p0 p0 99.92
p1 p1 4.21e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.87
InterpolatedEfficiency120 Interpol. Efficiency 120 99.19

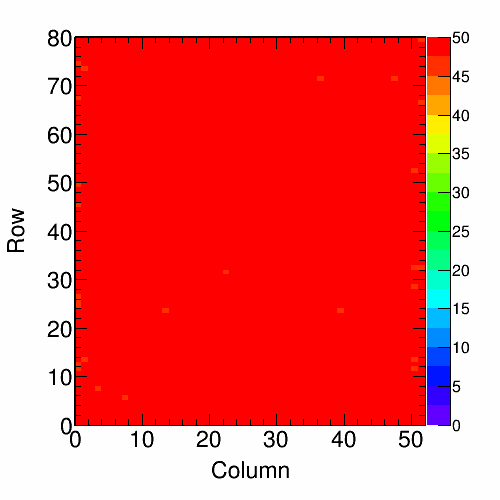

Efficiency Map 50: C15
Efficiency Map 75: C15
Efficiency Map 100: C15
Efficiency Map 125: C15
Efficiency Map 150: C15
Efficiency Map 200: C15
Efficiency Map 250: C15
Efficiency Distr. 50: C15
Plot
N N 4160
mu μ 99.92
sigma σ 0.39
Efficiency Distr. 75: C15
Plot
N N 4160
mu μ 99.87
sigma σ 0.52
Efficiency Distr. 100: C15
Plot
N N 4160
mu μ 99.75
sigma σ 0.71
Efficiency Distr. 125: C15
Plot
N N 4160
mu μ 99.68
sigma σ 0.84
Efficiency Distr. 150: C15
Plot
N N 4160
mu μ 99.46
sigma σ 1.11
Efficiency Distr. 200: C15
Plot
N N 4160
mu μ 98.75
sigma σ 1.94
Efficiency Distr. 250: C15
Plot
N N 4160
mu μ 97.72
sigma σ 2.87

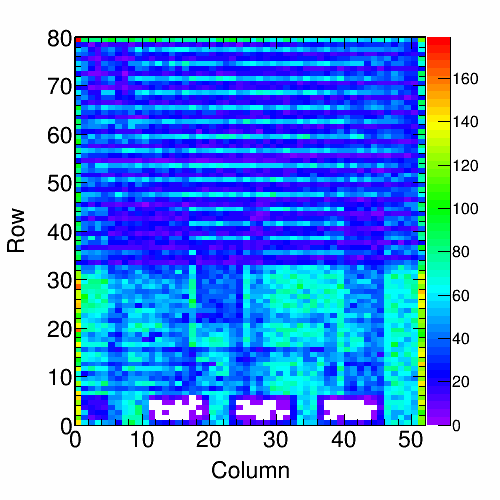

Background Map 50: C15
Plot
RealHitrate Real Hitrate 32.50 MHz/cm2

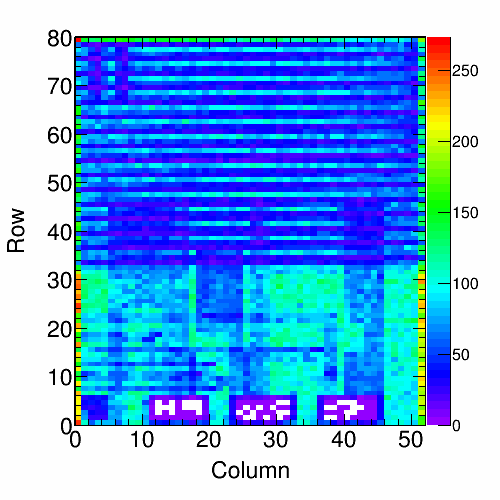

Background Map 75: C15
Plot
RealHitrate Real Hitrate 47.53 MHz/cm2

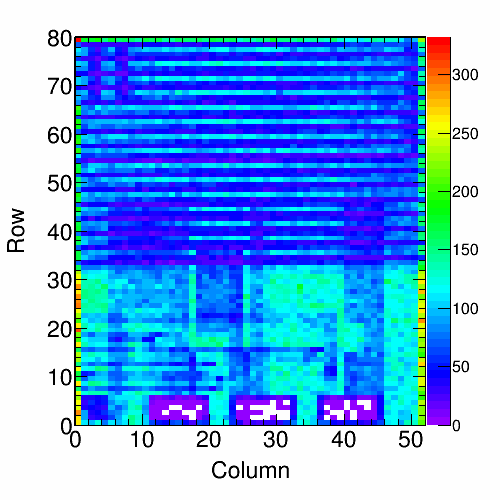

Background Map 100: C15
Plot
RealHitrate Real Hitrate 65.30 MHz/cm2
Background Map 125: C15
Plot
RealHitrate Real Hitrate 79.11 MHz/cm2
Background Map 150: C15
Plot
RealHitrate Real Hitrate 94.51 MHz/cm2

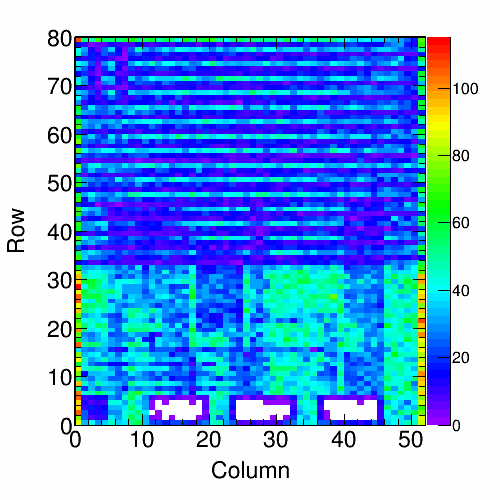

Background Map 200: C15
Plot
RealHitrate Real Hitrate 128.23 MHz/cm2

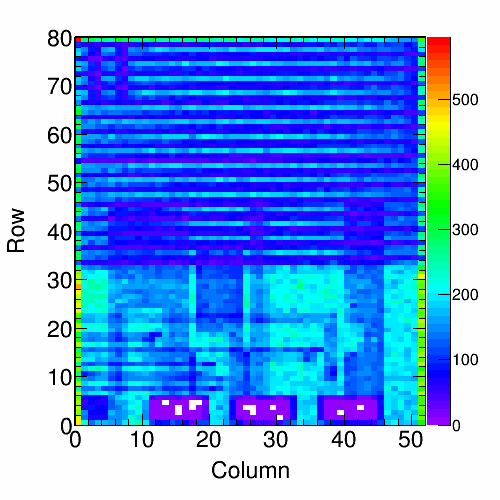

Background Map 250: C15
Plot
RealHitrate Real Hitrate 158.39 MHz/cm2
Retrim Hot Pix 150: C15
Retrim Hot Pix 50: C15
Masked Hot Pixels 50: C15
Masked Hot Pixels 150: C15
Hit Map 50: C15
Plot
RealHitrate Real Hitrate 31.24 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C15
Hit Map 150: C15
Plot
RealHitrate Real Hitrate 92.51 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C15

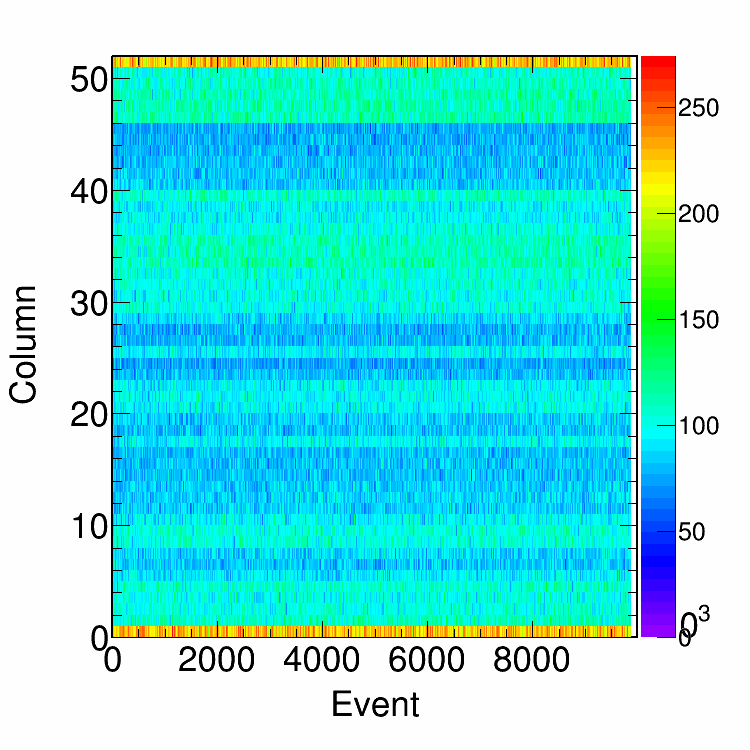

Col. Read. Unif. 50: C15
Plot
N N 4396414
mu μ 97170
sigma σ 27774.14
Col. Read. Unif. 150: C15
Plot
N N 13065959
mu μ 287700
sigma σ 77043.25
Read. Unif. over Time 50: C15
Plot
N N 5052821
mu μ 5125
sigma_th σ_th 71.59
Time unif. distribution 50: C15
Plot
chi2/ndf chi2/ndf 2.45
sigma σ 77.47
sigma_th σ_th 71.59
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C15
Plot
N N 14960420
mu μ 15173
sigma_th σ_th 123.18
Time unif. distribution 150: C15
Plot
chi2/ndf chi2/ndf 1.05
sigma σ 127.49
sigma_th σ_th 123.18
expectation Red curve (expected) Poisson

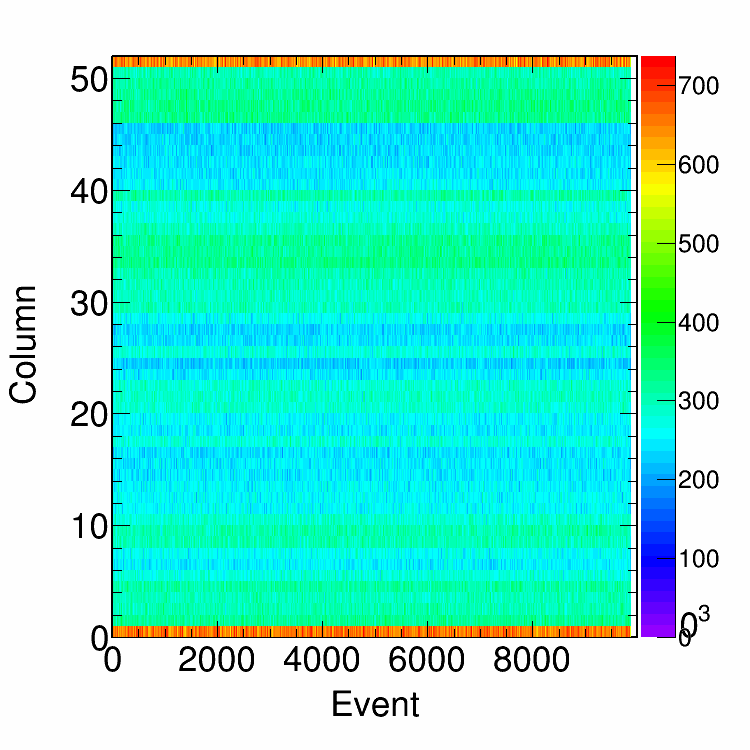

Col. Uniformity Ratio: C15
Col. Uniformity per Event: C15 50
Plot
mu μ 26.39
sigma fit error of μ 2.23
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C15 150
Plot
mu μ 26.36
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C15 100
Plot
N N 4160
mu μ 159.03
sigma RMS 13.84
threshold thr 1999.14
fit fit Gaussian
fit_peak μ fit 158.75
fit_sigma σ fit 13.57
MeasuredHitrate Measured hitrate: 65.0
Alive Map: C15
DC Efficiency Distribution: C15
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.87
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.20
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C15
