Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 14
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 1/0
Efficiency Efficiency 50/120 99.83/98.97
EfficiencyFit Efficiency Fit chi2/ndf: 0.85, # points: 123
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C14
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.85
NumberFitPoints # fit points 123
p0 p0 99.90
p1 p1 5.38e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.83
InterpolatedEfficiency120 Interpol. Efficiency 120 98.97

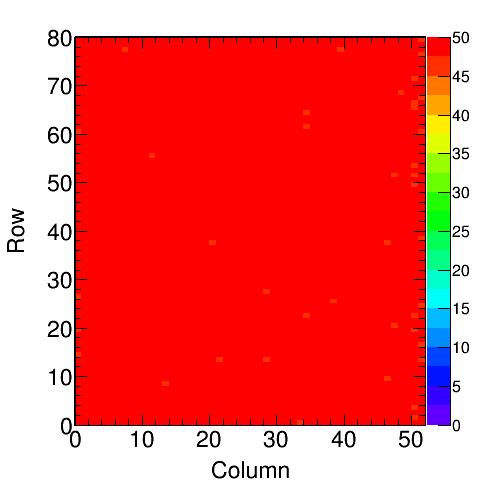

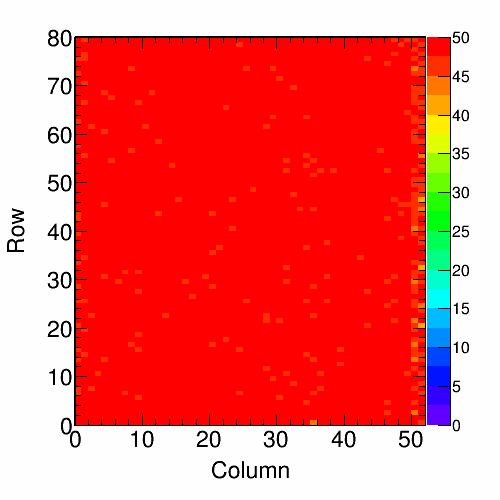

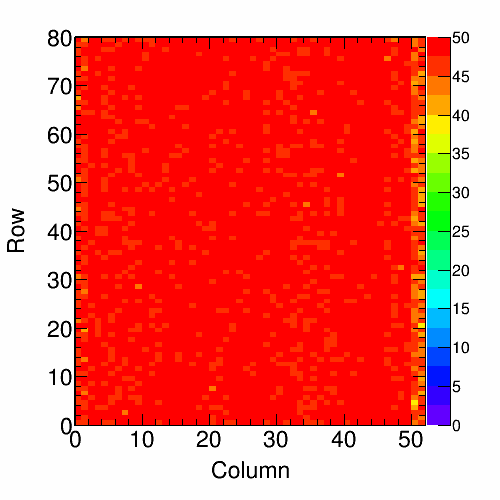

Efficiency Map 50: C14
Efficiency Map 75: C14
Efficiency Map 100: C14
Efficiency Map 125: C14
Efficiency Map 150: C14
Efficiency Map 200: C14
Efficiency Map 250: C14
Efficiency Distr. 50: C14
Plot
N N 4160
mu μ 99.92
sigma σ 0.39
Efficiency Distr. 75: C14
Plot
N N 4160
mu μ 99.84
sigma σ 0.56
Efficiency Distr. 100: C14
Plot
N N 4160
mu μ 99.72
sigma σ 0.77
Efficiency Distr. 125: C14
Plot
N N 4160
mu μ 99.57
sigma σ 0.96
Efficiency Distr. 150: C14
Plot
N N 4160
mu μ 99.31
sigma σ 1.24
Efficiency Distr. 200: C14
Plot
N N 4160
mu μ 98.44
sigma σ 2.00
Efficiency Distr. 250: C14
Plot
N N 4160
mu μ 97.13
sigma σ 2.95

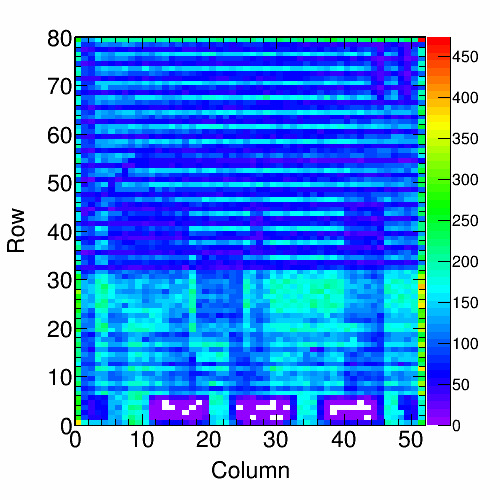

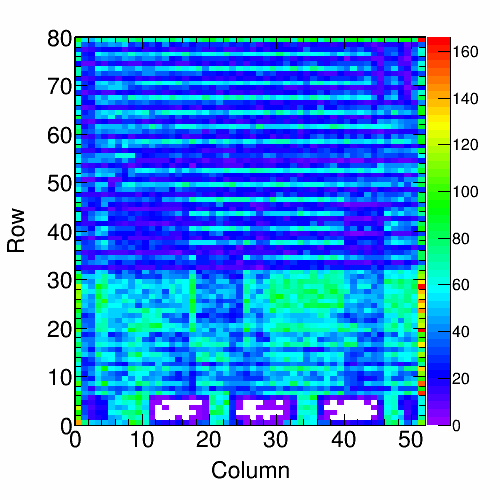

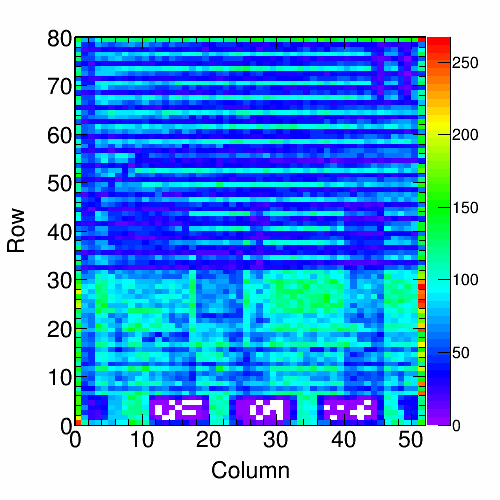

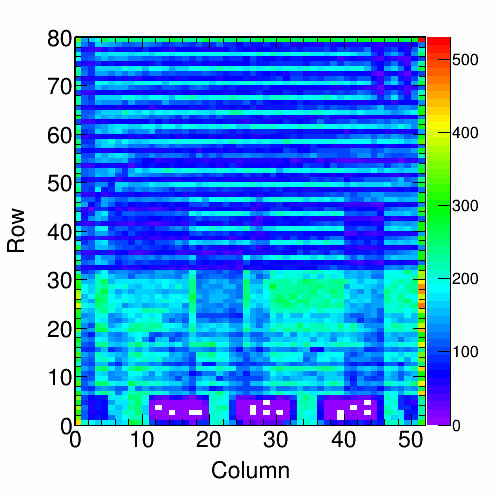

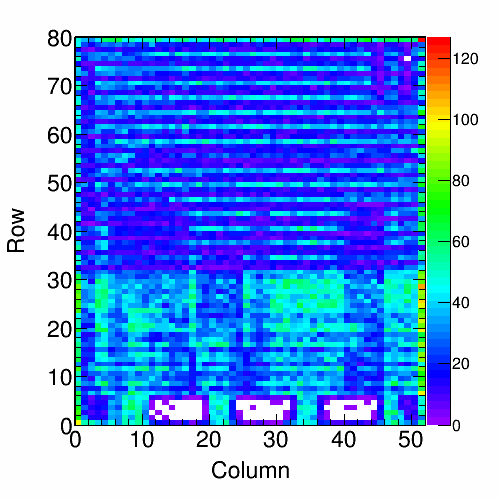

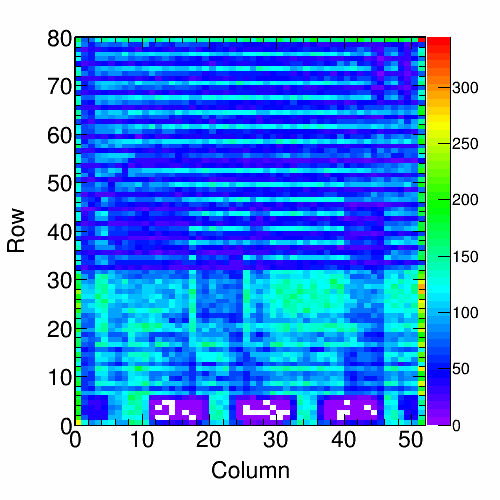

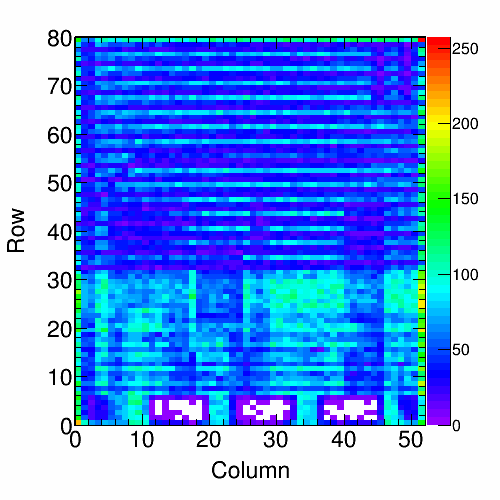

Background Map 50: C14
Plot
RealHitrate Real Hitrate 31.95 MHz/cm2
Background Map 75: C14
Plot
RealHitrate Real Hitrate 47.32 MHz/cm2
Background Map 100: C14
Plot
RealHitrate Real Hitrate 65.11 MHz/cm2
Background Map 125: C14
Plot
RealHitrate Real Hitrate 79.47 MHz/cm2
Background Map 150: C14
Plot
RealHitrate Real Hitrate 94.63 MHz/cm2
Background Map 200: C14
Plot
RealHitrate Real Hitrate 128.64 MHz/cm2
Background Map 250: C14
Plot
RealHitrate Real Hitrate 159.08 MHz/cm2
Retrim Hot Pix 150: C14
Retrim Hot Pix 50: C14
Masked Hot Pixels 50: C14
Masked Hot Pixels 150: C14

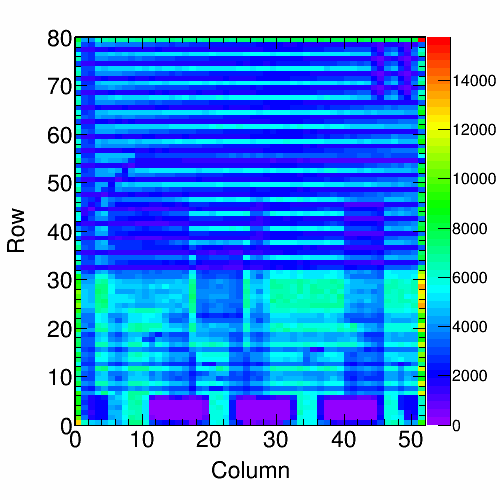

Hit Map 50: C14
Plot
RealHitrate Real Hitrate 30.97 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 1
BB Defects 50: C14

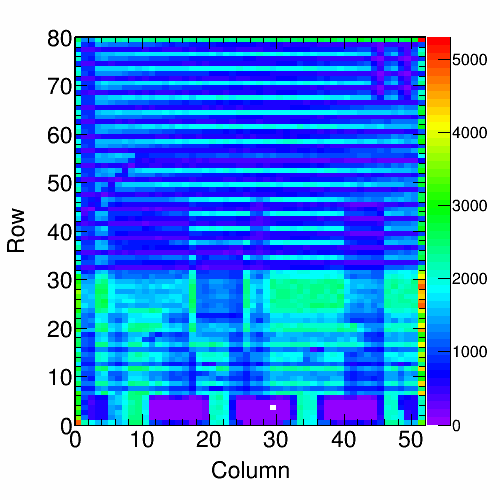

Hit Map 150: C14
Plot
RealHitrate Real Hitrate 93.29 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C14
Col. Read. Unif. 50: C14
Plot
N N 4456368
mu μ 96310
sigma σ 22610.97
Col. Read. Unif. 150: C14
Plot
N N 13422779
mu μ 290100
sigma σ 64912.65
Read. Unif. over Time 50: C14
Plot
N N 5008123
mu μ 5079
sigma_th σ_th 71.27
Time unif. distribution 50: C14
Plot
chi2/ndf chi2/ndf 2.08
sigma σ 77.45
sigma_th σ_th 71.27
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C14
Plot
N N 15085205
mu μ 15299
sigma_th σ_th 123.69
Time unif. distribution 150: C14
Plot
chi2/ndf chi2/ndf 2.87
sigma σ 131.67
sigma_th σ_th 123.70
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C14

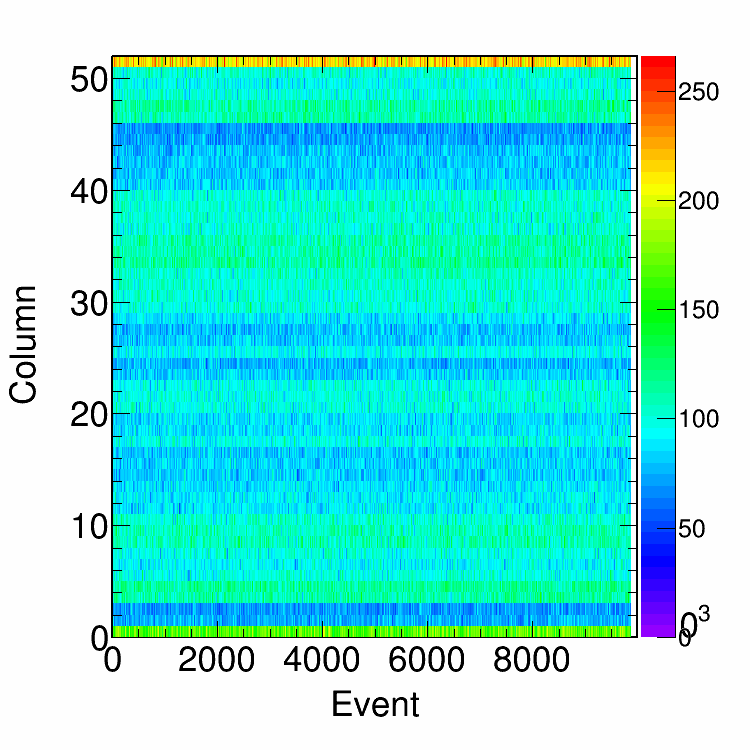

Col. Uniformity per Event: C14 50
Plot
mu μ 25.83
sigma fit error of μ 2.19
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0

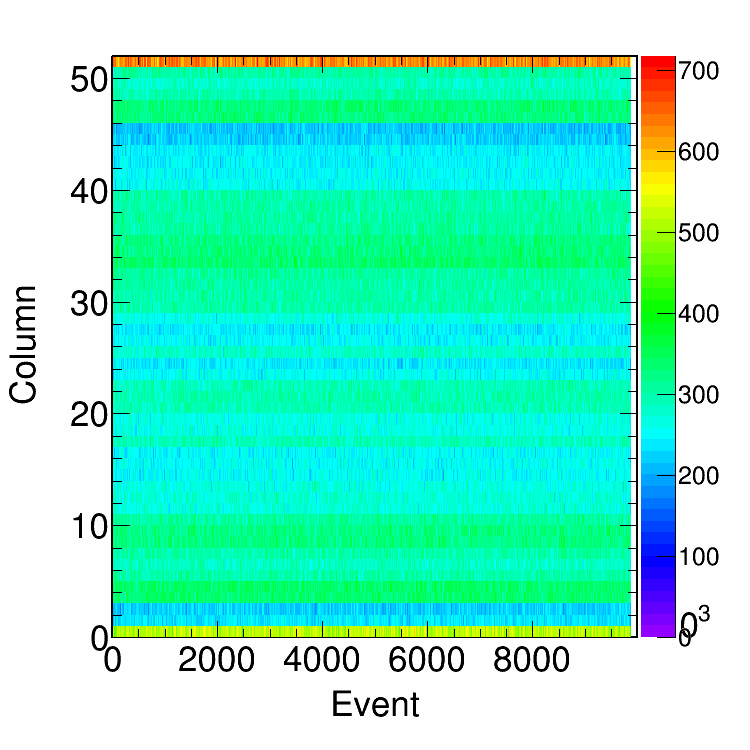

Col. Uniformity per Event: C14 150
Plot
mu μ 26.18
sigma fit error of μ 2.18
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C14 100
Plot
N N 4160
mu μ 161.17
sigma RMS 14.17
threshold thr 2000.41
fit fit Gaussian
fit_peak μ fit 160.96
fit_sigma σ fit 13.86
MeasuredHitrate Measured hitrate: 65.1
Alive Map: C14
DC Efficiency Distribution: C14
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.84
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 98.97
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C14
