Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 12
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.85/99.01
EfficiencyFit Efficiency Fit chi2/ndf: 0.69, # points: 111
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C12
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.69
NumberFitPoints # fit points 111
p0 p0 99.92
p1 p1 5.25e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.01

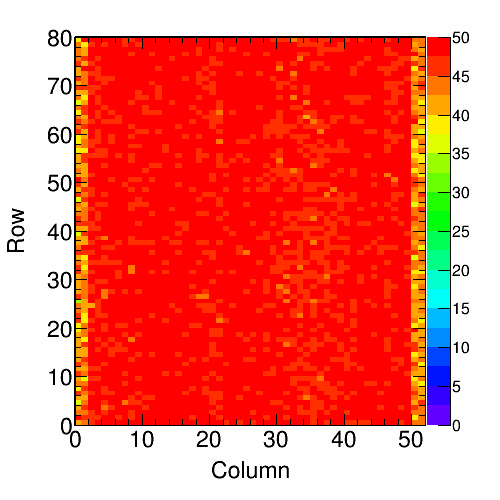

Efficiency Map 50: C12
Efficiency Map 75: C12
Efficiency Map 100: C12
Efficiency Map 125: C12
Efficiency Map 150: C12
Efficiency Map 200: C12
Efficiency Map 250: C12
Efficiency Distr. 50: C12
Plot
N N 4160
mu μ 99.87
sigma σ 0.52
Efficiency Distr. 75: C12
Plot
N N 4160
mu μ 99.70
sigma σ 0.79
Efficiency Distr. 100: C12
Plot
N N 4160
mu μ 99.36
sigma σ 1.20
Efficiency Distr. 125: C12
Plot
N N 4160
mu μ 98.90
sigma σ 1.66
Efficiency Distr. 150: C12
Plot
N N 4160
mu μ 98.22
sigma σ 2.33
Efficiency Distr. 200: C12
Plot
N N 4160
mu μ 95.80
sigma σ 4.38
Efficiency Distr. 250: C12
Plot
N N 4160
mu μ 92.26
sigma σ 6.80

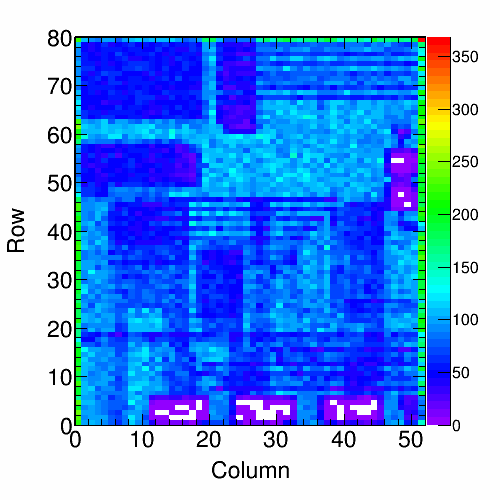

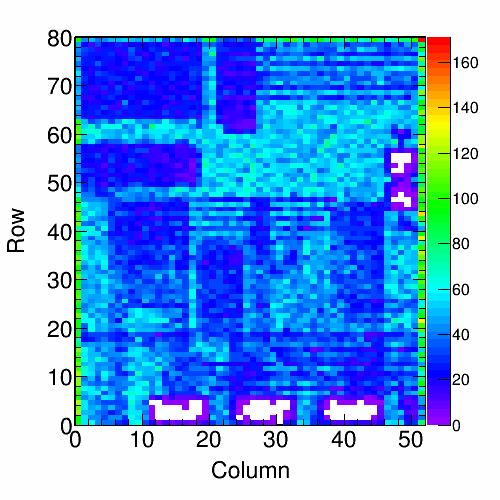

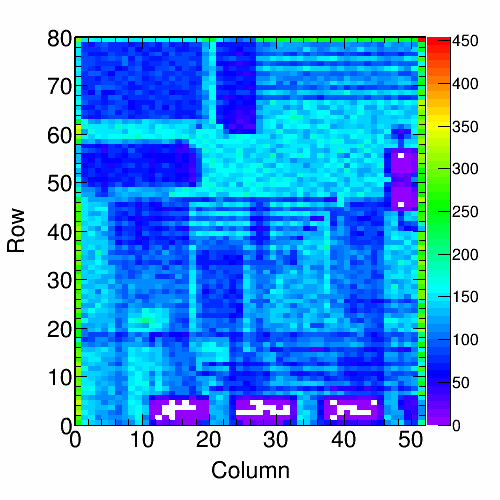

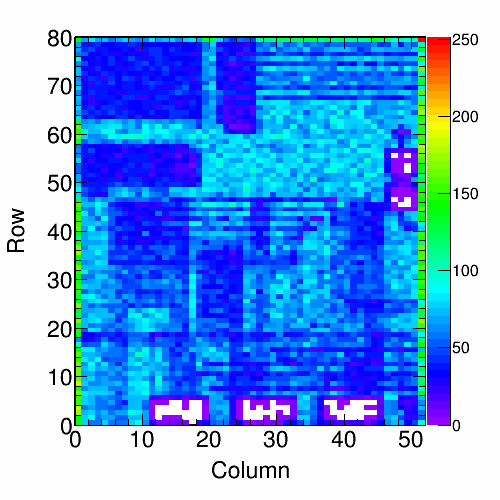

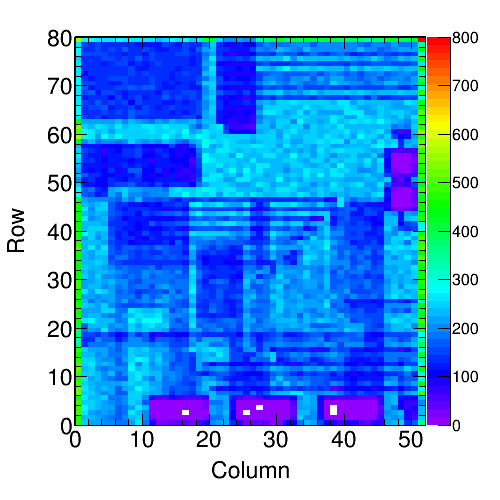

Background Map 50: C12
Plot
RealHitrate Real Hitrate 46.23 MHz/cm2

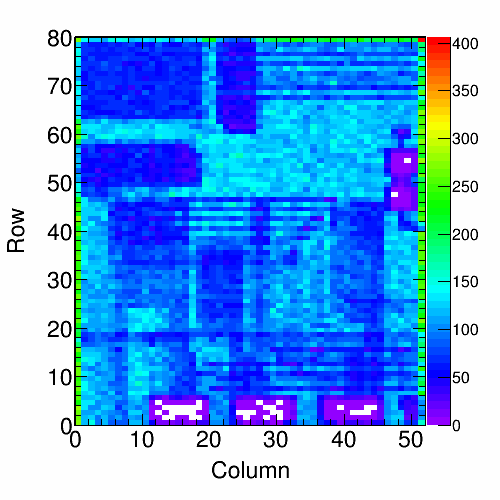

Background Map 75: C12
Plot
RealHitrate Real Hitrate 68.22 MHz/cm2
Background Map 100: C12
Plot
RealHitrate Real Hitrate 93.76 MHz/cm2
Background Map 125: C12
Plot
RealHitrate Real Hitrate 113.69 MHz/cm2

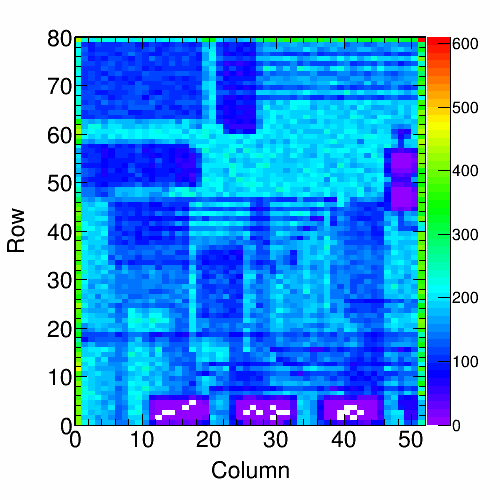

Background Map 150: C12
Plot
RealHitrate Real Hitrate 135.45 MHz/cm2
Background Map 200: C12
Plot
RealHitrate Real Hitrate 183.11 MHz/cm2
Background Map 250: C12
Plot
RealHitrate Real Hitrate 225.93 MHz/cm2
Retrim Hot Pix 150: C12
Retrim Hot Pix 50: C12
Masked Hot Pixels 50: C12
Masked Hot Pixels 150: C12

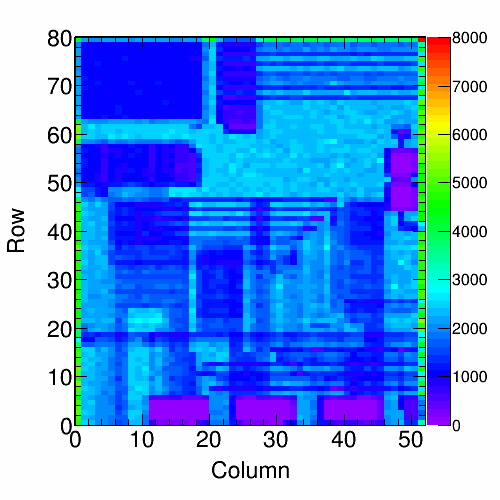

Hit Map 50: C12
Plot
RealHitrate Real Hitrate 44.67 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C12

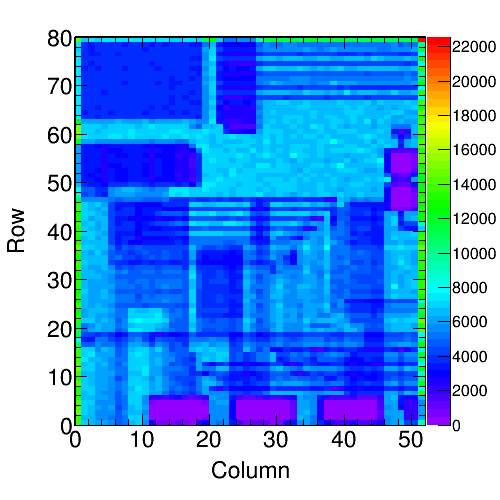

Hit Map 150: C12
Plot
RealHitrate Real Hitrate 132.25 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C12
Col. Read. Unif. 50: C12
Plot
N N 6305970
mu μ 138923
sigma σ 39348.04
Col. Read. Unif. 150: C12
Plot
N N 18713692
mu μ 411269
sigma σ 110102.02
Read. Unif. over Time 50: C12
Plot
N N 7224018
mu μ 7327
sigma_th σ_th 85.60
Time unif. distribution 50: C12
Plot
chi2/ndf chi2/ndf 4.43
sigma σ 98.85
sigma_th σ_th 85.60
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C12
Plot
N N 21386005
mu μ 21690
sigma_th σ_th 147.27
Time unif. distribution 150: C12
Plot
chi2/ndf chi2/ndf 2.12
sigma σ 158.62
sigma_th σ_th 147.28
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C12

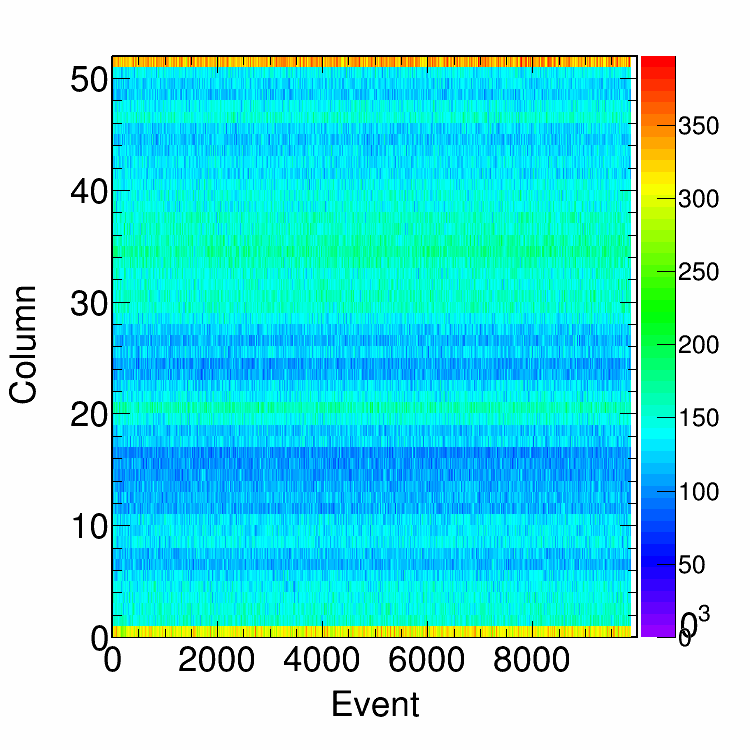

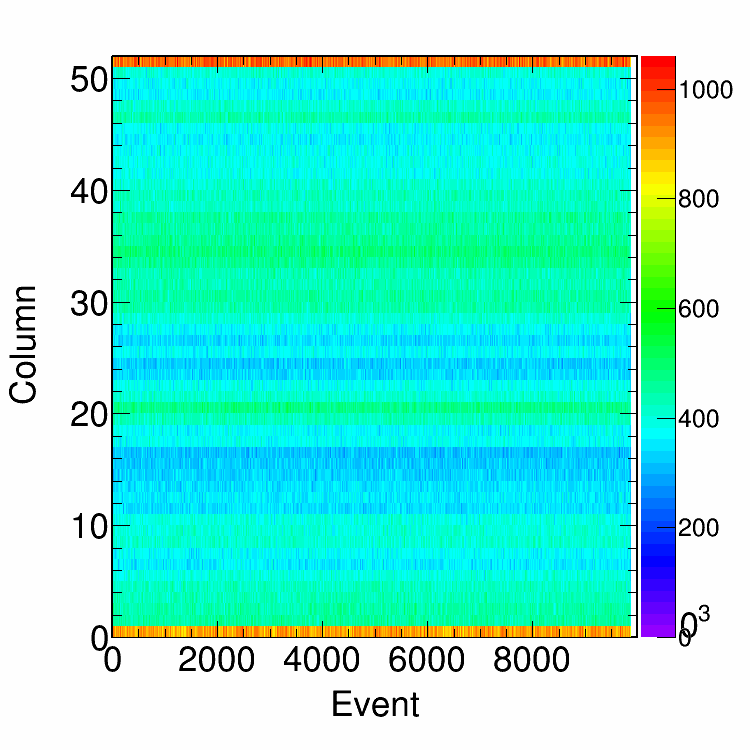

Col. Uniformity per Event: C12 50
Plot
mu μ 26.70
sigma fit error of μ 2.17
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C12 150
Plot
mu μ 26.18
sigma fit error of μ 2.20
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C12 100
Plot
N N 4160
mu μ 156.14
sigma RMS 14.66
threshold thr 2074.44
fit fit Gaussian
fit_peak μ fit 155.67
fit_sigma σ fit 14.08
MeasuredHitrate Measured hitrate: 93.2
Alive Map: C12
DC Efficiency Distribution: C12
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.01
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C12
