Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 11
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.85/99.24
EfficiencyFit Efficiency Fit chi2/ndf: 0.91, # points: 103
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C11
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.91
NumberFitPoints # fit points 103
p0 p0 99.90
p1 p1 3.82e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.85
InterpolatedEfficiency120 Interpol. Efficiency 120 99.24

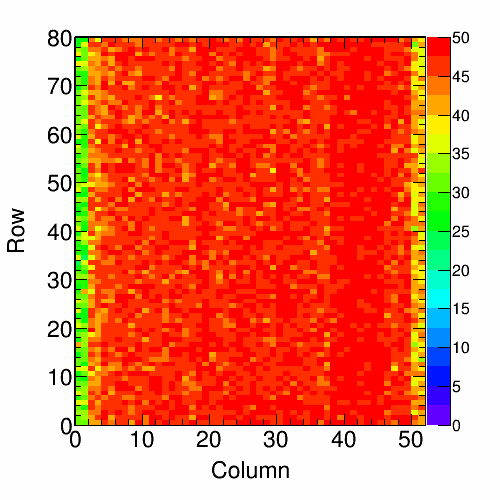

Efficiency Map 50: C11
Efficiency Map 75: C11
Efficiency Map 100: C11
Efficiency Map 125: C11

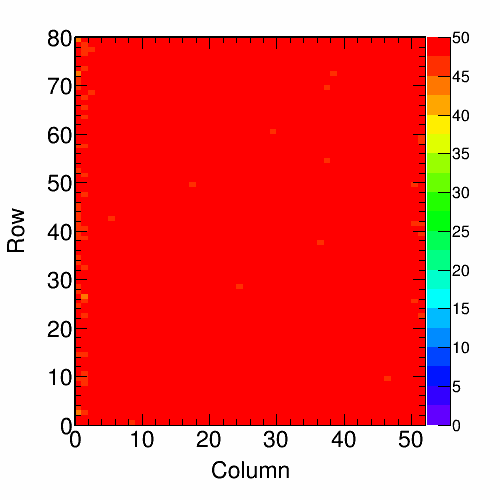

Efficiency Map 150: C11
Efficiency Map 200: C11
Efficiency Map 250: C11
Efficiency Distr. 50: C11
Plot
N N 4160
mu μ 99.85
sigma σ 0.54
Efficiency Distr. 75: C11
Plot
N N 4160
mu μ 99.68
sigma σ 0.84
Efficiency Distr. 100: C11
Plot
N N 4160
mu μ 99.31
sigma σ 1.35
Efficiency Distr. 125: C11
Plot
N N 4160
mu μ 98.87
sigma σ 1.86
Efficiency Distr. 150: C11
Plot
N N 4160
mu μ 98.13
sigma σ 2.68
Efficiency Distr. 200: C11
Plot
N N 4160
mu μ 95.56
sigma σ 5.27
Efficiency Distr. 250: C11
Plot
N N 4160
mu μ 91.77
sigma σ 7.91

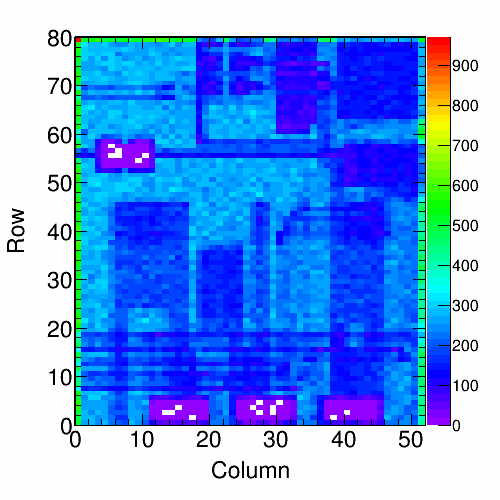

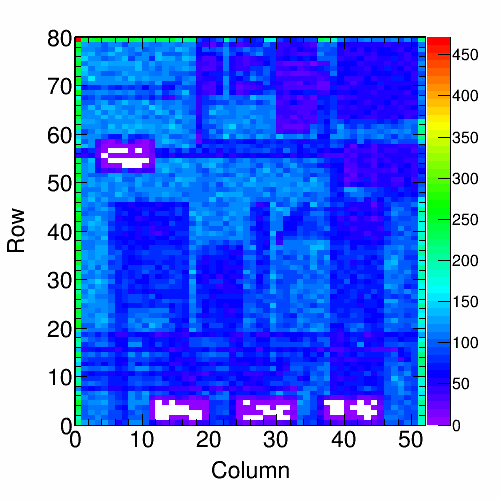

Background Map 50: C11
Plot
RealHitrate Real Hitrate 50.85 MHz/cm2

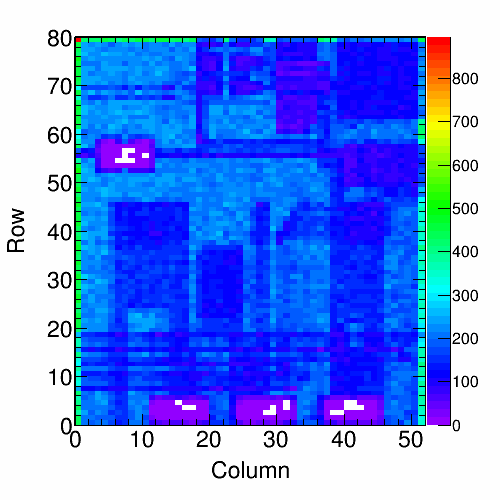

Background Map 75: C11
Plot
RealHitrate Real Hitrate 74.83 MHz/cm2
Background Map 100: C11
Plot
RealHitrate Real Hitrate 103.36 MHz/cm2
Background Map 125: C11
Plot
RealHitrate Real Hitrate 125.10 MHz/cm2
Background Map 150: C11
Plot
RealHitrate Real Hitrate 149.33 MHz/cm2
Background Map 200: C11
Plot
RealHitrate Real Hitrate 202.02 MHz/cm2

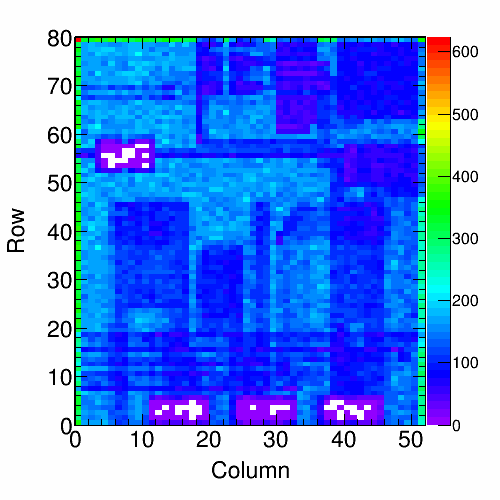

Background Map 250: C11
Plot
RealHitrate Real Hitrate 248.55 MHz/cm2
Retrim Hot Pix 150: C11
Retrim Hot Pix 50: C11
Masked Hot Pixels 50: C11
Masked Hot Pixels 150: C11
Hit Map 50: C11
Plot
RealHitrate Real Hitrate 49.42 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C11

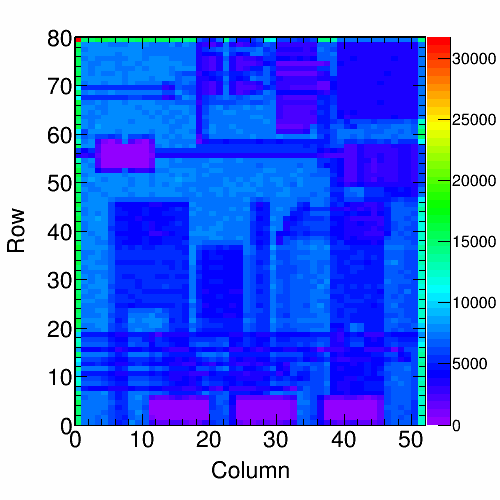

Hit Map 150: C11
Plot
RealHitrate Real Hitrate 145.44 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C11
Col. Read. Unif. 50: C11
Plot
N N 6965227
mu μ 153695
sigma σ 47141.60
Col. Read. Unif. 150: C11
Plot
N N 20545719
mu μ 452306
sigma σ 129589.63
Read. Unif. over Time 50: C11
Plot
N N 7992151
mu μ 8106
sigma_th σ_th 90.03
Time unif. distribution 50: C11
Plot
chi2/ndf chi2/ndf 2.64
sigma σ 97.10
sigma_th σ_th 90.03
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C11
Plot
N N 23519920
mu μ 23854
sigma_th σ_th 154.45
Time unif. distribution 150: C11
Plot
chi2/ndf chi2/ndf 4.98
sigma σ 169.65
sigma_th σ_th 154.46
expectation Red curve (expected) Poisson

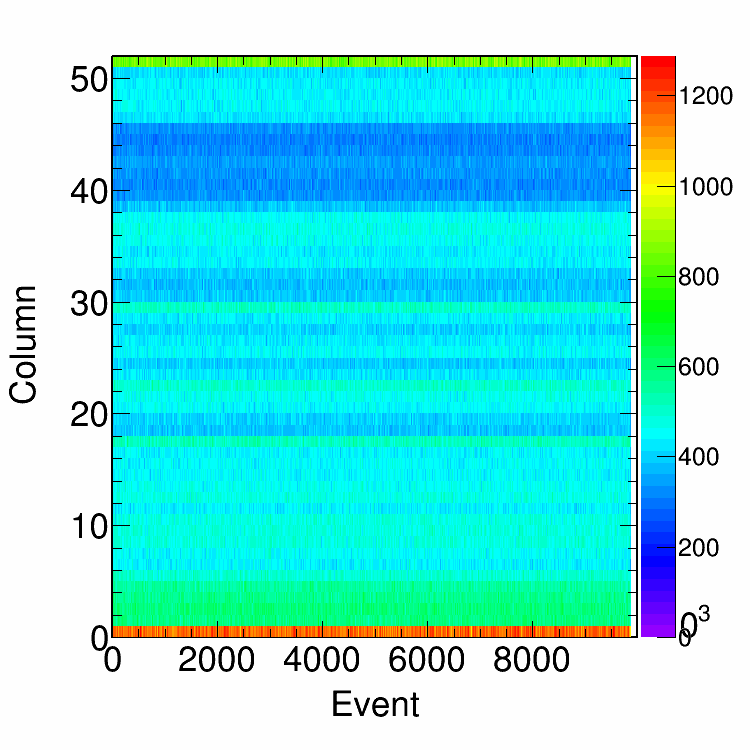

Col. Uniformity Ratio: C11
Col. Uniformity per Event: C11 50
Plot
mu μ 23.72
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C11 150
Plot
mu μ 24.37
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C11 100
Plot
N N 4160
mu μ 155.71
sigma RMS 13.98
threshold thr 2108.19
fit fit Gaussian
fit_peak μ fit 155.37
fit_sigma σ fit 13.62
MeasuredHitrate Measured hitrate: 102.7
Alive Map: C11
DC Efficiency Distribution: C11
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.23
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C11
