Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 10
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 0/0
Efficiency Efficiency 50/120 99.86/99.29
EfficiencyFit Efficiency Fit chi2/ndf: 0.91, # points: 86
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C10
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.91
NumberFitPoints # fit points 86
p0 p0 99.90
p1 p1 3.53e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.86
InterpolatedEfficiency120 Interpol. Efficiency 120 99.29

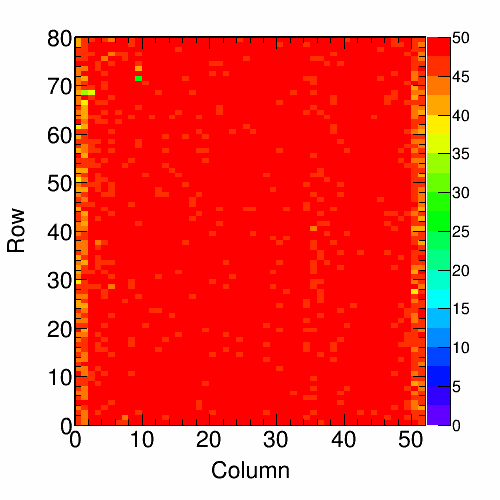

Efficiency Map 50: C10
Efficiency Map 75: C10

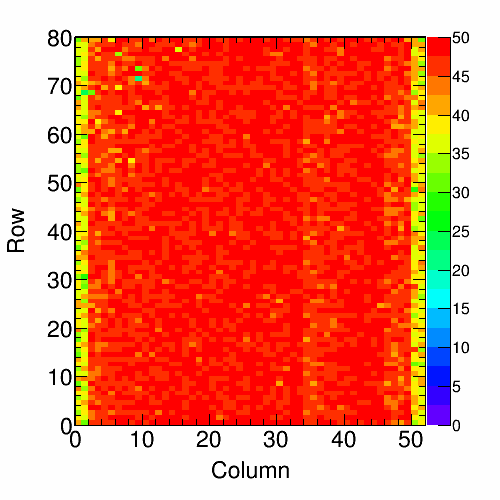

Efficiency Map 100: C10
Efficiency Map 125: C10

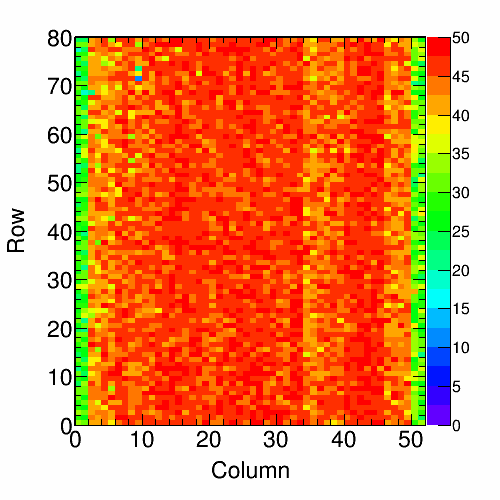

Efficiency Map 150: C10
Efficiency Map 200: C10
Efficiency Map 250: C10
Efficiency Distr. 50: C10
Plot
N N 4160
mu μ 99.79
sigma σ 0.72
Efficiency Distr. 75: C10
Plot
N N 4160
mu μ 99.56
sigma σ 1.02
Efficiency Distr. 100: C10
Plot
N N 4160
mu μ 98.99
sigma σ 1.79
Efficiency Distr. 125: C10
Plot
N N 4160
mu μ 98.26
sigma σ 2.61
Efficiency Distr. 150: C10
Plot
N N 4160
mu μ 97.20
sigma σ 3.40
Efficiency Distr. 200: C10
Plot
N N 4160
mu μ 93.23
sigma σ 6.60
Efficiency Distr. 250: C10
Plot
N N 4160
mu μ 87.70
sigma σ 10.08

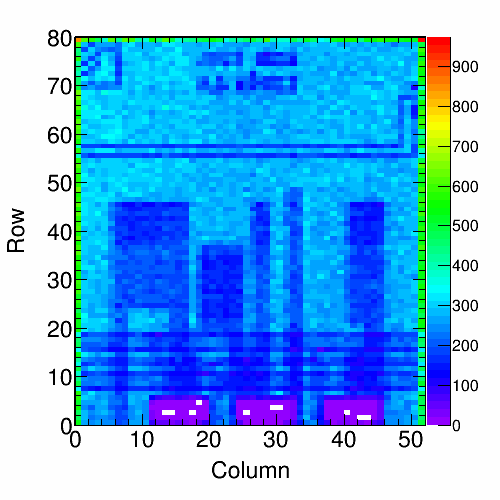

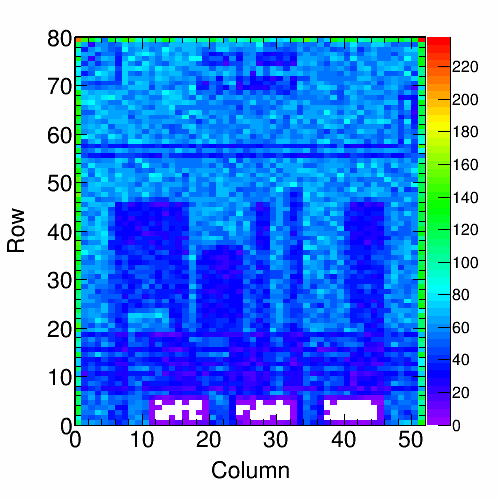

Background Map 50: C10
Plot
RealHitrate Real Hitrate 62.48 MHz/cm2

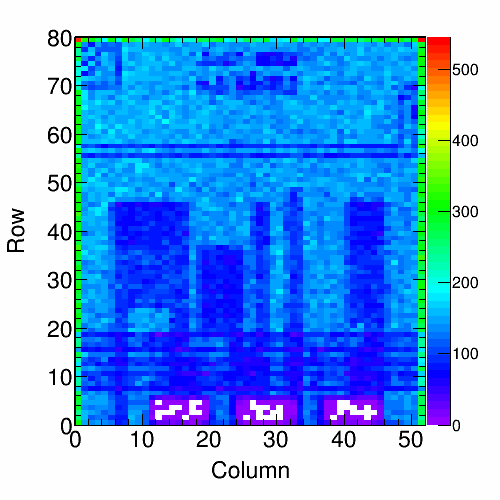

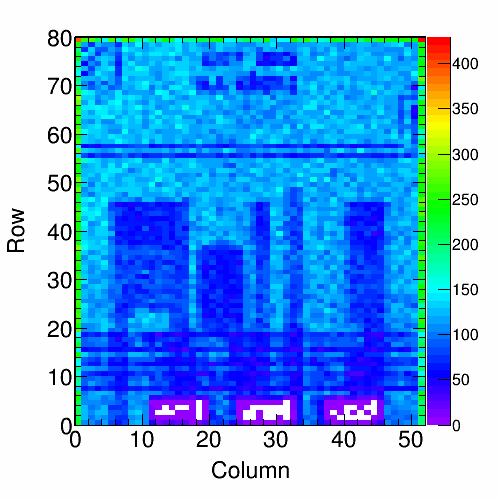

Background Map 75: C10
Plot
RealHitrate Real Hitrate 91.12 MHz/cm2

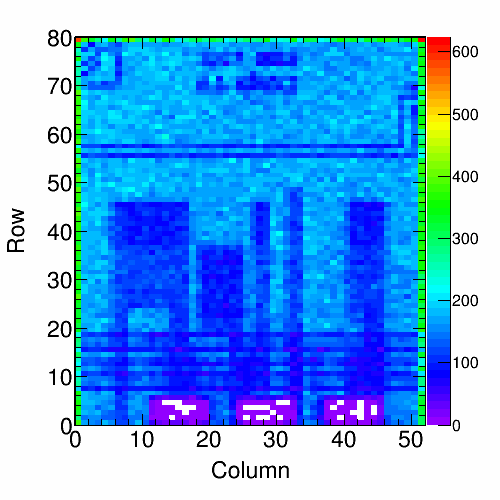

Background Map 100: C10
Plot
RealHitrate Real Hitrate 124.82 MHz/cm2
Background Map 125: C10
Plot
RealHitrate Real Hitrate 151.23 MHz/cm2
Background Map 150: C10
Plot
RealHitrate Real Hitrate 179.83 MHz/cm2
Background Map 200: C10
Plot
RealHitrate Real Hitrate 241.41 MHz/cm2
Background Map 250: C10
Plot
RealHitrate Real Hitrate 296.99 MHz/cm2
Retrim Hot Pix 150: C10
Retrim Hot Pix 50: C10
Masked Hot Pixels 50: C10
Masked Hot Pixels 150: C10

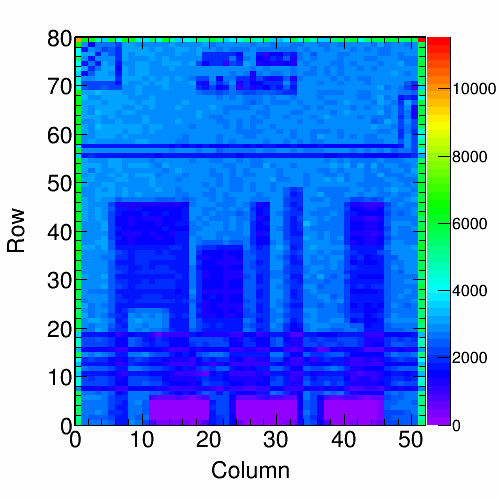

Hit Map 50: C10
Plot
RealHitrate Real Hitrate 61.43 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 50: C10
Hit Map 150: C10
Plot
RealHitrate Real Hitrate 176.55 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 0
BB Defects 150: C10
Col. Read. Unif. 50: C10
Plot
N N 8656221
mu μ 191068
sigma σ 52347.85
Col. Read. Unif. 150: C10
Plot
N N 24927308
mu μ 549033
sigma σ 144634.48
Read. Unif. over Time 50: C10
Plot
N N 9935513
mu μ 10077
sigma_th σ_th 100.38
Time unif. distribution 50: C10
Plot
chi2/ndf chi2/ndf 1.25
sigma σ 106.23
sigma_th σ_th 100.38
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C10
Plot
N N 28549693
mu μ 28955
sigma_th σ_th 170.16
Time unif. distribution 150: C10
Plot
chi2/ndf chi2/ndf 9.37
sigma σ 188.51
sigma_th σ_th 170.17
expectation Red curve (expected) Poisson

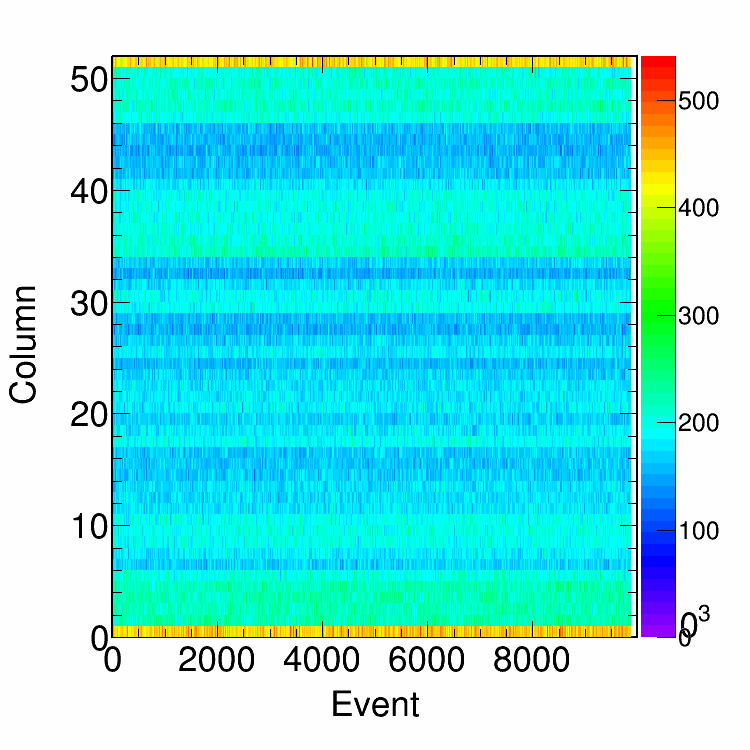

Col. Uniformity Ratio: C10
Col. Uniformity per Event: C10 50
Plot
mu μ 25.98
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C10 150
Plot
mu μ 25.82
sigma fit error of μ 2.25
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C10 100
Plot
N N 4160
mu μ 161.52
sigma RMS 17.02
threshold thr 2182.05
fit fit Gaussian
fit_peak μ fit 160.97
fit_sigma σ fit 16.32
MeasuredHitrate Measured hitrate: 124.6
Alive Map: C10
DC Efficiency Distribution: C10
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.85
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.29
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C10
