Test Date: 2016-09-05 15:24
Analysis date: 2016-09-05 16:58
Chip 0
Grading
ROCGrade Final ROC Grade A
NumberOfHotPixels # Hot Pixels 50/150 0/0
NumberOfNonUniformColumns # Non-Uniform Columns 50/150 0
NumberOfNonUniformEvents # Non-Uniform ROC Events 50/150 0/0
NumberOfNonUniformColumnEvents # Non-Uniform Col. Events 50/150 0/0
BadDoubleColumns # Bad Double Columns 0
BumpBondingDefects # Bump Bonding Defects 50/150 2/2
Efficiency Efficiency 50/120 99.84/99.15
EfficiencyFit Efficiency Fit chi2/ndf: 0.83, # points: 126
EfficiencyGrade Efficiency Grade 50/120 (A)/A
BadDoubleColumnsGrade Bad DC Grade A
HotPixelsGrade Hot Pixels Grade 50/150 A/A
HitMapGrade Hit Map Grade 50/150 (A)/A
ReadoutUniformityOverTimeGrade ROC Read. Unif. Grade 50/150 A/A
ColumnReadoutUniformityOverTimeGrade Column Read. Unif. Grade 50/150 A/A
ColumnUniformityGrade Column Uniformity Grade A
NoiseGrade Noise Grade A
Efficiency Interpolation: C0
Plot
fitfunction Fit [0]-[1]*x^3
BadDoubleColumns # Bad DCs (excluded from fit) 0
Chi2NDF chi2/ndf 0.83
NumberFitPoints # fit points 126
p0 p0 99.90
p1 p1 4.33e-07
InterpolatedEfficiency50 Interpol. Efficiency 50 99.84
InterpolatedEfficiency120 Interpol. Efficiency 120 99.15

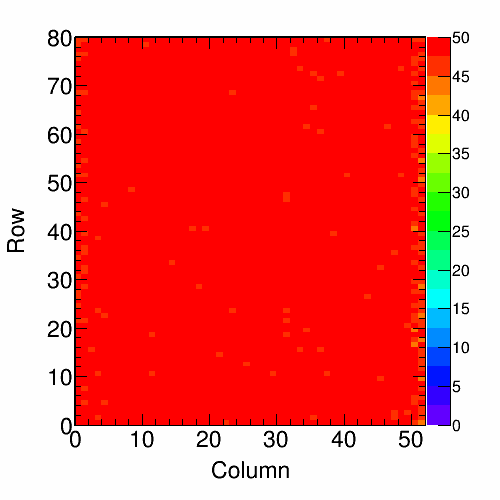

Efficiency Map 50: C0

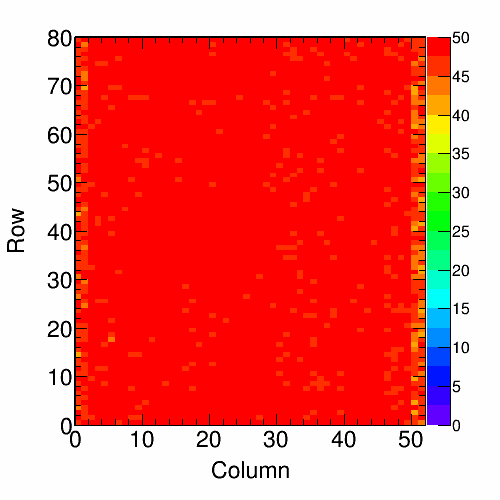

Efficiency Map 75: C0
Efficiency Map 100: C0
Efficiency Map 125: C0
Efficiency Map 150: C0
Efficiency Map 200: C0
Efficiency Map 250: C0
Efficiency Distr. 50: C0
Plot
N N 4160
mu μ 99.93
sigma σ 0.38
Efficiency Distr. 75: C0
Plot
N N 4160
mu μ 99.89
sigma σ 0.48
Efficiency Distr. 100: C0
Plot
N N 4160
mu μ 99.77
sigma σ 0.70
Efficiency Distr. 125: C0
Plot
N N 4160
mu μ 99.65
sigma σ 0.88
Efficiency Distr. 150: C0
Plot
N N 4160
mu μ 99.46
sigma σ 1.09
Efficiency Distr. 200: C0
Plot
N N 4160
mu μ 98.80
sigma σ 1.82
Efficiency Distr. 250: C0
Plot
N N 4160
mu μ 97.83
sigma σ 2.72

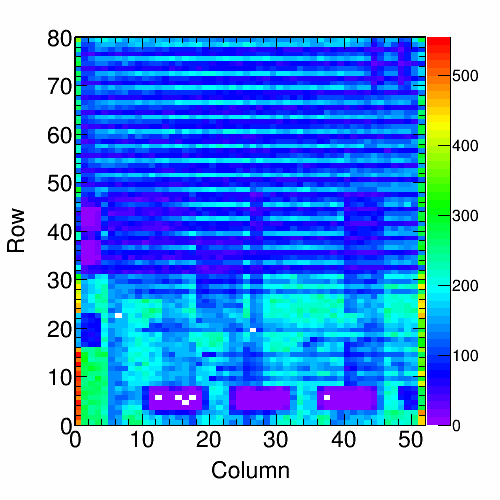

Background Map 50: C0
Plot
RealHitrate Real Hitrate 30.69 MHz/cm2

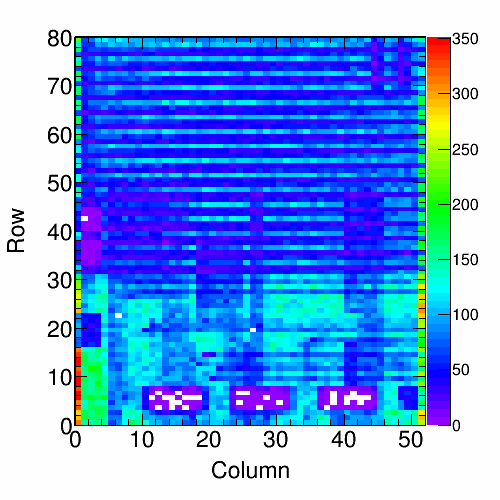

Background Map 75: C0
Plot
RealHitrate Real Hitrate 45.36 MHz/cm2
Background Map 100: C0
Plot
RealHitrate Real Hitrate 62.57 MHz/cm2
Background Map 125: C0
Plot
RealHitrate Real Hitrate 76.05 MHz/cm2
Background Map 150: C0
Plot
RealHitrate Real Hitrate 90.92 MHz/cm2
Background Map 200: C0
Plot
RealHitrate Real Hitrate 123.79 MHz/cm2

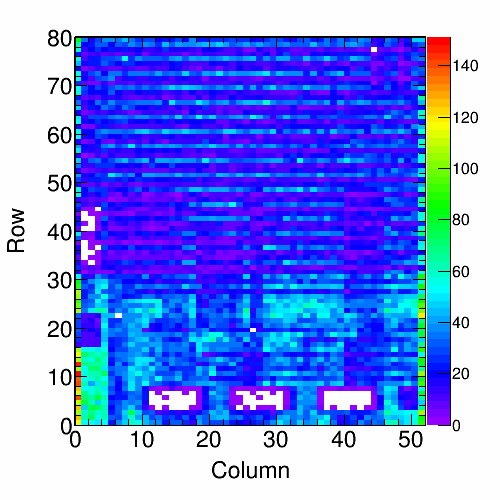

Background Map 250: C0
Plot
RealHitrate Real Hitrate 153.03 MHz/cm2
Retrim Hot Pix 150: C0
Retrim Hot Pix 50: C0
Masked Hot Pixels 50: C0
Masked Hot Pixels 150: C0

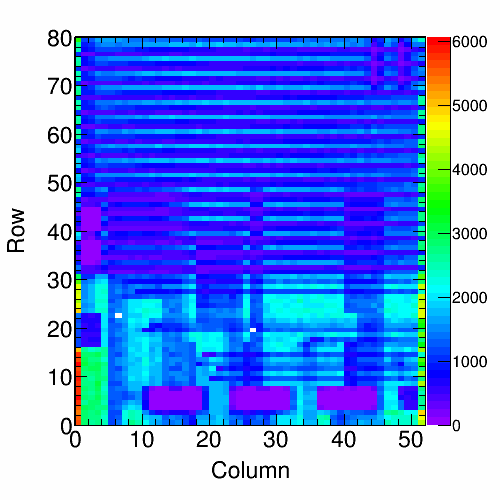

Hit Map 50: C0
Plot
RealHitrate Real Hitrate 29.74 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 50: C0

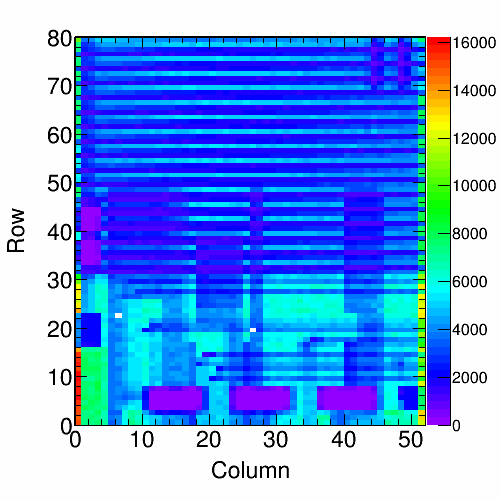

Hit Map 150: C0
Plot
RealHitrate Real Hitrate 89.18 MHz/cm2
NumberOfDefectivePixels # Defective Pixels 2
BB Defects 150: C0
Col. Read. Unif. 50: C0
Plot
N N 4204001
mu μ 92493
sigma σ 26118.87
Col. Read. Unif. 150: C0
Plot
N N 12646693
mu μ 277337
sigma σ 73488.20
Read. Unif. over Time 50: C0
Plot
N N 4809661
mu μ 4878
sigma_th σ_th 69.84
Time unif. distribution 50: C0
Plot
chi2/ndf chi2/ndf 3.34
sigma σ 80.79
sigma_th σ_th 69.84
expectation Red curve (expected) Poisson
Read. Unif. over Time 150: C0
Plot
N N 14421516
mu μ 14626
sigma_th σ_th 120.94
Time unif. distribution 150: C0
Plot
chi2/ndf chi2/ndf 2.66
sigma σ 130.83
sigma_th σ_th 120.95
expectation Red curve (expected) Poisson
Col. Uniformity Ratio: C0

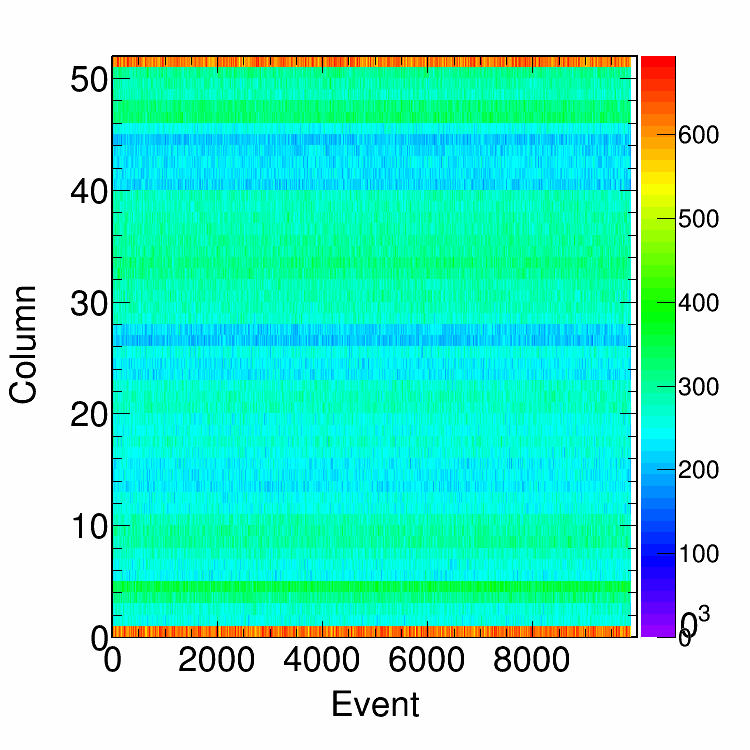

Col. Uniformity per Event: C0 50
Plot
mu μ 26.27
sigma fit error of μ 2.22
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
Col. Uniformity per Event: C0 150
Plot
mu μ 25.99
sigma fit error of μ 2.21
NumberOfNonUniformColumnEvents Non uniform 10.000 event bins 0
S-Curve widths: Noise (e^{-}) C0 100
Plot
N N 4160
mu μ 163.35
sigma RMS 14.72
threshold thr 1975.51
fit fit Gaussian
fit_peak μ fit 162.79
fit_sigma σ fit 13.95
MeasuredHitrate Measured hitrate: 62.4
Alive Map: C0
DC Efficiency Distribution: C0
Plot
MeanEfficiency_50 Mean Efficiency 50 MHz/cm2 99.86
MeanEfficiency_120 Mean Efficiency 120 MHz/cm2 99.14
NBadDoubleColumns Bad Double Columns 0
CalDel scan: C0
