Test Date: 2016-09-05 09:50
Analysis date: 2016-09-05 11:45
Analysis date: 2016-09-05 11:45
M2301 XRayHRQualification
Summary
| Module | Module | M2301 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 5 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 4 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

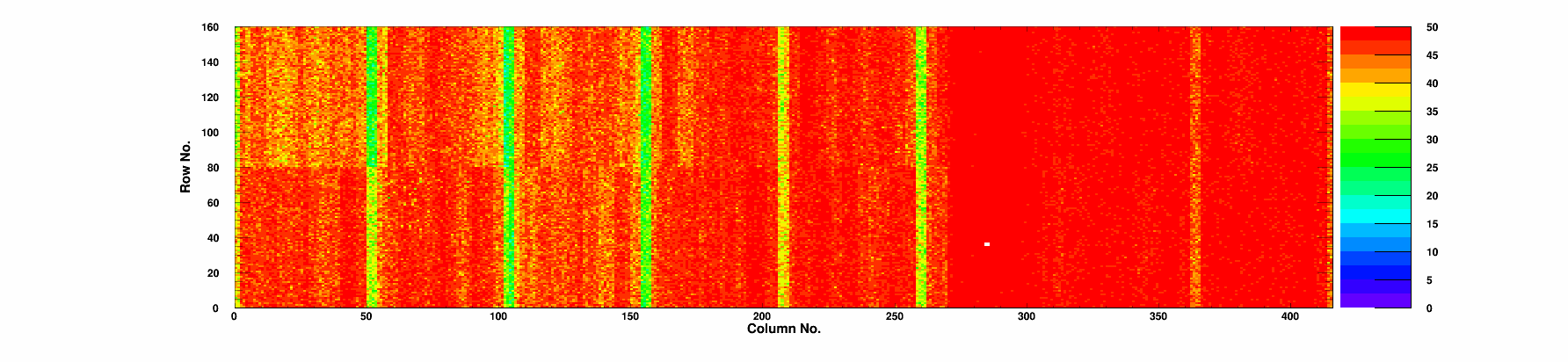

| Efficiency | Efficiency 50/120 | 99.86/99.25 | % |

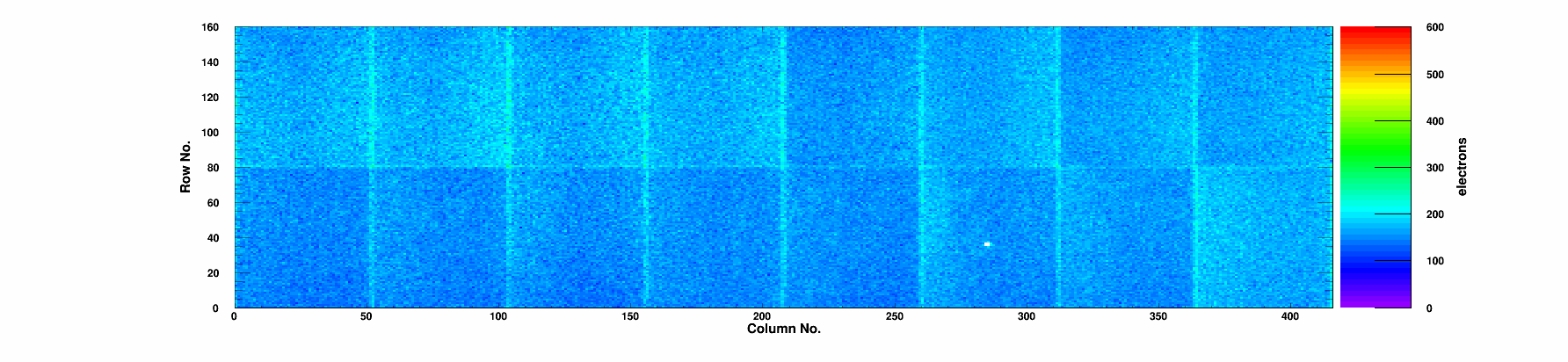

| Noise | Mean Noise | 162 | e- |
Summary ROCs

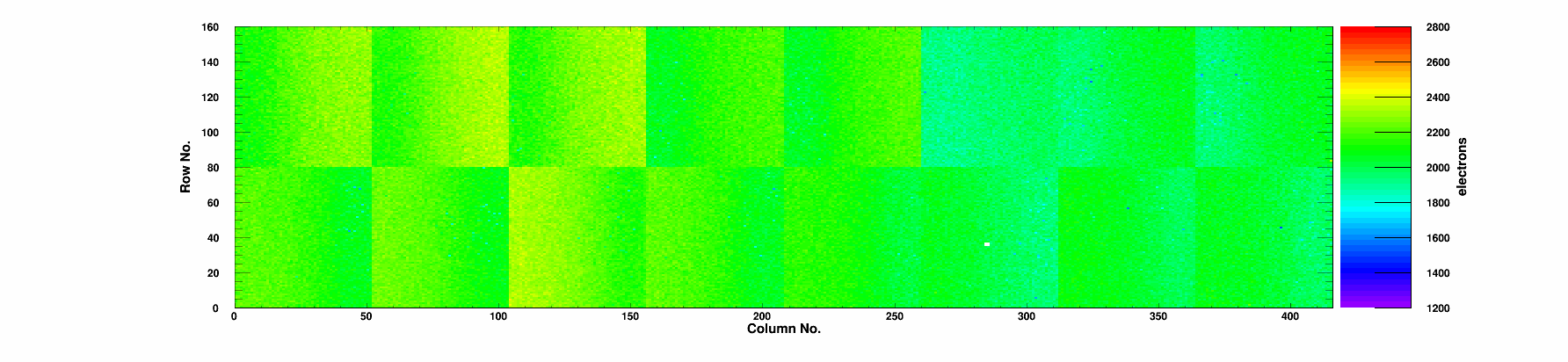

| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.82 | 98.93 | 0.71 | 32.0 | 94.0 | 0 | 0/0 | 0 | 2008 | 165 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.24 | 0.53 | 32.7 | 97.4 | 0 | 0/0 | 0 | 2008 | 164 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.14 | 0.45 | 27.0 | 81.8 | 0 | 0/0 | 0 | 1949 | 168 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.88 | 99.33 | 0.53 | 49.7 | 144.6 | 0 | 0/0 | 0 | 2133 | 158 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.29 | 0.83 | 53.9 | 157.7 | 0 | 0/0 | 0 | 2132 | 171 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.38 | 0.61 | 67.1 | 192.3 | 0 | 0/0 | 0 | 2237 | 171 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.28 | 0.78 | 62.8 | 182.8 | 0 | 0/0 | 0 | 2241 | 174 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.25 | 0.59 | 65.6 | 190.7 | 0 | 0/0 | 0 | 2213 | 170 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.88 | 99.32 | 0.55 | 52.3 | 155.2 | 0 | 0/0 | 0 | 2148 | 150 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.33 | 0.8 | 54.4 | 158.7 | 0 | 0/0 | 0 | 2168 | 153 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.34 | 0.71 | 64.7 | 185.3 | 0 | 0/0 | 0 | 2238 | 154 | 0 |
|
Chip 11
|
A
|
1 | 0 | 99.88 | 99.30 | 0.7 | 50.2 | 147.2 | 1 | 0/0 | 0 | 2141 | 154 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.87 | 99.25 | 0.55 | 47.3 | 138.4 | 0 | 0/0 | 0 | 2097 | 152 | 0 |
|
Chip 13
|
A
|
4 | 0 | 99.85 | 99.27 | 0.67 | 29.8 | 89.9 | 0 | 0/0 | 0 | 1892 | 159 | 4 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.10 | 0.72 | 32.7 | 97.4 | 0 | 0/0 | 0 | 2037 | 159 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 99.19 | 0.76 | 33.7 | 99.0 | 0 | 0/0 | 0 | 2020 | 172 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-09-05 | |
| TestTime | Test Time | 09:50 | |
| TestDuration | Duration | 1:31:12 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
