Test Date: 2016-08-23 09:37
Analysis date: 2016-08-23 11:32
Analysis date: 2016-08-23 11:32
M2297 XRayHRQualification
Summary
| Module | Module | M2297 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 10 | |
| BumpBondingDefects | Bump Bonding Defects | 10 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

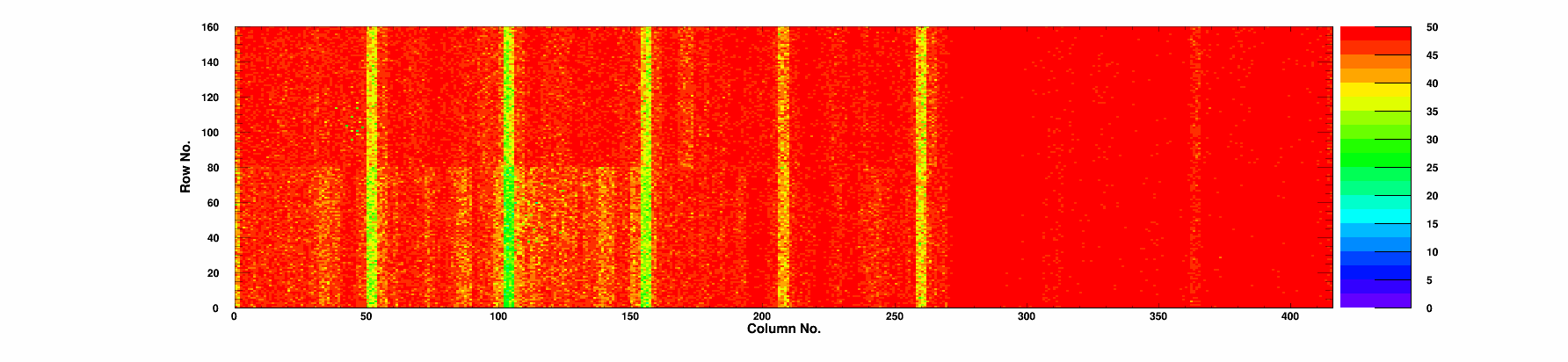

| Efficiency | Efficiency 50/120 | 99.85/99.16 | % |

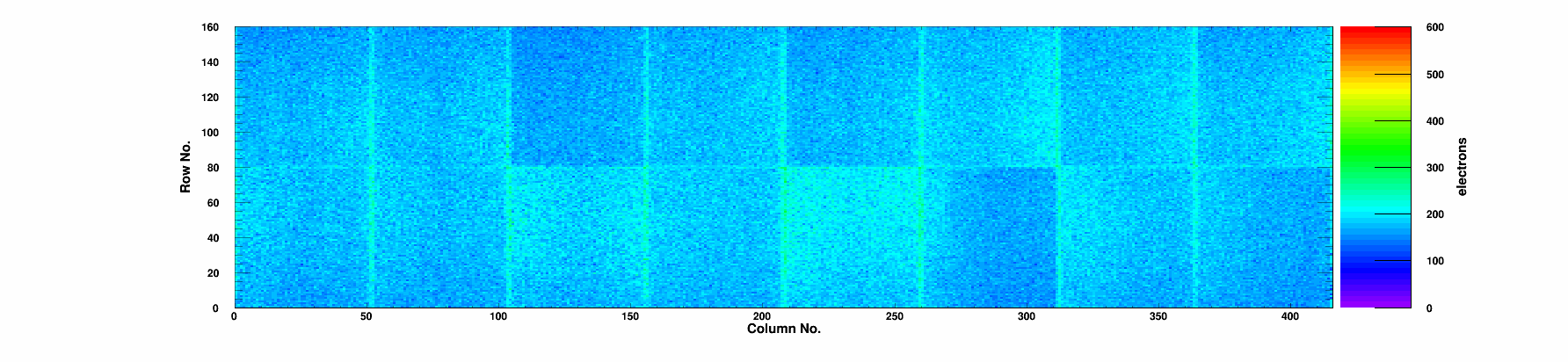

| Noise | Mean Noise | 179 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.81 | 98.90 | 0.56 | 23.8 | 72.1 | 1 | 0/0 | 0 | 1946 | 181 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.85 | 99.14 | 0.62 | 24.1 | 73.5 | 0 | 0/0 | 0 | 1920 | 181 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.83 | 99.03 | 0.65 | 22.4 | 68.8 | 0 | 0/0 | 0 | 1919 | 186 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.85 | 99.06 | 0.73 | 37.3 | 111.3 | 0 | 0/0 | 0 | 2039 | 174 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.84 | 99.00 | 0.79 | 39.6 | 118.5 | 0 | 0/0 | 0 | 2043 | 178 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.86 | 99.21 | 0.58 | 46.1 | 134.6 | 0 | 0/0 | 0 | 2079 | 165 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.85 | 99.24 | 0.66 | 46.9 | 138.1 | 0 | 0/0 | 0 | 2069 | 176 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.87 | 99.25 | 0.92 | 44.7 | 132.1 | 0 | 0/0 | 0 | 2057 | 173 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.28 | 0.48 | 52.3 | 154.8 | 0 | 0/0 | 0 | 2130 | 177 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.84 | 99.16 | 0.7 | 53.0 | 156.0 | 0 | 0/0 | 0 | 2122 | 177 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.85 | 99.23 | 1.11 | 58.9 | 172.5 | 0 | 0/0 | 0 | 2157 | 189 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.25 | 0.71 | 45.5 | 135.2 | 0 | 0/0 | 0 | 2084 | 182 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.85 | 99.22 | 0.73 | 43.4 | 129.3 | 0 | 0/0 | 0 | 2038 | 198 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.17 | 0.72 | 24.4 | 74.3 | 0 | 0/0 | 0 | 1948 | 170 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.24 | 0.62 | 26.6 | 80.7 | 0 | 0/0 | 0 | 1959 | 182 | 0 |
|
Chip 15
|
A
|
9 | 0 | 99.86 | 99.25 | 0.58 | 23.3 | 70.7 | 9 | 0/0 | 0 | 1928 | 170 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-23 | |
| TestTime | Test Time | 09:37 | |
| TestDuration | Duration | 1:32:30 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
