Test Date: 2016-08-23 09:37
Analysis date: 2016-08-23 11:27
Analysis date: 2016-08-23 11:27
M2295 XRayHRQualification
Summary
| Module | Module | M2295 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 9 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

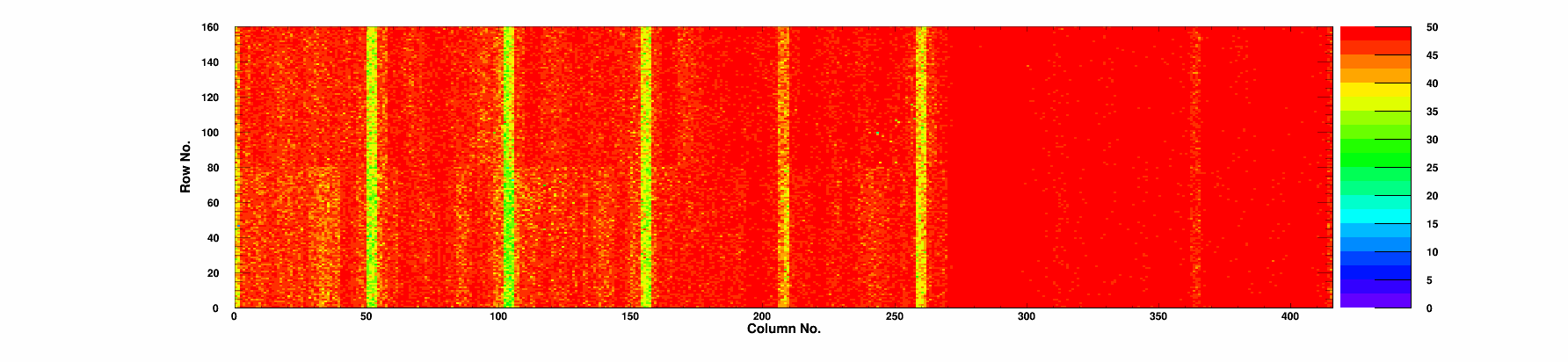

| Efficiency | Efficiency 50/120 | 99.86/99.20 | % |
| Noise | Mean Noise | 169 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.85 | 99.11 | 0.77 | 30.3 | 90.9 | 1 | 0/0 | 0 | 1984 | 173 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.86 | 99.25 | 0.48 | 33.6 | 101.0 | 0 | 0/0 | 0 | 2026 | 177 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.18 | 0.47 | 30.8 | 93.9 | 0 | 0/0 | 0 | 1982 | 177 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.27 | 0.77 | 50.3 | 147.6 | 0 | 0/0 | 0 | 2133 | 171 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.33 | 0.59 | 54.7 | 161.2 | 0 | 0/0 | 0 | 2157 | 169 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.35 | 0.63 | 62.2 | 178.8 | 0 | 0/0 | 0 | 2195 | 164 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.34 | 0.5 | 63.5 | 185.1 | 0 | 0/0 | 0 | 2198 | 163 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.88 | 99.31 | 0.5 | 63.7 | 184.8 | 0 | 0/0 | 0 | 2183 | 162 | 0 |
|
Chip 8
|
A
|
2 | 0 | 99.85 | 99.26 | 0.74 | 69.0 | 202.1 | 1 | 0/0 | 0 | 2228 | 171 | 0 |
|
Chip 9
|
A
|
4 | 0 | 99.83 | 99.22 | 0.67 | 64.7 | 187.4 | 4 | 0/0 | 0 | 2210 | 166 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.85 | 99.28 | 1.14 | 68.7 | 197.9 | 1 | 0/0 | 0 | 2228 | 166 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.86 | 99.27 | 0.65 | 54.6 | 161.3 | 0 | 0/0 | 0 | 2165 | 174 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.83 | 98.99 | 0.94 | 49.9 | 147.2 | 0 | 0/0 | 0 | 2138 | 174 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.86 | 99.23 | 0.66 | 30.2 | 91.7 | 0 | 0/0 | 0 | 1994 | 172 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.83 | 98.98 | 0.91 | 29.9 | 90.0 | 0 | 0/0 | 0 | 1992 | 164 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.82 | 98.89 | 0.55 | 29.6 | 88.9 | 0 | 0/0 | 0 | 1953 | 169 | 0 |

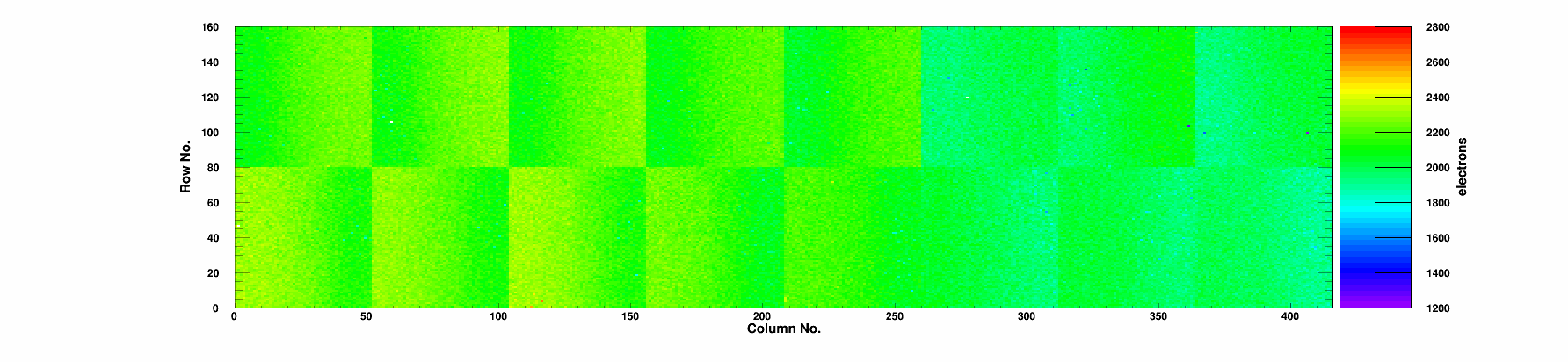

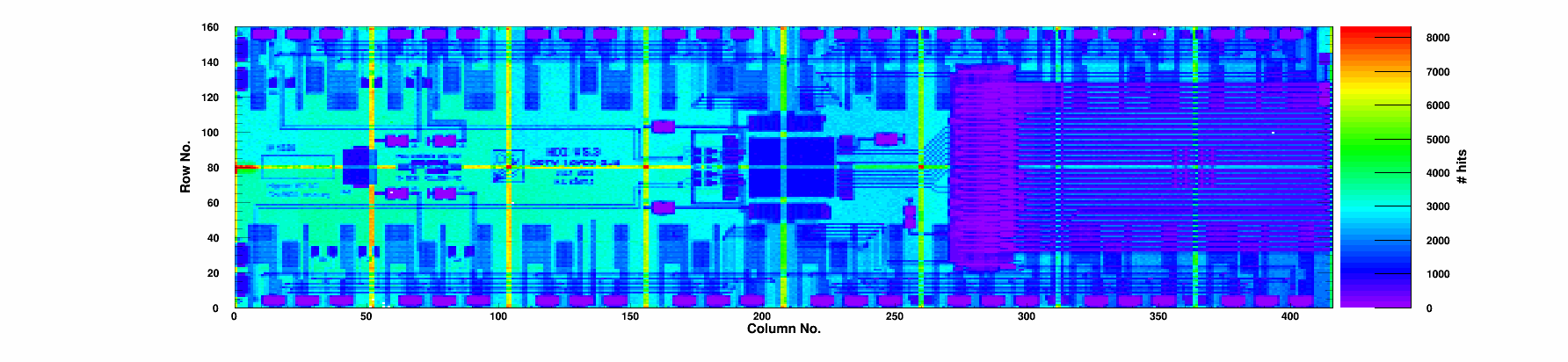

Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-23 | |
| TestTime | Test Time | 09:37 | |
| TestDuration | Duration | 1:32:30 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
