Test Date: 2016-08-22 17:23
Analysis date: 2016-08-29 21:02
Analysis date: 2016-08-29 21:02
M2293 XRayHRQualification
| Comment | Comment | comments.txt: Read-out errors in Channel 1 for the two highest rates "200" and "250". Max real rate tested for C0/C15 is around 110 MHz/cm2. |

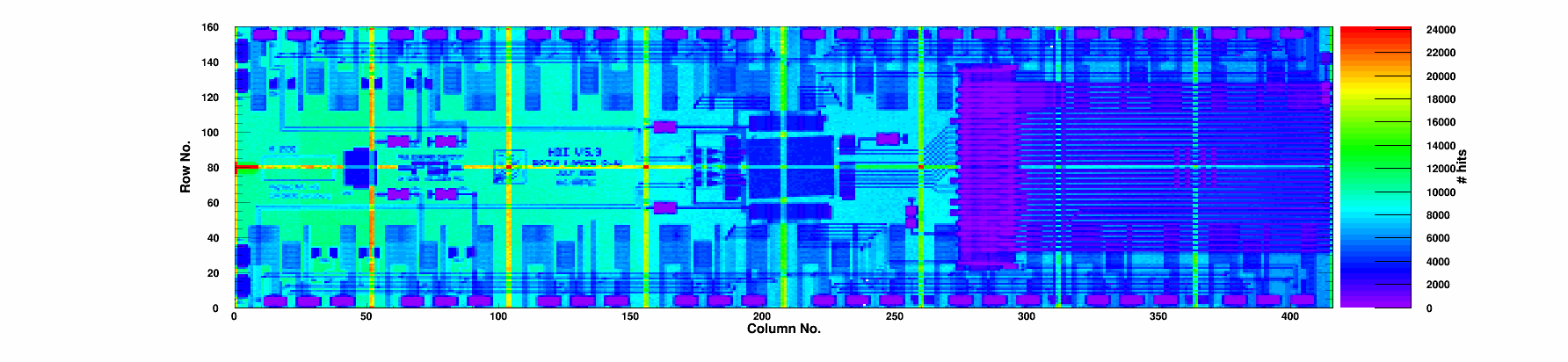

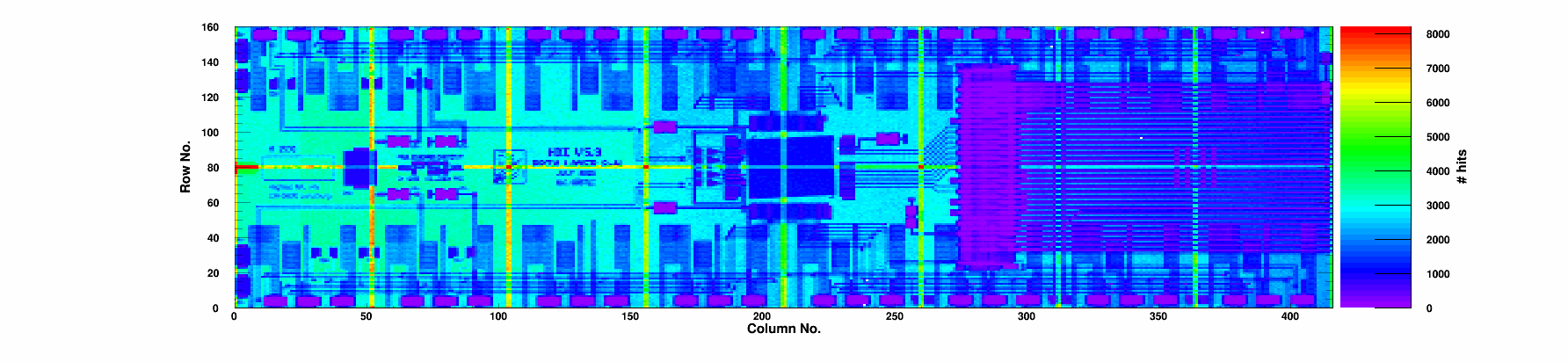

Summary
| Module | Module | M2293 | |
| Grade | Grade | C | |
| ManualGrade | Manual Grade | C | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 5 | |
| BumpBondingDefects | Bump Bonding Defects | 2 | |
| NoisyPixels | Noisy Pixels | 3 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.10 | % |
| Noise | Mean Noise | 158 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.06 | 0.38 | 29.1 | 90.8 | 0 | 0/0 | 0 | 1990 | 154 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.87 | 98.94 | 0.37 | 31.8 | 96.2 | 0 | 0/0 | 0 | 2033 | 159 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.87 | 99.22 | 0.45 | 29.3 | 91.6 | 1 | 0/0 | 0 | 1968 | 156 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.86 | 99.24 | 0.91 | 50.2 | 152.5 | 0 | 0/0 | 0 | 2073 | 163 | 1 |
|
Chip 4
|
A
|
0 | 0 | 99.96 | 98.87 | 5.61 | 48.6 | 156.6 | 0 | 0/0 | 0 | 2093 | 154 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.81 | 99.18 | 1.12 | 63.0 | 200.1 | 0 | 0/0 | 0 | 2144 | 160 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.89 | 99.22 | 0.84 | 59.8 | 192.9 | 0 | 0/0 | 0 | 2102 | 158 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.86 | 99.20 | 0.8 | 66.6 | 209.7 | 0 | 0/0 | 0 | 2164 | 165 | 0 |
|
Chip 8
|
A
|
1 | 0 | 99.90 | 99.13 | 1.28 | 67.3 | 216.5 | 1 | 0/0 | 0 | 2134 | 164 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.05 | 1.13 | 65.5 | 198.6 | 0 | 0/0 | 0 | 2190 | 161 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.89 | 99.22 | 0.88 | 65.7 | 204.8 | 0 | 0/0 | 0 | 2175 | 158 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.85 | 98.93 | 0.78 | 51.7 | 159.9 | 0 | 0/0 | 0 | 2106 | 157 | 0 |
|
Chip 12
|
A
|
2 | 0 | 99.88 | 99.22 | 1.02 | 50.8 | 152.9 | 0 | 0/0 | 0 | 2064 | 155 | 2 |
|
Chip 13
|
A
|
0 | 0 | 99.84 | 99.07 | 0.53 | 31.6 | 97.0 | 0 | 0/0 | 0 | 2030 | 160 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.88 | 99.12 | 0.51 | 32.9 | 100.9 | 0 | 0/0 | 0 | 2001 | 158 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.86 | 98.95 | 0.35 | 33.0 | 99.7 | 0 | 0/0 | 0 | 2006 | 154 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-22 | |
| TestTime | Test Time | 17:23 | |
| TestDuration | Duration | 1:35:18 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 95587 | |
| nWarnings | # Warnings | 436382 | |
| channel_0_count | Channel 0 | 5 | |
| channel_1_count | Channel 1 | 435607 | |
| channel_2_count | Channel 2 | 5 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 92351 | |
| message_readback_count | Readback start marker | 343266 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
