Test Date: 2016-08-23 09:37
Analysis date: 2016-08-23 11:22
Analysis date: 2016-08-23 11:22
M2291 XRayHRQualification
Summary
| Module | Module | M2291 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 52 | |
| BumpBondingDefects | Bump Bonding Defects | 7 | |
| NoisyPixels | Noisy Pixels | 12 | |
| HotPixelDefects | Hot Pixels | 23 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.16 | % |
| Noise | Mean Noise | 170 | e- |

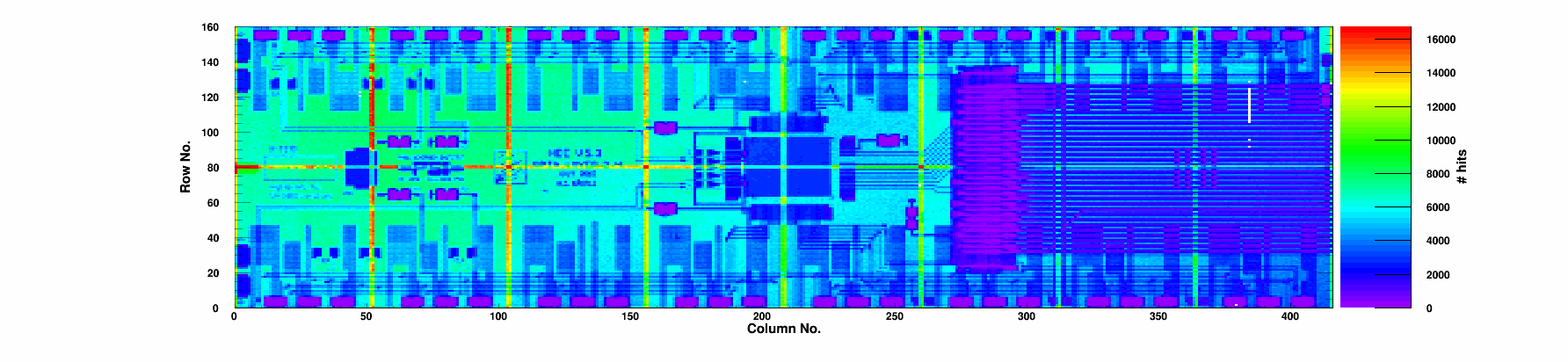

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
46 | 0 | 99.83 | 99.04 | 10.6 | 23.9 | 72.7 | 1 | 0/0 | 0 | 1402 | 166 | 12 |
|
Chip 1
|
A
|
0 | 0 | 99.83 | 98.93 | 0.6 | 26.9 | 81.6 | 0 | 0/0 | 0 | 1959 | 184 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.24 | 0.41 | 23.6 | 72.9 | 0 | 0/0 | 0 | 1931 | 176 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.86 | 99.07 | 0.71 | 35.7 | 108.1 | 0 | 0/0 | 0 | 2047 | 160 | 0 |
|
Chip 4
|
A
|
1 | 0 | 99.86 | 99.25 | 0.44 | 42.7 | 128.7 | 1 | 0/0 | 0 | 2042 | 167 | 0 |
|
Chip 5
|
A
|
1 | 0 | 99.85 | 99.31 | 0.8 | 53.0 | 156.2 | 1 | 0/0 | 0 | 2128 | 168 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.87 | 99.30 | 0.69 | 52.9 | 157.1 | 0 | 0/0 | 0 | 2134 | 173 | 0 |
|
Chip 7
|
A
|
2 | 0 | 99.87 | 99.24 | 0.78 | 51.5 | 154.2 | 2 | 0/0 | 0 | 2108 | 165 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.86 | 99.26 | 0.69 | 47.7 | 142.8 | 0 | 0/0 | 0 | 2095 | 174 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.86 | 99.28 | 0.65 | 48.3 | 144.2 | 0 | 0/0 | 0 | 2121 | 172 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.87 | 99.27 | 0.59 | 45.3 | 134.8 | 0 | 0/0 | 0 | 2068 | 163 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.84 | 98.97 | 0.77 | 38.9 | 117.4 | 0 | 0/0 | 0 | 2074 | 179 | 0 |
|
Chip 12
|
A
|
1 | 0 | 99.85 | 99.23 | 0.59 | 35.0 | 105.8 | 1 | 0/0 | 0 | 2034 | 170 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.82 | 98.94 | 0.65 | 20.8 | 64.6 | 0 | 0/0 | 0 | 1950 | 168 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 98.97 | 0.7 | 22.1 | 68.0 | 0 | 0/0 | 0 | 1949 | 173 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.87 | 99.24 | 0.32 | 20.6 | 63.2 | 1 | 0/0 | 0 | 1953 | 162 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-23 | |
| TestTime | Test Time | 09:37 | |
| TestDuration | Duration | 1:32:30 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
