Test Date: 2016-08-10 11:12
Analysis date: 2016-08-10 13:28
Analysis date: 2016-08-10 13:28
M2287 XRayHRQualification
Summary
| Module | Module | M2287 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 49 | |
| BumpBondingDefects | Bump Bonding Defects | 40 | |
| NoisyPixels | Noisy Pixels | 8 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.85/99.15 | % |
| Noise | Mean Noise | 163 | e- |

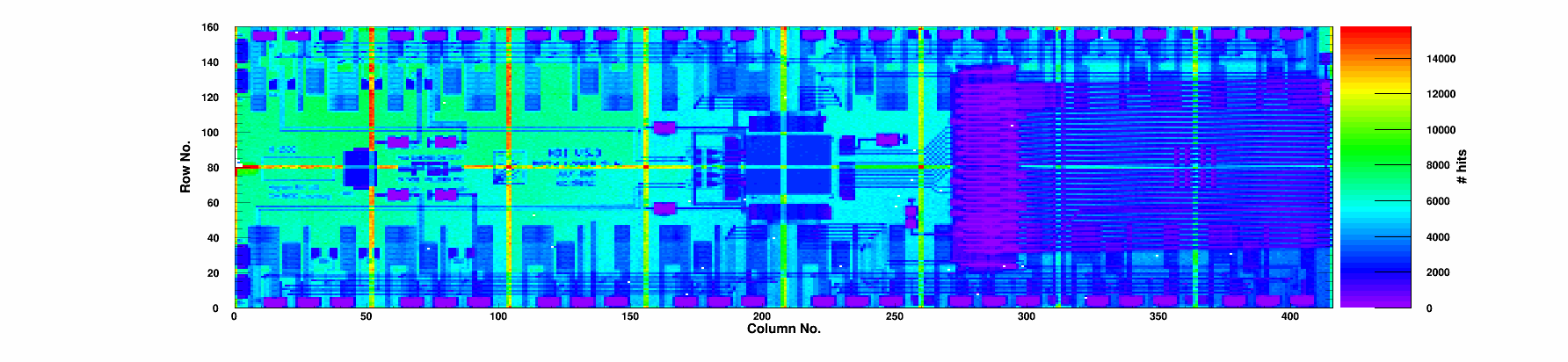

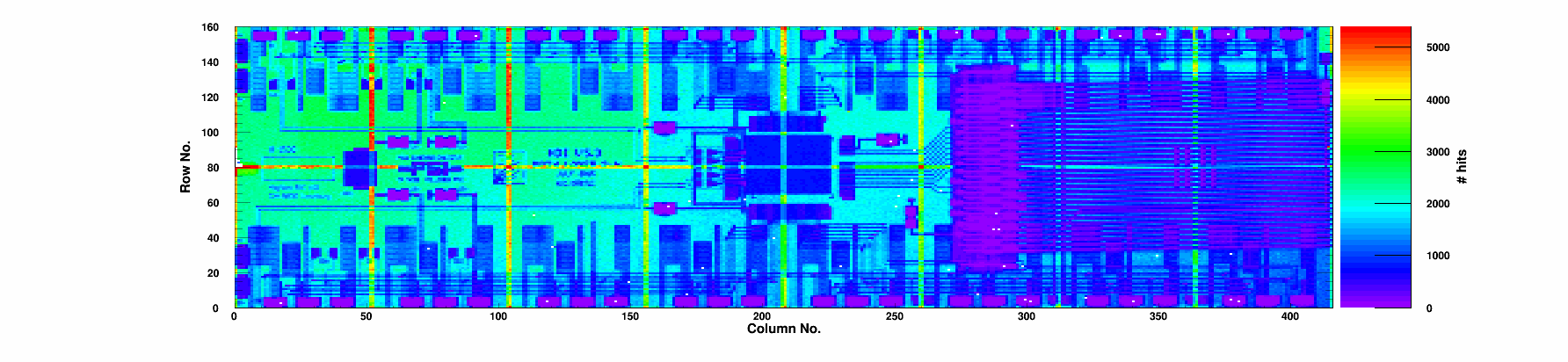

Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
2 | 0 | 99.85 | 99.24 | 0.52 | 22.6 | 68.3 | 0 | 0/0 | 0 | 1959 | 172 | 2 |
|
Chip 1
|
A
|
1 | 0 | 99.84 | 98.93 | 0.61 | 24.1 | 73.3 | 1 | 0/0 | 0 | 1964 | 166 | 0 |
|
Chip 2
|
A
|
1 | 0 | 99.83 | 98.97 | 0.51 | 21.1 | 65.4 | 1 | 0/0 | 0 | 1940 | 167 | 0 |
|
Chip 3
|
A
|
2 | 0 | 99.86 | 99.27 | 0.67 | 37.4 | 111.7 | 2 | 0/0 | 0 | 2089 | 171 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.85 | 99.16 | 0.54 | 35.2 | 106.2 | 0 | 0/0 | 0 | 2030 | 157 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.87 | 99.30 | 0.66 | 50.0 | 145.9 | 0 | 0/0 | 0 | 2139 | 166 | 0 |
|
Chip 6
|
A
|
1 | 0 | 99.87 | 99.28 | 0.82 | 47.7 | 140.2 | 1 | 0/0 | 0 | 2112 | 161 | 0 |
|
Chip 7
|
A
|
18 | 0 | 99.86 | 99.20 | 2.05 | 51.2 | 150.1 | 16 | 0/0 | 0 | 2069 | 157 | 2 |
|
Chip 8
|
A
|
0 | 0 | 99.87 | 99.28 | 0.68 | 44.3 | 131.4 | 0 | 0/0 | 0 | 2094 | 162 | 0 |
|
Chip 9
|
A
|
2 | 0 | 99.86 | 99.28 | 0.66 | 40.0 | 118.9 | 2 | 0/0 | 0 | 2059 | 157 | 0 |
|
Chip 10
|
A
|
4 | 0 | 99.84 | 99.23 | 2.6 | 43.7 | 128.2 | 2 | 0/0 | 0 | 2046 | 161 | 1 |
|
Chip 11
|
A
|
5 | 0 | 99.87 | 99.29 | 0.48 | 33.0 | 100.1 | 5 | 0/0 | 0 | 2025 | 170 | 0 |
|
Chip 12
|
A
|
4 | 0 | 99.82 | 98.99 | 0.57 | 33.0 | 99.6 | 3 | 0/0 | 0 | 1998 | 170 | 1 |
|
Chip 13
|
A
|
6 | 0 | 99.82 | 98.96 | 0.55 | 18.0 | 55.8 | 4 | 0/0 | 0 | 1897 | 153 | 2 |
|
Chip 14
|
A
|
2 | 0 | 99.87 | 99.06 | 0.46 | 19.6 | 60.5 | 2 | 0/0 | 0 | 1927 | 161 | 0 |
|
Chip 15
|
A
|
1 | 0 | 99.85 | 98.98 | 0.34 | 18.8 | 57.6 | 1 | 0/0 | 0 | 1934 | 155 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-10 | |
| TestTime | Test Time | 11:12 | |
| TestDuration | Duration | 1:32:15 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 9 | |
| nWarnings | # Warnings | 5 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 5 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 | |
| message_eventid_count | Event ID mismatch | 1 | |
| message_readback_count | Readback start marker | 4 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
