Test Date: 2016-08-10 08:59
Analysis date: 2016-08-10 11:25
Analysis date: 2016-08-10 11:25
M2285 XRayHRQualification
Summary
| Module | Module | M2285 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 2 | |
| BumpBondingDefects | Bump Bonding Defects | 1 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

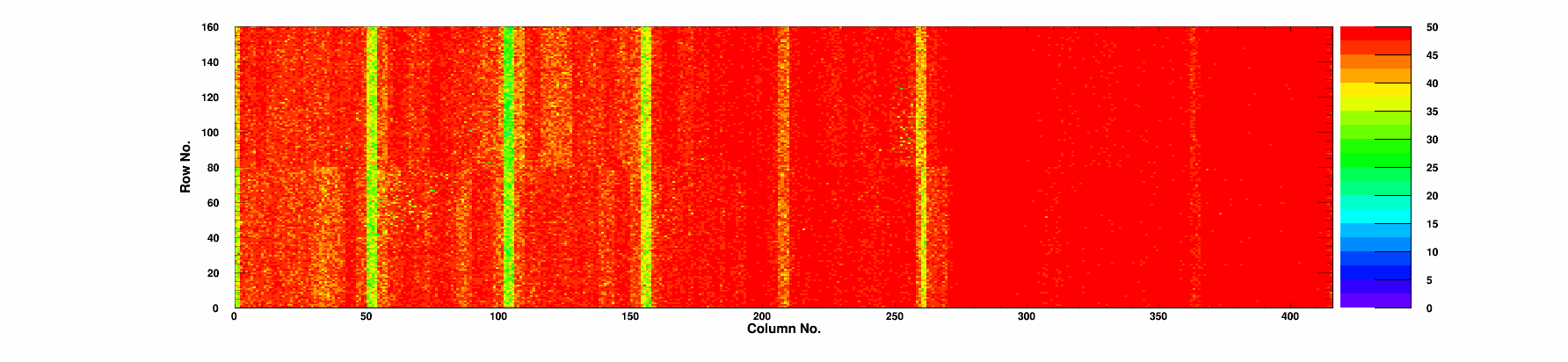

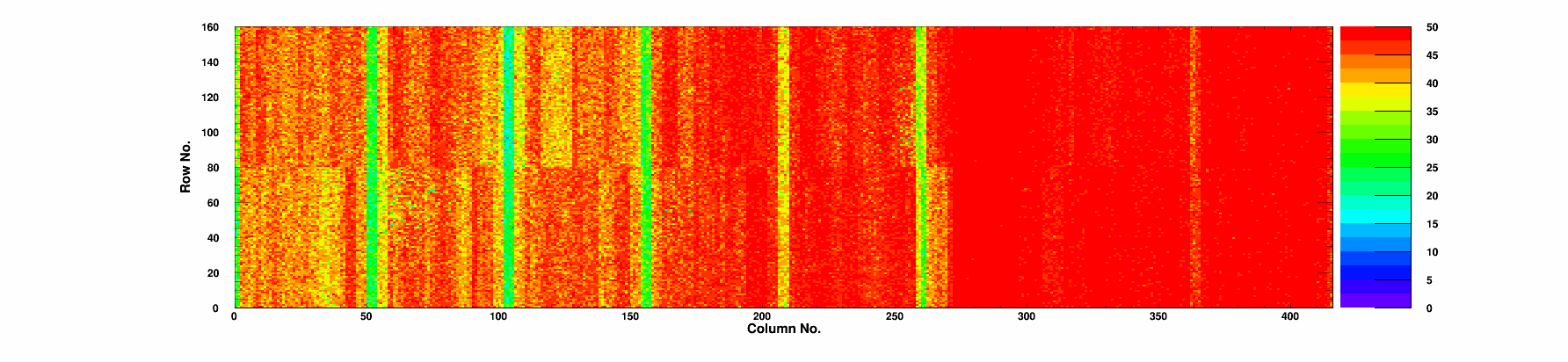

| Efficiency | Efficiency 50/120 | 99.86/99.24 | % |

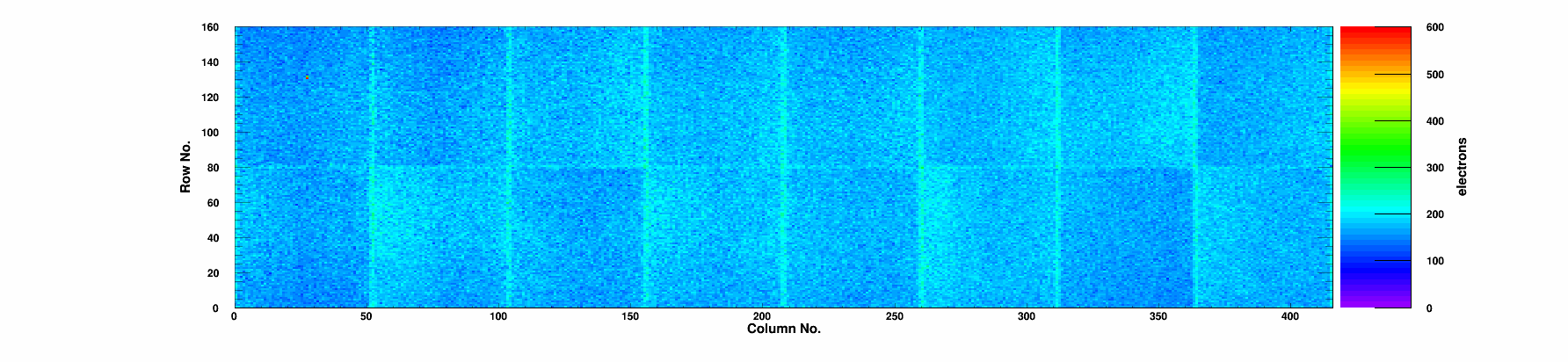

| Noise | Mean Noise | 173 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
1 | 0 | 99.87 | 99.27 | 0.42 | 27.9 | 83.5 | 1 | 0/0 | 0 | 1987 | 171 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.82 | 98.99 | 0.8 | 31.8 | 95.1 | 0 | 0/0 | 0 | 2001 | 180 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.87 | 99.27 | 0.54 | 27.9 | 84.3 | 0 | 0/0 | 0 | 1994 | 177 | 0 |
|
Chip 3
|
A
|
0 | 0 | 99.87 | 99.25 | 0.95 | 50.7 | 147.8 | 0 | 0/0 | 0 | 2150 | 175 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.87 | 99.28 | 0.5 | 50.7 | 148.8 | 0 | 0/0 | 0 | 2129 | 175 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.83 | 99.26 | 0.67 | 70.7 | 203.6 | 0 | 0/0 | 0 | 2270 | 178 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.86 | 99.31 | 0.76 | 66.1 | 191.3 | 0 | 0/0 | 0 | 2242 | 166 | 0 |
|
Chip 7
|
A
|
1 | 0 | 99.85 | 99.34 | 0.67 | 65.8 | 189.4 | 0 | 0/0 | 0 | 2222 | 162 | 1 |
|
Chip 8
|
A
|
0 | 0 | 99.85 | 99.25 | 0.69 | 69.5 | 202.3 | 0 | 0/0 | 0 | 2236 | 166 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.88 | 99.23 | 1.33 | 67.5 | 195.2 | 0 | 0/0 | 0 | 2246 | 180 | 0 |
|
Chip 10
|
A
|
0 | 0 | 99.88 | 99.30 | 0.61 | 65.5 | 186.8 | 0 | 0/0 | 0 | 2209 | 170 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.87 | 99.27 | 0.67 | 53.6 | 157.7 | 0 | 0/0 | 0 | 2159 | 179 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.86 | 99.33 | 0.42 | 47.0 | 138.9 | 0 | 0/0 | 0 | 2125 | 173 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.82 | 99.00 | 0.65 | 30.7 | 92.9 | 0 | 0/0 | 0 | 2041 | 181 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.85 | 99.18 | 0.66 | 29.9 | 90.0 | 0 | 0/0 | 0 | 2009 | 164 | 0 |
|
Chip 15
|
A
|
0 | 0 | 99.88 | 99.29 | 0.5 | 30.3 | 90.4 | 0 | 0/0 | 0 | 2010 | 175 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-08-10 | |
| TestTime | Test Time | 08:59 | |
| TestDuration | Duration | 1:33:13 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.2-10-gbc52a17 on branch psi46master
