Test Date: 2016-07-25 09:53
Analysis date: 2016-07-25 11:45
X-ray Calibration - Spectrum
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
| avrgSlope |
avrg Slope |
46.9935 |
|
| medianSlope |
median Slope |
47.006 |
|
| minSlope |
min Slope |
44.394 |
|
| maxSlope |
max Slope |
49.806 |
|
Offset of Spectrum Vcal Calibration
| avrgOffset |
avrg Offset |
-19.7089375 |
|
| medianOffset |
median Offset |
-27.9705 |
|
| minOffset |
min Offset |
-150.326 |
|
| maxOffset |
max Offset |
153.09 |
|
Chi2 of Spectrum Vcal Calibration
| avrgchi2 |
avrg chi2 |
3.50526666667 |
|
| medianchi2 |
median chi2 |
1.633 |
|
| minchi2 |
min chi2 |
0.001 |
|
| maxchi2 |
max chi2 |
16.931 |
|
Vcal Calibration Module - Spectrum
|
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
|
0
|
44.4 e- / Vcal
|
0.1 e- / Vcal
|
68.8 e-
|
7.1 e-
|
|
1
|
45.4 e- / Vcal
|
0.1 e- / Vcal
|
-24.4 e-
|
16.6 e-
|
|
2
|
47.8 e- / Vcal
|
0.2 e- / Vcal
|
41.5 e-
|
20.3 e-
|
|
3
|
47.2 e- / Vcal
|
0.1 e- / Vcal
|
-47.9 e-
|
17.0 e-
|
|
4
|
45.2 e- / Vcal
|
0.1 e- / Vcal
|
-150.3 e-
|
17.3 e-
|
|
5
|
45.8 e- / Vcal
|
0.1 e- / Vcal
|
-42.0 e-
|
5.5 e-
|
|
6
|
47.8 e- / Vcal
|
0.1 e- / Vcal
|
-103.5 e-
|
6.3 e-
|
|
7
|
46.8 e- / Vcal
|
0.2 e- / Vcal
|
153.1 e-
|
18.1 e-
|
|
8
|
46.3 e- / Vcal
|
0.1 e- / Vcal
|
-139.7 e-
|
16.5 e-
|
|
9
|
49.8 e- / Vcal
|
0.1 e- / Vcal
|
-74.8 e-
|
15.7 e-
|
|
10
|
46.1 e- / Vcal
|
0.1 e- / Vcal
|
45.1 e-
|
15.3 e-
|
|
11
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-13.1 e-
|
7.8 e-
|
|
12
|
46.8 e- / Vcal
|
0.1 e- / Vcal
|
132.9 e-
|
7.3 e-
|
|
13
|
47.6 e- / Vcal
|
0.2 e- / Vcal
|
-31.5 e-
|
26.7 e-
|
|
14
|
48.2 e- / Vcal
|
0.2 e- / Vcal
|
-143.5 e-
|
18.5 e-
|
|
15
|
48.3 e- / Vcal
|
0.2 e- / Vcal
|
13.9 e-
|
18.5 e-
|
|
Average
|
47.0 e- / Vcal
|
|
-19.7 e-
|
|
|
Median
|
93.1 e- / Vcal
|
|
13.4 e-
|
|
Overview

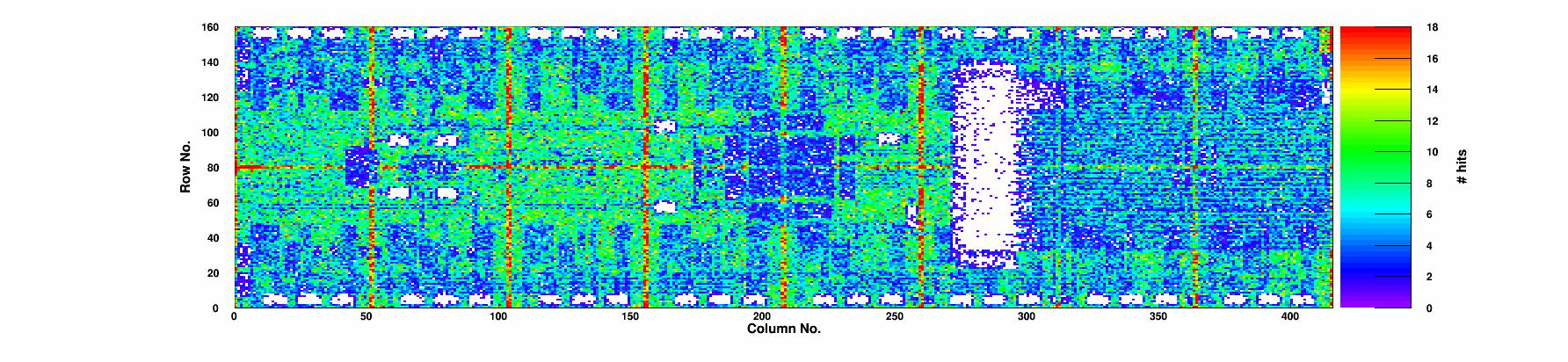

Xray Module Spectrum - Zn
Overview

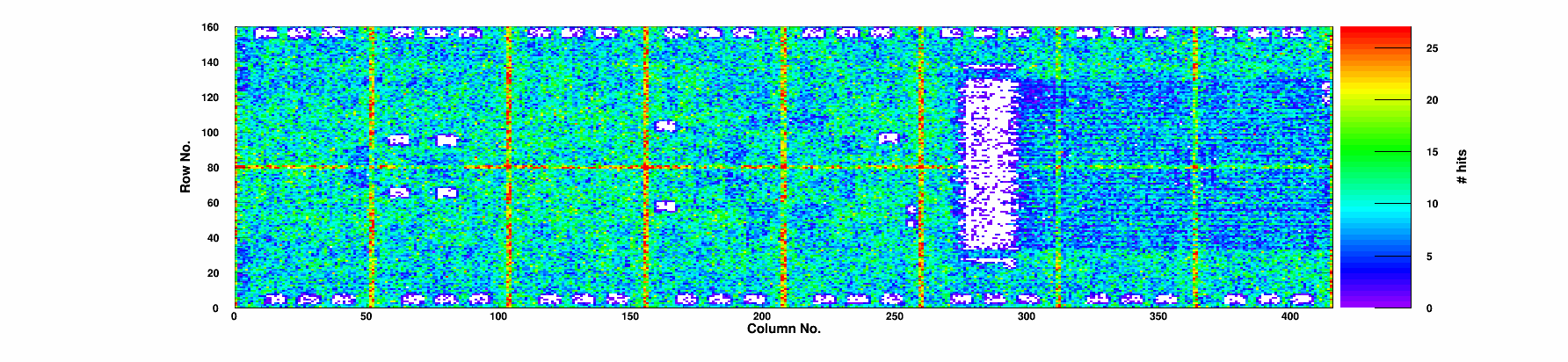

Xray Module Spectrum - Mo
Overview

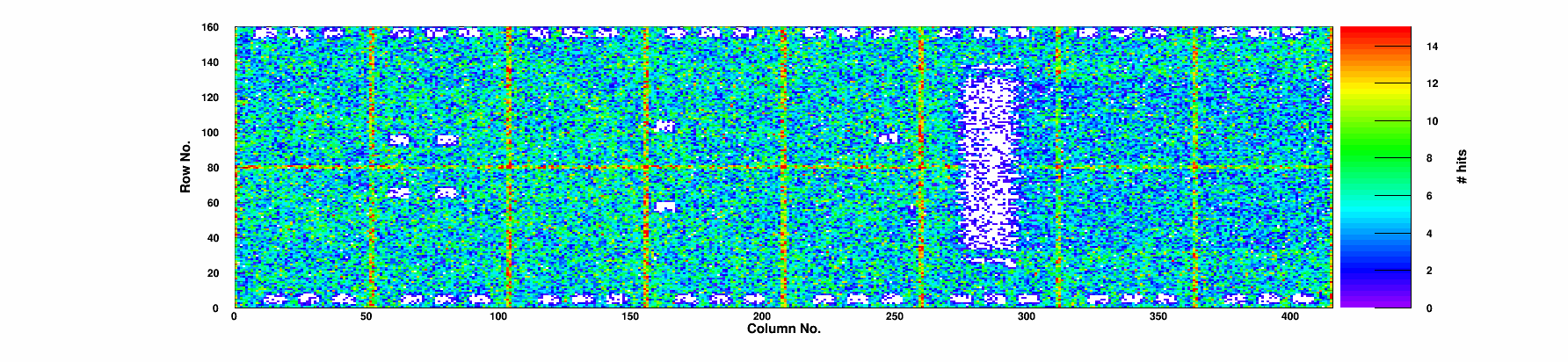

Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
