Test Date: 2016-06-29 10:04
Analysis date: 2016-06-29 11:57
Analysis date: 2016-06-29 11:57
M2262 XRayHRQualification
Summary
| Module | Module | M2262 | |
| Grade | Grade | B | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 15/1/0 | |
| PixelDefects | Total Pixel Defects | 317 | |

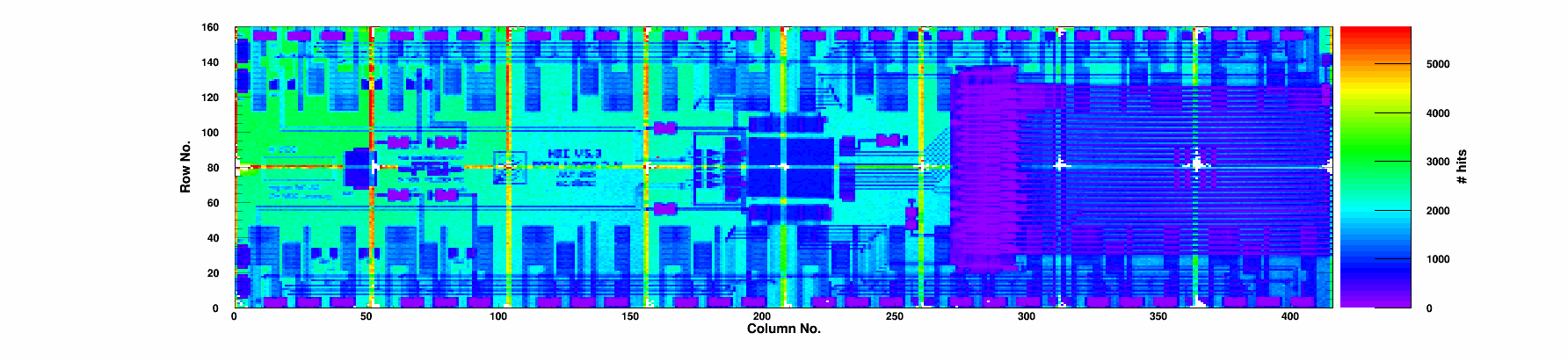

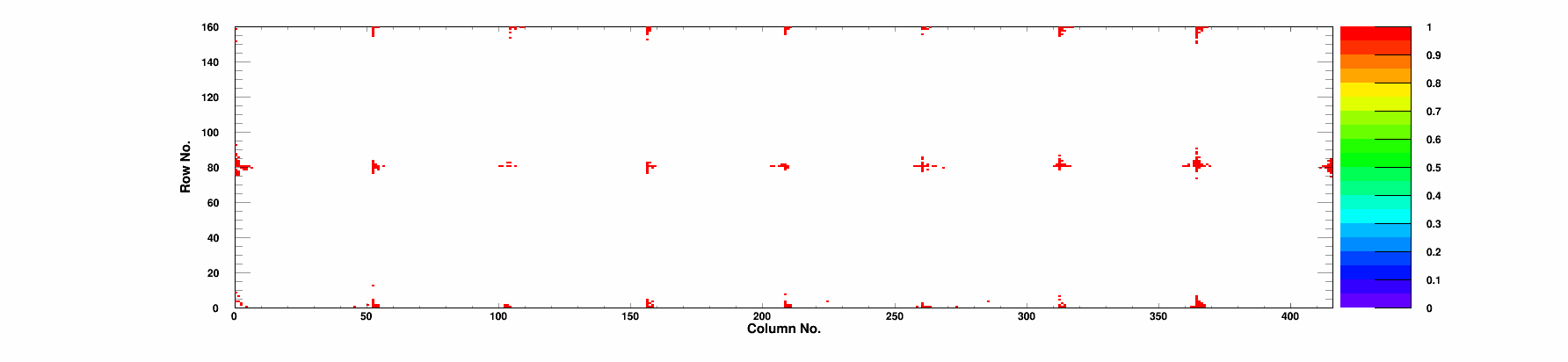

| BumpBondingDefects | Bump Bonding Defects | 315 | |
| NoisyPixels | Noisy Pixels | 1 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |

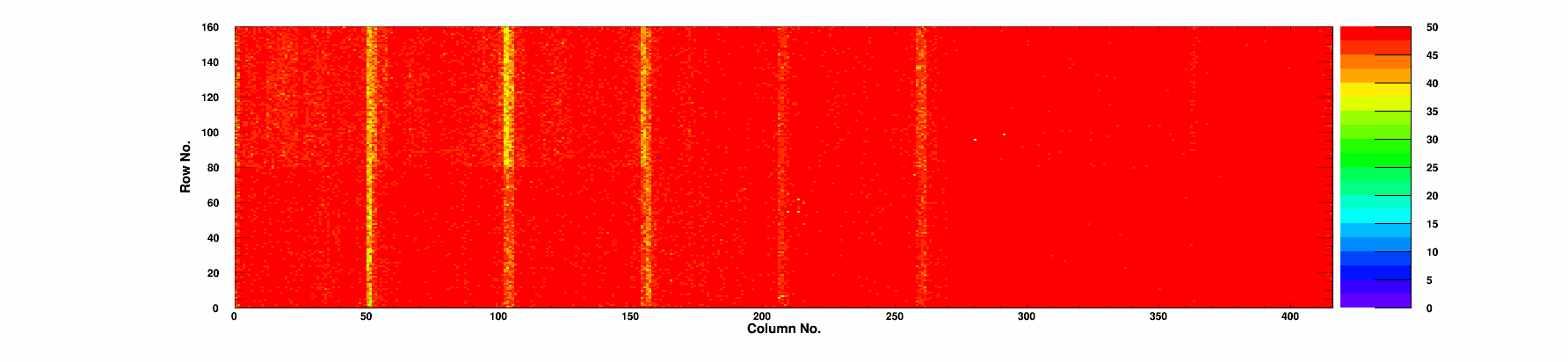

| Efficiency | Efficiency 50/120 | 99.88/99.30 | % |

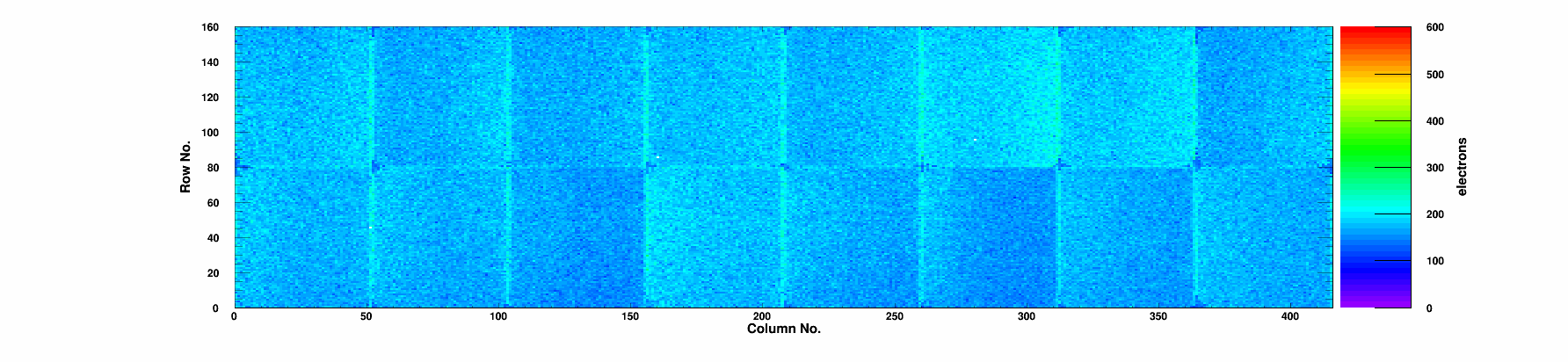

| Noise | Mean Noise | 174 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "150" | BB def | Rate "50" | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
B
|
46 | 0 | 99.86 | 99.12 | 0.52 | 69.1 | 46 | 23.1 | 0/0 | 0 | 1931 | 171 | 0 |
|
Chip 1
|
A
|
35 | 0 | 99.86 | 99.14 | 0.62 | 80.9 | 35 | 26.9 | 0/0 | 0 | 1948 | 185 | 0 |
|
Chip 2
|
A
|
21 | 0 | 99.87 | 99.39 | 0.41 | 74.9 | 20 | 24.6 | 0/0 | 0 | 1892 | 191 | 1 |
|
Chip 3
|
A
|
14 | 0 | 99.89 | 99.39 | 0.62 | 114.6 | 14 | 39.3 | 0/0 | 0 | 2042 | 175 | 0 |
|
Chip 4
|
A
|
22 | 0 | 99.87 | 99.43 | 1.35 | 127.7 | 21 | 43.7 | 0/0 | 0 | 2073 | 179 | 0 |
|
Chip 5
|
A
|
12 | 0 | 99.89 | 99.18 | 0.95 | 137.6 | 12 | 47.7 | 0/0 | 0 | 2112 | 170 | 0 |
|
Chip 6
|
A
|
20 | 0 | 99.86 | 99.12 | 0.83 | 141.3 | 20 | 48.8 | 0/0 | 0 | 2123 | 173 | 0 |
|
Chip 7
|
A
|
19 | 0 | 99.89 | 99.40 | 0.53 | 169.3 | 19 | 58.1 | 0/0 | 0 | 2165 | 178 | 0 |
|
Chip 8
|
A
|
23 | 0 | 99.90 | 99.47 | 0.6 | 139.7 | 23 | 48.1 | 0/0 | 0 | 2128 | 174 | 0 |
|
Chip 9
|
A
|
21 | 0 | 99.87 | 99.44 | 0.4 | 129.6 | 21 | 44.5 | 0/0 | 0 | 2099 | 172 | 0 |
|
Chip 10
|
A
|
1 | 0 | 99.88 | 99.38 | 0.47 | 124.7 | 1 | 42.7 | 0/0 | 0 | 2062 | 160 | 0 |
|
Chip 11
|
A
|
15 | 0 | 99.88 | 99.09 | 0.8 | 115.2 | 15 | 39.0 | 0/0 | 0 | 2051 | 181 | 0 |
|
Chip 12
|
A
|
13 | 0 | 99.88 | 99.34 | 0.76 | 104.7 | 13 | 35.5 | 0/0 | 0 | 2019 | 169 | 0 |
|
Chip 13
|
A
|
12 | 0 | 99.86 | 99.15 | 0.43 | 57.9 | 12 | 18.8 | 0/0 | 0 | 1923 | 161 | 0 |
|
Chip 14
|
A
|
12 | 0 | 99.88 | 99.34 | 0.32 | 64.2 | 12 | 21.1 | 0/0 | 0 | 1932 | 167 | 0 |
|
Chip 15
|
A
|
31 | 0 | 99.88 | 99.38 | 0.29 | 62.7 | 31 | 20.7 | 0/0 | 0 | 1931 | 171 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-29 | |
| TestTime | Test Time | 10:04 | |
| TestDuration | Duration | 1:22:20 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.1-7-g5388ca4 on branch psi46master
