Test Date: 2016-06-16 14:58
Analysis date: 2016-06-16 16:35
Analysis date: 2016-06-16 16:35
M2258 XRayHRQualification
Summary
| Module | Module | M2258 | |
| Grade | Grade | A | |
| ManualGrade | Manual Grade | None | |
| ROCGrades | ROC Grades A/B/C | 16/0/0 | |
| PixelDefects | Total Pixel Defects | 5 | |
| BumpBondingDefects | Bump Bonding Defects | 4 | |
| NoisyPixels | Noisy Pixels | 0 | |
| HotPixelDefects | Hot Pixels | 0 | |
| ROCsWithReadoutProblems | ROCs with r/o problems | 0 | |
| ROCsWithUniformityProblems | ROCs with unif problems | 0 | |
| Efficiency | Efficiency 50/120 | 99.87/99.26 | % |

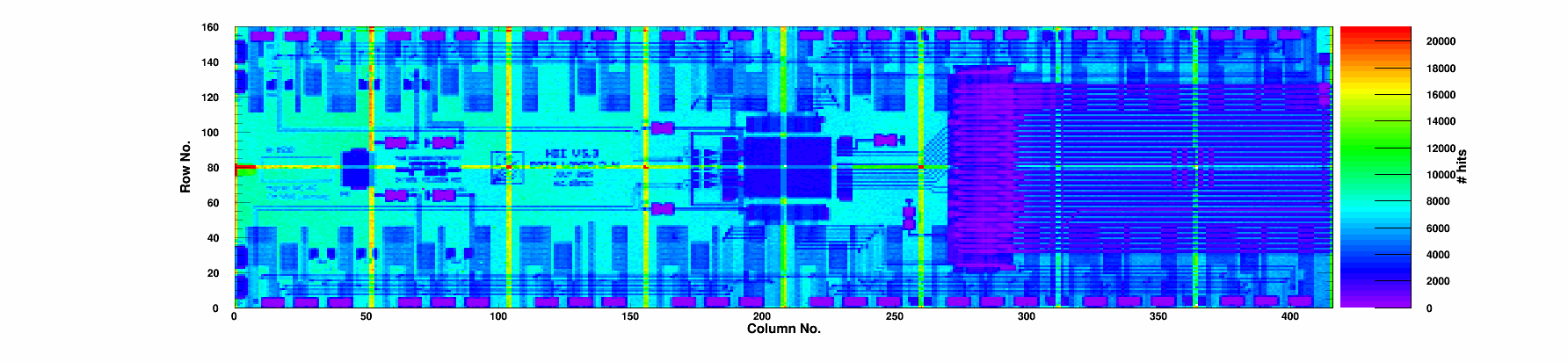

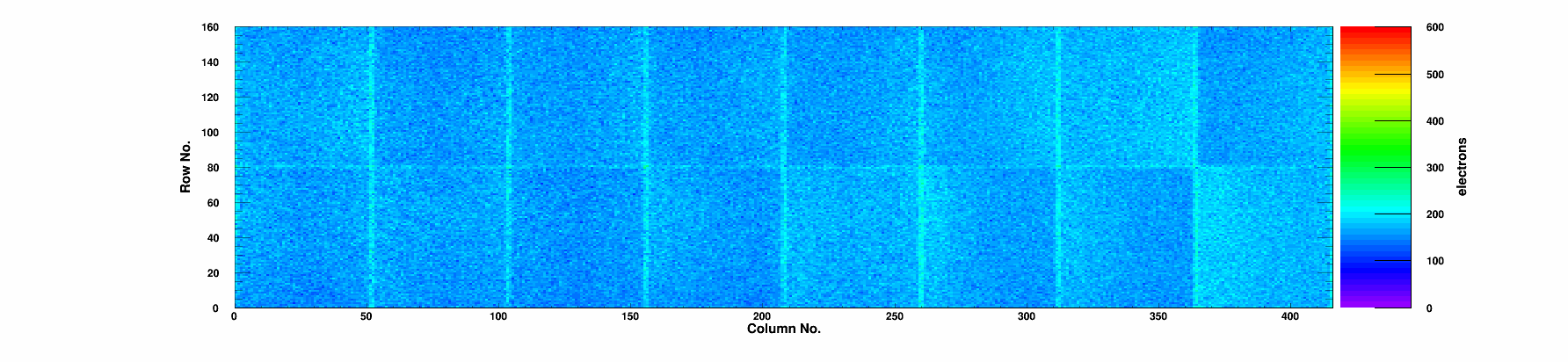

| Noise | Mean Noise | 166 | e- |
Summary ROCs
| ROC | Grade | Def | DC | Eff 50 | Eff 120 | Eff chi2 | Rate "50" | Rate "150" | BB def | R/O | Unif. | Thr [e-] "100" | Noise "100" | Noisy pix |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
Chip 0
|
A
|
0 | 0 | 99.86 | 99.17 | 0.63 | 30.2 | 90.3 | 0 | 0/0 | 0 | 1987 | 166 | 0 |
|
Chip 1
|
A
|
0 | 0 | 99.88 | 99.25 | 0.52 | 31.9 | 95.6 | 0 | 0/0 | 0 | 2005 | 177 | 0 |
|
Chip 2
|
A
|
0 | 0 | 99.86 | 99.25 | 0.6 | 28.4 | 86.7 | 0 | 0/0 | 0 | 1984 | 169 | 0 |
|
Chip 3
|
A
|
1 | 0 | 99.89 | 99.37 | 0.52 | 48.6 | 140.5 | 1 | 0/0 | 0 | 2139 | 163 | 0 |
|
Chip 4
|
A
|
0 | 0 | 99.88 | 99.37 | 0.51 | 48.2 | 141.6 | 0 | 0/0 | 0 | 2108 | 162 | 0 |
|
Chip 5
|
A
|
0 | 0 | 99.88 | 99.33 | 0.8 | 59.3 | 171.6 | 0 | 0/0 | 0 | 2153 | 162 | 0 |
|
Chip 6
|
A
|
0 | 0 | 99.88 | 99.27 | 0.81 | 56.5 | 164.4 | 0 | 0/0 | 0 | 2156 | 159 | 0 |
|
Chip 7
|
A
|
0 | 0 | 99.89 | 99.39 | 0.43 | 61.3 | 178.6 | 0 | 0/0 | 0 | 2178 | 168 | 0 |
|
Chip 8
|
A
|
0 | 0 | 99.89 | 99.34 | 0.57 | 60.6 | 175.6 | 0 | 0/0 | 0 | 2197 | 161 | 0 |
|
Chip 9
|
A
|
0 | 0 | 99.87 | 99.29 | 0.63 | 53.7 | 155.7 | 0 | 0/0 | 0 | 2115 | 163 | 0 |
|
Chip 10
|
A
|
2 | 0 | 99.87 | 99.32 | 1.14 | 59.8 | 170.0 | 1 | 0/0 | 0 | 2183 | 157 | 0 |
|
Chip 11
|
A
|
0 | 0 | 99.88 | 99.32 | 0.77 | 46.9 | 138.0 | 0 | 0/0 | 0 | 2107 | 161 | 0 |
|
Chip 12
|
A
|
0 | 0 | 99.88 | 99.37 | 0.48 | 47.4 | 138.8 | 0 | 0/0 | 0 | 2094 | 171 | 0 |
|
Chip 13
|
A
|
0 | 0 | 99.83 | 99.08 | 0.58 | 26.9 | 82.6 | 0 | 0/0 | 0 | 1981 | 166 | 0 |
|
Chip 14
|
A
|
0 | 0 | 99.84 | 99.03 | 0.45 | 28.6 | 86.8 | 0 | 0/0 | 0 | 1985 | 166 | 0 |
|
Chip 15
|
A
|
2 | 0 | 99.85 | 99.05 | 0.76 | 31.5 | 93.6 | 2 | 0/0 | 0 | 1972 | 178 | 0 |
Setup
| TestCenter | Test Center | ETHZ | |
| TestDate | Test Date | 2016-06-16 | |
| TestTime | Test Time | 14:58 | |
| TestDuration | Duration | 1:26:58 | |
| pXar | pXar version | v2.7.5+30~g833b08f | |
| DTB_FW | DTB FW | 4.6 |
Errors
| nCriticals | # Criticals | 0 | |
| nErrors | # Errors | 0 | |
| nWarnings | # Warnings | 0 | |
| channel_0_count | Channel 0 | 0 | |
| channel_1_count | Channel 1 | 0 | |
| channel_2_count | Channel 2 | 0 | |
| channel_3_count | Channel 3 | 0 |
MoReWeb-v1.0.0-5-g82d9ff6 on branch psi46master
