Test Date: 2016-06-10 13:39
Analysis date: 2016-06-10 15:24
X-ray Calibration - Spectrum
Slope |
avrg Slope |
46.6559375 |
|
Chips_Xray
Overview
Slope of Spectrum Vcal Calibration
avrgSlope |
avrg Slope |
46.6559375 |
|
medianSlope |
median Slope |
46.65 |
|
minSlope |
min Slope |
44.751 |
|
maxSlope |
max Slope |
50.111 |
|
Offset of Spectrum Vcal Calibration
avrgOffset |
avrg Offset |
-75.5621875 |
|
medianOffset |
median Offset |
-73.378 |
|
minOffset |
min Offset |
-246.087 |
|
maxOffset |
max Offset |
81.703 |
|
Chi2 of Spectrum Vcal Calibration
avrgchi2 |
avrg chi2 |
2.6244375 |
|
medianchi2 |
median chi2 |
1.011 |
|
minchi2 |
min chi2 |
0.009 |
|
maxchi2 |
max chi2 |
9.675 |
|
Vcal Calibration Module - Spectrum
ROC
|
Slope
|
Slope Error
|
Offset
|
Offset Error
|
0
|
47.2 e- / Vcal
|
0.1 e- / Vcal
|
30.5 e-
|
6.7 e-
|
1
|
46.2 e- / Vcal
|
0.1 e- / Vcal
|
-83.5 e-
|
17.0 e-
|
2
|
50.1 e- / Vcal
|
0.2 e- / Vcal
|
-123.0 e-
|
19.2 e-
|
3
|
44.9 e- / Vcal
|
0.1 e- / Vcal
|
-63.2 e-
|
17.5 e-
|
4
|
46.5 e- / Vcal
|
0.1 e- / Vcal
|
-246.1 e-
|
14.9 e-
|
5
|
44.9 e- / Vcal
|
0.1 e- / Vcal
|
-115.4 e-
|
6.0 e-
|
6
|
46.7 e- / Vcal
|
0.1 e- / Vcal
|
-26.1 e-
|
15.8 e-
|
7
|
46.7 e- / Vcal
|
0.1 e- / Vcal
|
-58.4 e-
|
15.8 e-
|
8
|
45.4 e- / Vcal
|
0.1 e- / Vcal
|
-53.4 e-
|
6.0 e-
|
9
|
47.6 e- / Vcal
|
0.1 e- / Vcal
|
-92.2 e-
|
5.1 e-
|
10
|
48.2 e- / Vcal
|
0.1 e- / Vcal
|
-49.1 e-
|
14.4 e-
|
11
|
46.7 e- / Vcal
|
0.1 e- / Vcal
|
-92.7 e-
|
16.0 e-
|
12
|
45.4 e- / Vcal
|
0.1 e- / Vcal
|
-129.6 e-
|
7.5 e-
|
13
|
48.6 e- / Vcal
|
0.1 e- / Vcal
|
-22.7 e-
|
7.9 e-
|
14
|
44.8 e- / Vcal
|
0.1 e- / Vcal
|
81.7 e-
|
5.7 e-
|
15
|
46.6 e- / Vcal
|
0.1 e- / Vcal
|
-165.8 e-
|
16.7 e-
|
Average
|
46.7 e- / Vcal
|
|
-75.6 e-
|
|
Median
|
92.1 e- / Vcal
|
|
-111.7 e-
|
|
Overview

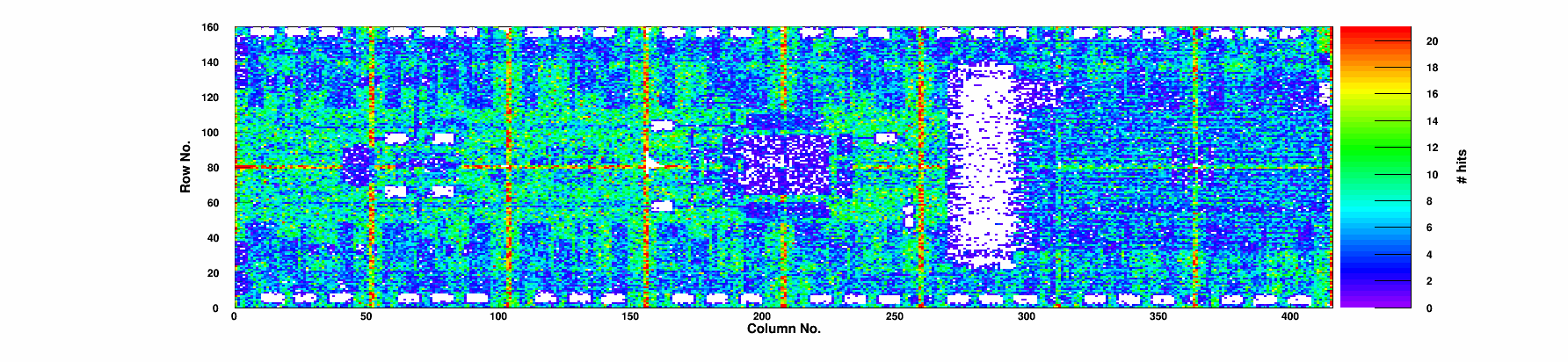

Xray Module Spectrum - Zn
Overview

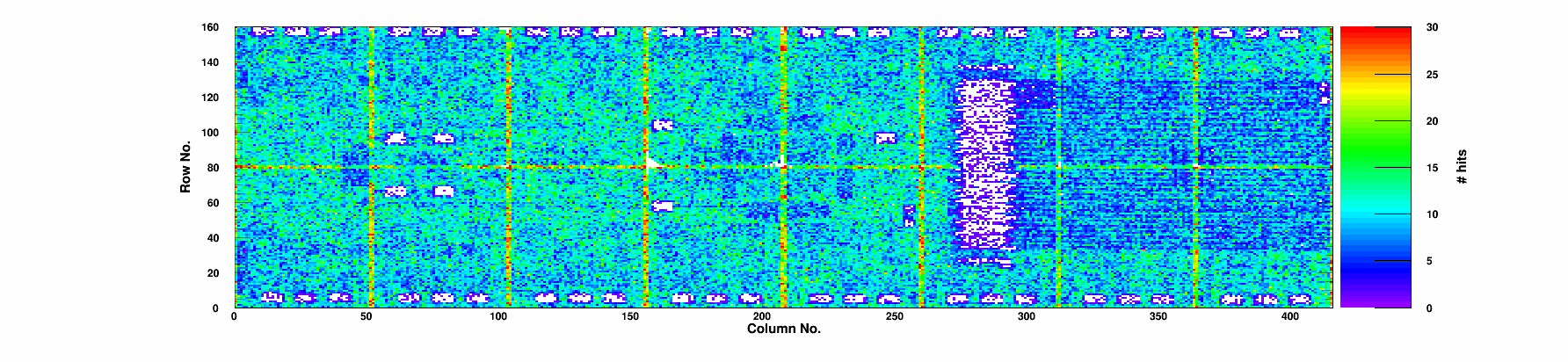

Xray Module Spectrum - Mo
Overview

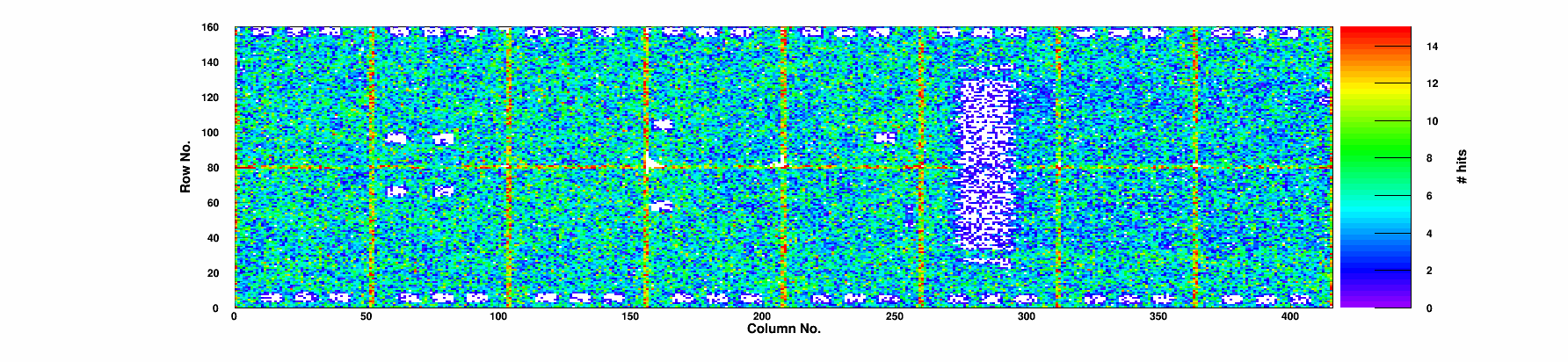

Xray Module Spectrum - Ag
Overview
Xray Module Spectrum - Sn
Overview
Hits distribution Zn inner/edge/corner
Hits distribution Mo inner/edge/corner
Hits distribution Ag inner/edge/corner
Hits distribution Sn inner/edge/corner
